DIY Bundle: OWC Data Doubler Kit + 2.0TB HDD
OWC 2010 Mac mini Data Doubler Kit, 2.0TB 2.5" 5400RPM Hard Drive and OWC 5 Piece Toolkit

OWC Internal Hard Drive DIY Kit
Everything you need in one package to replace your 2010 Mac mini's internal optical drive with 2.0TB of additional storage space.
Configuration flexibility is yours when you replace your Mac mini's internal SuperDrive with the OWC Data Doubler. Bundle includes bracket, screws, tools, drive, and detailed installation guide for complete all in one solution.

Then, just install the entire assembly into a Mac mini's 5.25" optical drive bay. OWC Data Doubler makes it easy to custom design how you want your internal storage to perform. Installed drives are recognized like any other high speed SATA storage device and can be setup and partitioned using the Apple Disk Utility Program.
Just a few of the configuration options you can enjoy with Data Doubler:
  • Combining a new drive with the existing internal drive for one larger volume (SPAN).
  • Combining a new matching drive with existing internal for high-performance RAID-0 Stripe volume.
  • Configuring a new drive as a Time Machine backup drive.
  • Formatting one drive for the Mac OS and the other dedicated for Windows.

You don't have to give up your optical drive completely if you don't want to. You can reuse the original SuperDrive with the OWC Value Line Slim optical drive enclosure for Apple SuperDrive.
This OWC Data Doubler is compatible with...
Mac mini Intel
Mac mini (Mid 2010)
(June, 2010)
Model ID: Macmini4,1
2.4GHz, 2.66GHz
Mac mini Intel
NOT COMPATIBLE
Mac mini (Mid 2010 Server)
(June, 2010)
Model ID: Macmini4,1
2.66GHz

2.0TB Toshiba L200 Specifications:

Specifications

Form Factor
2.5″ HDD
Interface
SATA 6.0Gb/s
Capacity1
2.0TB
Formatted Capacity2
1863GiB
Rotational Speed
5,400 RPM
Cache / Data Buffer
128MB
Manufacturer Model Number
HDWL120XZSTA
Format

Physical

Height (max)
9.5mm (0.374″)
Width (max)
69.85mm (2.75″)
Length (max)
100.0mm (3.937″)
Weight (typical)
117g (0.257 lbs)
Bytes per Sector
512e / 4096

Reliability3

MTBF (Mean Time Between Failures)
600,000 hours
Nonrecoverable Read Errors
1 per 1014 bits read

Performance

Transfer Rate (Max)
6.0Gb/s

Environmental (Operating)

Shock
400 G max at 2ms
Ambient Temperature (°F)
32°F to 149°F
Ambient Temperature (°C)
0°C to 65°C
Altitude
-304.8 m to 3,048 m (-1,000 ft to 10,000+ ft)

Environmental (Non-Operating)

Shock
1000 G max at 2ms
Ambient Temperature (°F)
-40°F to 149°F
Ambient Temperature (°C)
-40°C to 65°C
Altitude
-304.8 m to 12,192 m (-1000 ft to 40,000+ ft)

Acoustics

Idle (Typical)
2.3 bels
  1. 1GB = 1,000,000,000 bytes. Total accessible capacity varies depending upon operating environment (typically 5-10% less). The actual total capacity will depend on your own defined file settings/preferences.
  2. In terms of standard gigabytes, 1GiB ≈ 1.074GB and refers to the actual formatted capacity of shown under Mac OS 10.5 or earlier and Microsoft Windows OS.
  3. Specific application environments such as temperature and duty cycle will affect the overall reliability rates.

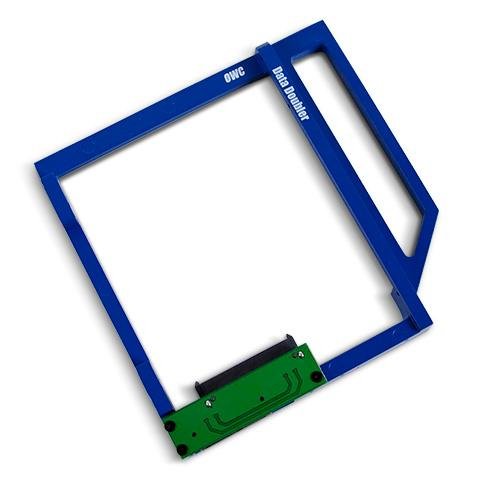

OWC Data Doubler Specs

Drive Interface

  • SATA / SATA 3G / SATA 6G Interface 2.5" Drive or SSD (Solid State Drive) of up to 12.5mm height.

Dimensions

  • 5"(D) x 4"(W) x 0.5"(H)
  • 12.7 x 10.3 x 1.2mm

Weight

  • 2.3oz. / 0.14lbs.
Manufacturer provided specifications for Other World Computing p/n DDMM105K2.0S UPC#: 812437026443

Includes:

Includes bracket, screws, and detailed installation guide for complete all-in-one kit.




  • 1: OWC Data Doubler Bracket

  • 2: Logic Board Removal Tool

  • 3: Screws (2 x Phillips)

  • 4: Toolkit includes everything you need to
    open your Mac and install the Data Doubler.

  • 5: Detailed Installation Guide

  • 6: 2.0TB 5400RPM
