AKiTiO Thunder3 Quad

We're sorry, but this item is no longer for sale. However, there may be more External Drives & Enclosures items available.

AKiTiO Thunder3 Quad

External Thunderbolt 3 Storage Enclosure

Mfr P/N: T3Q-T3DIAS-AKTU OWC SKU: AKT3QT3DIAS

AKiTiO Thunder3 Quad
AKiTiO Thunder3 Quad
AKiTiO Thunder3 Quad
AKiTiO Thunder3 Quad
AKiTiO Thunder3 Quad
AKiTiO Thunder3 Quad
AKiTiO Thunder3 Quad
  • AKiTiO Thunder3 Quad
  • AKiTiO Thunder3 Quad
  • AKiTiO Thunder3 Quad
  • AKiTiO Thunder3 Quad
  • AKiTiO Thunder3 Quad
  • AKiTiO Thunder3 Quad
  • AKiTiO Thunder3 Quad

AKiTiO's High Performance 4-Bay Storage Enclosure

  • Thunderbolt 3 interface for lightning fast transfer speeds up to 40 Gbps
  • Second Thunderbolt 3 port supports Thunderbolt 3, USB 3.1 (10 Gbps), and DisplayPort devices
  • Dedicated DisplayPort for additional monitor to expand the workspace
  • Large and quiet low speed fan (1900 RPM) for active cooling
  • Large handle provides comfortable grip when carrying the device
  • Removable trays for easy SSD and HDD installation
  • Kensington-compatible security slot
  • Includes Thunderbolt cable
  • 1 Year OWC Limited Warranty
Be the first
availability

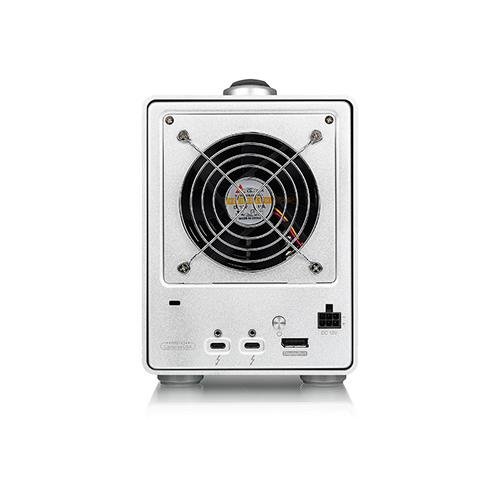

This 4-bay storage enclosure is designed to house up to four 2.5-inch or 3.5-inch drives. With Software RAID, four striped SSD's can reach data transfer speeds of up to 1375 MB per second while the Thunderbolt 3 interface provides sufficient bandwidth for additional 4K video signal streams and data transfers at the same time. An ultra durable aluminum casing provides efficient heat dissipation, plus an extra large rear fan keeps your drives cool during long hours of operation.

Thunderbolt™ 3

Thunderbolt 3 brings Thunderbolt to USB-C at speeds up to 40 Gbps, creating one compact port that does it all - delivering the fastest, most versatile connection to any dock, display, or data device. For the first time, one computer port connects to Thunderbolt devices, every display, and billions of USB devices. A single cable now provides four times the data and twice the video bandwidth of any other cable, while also supplying power to bus-powered devices.
The AKiTiO Thunder3 Quad has two Thunderbolt 3 ports. The second port operates the same as a Thunderbolt 3 computer port by supporting Thunderbolt 3 (up to 5 daisy chained), USB 3.1 (10 Gbps), and DisplayPort devices.

DisplayPort

The dedicated DisplayPort connector makes it easy to connect an additional monitor to extend your workspace and it will free up the second Thunderbolt 3 port for other Thunderbolt 3 (up to 5 daisy chained), USB 3.1 (10 Gbps), and DisplayPort devices.

Removeable trays

Designed to house up to four 2.5-inch or 3.5-inch drives, the tray based system allows for easy installation and replacement of either the large desktop hard disk drives or the portable laptop drives and SSD's.
Note: Spare trays are sold separately in a set of four trays, extra screws and drive labels.

Secure connection

With the 6-pin Mini-Fit Jr.™ power connector, the power cable is held in place securely to avoid accidental disconnection of the device and to prevent subsequent data loss.

IncludesIncludes

Back to top
  • (1) AKiTiO Thunder3 Quad enclosure (drives not included)
  • (1) Thunderbolt cable
  • (1) Power adapter
  • (1) Setup guide
  • 1 Year OWC Limited Warranty

SpecsSpecs

Back to top

    Drive Bays

    • 4 bays supporting: 2.5-inch SATA HDDs, 2.5-inch SATA SSDs, 3.5-inch SATA HDDs, 3.5-inch SATA SSDs

    Boot Support

    • Yes

    RAID Capable

    • Yes

    RAID Levels Supported

    • JBOD

    RAID Features

    • Software RAID

    Device Ports

    • (2) Thunderbolt 3 (USB-C) Ports
    • (1) DisplayPort Port

    Data Transfer Rate (Maximum)

    • Thunderbolt 3 : Up to 40Gb/s (or 5000MB/s)

    MTBF (Mean Time Between Failures)

    • Varies depending on drive mechanism installed

    Contact Start Stops

    • Varies depending on drive mechanism installed

    Mac OS Compatibility

    • Not compatible with macOS

    PC OS Compatibility

    • Windows 7 64-bit Edition
    • Windows 8 64-bit Edition
    • Windows 8.1 64-bit Edition
    • Windows 10 64-bit Edition

    Other Requirements

    • Computer with Thunderbolt 3 port

    External Power Adapter

    • Yes

    Power Supply

    • External UL-listed universal auto-switching power supply

    AC Input

    • 100-240V, 50-60Hz

    DC Output

    • +12V, 12.5A

    Cooling

    • (1) 1,900RPM Low speed cooling fan

    Security Slot

    • Yes

    Power Button

    • Yes

    Power/Activity LED

    • Yes

    Housing Material

    • High quality aluminum for optimized heat dissipation

    Dimensions

    • Height: 18.4 cm (7.2 in)
    • Length: 24.2 cm (9.5 in)
    • Width: 13.5 cm (5.3 in)

    Weight

    • 5.4 kg (11.80 lbs)

    Certifications

    • CE
    • FCC
    • VCCI
    • RCM
    • BSMI
    • Thunderbolt™ technology

    Ambient Temperature

    • Operating: 41°F to 95°F (5°C to 35°C)
    • Non-Operating: -4°F to 140°F (-20°C to 60°C)

    Altitude

    • Operating: -304.8 m to 3,048.0 m (-1,000 ft to 10,000 ft)
    • Non-Operating: -304.8 m to 12,192.0 m (-1,000 ft to 40,000 ft)

    Humidity

    • Operating: 5% to 95% non-condensing
    • Non-Operating: Varies depending on drive mechanism installed

    Shock

    • Operating: Varies depending on drive mechanism installed
    • Non-Operating: Varies depending on drive mechanism installed

    Noise

    • Varies depending on drive mechanism installed
    1. This Thunderbolt product is not compatible with Mac OS X. For Mac Compatibility, see AKiTiO's Thunder3 Quad X.
    2. This product has components or design elements that are patented or patent pending.
