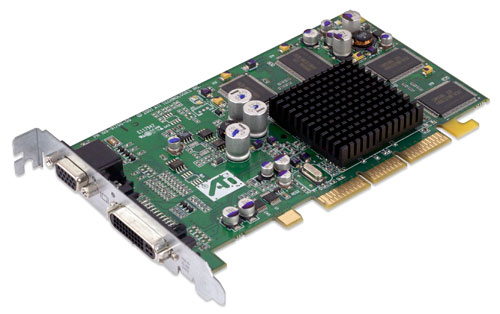

ATI

Radeon™ 7500
Mac Edition

Mac / ADC / VGA / AGP
Graphics Acceleration for the Power Mac G4
Powerful 3D Graphics Performance
Powered by the Radeon™ 7500 GPU and 32MB DDR memory for advanced 3D graphics, the Radeon™ 7500 delivers immersive, realistic 32-bit color graphics in both Mac® OS X and Mac® OS 9 with exceptional performance. Featuring rapid acceleration of graphics-intense OpenGL®, QuickDraw® 3D and RAVE® applications, the Radeon™ 7500 supports high-resolution 3D gaming up to 2048x1536.

The CHARISMA ENGINE™ supports full Transformation, Clipping and Lighting (T&L) at 40 million triangles/second peak processing capability, while PIXEL TAPESTRY™, the RADEON™ 7500 rendering engine, powers an incredible 1.6 gigatexels/second for fast fill rates in 32-bit at high resolutions.

Industry-Leading DVD Playback
VIDEO IMMERSION™ technology allows for quality motion video and text while at the same time processing full-frame rate, full-screen DVDs. Motion compensation and iDCT acceleration allow for DVD decoding with minimum CPU usage
Flexible Dual Monitor Support
Features support for dual DAC (digital-to-analog converter) at 350MHz for dual independent display support at maximum resolutions, and includes integrated TMDS transmitter with ratiometric expander for Apple's digital flat panel.
3D Acceleration Features
  • CHARISMA ENGINE™
  • HYPER Z™ technology
  • PIXEL TAPESTRY™ architecture
  • VIDEO IMMERSION™ technology
  • Twin Cache Architecture
  • Integrated Transformation, Clipping and Lighting
  • SuperScalar Rendering
  • Single-Pass Multi-Texturing
  • True Color Rendering
  • Triangle Setup Engine
  • Texture Cache
  • Bilinear/Trilinear Filtering
  • Texture Compositing
  • Specular Highlights
  • Perspectively Correct Texture Mapping
  • Mip-Mapping
  • Z-Buffering and Double-Buffering
  • Emboss, Dot Product 3 and Environment bump mapping
  • Spherical, Dual-Paraboloid and Cubic environment mapping
  • Fog effects, texture lighting, video textures, reflections, shadows, spotlights, LOD biasing and texture morphing

Product Specifications:

ATI Part Number

  • 102-8342302

System Requirements

  • Power Mac™ G4 with AGP 2X or AGP 2X/4X universal slot
  • Mac® OS 9.2.2 or Mac® OS X 10.1 or later
  • DVD Drive (for DVD playback)

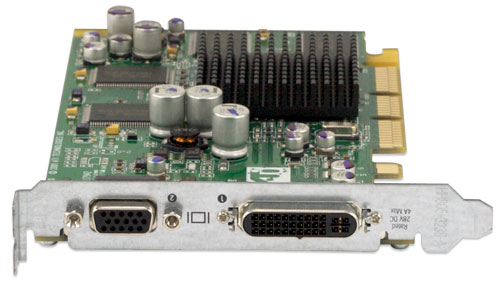

Ports

  • 1 x ADC (Apple Display Connector)
  • 1 x 15-pin VGA connector

GPU

  • 290 MHz Core Clock
  • 150 nm process size
  • 60 million transistors

Video Memory

  • 32 MB DDR
  • 230 MHz memory clock
  • 7.36 GB/sec memory bandwidth

Dimensions (l x w x h)

  • 7.0" x 3.75" x .75" (17.78 x 9.53 x 1.91 cm)

Weight

  • 5.1 oz (0.145 kg)

Warranty

OWC Tech Notes

  1. When this card is installed in a PowerMac G4 AGP Graphics (PowerMac3,1) only the VGA port will work. This is a limitation of the PowerMac3,1 motherboard.
Manufacturer provided specifications for ATI Technologies p/n 102-8342302 UPC#: 001028342400

Gallery

This product is compatible with... Learn how to find your Mac's model ID
PowerMac G4
Power Mac G4 (AGP Graphics)
(September, 1999)
Model ID: PowerMac3,1
350MHz, 400MHz, 450GHz, 500GHz
PowerMac G4
Power Mac G4 (Gigabit Ethernet)
(July, 2000)
Model ID: PowerMac3,3
400GHz, dual 450MHz, dual 500GHz
PowerMac G4
Power Mac G4 (Digital Audio)
(January, 2001)
Model ID: PowerMac3,4
466MHz, 533MHz, dual 533MHz, 667MHz, 733MHz
PowerMac G4
Power Mac G4 (QuickSilver)
(July, 2001)
Model ID: PowerMac3,5
733MHz, 867MHz, dual 800MHz
PowerMac G4
Power Mac G4 (QuickSilver 2002)
(January, 2002)
Model ID: PowerMac3,5
733MHz, 800MHz, 933MHz, dual 1.0GHz
PowerMac G4
Power Mac G4 (QuickSilver 2002 ED)
(August, 2002)
Model ID: PowerMac3,5
867MHz
PowerMac G4
Power Mac G4 (FW 800)
(January, 2003)
Model ID: PowerMac3,6
1.0GHz, dual 1.25GHz, dual 1.42GHz
PowerMac G4
Power Mac G4 (Mirrored Drive Doors 2003)
(June, 2003)
Model ID: PowerMac3,6
1.25GHz, dual 1.25GHz

Includes

  • ATI Radeon™ 7500 Mac Edition
