Name: Apple AMD Radeon Pro W6800X Duo 64GB MPX Module for Mac Pro (2019)
Brand: Apple
SKU: APLVMJ093AMA

Apple AMD Radeon Pro W6800X Duo

We're sorry, but this item is no longer for sale. However, there may be more Expansion Cards items available.

This was a used product listing.For more great deals on Open Box, Refurbished and Used items, keep an eye on our Garage Sale page. Or join our email list and be the first to know when new items become available!

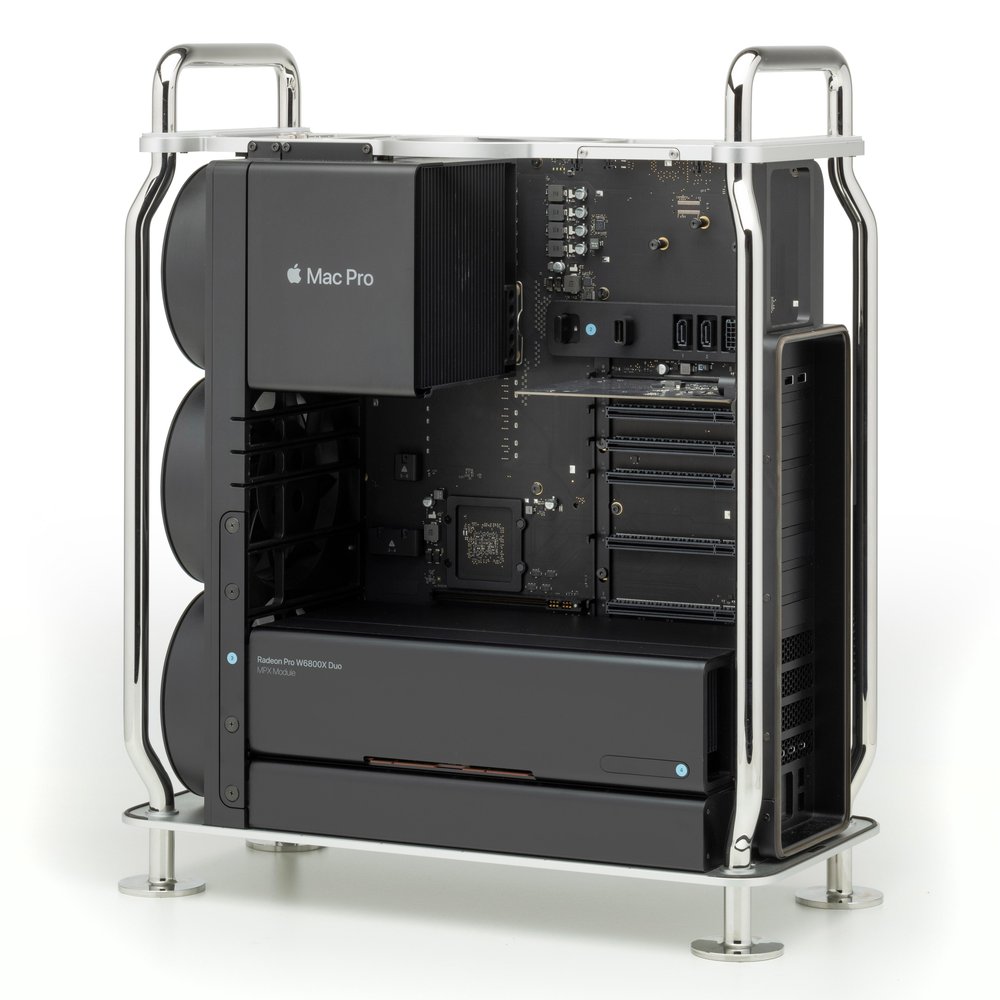

Enhance the graphics in your Mac Pro (2019 - Current) with support for up to eight 4K displays

64GB of GDDR6 VRAM (32GB per GPU)
7680 Stream Processors (total)
Provides up to 30.2 TFLOPS of combined single-precision floating-point (FP32) performance and up to 60.4 TFLOPS of combined half-precision floating-point (FP16) performance
7nm RDNA2 Architecture
(4) Thunderbolt 3 ports and (1) HDMI 2.0 port
Supports up to eight displays at 4K, four displays at 5K, or six Apple Pro Display XDRs
Infinity Fabric Link GPU interconnect technology links two W6800X GPUs together as the W6800X Duo in a single MPX module at up to 84GB/s
Supports connecting two Radeon Pro W6800X Duo GPUs together via an external Infinity Fabric Link bridge (available separately) to split workloads between 4 GPUs
90 Day OWC Fulfilled Limited Warranty

Be the first

Additional Options

Graphics Card MPX Modules

Infinity Fabric Link Connector for W6800X & W6900X

Infinity Fabric Link Connector for W6800X Duo

Infinity Fabric Link Connectors

scroll for more options >

Enhance the graphics in your Mac Pro (2019)

The AMD Radeon™ Pro W6000X series graphics cards powered by AMD RDNA™ 2 architecture, featuring up to 80 powerful enhanced Compute Units and all new AMD Infinity Cache™, engineered to deliver exceptional performance to power through a wide variety of demanding professional applications and workloads.

Supports up to eight 4K displays

Thanks to its full-height MPX module allowing for additional power and PCIe bandwidth over traditional graphics cards, the Radeon Pro W6800X Duo features four Thunderbolt 3 ports and one HDMI 2.0 port. The W6800X Duo can support up to eight displays at 4K, four displays at 5K, or six Apple Pro Display XDRs.

Featuring AMD's Infinity Fabric Link

AMD's Infinity Fabric Link enables two Radeon Pro W6800X GPUs to be linked together in a single MPX module as the Radeon Pro W6800X Duo with the use of the pre-installed Infinity Fabric Link jumper. This onboard Infinity Fabric Link enables supported applications to transfer data and communicate between the two linked W6800X GPUs at nearly five times the speeds of PCI Express, while still leaving room for another MPX module to be installed into your Mac Pro (supports a max of two).

Better yet, you can use both of your Mac Pro's MPX bays to connect two Radeon Pro W6800X Duo GPUs together via an external Infinity Fabric Link bridge (available separately), enabling an elevated degree of workload distribution between 4 total GPUs to power through demanding professional workflows.

To learn more about this item, please visit Apple's support page for the Radeon Pro W6800X Duo and Apple's guide on how to install PCIe cards into your Mac Pro (2019 - Current).

Includes

(1) AMD Radeon Pro W6800X MPX Module
90 Day OWC Fulfilled Limited Warranty

Infinity Fabric Link bridge is not included, but is available separately.

Specs

Metal Compatible

Additional Features

Infinity Fabric Link GPU interconnect technology links two W6800X GPUs together as the Vega II Duo in a single MPX module at up to 84GB/s.
Supports connecting two W6800X Duo GPUs together via an external Infinity Fabric Link to split workloads between 4 GPUs.
