Blackmagic Design DeckLink Duo

DeckLink Duo is perfect for developers who need two completely independent capture and playback streams in and out of a computer, as both capture and playback channels are completely independent. There are two SDI inputs, and two SDI outputs plus a common tri-sync/black burst reference. DeckLink Duo appears as two independent SDI cards to the computer, but only uses a single PCI Express slot. DeckLink Duo is perfect for servers where there are multiple streams or simultaneous capture and playback per system. DeckLink Duo is compatible with Windows™, Mac OS X™ and Linux™.

The new DeckLink Duo is like having two DeckLink cards in one! DeckLink Duo is perfect for developers who need two completely independent capture and playback streams in and out of a computer, as both capture and playback channels are completely independent. There are two SDI inputs, and two SDI outputs plus a common tri-sync/black burst reference. DeckLink Duo appears as two independent SDI cards to the computer, but only uses a single PCI Express slot. DeckLink Duo is perfect for servers where there are multiple streams or simultaneous capture and playback per system.

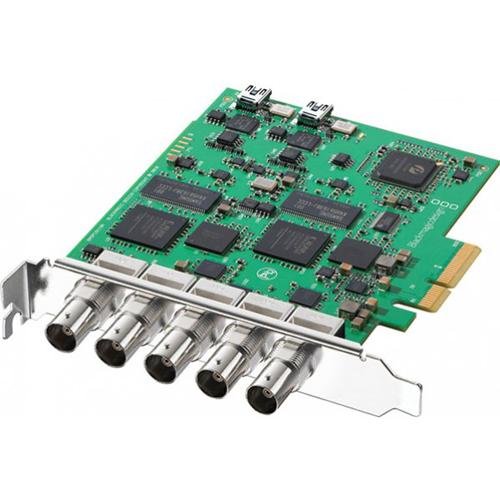

DeckLink Duo features two independent SDI capture and playback engines built into the single card with a 4 lane PCI Express connection. DeckLink SDI is the world's most affordable HD/SD-SDI capture card, with 10 bit SDI capture and playback, plus RS-422 deck control and reference input. DeckLink cards let you capture and playback to the widest range of equipment, such as HDCAM, HD-D5, HDCAM SR 4:2:2, Betacam SP, Digital Betacam, HD receivers, HDV cameras, televisions, VHS recorders, analog broadcast monitors, mixers and many more!

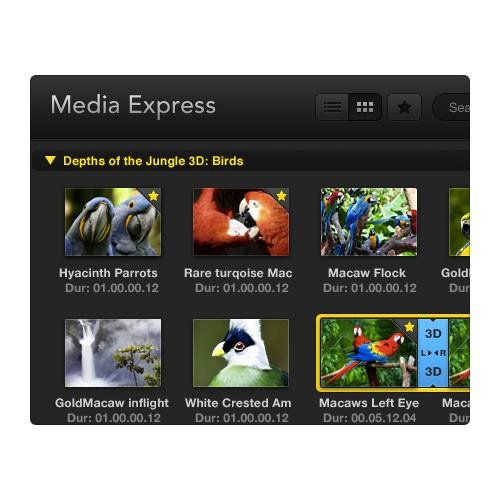

When you're developing for end users with varied needs, flexibility is key. That's why DeckLink Duo provides a wide range of features that can be easily incorporated into your custom solutions. Use the efficient built in keyer for live overlay of graphics into production switchers and save the cost of multiple devices. Get guaranteed frame accurate capture for perfect AV sync. For live-to-air productions, rely on the built in bypass relay with watchdog timer, so if power is lost you don't lose your incoming video streams and you are never off air. DeckLink Duo also includes high quality on board down conversion and RP 188 HD embedded timecode in the SDI stream on capture. Don't let your solution be restricted by platform! DeckLink Duo uses just a single PCIe slot on Mac OS X, Windows 7 or 64-bit Linux computers. Across all platforms, the included Media Express application gets you up and running quickly with timecode accurate capture and playout of uncompressed QuickTime, AVI and DPX files. The included SDK lets you develop once and then easily deploy your solution across the entire range of Blackmagic DeckLink capture cards. Dual SDI PCIe Card
