Newer Technology AdaptaDrive
2.5" to 3.5" Drive Converter Bracket
Mfr P/N: ADPTADRV OWC SKU: NWTADPTADRV
Install ANY size 2.5" SATA hard drive or SSD in a 3.5" SATA drive bay
- Compatible with any 2.5" SATA hard drive or Solid State drive
- Use anywhere you would install a 3.5" SATA drive
- Includes compatibility with backplane trays such as those found in Apple Mac Pro models
- Fully SATA 3.0 Revision (6Gb/s) compatible
- Backward compatible with SATA 2.0 Revision (3Gb/s) and 1.0 Revision (1.5Gb/s) drives
- Open design allows for full air flow for proper drive cooling
- 5 Year Newer Technology Limited Warranty
In Stock: Ships Same Day!$14.99
You Save $7.00
Save an extra $0.74 todaywhen you add to cart.

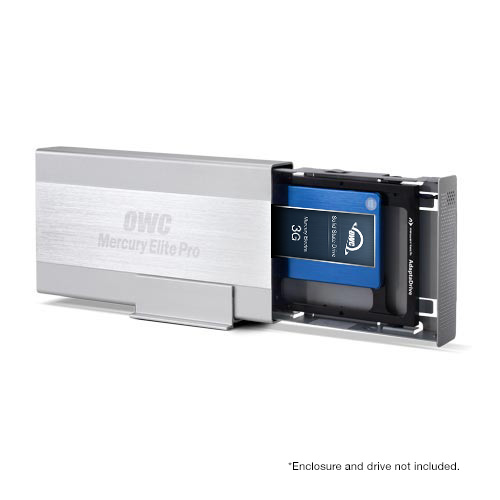

Experience the Solid State Drive speed advantage or reuse an existing notebook hard drive in your 3.5" drive bay equipped desktop Mac, PC, or external enclosure with the Newertech AdaptaDrive 2.5" to 3.5" Drive Converter Bracket. With industry standard 3.5" drive screw mounting locations, the AdaptaDrive enables you to install ANY size 2.5" SATA hard drive or SSD in a 3.5" SATA drive bay.
Works With All 2.5" Drives, Including Latest SATA 6Gb/s SSDs
The AdaptaDrive supports 1.5Gb/s and 3.0Gb/s drives, so existing notebook hard drives can be utilized for extra storage; or a high performance '3G' SSD such as the OWC Mercury Electra 3G can be added for an incredible system speed boost. Because the AdaptaDrive is built from aluminum and features an open design for maximum drive cooling air flow, power users and gamers seeking maximum drive speed can now easily add the latest high performance '6G' SSDs, like the OWC Mercury EXTREME Pro 6G, and experience data transfer rates over 500MB/s from their SATA Revision 3.0 (6Gb/s) compatible home/office computer or external drive.
Maintains Highest Performance While Offering Ultimate Convenience
The NewerTech AdaptaDrive has been benchmark test proven to deliver the same data transfer rates as is experienced when a drive is connected directly to the SATA data bus. The AdaptaDrive doesn't create a bottleneck or any performance throttling...it delivers pure data pass-through performance and drive use convenience from any 2.5" SATA 1.5Gb/s, 3Gb/s, or 6Gb/s hard drive or SSD.
Includes
Back to top
- (1) 2.5" to 3.5" Drive Converter Bracket
- NewerTech AdaptaDrive Support Manual (Digital)
- 5 Year Newer Technology Limited Warranty
Specs
Back to top
Mechanisms Supported
- Compatible with any 2.5" SATA hard drive or Solid State drive
Color
- Black
Material
- Aluminum
Dimensions
- Height: 0.9 cm (0.4 in)
- Length: 14.7 cm (5.8 in)
- Width: 10.1 cm (4.0 in)
Weight
- 99.0 g (0.22 lbs)
Country of Origin
- China
TAA Compliance
- No
Compatibility & Installation Videos
Back to top
iMac (Retina 5K, 27-inch, Early 2019)
Early 2019
Installation requires OWC Digital Thermal Sensor Kit
Installation requires OWC Digital Thermal Sensor Kit
Model ID: iMac19,1
3.0GHz & 3.1GHz & 3.7GHz Core i5 & 3.6GHz Core i9
iMac (Retina 5K, 27-inch, Mid 2017)
Mid 2017
Installation requires OWC Digital Thermal Sensor Kit
Installation requires OWC Digital Thermal Sensor Kit
Model ID: iMac18,3
3.4GHz & 3.5GHz & 3.8GHz Core i5 & 4.2GHz Core i7
iMac (Retina 5K, 27-inch, Late 2015)
Late 2015
Installation requires OWC Digital Thermal Sensor Kit
Installation requires OWC Digital Thermal Sensor Kit
Model ID: iMac17,1
3.2GHz & 3.3GHz Core i5 & 4.0GHz Core i7
iMac (Retina 5K, 27-inch, Mid 2015)
Mid 2015
Installation requires OWC Digital Thermal Sensor Kit
Installation requires OWC Digital Thermal Sensor Kit
Model ID: iMac15,1
3.3GHz Core i5
iMac (Retina 5K, 27-inch, Late 2014)
Late 2014
Installation requires OWC Digital Thermal Sensor Kit
Installation requires OWC Digital Thermal Sensor Kit
Model ID: iMac15,1
4.0GHz Core i7
iMac (27-inch, Late 2013)
Late 2013
Installation requires OWC Digital Thermal Sensor Kit
Installation requires OWC Digital Thermal Sensor Kit
Model ID: iMac14,2
3.4GHz & 3.2GHz Core i5 & 3.5GHz Core i7
iMac (27-inch, Late 2012)
Late 2012
Installation requires OWC Digital Thermal Sensor Kit
Installation requires OWC Digital Thermal Sensor Kit
Model ID: iMac13,2
2.9GHz & 3.2GHz Core i5 & 3.4GHz Core i7
iMac (21.5-inch, Late 2011)
Late 2011
Installation requires OWC Digital Thermal Sensor Kit
Installation requires OWC Digital Thermal Sensor Kit
Model ID: iMac12,1
3.1GHz Core i3
iMac (27-inch, Mid 2011)
Mid 2011
Installation requires OWC Digital Thermal Sensor Kit
Installation requires OWC Digital Thermal Sensor Kit
Model ID: iMac12,2
2.7GHz & 3.1GHz Core i5 & 3.4GHz Core i7
iMac (21.5-inch, Mid 2011)
Mid 2011
Installation requires OWC Digital Thermal Sensor Kit
Installation requires OWC Digital Thermal Sensor Kit
Model ID: iMac12,1
2.5GHz & 2.7GHz Core i5 & 2.8GHz Core i7
iMac (27-inch, Mid 2010)
Mid 2010
Installation requires OWC Digital Thermal Sensor Kit
Installation requires OWC Digital Thermal Sensor Kit
Model ID: iMac11,3
3.2GHz Core i3 & 2.8GHz & 3.6GHz Core i5 & 2.93GHz Core i7
iMac (21.5-inch, Mid 2010)
Mid 2010
Installation requires OWC Digital Thermal Sensor Kit
Installation requires OWC Digital Thermal Sensor Kit
Model ID: iMac11,2
3.06GHz & 3.2GHz Core i3 & 3.6GHz Core i5
iMac (27-inch, Late 2009)
Late 2009
Installation requires OWC Digital Thermal Sensor Kit
Installation requires OWC Digital Thermal Sensor Kit
Model ID: iMac11,1
2.66GHz Core i5 & 2.8GHz Core i7
iMac (21.5-inch, Late 2009)
Late 2009
Installation requires OWC Digital Thermal Sensor Kit
Installation requires OWC Digital Thermal Sensor Kit
Model ID: iMac10,1
3.06GHz & 3.33GHz Core 2 Duo
iMac (27-inch, Late 2009)
Late 2009
Installation requires OWC Digital Thermal Sensor Kit
Installation requires OWC Digital Thermal Sensor Kit
Model ID: iMac10,1
3.06GHz & 3.33GHz Core 2 Duo
iMac (20-inch, Mid 2009)
Mid 2009
Model ID: iMac9,1
2.0GHz & 2.26GHz Core 2 Duo
iMac (20-inch, Early 2009)
Early 2009
Model ID: iMac9,1
2.66GHz Core 2 Duo
iMac (24-inch, Early 2009)
Early 2009
Model ID: iMac9,1
2.66GHz & 2.93GHz & 3.06GHz Core 2 Duo
iMac (20-inch, Early 2008)
Early 2008
Model ID: iMac8,1
2.4GHz & 2.66GHz Core 2 Duo
iMac (24-inch, Early 2008)
Early 2008
Model ID: iMac8,1
2.8GHz & 3.06GHz Core 2 Duo
iMac (20-inch, Mid 2007)
Mid 2007
Model ID: iMac7,1
2.4GHz & 2.0GHz Core 2 Duo
iMac (24-inch, Mid 2007)
Mid 2007
Model ID: iMac7,1
2.4GHz Core 2 Duo & 2.8GHz Core 2 Extreme
iMac (24-inch, Late 2006)
Late 2006
Model ID: iMac6,1
2.16GHz & 2.33GHz Core 2 Duo
iMac (17-inch, Late 2006)
Late 2006
Model ID: iMac5,2 & iMac5,1
1.83GHz & 2.0GHz & 2.16GHz Core 2 Duo
iMac (20-inch, Late 2006)
Late 2006
Model ID: iMac5,1
2.33GHz & 2.16GHz Core 2 Duo
iMac (17-inch, Early 2006)
Early 2006
Model ID: iMac4,1
1.83GHz Core Duo
iMac (20-inch, Early 2006)
Early 2006
Model ID: iMac4,1
2.0GHz Core Duo
iMac G5 (17-inch, Mid 2005)
Mid 2005
Model ID: PowerMac8,2
1.8GHz & 2.0GHz PowerPC G5
iMac G5 (20-inch, Mid 2005)
Mid 2005
Model ID: PowerMac8,2
2.0GHz PowerPC G5
iMac G5 (17-inch, Mid 2004)
Mid 2004
Model ID: PowerMac8,1
1.8GHz & 1.6GHz PowerPC G5
iMac G5 (20-inch, Mid 2004)
Mid 2004
Model ID: PowerMac8,1
1.8GHz PowerPC G5
Power Mac
Power Mac G5 (Late 2005)
Late 2005
Model ID: PowerMac11,2
2.5GHz & 2.3GHz & 2.0GHz PowerPC G5
Power Mac G5 (Early 2005)
Early 2005
Model ID: PowerMac7,3
2.0GHz & 2.7GHz & 2.3GHz PowerPC G5
Power Mac G5 (Late 2004)
Late 2004
Model ID: PowerMac9,1
1.8GHz PowerPC G5
Power Mac G5 (Mid 2004)
Mid 2004
Model ID: PowerMac7,3
1.8GHz & 2.5GHz & 2.0GHz PowerPC G5
Power Mac G5 (Late 2003)
Late 2003
Model ID: PowerMac7,2
1.8GHz PowerPC G5
Power Mac G5 (Mid 2003)
Mid 2003
Model ID: PowerMac7,2
1.8GHz & 1.6GHz & 2.0GHz PowerPC G5
Power Mac G4
Power Mac G4
Models equipped with a SATA controller card
Mac Pro
Mac Pro (Mid 2012)
Mid 2012
Model ID: MacPro5,1
3.2GHz 4-Core Xeon & 3.33GHz 6-Core Xeon & 2.66GHz & 2.4GHz & 3.06GHz 12-Core Xeon
Mac Pro (Mid 2010)
Mid 2010
Model ID: MacPro5,1
2.8GHz & 3.2GHz 4-Core Xeon & 3.33GHz 6-Core Xeon & 2.4GHz 8-Core Xeon & 2.93GHz & 2.66GHz 12-Core Xeon
Mac Pro (Early 2009)
Early 2009
Model ID: MacPro4,1
2.93GHz & 2.66GHz & 3.33GHz 4-Core Xeon & 2.93GHz & 2.66GHz & 2.26GHz 8-Core Xeon
Mac Pro (Early 2008)
Early 2008
Model ID: MacPro3,1
2.8GHz 4-Core Xeon & 2.8GHz & 3.2GHz & 3.0GHz 8-Core Xeon
Mac Pro (Mid 2006)
Mid 2006
Model ID: MacPro1,1
2.66GHz & 2.0GHz & 3.0GHz 4-Core Xeon
PC Compatible
PC Compatible
Products
3.5-inch SATA Enclosures
If upgrading/replacing an HDD with an existing external enclosure, please confirm the enclosure supports drives greater than 2.2TB. Pre-2009 enclosures are typically limited to 2.2TB and support may vary for models after 2009.
