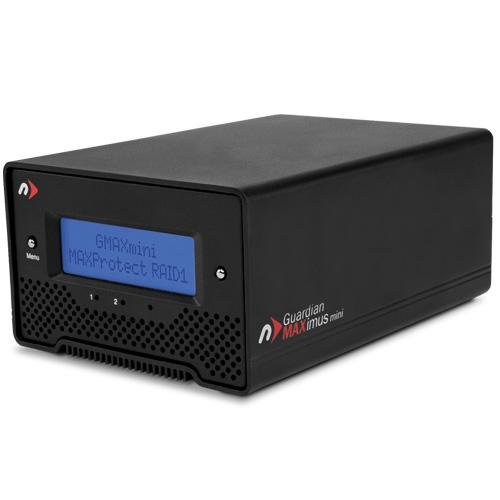

NewerTech Guardian
MAXimus mini

2.0TB 7200RPM | 1.0TB + 1.0TB
Ultra Portable, Secure Storage Solution
with Versatile Interface

Mac / PC / USB 2.0 & 1.1 / FireWire 800 (FireWire 400 Backwards Compatible) / eSATA
Powerful, Dual Drive RAID 0/1 Performance
in a Bus-Powered, Portable Design
MAXProtect or MAXPerform - Your Choice
NewerTech Guardian MAXimus storage solution provides maximum Plug-and-Play "Live Activity" data backup and protection in a space-saving mini footprint. In the pre-configured MAXProtect mode, Guardian MAXimus mini guards against data loss and costly system downtime by writing the same information in real-time to create a "mirrored" copy of up to 1.0TB of data. For those seeking faster performance, Guardian MAXimus mini can be easily switched to MAXPerform mode for up to 2.0TB of high speed performance storage. Whatever your preference, Guardian MAXimus mini offers MAXimum performance, flexibility, and reliability for critical data backup.
MAXiumum Portability
Guardian MAXimus mini is ready to go wherever your "mobile office" needs take you. Bus-powered (no AC adapter required) and weighing as little as 1.24 pounds, it offers maximum data protection with minimal gear bag bulk. While ultra compact, the Guardian MAXimus mini comes packed with high performance features like dual hard drives or SSDs, data transfer speeds up to 300MB/s, and user conveniences like a front panel LCM screen/control interface for drive and system status monitoring.
Why You Need Guardian MAXimus mini RAID-0, RAID-1
With the RAID-0 striped mode, Guardian MAXimus mini dedicates its drives to maximum performance ensuring you stay working at the highest speeds. In the RAID-1 mode, you get a "live activity" backup of financial records, medical files, business projects...any critical data that you simply cannot risk losing. You're always protected against data loss as the same information is copied in real-time to two separate drives for a "mirrored" copy. You're also protected from costly system downtime and data restoring after a single hard drive-equipped system crash. By having a second, "mirrored" copy, you can keep working and saving until the failed drive is replaced. Best of all? After replacing that drive, the Guardian MAXimus mini automatically rebuilds the "mirror" by copying all the data to the new drive!
HD Video Certified
Test Certified for HD Video capture and playback of HDV, DVC Pro, and ProRes 422HQ file formats via eSATA and FireWire 800
Speedtools
Includes the Powerful SpeedTools Utility Suite for Mac
The comprehensive Mac utility used by professionals for accurate Mac diagnosis and maintenance. Click the SOFTWARE tab below to learn more »

Includes

Newertech Guardian MAXimus includes
  • NewerTech Guardian MAXimus mini storage solution
  • High Quality Double Shielded eSATA connecting cable
  • High Quality Double Shielded FireWire 800 connecting cable (9-9 Pin cable)
  • High Quality Double Shielded USB 2.0/1.1 connecting cable
  • UL Listed U.S./International Auto Switching 100 ~ 240v, 50/60Hz input, 12Volt 2 Amp output Power Supply (adapter plugs for International use sold separately). For replacement power supply, click here.
  • Pre-installed Backup and Utility software
    • Intech® SpeedTools Utilities™ OEM (For Mac OS 8.6 - X only)
    • Prosoft Engineering® Data Backup for Mac OS X v10.2.8 or later
    • NovaStor NovaBACKUP® for Windows 2000 or later
  • Over 1.5GB of Freeware/Shareware/Public domain software pre-installed
  • NewerTech 3 Year Solution Warranty with 48-Hour Turnaround Time
  • Guardian MAXimus mini Manual (7.8MB PDF)

Features

  • Uses two paired (identical) 2.5″ SATA type hard disk drives or solid state drives up to 9mm tall
  • LCM display menu provides convenience of drive and system status
  • Super quiet operation with a rugged, heat dissipating anodized aluminum enclosure
  • Shock resistant design
  • Bus powered via FireWire, or use FireWire for power while using an eSATA connection for data.

Gallery

Product Specifications:

Bridge Chipset

  • Oxford 936DS chipset with eSATA, FW800(1394B), and USB 2.0

Standard Mechanism

    1.0TB HGST Travelstar™ 7K1000 Specifications:

    Specifications

    Form Factor
    2.5″ HDD
    Interface
    SATA 6.0Gb/s
    Capacity1
    1000GB
    Formatted Capacity2
    930GiB
    Rotational Speed
    7,200 RPM
    Cache / Data Buffer
    32MB
    Manufacturer Model Number
    HTS721010A9E630
    Format

    Physical

    Height (max)
    9.5mm (0.370″)
    Width (max)
    69.85mm (2.750″)
    Length (max)
    100.35mm (3.951″)
    Weight (typical)
    95g (0.209 lbs.)
    Bytes per Sector
    512
    Areal Density
    676Gb/in2

    Reliability3

    Contact Start-Stops
    600,000
    Warranty
    1 Year OWC Fulfilled Warranty

    Performance

    Transfer Rate (Max)
    600MB/s
    Track-to-track Seek
    1.0ms
    Average Seek Time
    13.0ms
    Average Latency
    4.2ms

    Power

    Maximum Start Current, DC
    5.5 Watts
    Seek Power
    2.1 Watts
    Read Power
    1.8 Watts
    Write Power
    1.8 Watts
    Idle Mode
    1.7 Watts
    Idle Mode, Active
    1.0 Watts
    Idle Mode, Low Power
    0.8 Watts
    Standby Mode
    0.2 Watts
    Sleep Mode
    0.1 Watts

    Environmental (Operating)

    Shock
    400 G max at 2ms
    Ambient Temperature (°F)
    32°F to 140°F
    Ambient Temperature (°C)
    0°C to 60°C
    Altitude
    -304.8 m to 3,048 m (-1,000 ft to 10,000+ ft)

    Environmental (Non-Operating)

    Shock
    1000 G max at 1ms
    Ambient Temperature (°F)
    -40°F to 149°F
    Ambient Temperature (°C)
    -40°C to 65°C
    Altitude
    -304.8 m to 12,192 m (-1000 ft to 40,000+ ft)

    Acoustics

    Idle (Typical)
    2.5 bels
    Seek (Typical)
    2.7 bels
    1. 1GB = 1,000,000,000 bytes. Total accessible capacity varies depending upon operating environment (typically 5-10% less). The actual total capacity will depend on your own defined file settings/preferences.
    2. In terms of standard gigabytes, 1GiB ≈ 1.074GB and refers to the actual formatted capacity of shown under Mac OS 10.5 or earlier and Microsoft Windows OS.
    3. Specific application environments such as temperature and duty cycle will affect the overall reliability rates.
  • 2 x 1.0TB* 2.5″ HGST Travelstar™ 7K1000 Hard Disk Drives**

  • *1GB = 1,000,000,000 bytes. Total accessible capacity varies depending upon operating environment (typically 5-10% less). The actual total capacity will depend on your own defined file settings/preferences.

    **OWC reserves the right to replace or upgrade to equivalent or better components.

Drive Rotation Speed

  • 7200 RPM

Drive Cache Size

  • 64 Megabyte (2 Drives with 32MB per drive)

Maximum Data Transfer Rate

  • eSATA - 3.0Gbps (or 300MB/sec)
  • FireWire 800 - 800Mbps (or 100MB/sec)
  • USB 2.0 - 480Mbps (or 60MB/sec)

Port/Interface Bootability

    Can I use this solution as an external startup drive?
  • eSATA: Supported on Macs and PC's meeting minimum requirements. - Click for more info
  • FireWire 800: Supported on Macs and PC's meeting minimum requirements. - Click for more info
  • USB 2.0: Supported on Macs and PC's meeting minimum requirements. - Click for more info

Macintosh System Requirements

  • Mac OS 8.6 to 9.2.2 compatible, OS X 10.1.x and later. Including 'Mavericks' 10.9.x (10.2 or later required for FW800 and USB 2.0)
  • eSATA: Macintosh with eSATA interface, either built in or via PCI eSATA card.
  • FireWire 800: Macintosh with FireWire 800 interface, either built in or via PCI FireWire 800 card.
  • USB 2.0: Macintosh with USB 2.0 interface, either built in or via PCI USB 2.0 card.
  • Time Machine® Compatible: Mac OS X 10.5 (version introduced) and later.

Windows System Requirements

  • Windows ME and later.
  • Windows 2000 or later required for FW800 Operation.

Linux Requirements

  • Linux compatible via supported USB and FireWire interfaces.

Power Supply

  • UL Listed U.S./International Auto Switching 100 ~ 240v, 50/60Hz input, 12Volt 2 Amp output Power Supply. For replacement power supply, click here.
  • Operation with Apple Thunderbolt to FireWire adapter requires external power supply.

Format

Software Included

Enclosure Size

  • 5.2″(D) x 3.5″(W) x 2.1″(H)
  • 90mm x 56mm x 33mm

Enclosure Weight (no accessories)

  • 1.55lbs. (0.70kg)

Product Manual

Operating Environment:

Temperature

  • (operating) 5°C - 42°C (41°F - 107°F)
  • (non-operating) -40°C - 65°C (-40°F - 149°F)

Relative Humidity

  • (operating) 8% - 90% RH (Non-condensing)
  • (non-operating) 5% - 95% RH (Non-condensing)

Shock

  • 65G 2mS; (non-operating) 175G 2mS

Vibration

  • (operating) 1.0G (5 - 300Hz)
  • (non-operating) 5.0G (5 - 500Hz)

MTBF

  • More than 300,000 power-on hours

Warranty

3 Year NewerTech Solution Limited Warranty

The best warranty is one you never have to use, but should the need occur - NewerTech is proud to provide a superior level of support and warranty coverage to our customers. Even when not used, we understand the peace of mind afforded by a longer warranty period. NewerTech's industry leading coverage is a testament to our confidence in the reliability of the solutions that we offer. NewerTech solutions are engineered to demanding quality standards in order to deliver the most reliable, highest performance available on the market in each storage category.

View more information about the 3 Year NewerTech Solution Limited Warranty

Note: Do not disassemble or otherwise open your NewerTech solution prior to the conclusion of NewerTech's 3 year Limited Warranty period. Doing so will void the remainder of the NewerTech limited warranty.

Manufacturer provided specifications for Newer Technology p/n GM8QM7S20T32 UPC#: 811643013322

Software

Prosoft Macworld 4.5 miceProsoft
Prosoft Engineering® Data Backup 3 for OS X v10.2.8 or later
Backup Made Easy. Data Backup makes it easy to backup to FireWire and USB drives, network drives, CDs and even DVDs. Make schedules so you don't need to 'think' about backing up... It does it for you.
A $59.00 Value! View detailed software info, or click here to purchase softwareseparately from solution
Novastor
NovaStor NovaBACKUP® Solution for Windows®
NovaBACKUP has been helping millions of users recover from data loss and disasters for over 18 years. Feature rich, NovaBACKUP provides a powerful backup solution. Built-in support for hundreds of the most popular storage devices and a step-by-step backup and restore wizard makes NovaBACKUP extremely easy to use. Requires Windows 2000 or later.
A $49.95 Value! View detailed software info
Intech SpeedTools Utilities
Intech® SpeedTools Utilities™
Intech SpeedTools consists of a suite of utilities managed by an application which controls the launching, documentation and version control of each individual component utility, such as Disk Defrag and QuickBack. An easy-to-use installation and removal application is provided to make installation a snap, yet powerful enough to allow you to customize which utility component set you would like to create.
An $89.95 Value! View detailed software info, or click here to purchase software separately from solution
