Newer Technology Power2U
15Amp AC/USB Wall Outlet - White
Mfr P/N: PWR2U15A14W OWC SKU: NWTPWR2U15A14W
Highlights
- Two full-power USB ports to charge mobile devices
- Fully UL-listed
- NEC compliant tamper-resistant
- Easy DIY installation with OWC's step-by-step video guide
- 30 Day OWC Fulfilled Limited Warranty

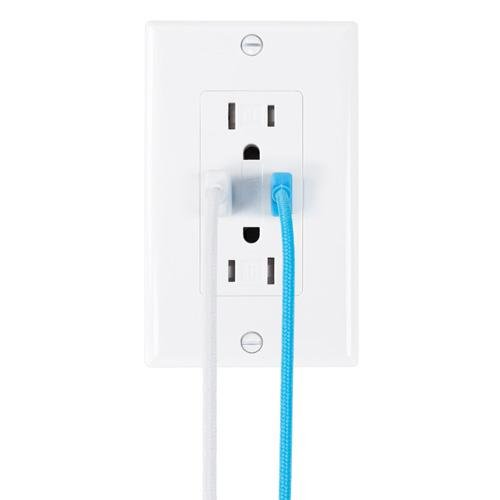

Dual-socket Wall Outlet with Two Integrated USB Ports
Designed for Easy Install
Ideal "DIY" Upgrade For Multiple Device Users
Money Saving, Energy-Efficient Design
- To maintain factory-stated charging duration when charging two iPads or a combination of iPad and any other USB rechargeable device simultaneously, we recommend charging the iPad via the factory wall adapter.
Includes
Back to top
- (1) 15A, white dual AC socket/dual USB port outlet
- (2) white faceplate retaining screws
- (2) electrical box mounting screws (pre-installed)
- (3) 22-14 AWG wire nuts
- (1) Installation Manual
- 30 Day OWC Fulfilled Limited Warranty
Specs
Back to top
Electrical Box and Circuit Requirements
- 14 Cubic Inch or larger single gang electrical box
- 14 Gauge (15A) electrical circuit
Amperage
- 15 Amp
Current Limiting
- Full Rated Current
DC Power Specs
- 5.2 volt, 2500mA (12.5W) Duplex USB charging receptacle with internal on/off switch for USB power
Dielectric Voltage
- Withstands 2000V per UL 498
Grounding
- Self-Grounding
NEMA
- 5-15R Compliant
Overload Test, HP Ratings
- 125V AC, 58.8A
Poles
- 2
Wires
- 3
Temperature Rise
- Contact, Max: 82.4 ° F (28.0 ° C)
- Terminal, Max: 68.0° F (20.0° C)
Product Identification
- Ratings marked on device
Terminal ID
- None; wires attached
Terminal Accommodation
- None; wires attached
Termination
- 14 Gauge Standard Wire
Housing Material
- Polycarbonate
Color
- White
Line Contacts
- Brass triple-wire .031 thick
Strap Material
- Zinc-plated steel
Certifications
- NEMA: WD-1 & WD-6
- ANSI: C-73
- UL 498: File E339607
- UL 514D: File E339607
- UL 1310: File E339607
- CAN/CSA C22.2 No. 223: File E339607
- Patent Number: 7997925
Country of Origin
- China
TAA Compliance
- No
Ambient Temperature
- Operating: -40°F to 140°F (-40°C to 60°C)
Flammability
- Rated V-2 per UL 94
Videos
Back to top
Installation Install Video
Customer Reviews
Back to top
It is about 1 5/8 deep - maybe a little a deeper even - and boxy. There was no way it would fit in the box I intended to put it in. I ended-up putting it in my fourth-choice location trying to find a place where it would fit - and even then I had to work very hard to get all the wires shoved-in. When I first bought this I was planning to buy more if I liked the first one...I'm glad I did that strategy, and will not be buying more. Unless you are putting in new boxes - very deep boxes and know you have enough room, I would stay far away from these.
Verified Purchase.- Reviewer:pete-8518
Thank you for your honest feedback. We are sorry to hear about the issues you had with the power 2U. If you have any further questions please let us know.
Great product, well built, charging fast, excellent price, fast delivery and detailed info sheet.
I would recommend this product to a friend!
Verified Purchase.- Reviewer:80810
Awesome, love to hear things are working so well. Thank you for all your great feedback!
Great price on outlets w/usb! Easy to navigate and shipping was super fast!
I would recommend this product to a friend!
Verified Purchase.- Reviewer:OpenCat-49881
Thank you so much for taking the time to leave your review. We are glad to hear that the Power2U Outlets were a great purchase and addition to your home. Please feel free to contact us if you have any further questions, comments, or concerns. https://eshop.macsales.com/Service/
