2.0TB OWC DIY Bundle
2.5" OWC 6G Solid-state Drive, OWC Data Doubler Kit and OWC 5 Piece Toolkit
Mfr P/N: DDMBS6E2TB OWC SKU: OWCDDMBS6E2TB
Save over 75% on Parallels Desktop Pro. Only $119.99 $29.00!
Save over 75% on Parallels Desktop Pro. Only $119.99 $29.00!
$90.99 off - *NOW* Get Parallels Desktop Pro Edition - Windows/Multi OS Compatibility software for Mac - Only $29.00 with select OWC SSDs, HDDs, Memory, External Storage, and Optical Drives! (Limit 3 rebates, 1 rebate per qualifying item)
Must purchase with: Parallels Desktop Pro Edition for Mac - 1 Year License. SPECIAL PURCHASE
Everything you need in one package to replace your internal optical drive with additional storage space.
- Easily expands your internal storage
- Offers custom configuration options for the added drive
- Included durable toolkit makes installation easy
- 3 Year OWC Limited Warranty

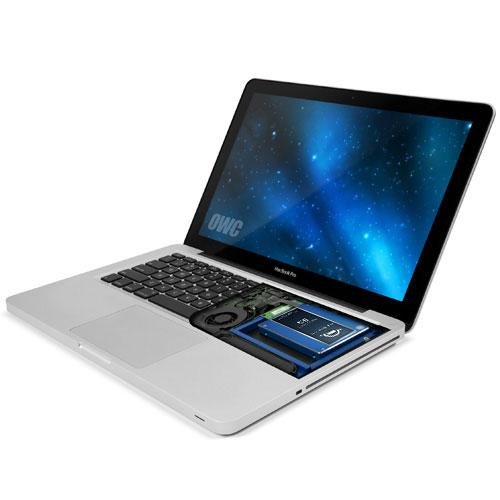

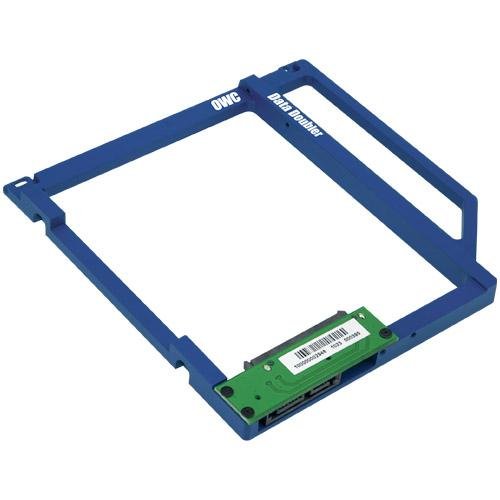

Configuration flexibility is yours when you replace your MacBook or MacBook Pro's internal SuperDrive with the OWC Data Doubler. This custom engineered blue anodized aluminum bracket with attached PCB circuit board comes ready to mount the included drive.
Then, just install the entire assembly into a MacBook or MacBook Pro 5.25" optical drive bay. OWC Data Doubler makes it easy to custom design how you want your internal storage to perform. Installed drives are recognized like any other high speed SATA storage device and can be setup and partitioned using the Apple Disk Utility Program.
Bigger, Better, Faster, Stronger
Add significant space for storage, greater speeds for retrieval and saving of data, your machine will wake-up and boot and launch apps faster. With this much space, you have MORE than enough room to keep all your data under one roof.
Take Your Time Machine With You!
Now, with all this available capacity, you can designate one of the drives as the Time Machine backup so your Time Machine is not relying on you to remember to plug in the dedicated external drive. Use the drive as a single partition or divide it and designate a partition to run Time Machine.
RAID
RAID your drives for increased speed or security. RAID 0 will give you an immediate and significant speed boost - you won't believe how fast your computer wakes up and launches your apps! RAID 1 creates automatic redundancy to safeguard against primary drive failure and data loss.
Still Need an Occasional Optical?
If you decide you need occasional use of your optical drive, you can purchase the
OWC SuperSlim Enclosure. This is a USB 2.0, bus-powered option for users who need a lightweight, portable optical drive.
Yes, You Can Do-it-Yourself
Upgrade with confidence using the OWC DIY installation videos. OWC is committed to your success, so if you need a bit more guidance, we are available Mon-Fri 8AM-8PM and Sat 9AM-4PM with U.S. based technical support by phone or live chat.
Power Tip
Spin-down hard drives sooner to save battery power. Running an extra hard drive in your laptop can drain battery power faster than a single drive. But you can tell your Mac to put hard drives to sleep sooner than normal to save power.
This is an advanced tip that requires working in Terminal. For the step-by-step explanation,
- Please note, that before attempting to perform this installation, it is recommended you watch the associated instructional video in its entirety to determine your ability to perform this complex procedure. OWC assumes no responsibility for damage that may occur during the install. Technical support for this DIY product consists only of the installation video.

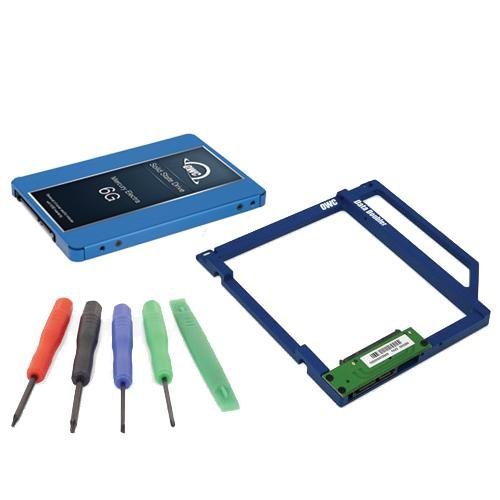

Includes
Back to top
- (1) OWC Data Doubler Bracket
- (1) Interposer Board
- (5) Screws (3 x Phillips #00, 2 x Phillips #1)
- (1) Detailed Installation Guide with Model Specific Instructions/Step by Step Photos
- (1) Toolkit includes everything you need to open your Mac and install the Data Doubler.
- (1) 2.0TB OWC Mercury Electra™ 6G SSD
- 3 Year OWC Limited Warranty
Specs
Back to top
2.0TB OWC Mercury Electra 6G 2.5-inch 7mm SATA 6.0Gb/s Solid-State Drive
- Use of a 2.5-inch SSD in a 3.5-inch drive bay requires an adapter bracket such as the NewerTech AdaptaDrive.
- Use of any SSD in an external enclosure is dependent on the power available from the enclosure. OWC Mercury Electra 6G and Mercury Extreme Pro 6G SSDs are engineered for use in any OWC Enclosure that supports 2.5-inch SSDs.
Total Capacity
- 2000GB Useable Capacity
- Total Capacity: 2048GB
- 48GB Allocated to real-time data redundancy and error correction
Formatted Capacity
- 1863GiB
Controller
- Phison PS3112-S12 with 3% over-provisioning
NAND Flash Components
- Micron Synchronous Quad-Level Cell (QLC) 3D NAND Flash
S.M.A.R.T. Attributes
- Standard attributes supported
Native Command Queuing (NCQ)
- Up to 32 simultaneous commands
RAID Support
- Yes
Form Factor
- 2.5-inch 7mm
Drive Interface
- SATA 6.0 Gb/s
Sequential Read (Max)
- Up to 525 MB/s
Sequential Write (Max)
- Up to 516 MB/s
Sequential Read (Average)
- 514 MB/s
Sequential Write (Average)
- 513 MB/s
Nonrecoverable Read Errors
- 1 per 1016 bits read
MTBF (Mean Time Between Failures)
- 1,600,000 hours
Wear Leveling
- Supported
TRIM Support
- OS Dependent
Security
- Secure Erase (SE)
- Crypto Erase
Endurance
- 215TB total bytes written (TBW), equal to 118 GB per day for 5 years
Mac OS Compatibility
- Yes
PC OS Compatibility
- Yes
Other Requirements
- Host or device with a built-in SATA connection.
Write Mode (Max)
- Up to 1.9 Watts
Seek Mode (Max)
- Up to 1.9 Watts
Idle Mode (Max)
- Up to 0.1 Watts
Dimensions
- Height: 0.7 cm (0.3 in)
- Length: 10.0 cm (3.9 in)
- Width: 7.0 cm (2.8 in)
RoHS Compliant
- Yes
Reach Certification
- Yes
Country of Origin
- Taiwan
TAA Compliance
- Yes
Ambient Temperature
- Operating: 32°F to 158°F (0°C to 70°C)
- Non-Operating: -40°F to 185°F (-40°C to 85°C)
Altitude
- Operating: -304.8 m to 3,048.0 m (-1,000 ft to 10,000 ft)
- Non-Operating: -304.8 m to 12,192.0 m (-1,000 ft to 40,000 ft)
Humidity
- Operating: 5% to 90% non-condensing
- Non-Operating: 0% to 93% non-condensing
Idle (Typical)
- 0.0 bels
Seek (Typical)
- 0.0 bels
Applications
- General Purpose High-performance SSD.
OWC Data Doubler Optical Bay Hard Drive/SSD Mounting Solution
Drive Bays
- 1 bay supporting: 2.5-inch SATA HDDs, 2.5-inch SATA SSDs
- Supports drives up to 9.5mm in height
Color
- Blue
Material
- Aluminum
Dimensions
- Height: 0.8 cm (0.3 in)
- Length: 12.7 cm (5.0 in)
- Width: 12.7 cm (5.0 in)
Weight
- 76.0 g (0.17 lbs)
Country of Origin
- China
TAA Compliance
- No
Compatibility & Installation Videos
Back to top
MacBook Pro
MacBook Pro (13-inch, Mid 2012)
Mid 2012
Model ID: MacBookPro9,2
2.5GHz Core i5 & 2.9GHz Core i7
MacBook Pro (15-inch, Mid 2012)
Mid 2012
Model ID: MacBookPro9,1
2.3GHz & 2.6GHz & 2.7GHz Core i7
MacBook Pro (17-inch, Late 2011)
Late 2011
Model ID: MacBookPro8,3
2.4GHz & 2.5GHz Core i7
MacBook Pro (15-inch, Late 2011)
Late 2011
Model ID: MacBookPro8,2
2.2GHz & 2.4GHz & 2.5GHz Core i7
MacBook Pro (13-inch, Late 2011)
Late 2011
Model ID: MacBookPro8,1
2.4GHz Core i5 & 2.8GHz Core i7
MacBook Pro (17-inch, Early 2011)
Early 2011
Model ID: MacBookPro8,3
2.2GHz & 2.3GHz Core i7
MacBook Pro (15-inch, Early 2011)
Early 2011
Model ID: MacBookPro8,2
2.0GHz & 2.2GHz & 2.3GHz Core i7
MacBook Pro (13-inch, Early 2011)
Early 2011
Model ID: MacBookPro8,1
2.3GHz Core i5 & 2.7GHz Core i7
MacBook Pro (13-inch, Mid 2010)
Mid 2010
Model ID: MacBookPro7,1
2.4GHz & 2.66GHz Core 2 Duo
MacBook Pro (15-inch, Mid 2010)
Mid 2010
Model ID: MacBookPro6,2
2.4GHz & 2.53GHz Core i5 & 2.66GHz & 2.8GHz Core i7
MacBook Pro (17-inch, Mid 2010)
Mid 2010
Model ID: MacBookPro6,1
2.53GHz Core i5 & 2.66GHz & 2.8GHz Core i7
MacBook Pro (13-inch, Mid 2009)
Mid 2009
Model ID: MacBookPro5,5
2.26GHz & 2.53GHz Core 2 Duo
MacBook Pro (15-inch, Mid 2009)
Mid 2009
Model ID: MacBookPro5,4 & MacBookPro5,3
2.53GHz & 2.66GHz & 2.8GHz & 3.06GHz Core 2 Duo
MacBook Pro (17-inch, Mid 2009)
Mid 2009
Model ID: MacBookPro5,2
2.8GHz & 3.06GHz Core 2 Duo
MacBook Pro (17-inch, Early 2009)
Early 2009
Model ID: MacBookPro5,2
2.66GHz & 2.93GHz Core 2 Duo
MacBook Pro (15-inch, Early 2009)
Early 2009
Model ID: MacBookPro5,1
2.66GHz & 2.93GHz Core 2 Duo
MacBook Pro (15-inch, Late 2008)
Late 2008
Model ID: MacBookPro5,1
2.53GHz & 2.8GHz Core 2 Duo
MacBook
MacBook (13-inch, Mid 2010)
Mid 2010
Model ID: MacBook7,1
2.4GHz Core 2 Duo
MacBook (13-inch, Late 2009)
Late 2009
Model ID: MacBook6,1
2.26GHz Core 2 Duo
