500GB OWC DIY Bundle
2.5" OWC Solid-state Drive, OWC Data Doubler Kit and OWC 5 Piece Toolkit
Mfr P/N: DDMBS6E500 OWC SKU: OWCDDMBS6E500
$90.99 off - *NOW* Get Parallels Desktop Pro Edition - Windows/Multi OS Compatibility software for Mac - Only $29.00 with select OWC SSDs, HDDs, Memory, External Storage, and Optical Drives! (Limit 3 rebates, 1 rebate per qualifying item)
Must purchase with: Parallels Desktop Pro Edition for Mac - 1 Year License. SPECIAL PURCHASE
Everything you need in one package to replace your internal optical drive with additional storage space.
- Easily expands your internal storage
- Offers custom configuration options for the added drive
- Included durable toolkit makes installation easy
- 3 Year OWC Limited Warranty
Bigger, Better, Faster, Stronger
Take Your Time Machine With You!
RAID
Yes, You Can Do-it-Yourself
Power Tip
- Please note, that before attempting to perform this installation, it is recommended you watch the associated instructional video in its entirety to determine your ability to perform this complex procedure. OWC assumes no responsibility for damage that may occur during the install. Technical support for this DIY product consists only of the installation video.
Includes
Back to top
- OWC Data Doubler Kit
- 500GB OWC Mercury Electra™ 3G SSD
- OWC 5 Piece Toolkit
- 3 Year OWC Limited Warranty
Specs
Back to top
500GB OWC Mercury Electra 6G 2.5-inch 7mm SATA 6.0Gb/s Solid-State Drive
- Use of a 2.5-inch SSD in a 3.5-inch drive bay requires an adapter bracket such as the NewerTech AdaptaDrive.
- Use of any SSD in an external enclosure is dependent on the power available from the enclosure. OWC Mercury Electra 6G and Mercury Extreme Pro 6G SSDs are engineered for use in any OWC Enclosure that supports 2.5-inch SSDs.
Total Capacity
- 500GB Useable Capacity
- Total Capacity: 512GB
- 12GB Allocated to real-time data redundancy and error correction
Formatted Capacity
- 466GiB
S.M.A.R.T. Attributes
- Standard attributes supported
Native Command Queuing (NCQ)
- Up to 32 simultaneous commands
RAID Support
- Yes
Form Factor
- 2.5-inch 7mm
Drive Interface
- SATA 6.0 Gb/s
Random 4K Read
- Up to 100,000 IOPS
Random 4K Write
- Up to 90,000 IOPS
Sequential Read (Max)
- Up to 540 MB/s
Sequential Write (Max)
- Up to 500 MB/s
Nonrecoverable Read Errors
- 1 per 1015 bits read
MTBF (Mean Time Between Failures)
- 1,500,000 hours
Wear Leveling
- Supported
TRIM Support
- OS Dependent
Security
- TCG Opal
- Secure Erase (SE)
- Chip Based Data Encryption: 256-bit AES-compliant
Endurance
- 340TB total bytes written (TBW), equal to 187 GB per day for 5 years
Mac OS Compatibility
- Yes
PC OS Compatibility
- Yes
Other Requirements
- Host or device with a built-in SATA connection.
Write Mode (Max)
- Up to 2.055 Watts
Seek Mode (Max)
- Up to 1.48 Watts
Idle Mode (Max)
- Up to 0.07 Watts
Dimensions
- Height: 0.7 cm (0.3 in)
- Length: 10.0 cm (3.9 in)
- Width: 7.0 cm (2.8 in)
Weight
- 55.0 g (0.12 lbs)
RoHS Compliant
- Yes
Reach Certification
- Yes
Ambient Temperature
- Operating: 32°F to 158°F (0°C to 70°C)
- Non-Operating: -40°F to 185°F (-40°C to 85°C)
Altitude
- Operating: -304.8 m to 3,048.0 m (-1,000 ft to 10,000 ft)
- Non-Operating: -304.8 m to 12,192.0 m (-1,000 ft to 40,000 ft)
Humidity
- Operating: 5% to 95% non-condensing
Shock
- Operating: 1500 G max at 0.5 ms
- Non-Operating: 1500 G max at 0.5 ms
Idle (Typical)
- 0.0 bels
Seek (Typical)
- 0.0 bels

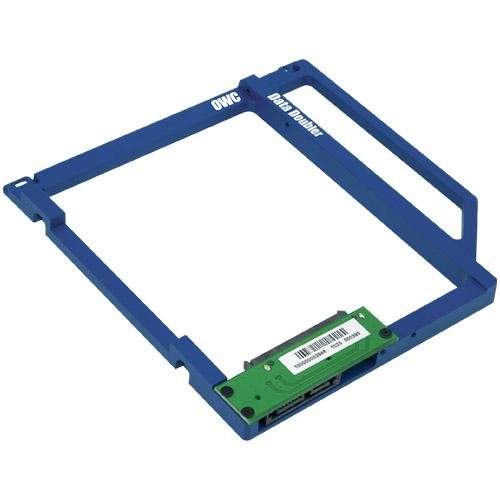

OWC Data Doubler Optical Bay Hard Drive/SSD Mounting Solution
Drive Bays
- 1 bay supporting: 2.5-inch SATA HDDs, 2.5-inch SATA SSDs
- Supports drives up to 9.5mm in height
Color
- Blue
Material
- Aluminum
Dimensions
- Height: 0.8 cm (0.3 in)
- Length: 12.7 cm (5.0 in)
- Width: 12.7 cm (5.0 in)
Weight
- 76.0 g (0.17 lbs)
Country of Origin
- China
TAA Compliance
- No
