DIY Bundle: OWC Data Doubler Kit + 120GB OWC 3G SSD
OWC 2010 Mac mini Data Doubler Kit, 120GB 2.5" OWC Mercury Electra 3G Solid State Drive and OWC 5 Piece Toolkit

OWC Internal SSD DIY Kit

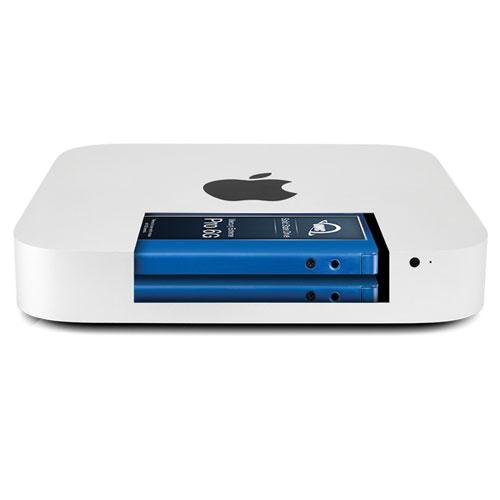

Everything you need in one package to replace your 2010 Mac mini's internal optical drive with 120GB of OWC SSD power and reliability.
Configuration flexibility is yours when you replace your Mac mini's internal SuperDrive with the OWC Data Doubler. Bundle includes bracket, screws, tools, drive, and detailed installation guide for complete all in one solution.

Then, just install the entire assembly into a Mac mini's 5.25" optical drive bay. OWC Data Doubler makes it easy to custom design how you want your internal storage to perform. Installed drives are recognized like any other high speed SATA storage device and can be setup and partitioned using the Apple Disk Utility Program.
Just a few of the configuration options you can enjoy with Data Doubler:
  • Combining a new drive with the existing internal drive for one larger volume (SPAN).
  • Combining a new matching drive with existing internal for high-performance RAID-0 Stripe volume.
  • Configuring a new drive as a Time Machine backup drive.
  • Formatting one drive for the Mac OS and the other dedicated for Windows.

You don't have to give up your optical drive completely if you don't want to. You can reuse the original SuperDrive with the OWC Value Line Slim optical drive enclosure for Apple SuperDrive.
This OWC Data Doubler is compatible with...
Mac mini Intel
Mac mini (Mid 2010)
(June, 2010)
Model ID: Macmini4,1
2.4GHz, 2.66GHz
Mac mini Intel
NOT COMPATIBLE
Mac mini (Mid 2010 Server)
(June, 2010)
Model ID: Macmini4,1
2.66GHz

Release Candidate (RC) firmware set

There are two kinds of firmware for SSDs Mass Production (MP) and Release Candidate (RC). Prior to an MP firmware release, there are beta firmware releases and an RC firmware release. Often, the RC is the same as the MP release, however there can be small changes and bug fixes made between the two. OWC has evaluated the RC for the 6Gb/s SandForce 2281 Processor and found it to be stable with no issues reported during our testing. However, as with any evolutionary product, issues may surface as different usages and configurations are employed and it is important to understand that there will be further updates and revisions.

Since no firmware update is currently offered for the OWC Mercury EXTREME Pro 6G SSD, no update page exists. To see the typical steps involved with a self performed field firmware update, please visit our 3Gb/s product update page at: http://eshop.macsales.com/Customized_Pages/Framework.cfm?page=sf_firmware.html

It is important to note that the current firmware update tool requires the use of Windows XP/Vista/7. OWC is currently working on a Mac OS based update tool, but we do not have an exact availability date.

120GB Mercury Electra 3G SSD Specifications:

Specifications

Controller
Silicon Motion SM2258XT with 7% over-provisioning
NAND Flash Components
Synchronous Triple-Level Cell (TLC) 3D NAND Flash
Form Factor
Standard 7mm 2.5"
Interface
SATA 3.0 Gb/s
Capacity 1
120GB Useable Capacity
Total Flash Memory Components: 128GB
8GB Allocated to real-time data redundancy and error correction
Formatted Capacity1
112 GiB
RAID Support
Yes
SMART Attributes
Standard 2
Native Command Queuing
Up to 32 simultaneous commands
RoHS Compliant
Yes
Reach Certification
Yes
Format

Physical

Height (max)
7 mm (0.276 in)
Width (max)
70.06 mm (2.758 in)
Length (max)
100.12 mm (3.941 in)
Weight
60.0 g (0.13 lbs)

Reliability

MTBF (Mean Time Between Failures)
1,500,000 hours
Security
ATA Security Feature Command Set and Password Login Support
Error Correction
Built-in ECC
TRIM Support
OS Dependent
Wear Leveling
Supported
Nonrecoverable Read Errors
Less than 1 sector per 1015 bits read

Compatibility

Mac OS Compatibility
Yes
PC OS Compatibility
Yes
Other Requirements
Requires a Mac, PC, or drive enclosure with an available SATA drive bay. SATA II (3.0 Gb/s) or faster required for best performance.

Performance

Average Access Time
<0.1 ms
Sequential Read (Max)
272MB/s
Sequential Write (Max)
89MB/s

Power

Active (Max)
2.1W
Idle Mode (Max)
0.1W

Environmental (Operating)

Shock
1500 G max at 0.5 ms
Temperature (°F)
32°F to 158°F
Temperature (°C)
0°C to 70°C
Humidity
5% to 95% non-condensing

Environmental (Non-Operating)

Shock
1500 G max at 0.5 ms
Temperature (°F)
-40°F to 185°F
Temperature (°C)
-40°C to 85°C

Acoustics

Idle (Typical)
0.0 bels
Seek (Typical)
0.0 bels
  1. 1GB = 1,000,000,000 bytes. Total accessible capacity varies depending upon operating environment (typically 5-10% less). The actual total capacity will depend on your own defined file settings/preferences.
  2. Temperature reporting is currently an unsupported feature because due to the operating characteristics of SSDs, it is highly unlikely one would ever exceed an OWC Mercury SSD's stated operating temperature ceiling of 158F/70C. However, we are looking into supporting this feature in the future via a firmware update. Firmware updates can be found here: http://eshop.macsales.com/tech_center/OWC/SSD.

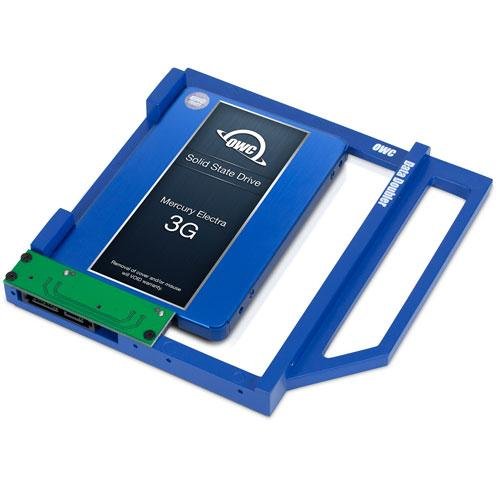

OWC Data Doubler Specs

Drive Interface

  • SATA / SATA 3G / SATA 6G Interface 2.5" Drive or SSD (Solid State Drive) of up to 12.5mm height.

Dimensions

  • 5"(D) x 4"(W) x 0.5"(H)
  • 12.7 x 10.3 x 1.2mm

Weight

  • 2.3oz. / 0.14lbs.
Manufacturer provided specifications for Other World Computing p/n DDMM10SSD115 UPC#: 812437028591

Includes:

Includes bracket, screws, and detailed installation guide for complete all-in-one kit.




  • 1: OWC Data Doubler Bracket

  • 2: Logic Board Removal Tool

  • 3: Screws (4 x Phillips)

  • 4: Toolkit includes everything you need to
    open your Mac and install the Data Doubler.

  • 5: Detailed Installation Guide

  • 6: 120GB OWC Mercury Electra 3G SSD

Gallery

Reviews

Customer Ratings

Write a Review 4.8 / 5 14 out of 15 (93%) reviewers would recommend this product
DIY Bundle 120GB 2.5" OWC 3G Solid State Drive, OWC 2010 Mac mini Data Doubler Kit and OWC 5 Piece Tool Kit Mfr P/N: DDMM10SSD115 OWC SKU: OWCDDMM10SSD115 Compatible with 2010 Mac Mini models. Data Doubler: 1 Year OWC Brand Standard Limited Warranty
Drive: 3 Year OWC SSD Limited Warranty
Ships: Same Day Only $64.98Bundle Priced for $43.64
Add to CartOther World Computing DDMM10SSD115 In Stock, Click to Buy Now
Additional Capacities:
  • 120GB
  • 250GB
    • Ships: Same Day
    • Only $79.98
    • Bundle Priced for $67.75
  • 500GB
    • Ships: Same Day
    • Only $119.98
    • Bundle Priced for $104.75
  • 1.0TB
    • Ships: Same Day
    • Only $199.98
    • Bundle Priced for $168.75
  • 2.0TB
    • Ships: Same Day
    • Only $899.00
    • Bundle Priced for $332.75
