2.0TB OWC 3G SSD
and Data Doubler for 2009 - 2011 27" iMacs
Mercury SSD and Optical Bay Mounting Solution
Upgrade with Confidence!
The complete solution for your 2009 - 2011 27" iMac
Configuration flexibility is yours when you replace your iMac's internal SuperDrive with an OWC SSD using the Data Doubler. Boost your storage capacity by adding additional storage, and enjoy near-instantaneous boot and app loading times thanks the performance of an OWC 3G SSD.
Fast and reliable solid-state storage
With incredible sustained data speeds, up to 100X greater data protection than enterprise class Hard Disk Drives, and RAISE technology for RAID like data protection and reliability, the OWC Mercury 6G SSD line delivers unbeatable performance, that's backed by an incredible OWC SSD Limited Warranty.
Upgrade Your iMac with Confidence.

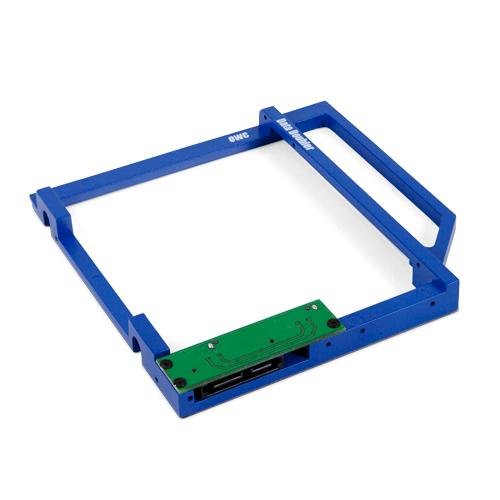

OWC's custom-engineered Data Doubler bracket comes ready to mount any 2.5" SATA drive up to 12.5mm in height. Data Doubler also comes backed by OWC's award-winning U.S.A. based technical support team which is readily available to assist you with your upgrade should you have any questions.

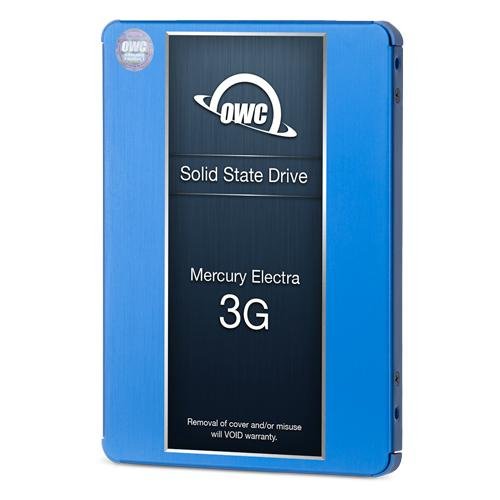

2.0TB Mercury Electra 3G SSD Specifications:
Silicon Motion SM2246EN Series
Tier 1 Asynchronous MLC NAND Flash
Standard 7mm 2.5"
SATA 3Gb/s & 1.5Gb/s supported, SATA 2.0 Compliant
1920GB useable capacity
Total Flash Memory Components – 2048GB
128GB allocated to real-time data redundancy & error correction
Qualified for single drive and multiple drive production workstation RAID 0/1/10/0+1 and SPAN usage.
Native Command Queuing
up to 32 commands
Manufacturer Model Number
OWC 7mm – 9.5mm Adapter
77 grams +/- 2 grams
0.170 lbs +/- 2.71 oz
Built-in BCH ECC: Up to 66 bits correctable per 1024 bytes
Chip Based Data Encryption: 256-bit AES-compliant
Nonrecoverable Read Errors
Less than 1 sector per 1016 bits read
Reads 3Gb/s (up to)
Writes 3Gb/s (up to)
Less than 2000mW (2.0W) expected maximum draw
Less than 700mW (0.7W)
32°F to 158°F
0°C to 70°C
-40°F to 185°F
-40°C to 85°C
Data Doubler Specifications:
- Fully SATA Revision 3.0 (6Gb/s) compatible
- SATA Revision 2.0 (3Gb/s) and 1.0 (1.5Gb/s) compatible
- (1) 2.5" SATA 6Gb/s drive
Manufacturer provided specifications for Other World Computing p/n K27IM09OE2TB UPC#: 812437028676
- Height: 0.5 in (1.2 cm)
- Width: 4.0 in (10.2 cm)
- Length: 5.0 in (12.7 cm)
Weight (Without Drives
Data Doubler Install Video
27" iMac (2011) Install Video
27" iMac (2010) Install Video
27" iMac (2009) Install Video
iMac (27-inch Mid 2011)
Model ID: iMac12,2
2.7GHz i5, 3.1GHz i5, 3.4GHz i7
iMac (27-inch Mid 2010)
Model ID: iMac11,3
3.2GHz i3, 2.8GHz i5, 3.6GHz i5, 2.93GHz i7
iMac (27-inch Mid 2009)
Model ID: iMac11,1
2.66GHz i5, 2.8GHz i7
iMac (27-inch Mid 2009)
Model ID: iMac10,1

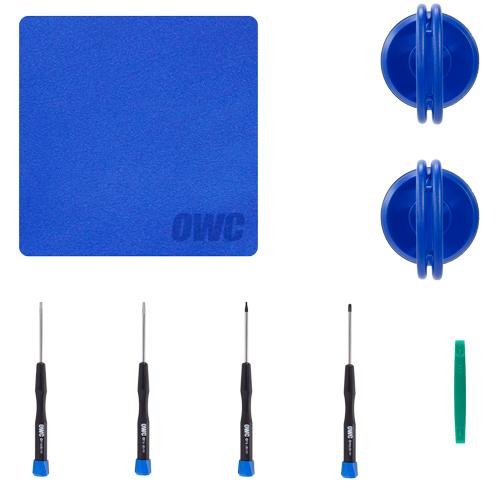

- (1) OWC Mercury 3G SSD
- (1) OWC Data Doubler Optical Bay Mounting Solution
- (2) OWC 2-1/4" Suction Cup
- (1) Torx T10 driver
- (1) Torx T8 driver
- (1) Torx T6 driver
- (1) Phillips #00 Driver
- (1) Nylon Pry Tool (Spudger)
- (1) OWC Blue Microfiber Screen Cleaning Cloth
NOTE: This kit contains consumable and/or one time use components and therefore is non-refundable if opened. If you have any concerns about your ability to perform the upgrade, you can return the unopened kit for a refund.
The best warranty is one you never have to use - but should the need occur - we're proud to provide a superior level of support and service coverage to our customers.
3 Year OWC SSD Limited Warranty
on the OWC Mercury Electra 6G SSD
1 Year OWC Brand Standard Limited Warranty
on the OWC Data Doubler
Even when not used, we understand the peace of mind afforded by a longer warranty period. OWC's industry leading coverage is a testament to our confidence in the reliability of the solutions that we offer. OWC solutions are engineered to demanding quality standards in order to deliver the most reliable, highest performance available on the market in each storage category.
