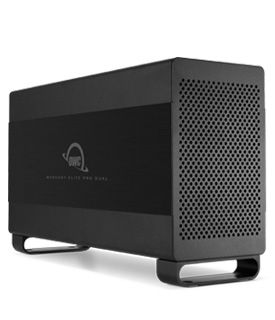

OWC Mercury Elite Pro Dual

Multi-Interface Performance RAID Enclosure Kit

Mac / PC / Thunderbolt / USB 3.0 & 2.0

High-Performance, High-Reliability, Portability, and Style are standard for the OWC Mercury Elite Pro Dual Series!

The OWC Mercury Elite Pro Dual houses two user-supplied drives that can be easily configured in RAID 0, RAID 1**, span, or JBOD/independent modes via the easy-to-use RAID selector switch on the back, while USB 3.0 and Thunderbolt interfaces provide blazing fast access to your data. This feature-packed external drive comes in a durable, heat-dissipating, brushed-aluminum enclosure.

Outstanding Features

High-Performance + Flexible

A blazing fast Thunderbolt chipset unleashes the full potential of two internal drives you choose to install. Get the maximum sustained throughput from your drives with the flexibility of hardware RAID 0, 1, and non-RAID modes to best suit your demanding applications and workflow.

High-Reliability

The OWC Mercury Elite Pro Dual Series is Built to Last, with a quality design and the best components, backed up by a 1 Year OWC Enclosure Limited Warranty.

Portability

The Compact and Shock-Resistant Design has the Mercury Elite Series going places! In addition, the OWC Mercury Elite Pro Dual series offers two Thunderbolt ports and one USB 3.0 port for easy use with ANY system! The OWC Mercury Elite Pro Dual even includes all needed cables!

Smart Sense

Power Saving Connection Sensor. A built-in sensor detects when the data cable is disconnected from a Mac or PC's native Thunderbolt or USB interface and automatically spins down the drives to conserve energy during periods of inactivity. Ideal for notebook users who can go mobile without the need to turn it off or unplug the power cord.**

*For RAID 0 or RAID 1 functionality, it is recommended that identical drives be utilized.
**This function is also available through an interface card, provided the card offers hot plug capability. LED and fan will remain on during disk inactivity.

Gallery

48 Hour Warranty Service

The OWC Mercury Elite Series has been designed to be everything you'd hope for and more!

Includes

External OWC Mercury Elite Pro Dual Bare Enclosure
High-Quality, Certified, Double-Shielded 1 Meter (39-inch) Thunderbolt cable
High-Quality Double-Shielded 2' (24-inch) USB 3.0 cable (Standard-B to Standard-A, USB 2.0 compatible)
Kensington Security Slot
UL Listed U.S./International Auto Switching 100 ~ 240v, 50/60Hz input, 12 Volt 6 Amp output Power Supply (adapter plugs for International use sold separately). For replacement power supply, click here.
User Guide
Mercury Elite Pro Dual with Thunderbolt Assembly Manual & User Guide (2.3MB PDF)
1 Year OWC Enclosure Limited Warranty with 48-Hour Turnaround Time

Gallery

360 Gallery

Click to load 360 Gallery

Product Specifications:

Mechanisms Supported

Two 3.5" SATA hard drives
Two 2.5" SATA hard drives or SSDs (NewerTech AdaptaDrive required for install, sold separately)
Note: Not compatible with HGST Ultrastar drive P/N: 0F23267

Chipset

Thunderbolt

Interfaces Supported

Thunderbolt
USB 3.0 (2.0 Backwards compatible)

Recommended configurations supported

RAID 0 – Performance Striping (default setting) for maximum performance(requires two identical hard drives).
RAID 1 – One drive mirrors the other for an instant backup(requires two identical hard drives).
Span – Combines both drives into a single, large volume.
Independent – Use both drives separately.*

* 1) When the enclosure is set to Independent drive mode, only the drive in HDD2 is bootable.
2) Independent drive mode is not fully supported by some versions of Mac OS X when connected over Thunderbolt. In Mac OS X 10.8.3 and prior, only HDD2 appears. This is a limitation of of the operating systems' support for the SATA chipset in the Mercury Elite Pro Dual. Independent drive mode does not have the limitation when used over USB.

Port Configuration

Thunderbolt – 2 ports
USB 3.0/2.0 – 1 USB 3.0 Standard B port

Max Data Transfer Rate

Thunderbolt – Up to 10Gb/sec
USB 3.0 – Up to 500MB/sec
USB 2.0 – Up to 60MB/sec

Port/Interface Bootability

USB 3.0: Supported on Macs and PC's meeting minimum requirements. - Click for more info
USB 2.0: Supported on Macs and PC's meeting minimum requirements. - Click for more info
Thunderbolt: It can be used as a Thunderbolt startup drive on Macs running Mac OS X.

Macintosh System Requirements

USB 3.0: Macintosh with USB 3.0 interface, either built in or via USB 3.0 expander card and OS 10.6.8 or later.
USB 2.0: Macintosh with USB 2.0 interface, either built in or via USB 2.0 expander card and OS 10.2.8 or later.
Available Thunderbolt port and OS 10.6.8 or later.
Time Machine® Compatible: Mac OS X 10.5 (version introduced) and later.

Windows System Requirements

Thunderbolt: Any PC running Windows 7 Service Pack 1 or later with a Thunderbolt port. Driver required for proper installation. (ZIP 3.3 MB)
USB 3.0: Windows XP and later with USB 3.0 interface, either built in or via USB 3.0 expander card.
USB 2.0: Windows 2000 and later with USB 2.0 interface, either built in or via USB 2.0 expander card.
Thunderbolt connectivity for OWC Mercury Elite Pro Dual is not supported in Boot Camp.

Linux Requirements

Linux compatible via supported USB 3.0/USB 2.0 interfaces.

Power Supply

UL Listed U.S./International Auto Switching 100 ~ 240v, 50/60Hz input, 12 Volt 6 Amp output Power Supply (adapter plugs for International use sold separately). For replacement power supply, click here.

Dimensions

Height: 5.3 in (13.5 cm)
Width: 2.8 in (7.1 cm)
Length: 9.0 in (22.9 cm)

Weight (without drives)

2.5 lb. (1.1 kg)

Operating Environment:

Temperature

(operating) 5°C – 42°C (41°F – 107°F)
(non-operating) -40°C – 65°C (-40°F – 149°F)

Relative Humidity

(operating) 8% – 90% RH (Non-condensing)
(non-operating) 5% – 95% RH (Non-condensing)

Shock

65G 2mS; (non-operating) 175G 2mS

Vibration

(operating) 1.0G (5 – 300Hz)
(non-operating) 5.0G (5 – 500Hz)

MTBF (hours)

More than 300,000 power-on hours

Warranty

1 Year OWC Enclosure Limited Warranty

The best warranty is one you never have to use, but should the need occur – OWC is proud to provide a superior level of support and warranty coverage to our customers. Even when not used, we understand the peace of mind afforded by a longer warranty period. OWC's industry leading coverage is a testament to our confidence in the reliability of the solutions that we offer. OWC solutions are engineered to demanding quality standards in order to deliver the most reliable, highest performance available on the market in each storage category.

View more information about the 1 Year OWC Enclosure Limited Warranty

Manufacturer provided specifications for Other World Computing p/n METB7DK0GB UPC#: 794504339956
