OWC Mercury Rack Pro

We're sorry, but this item is no longer for sale. However, there may be more External Drives & Enclosures items available.

OWC Mercury Rack Pro

Four-Bay Mini-SAS 1U Rackmount/Dekstop External Storage Enclosure for 3.5-inch SATA or SAS Drives


Mfr P/N: OWCMRP1MSAS OWC SKU: OWCMRP1MSAS

OWC affordability, reliability, and ease of use in a single 1U rack space.

  • Provides four full channels of data (one per drive) through a single external mini-SAS cable
  • Data transfer rates of up to 24Gb/s
  • Can easily be converted to a desktop form-factor
  • 1 Year OWC Limited Warranty
availability

Need massive amounts of storage?

The OWC Mercury Rack Pro Storage Solution is a four bay external mini-SAS hard drive enclosure configured as four independent hard drives, up to a maximum capacity of 16.0TB (4.0TB per hard drive mechanism).
The OWC Mercury RackPro features a single external mini-SAS interface, to not only reduce cable clutter, but to provide four full channels of data (one per drive) through a single external mini-SAS cable. It's like having four separate eSATA/SAS cables but in a single package.
Designed specifically to meet the demands of server, audio production, and video production environments, the OWC Mercury Rack Pro four Bay 1U Solutions provide data transfer rates of up to 24Gb/s data rates1! Using the highest capacity SATA hard drive mechanisms available, and offering Plug & Play simplicity, the possibilities are endless!
Note: OWC Mercury Rack Pro solutions do not include rack rails. If rails are required for your rack setup, OWC has them available. Click Here.

Great Performance

Using the fastest SATA drive mechanisms available gives the OWC Mercury Rack Pro mini-SAS 4 Bay 1 U Solutions a solid, performance focused base. Adding a high-speed external mini-SAS card (not included) further enhances the OWC Mercury Rack Pro providing some of the fastest drive transfer rates possible, up to 24Gb/s1!

High Reliability

A Top-Notch design using the best components ensures theOWC Mercury Rack Pro series is built to last! TheOWC Mercury Rack Pro can easily be converted to a desktop form-factor via a Phillips screwdriver by simply removing the rack ears and installing the included anti-skid, vibration dampening feet.

IncludesIncludes

Back to top
  • (1) OWC Mercury Rack Pro Four-Bay Mini-SAS 1U Rackmount/Desktop Storage Enclosure
  • (1) Integrated ROHS, CE, and FCC Compliant Power Supply
  • (1) Rack Mounting Handles
  • (4) Anti-Skid, Vibration-Dampening Desktop Mounting Feet
  • (1) Screws for Rack/Desktop Conversion
  • (1) Quick Start Guide for OWC Mercury Rack Pro with Mini-SAS
  • (1) Assembly Manual & User Guide for OWC Mercury Rack Pro with Mini-SAS
  • 1 Year OWC Limited Warranty

Rack rails are available separately (not included).

    Drive Bays

    • 4 bays supporting: 3.5-inch SATA drives
    • Drives must be identical

    Hot Swap Support

    • Yes

    Storage Interface

    • 6Gb/s SAS or SATA

    RAID Capable

    • Yes

    RAID Levels Supported

    • JBOD

    RAID Features

    • Software RAID

    Device Ports

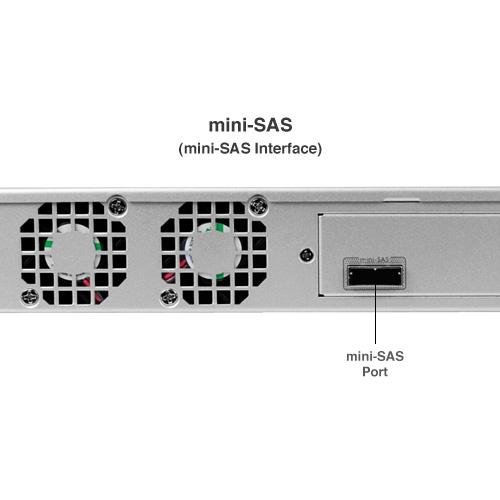

    • (1) Mini-SAS (6Gb/s) SFF-8088 Port

    Data Transfer Rate (Maximum)

    • mini-SAS : Up to 24Gb/s (or 2400MB/s)

    Chipset / Controller

    • Not disclosed by manufacturer

    MTBF (Mean Time Between Failures)

    • Varies depending on drive mechanism installed

    Contact Start Stops

    • Varies depending on drive mechanism installed

    Mac OS Compatibility

    • Mac OS X 10.2 Jaguar
    • Mac OS X 10.3 Panther
    • Mac OS X 10.4 Tiger
    • Mac OS X 10.5 Leopard
    • Mac OS X 10.6 Snow Leopard
    • Mac OS X 10.7 Lion
    • Mac OS X 10.8 Mountain Lion
    • OS X 10.9 Mavericks
    • OS X 10.10 Yosemite
    • OS X 10.11 El Capitan
    • macOS 10.12 Sierra

    PC OS Compatibility

    • Windows XP
    • Windows XP 64-bit Edition
    • Windows XP Professional x64 Edition
    • Windows Vista
    • Windows 7 32-bit Edition
    • Windows 7 64-bit Edition

    External Power Adapter

    • No

    Power Supply

    • Internal UL-listed universal auto-switching power supply

    AC Input

    • 100-240V, 50-60Hz

    Wattage

    • 200W

    Cooling

    • (1) cooling fan

    Security Slot

    • No

    Power Button

    • Yes

    Power/Activity LED

    • Yes

    Housing Color

    • Aluminum

    Housing Material

    • Aluminum

    Dimensions

    • Height: 4.5 cm (1.8 in)
    • Length: 30.3 cm (11.9 in)
    • Width: 44.0 cm (17.3 in)

    Weight

    • 4.5 kg (9.92 lbs)

    Ambient Temperature

    • Operating: Varies depending on drive mechanism installed
    • Non-Operating: Varies depending on drive mechanism installed

    Altitude

    • Operating: Varies depending on drive mechanism installed
    • Non-Operating: Varies depending on drive mechanism installed

    Humidity

    • Operating: Varies depending on drive mechanism installed
    • Non-Operating: Varies depending on drive mechanism installed

    Shock

    • Operating: Varies depending on drive mechanism installed
    • Non-Operating: Varies depending on drive mechanism installed

    Noise

    • Varies depending on drive mechanism installed
