OWC

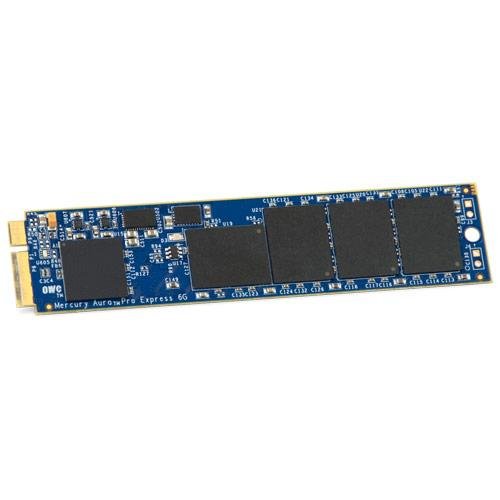

500GB Aura Pro 6G
Solid-State Drive

Used | OWC Tested

For MacBook Air (2010-2011)
High Performance Internal Flash Storage Upgrade
Designed for Mac
Once again, OWC provides Mac users an upgrade path that delivers phenomenal performance, functionality, and reliability! Whether it's for a base-model 11-inch MacBook Air from 2010 with a 64GB SSD, the top of the line 13-inch 256GB model from 2011, or any model in between, an OWC Aura Pro 6G SSD is the best enhancement for the MacBook Air. Just like other OWC upgrades, we include a free 'how-to' video to make this an easy and money-saving DIY upgrade.
More Speed, More Capacity for MacBook Air
OWC Aura Pro SSDs provide a noticeable increase in performance over the factory SSDs for all MacBook Air models:
  • Increase capacity up to 16x the 11-inch base models
  • Increase capacity up to 8x the 13-inch base models
  • MacBook Air (2011) - Get 6G speeds up to 530MB/s, 2.5x faster than factory original*
  • MacBook Air (2010) - Get 3G speeds up to 275MB/s, 1.3x faster than factory original*
Better by Design
OWC redesigned its 3rd generation of OWC Aura Pro 6G SSDs with premium 3D NAND Flash and the latest controller technology to operate cooler and consume less power, resulting in improved battery life for your MacBook Air. OWC SSDs are engineered to be the best for Mac, undergoing a rigorous multi-stage lab testing process to deliver absolute reliability at maximum performance long into the future.
  • SLC caching algorithm accelerates burst performance
  • Global wear leveling algorithm automatically distributes data evenly and manages program/erase count, maximizing SSD lifespan
  • Data refresh technology ensures data integrity, gradually refreshing data across the SSD over time
  • ECC protection combines LDPC hard and soft decoding with advanced algorithm to detect and correct errors throughout the entire SSD data path
  • Advanced security protocols support AES 128/256-bit full-drive encryption
*Based on sequential speed testing of original stock 64GB SSD in a 2011 MacBook Air i5 1.6GHz. Sequential write speeds of 194MB/s, read speeds of 211MB/s.

500GB Aura™ Pro 6G Specifications:

Specifications

Form Factor
Custom Blade
Interface
SATA 6Gb/s
Capacity1
485GB useable capacity
Total Flash Memory Components - 500GB
~15GB allocated to real-time data redundancy & error correction
Formatted Capacity2
452GiB
NAND
Triple-Level Cell (TLC) 3D NAND Flash
Controller
Silicon Motion SM2258
SMART Attributes
Standard
Native Command Queuing
Yes
Manufacturer Model Number
OWCS3DAP116G500
RoHS Compliant
Yes
Format

Physical

Height (max)
3.00mm (0.118″)
Width (max)
24.00mm (0.945″)
Length (max)
109.0mm (4.291″)
Weight (typical)
10g (0.353 oz.)

Reliability3

MTBF (Mean Time Between Failures)
1,500,000
Endurance
150TB total bytes written (TBW)
Data Reliability
ECC Recovery
Security
ATA security feature command set and password login support
TRIM Support
OS Dependent
Nonrecoverable Read Errors
Less than 1 sector per 1015 bits read

Performance

Average Access Time
<0.1 ms
Sequential Read
6Gb/s (up to)
530MB/s
Sequential Write
6Gb/s (up to)
495MB/s
Sustained Read
6Gb/s (up to)
530MB/s
Sustained Write
6Gb/s (up to)
495MB/s
Sustained Read
3Gb/s (up to)
271MB/s
Sustained Write
3Gb/s (up to)
220MB/s
Random 4K Read
Up to 80,000 IOPS
Random 4K Write
Up to 72,000 IOPS
Read Latency
less than 0.1ms
Write Latency
less than 0.1ms

Power

Read Power
2.1 Watts
Write Power
2.1 Watts
Idle Power
0.1 Watts

Environmental (Operating)

Shock
1500G / 0.5ms
Temperature (°F)
32°F to 158°F
Temperature (°C)
0°C to 70°C
Humidity
5% to 95% non-condensing

Environmental (Non-Operating)

Shock
1500G / 0.5ms
Temperature (°F)
-40°F to 185°F
Temperature (°C)
-40°C to 85°C

Acoustics

Idle (Typical)
0.0 bels
Seek (Typical)
0.0 bels

Installation

How to Install the Aura Pro in MacBook Air 2011

Because OS X Lion is preinstalled on the removable Apple factory flash drive module, you cannot simply remove that drive and replace it with an OWC Aura Pro SSD without some initial preparation.

There are two methods you can select to prepare using an OWC Aura Pro SSD in your Mid 2011 MacBook Air.

Method #1

Internet Recovery Mode via Apple Knowledge Base Article #HT4718
http://support.apple.com/kb/HT4718

NOTE: If moving an OWC Aura Pro SSD used in a 2010 MacBook Air, using this method will completely erase the drive's data. Make SURE you have a Time Machine® backup or clone of the OWC Aura Pro SSD on an external drive.

Method #2

Recovery Partition Restore Mode
  1. Make SURE you have a Time Machine backup or clone of your data (from either the Apple factory stock flash drive or OWC Aura Pro SSD) on an external drive. We will refer to this drive as Drive #1.
  2. Boot to the recovery partition on the stock drive by holding down Command R during
    a restart or boot process.
  3. Use Disk Utility to do a restore on a separate external USB drive. DO NOT use the same external drive that was used for your Time Machine or clone backup. We will refer to this drive as Drive #2.
  4. Replace the MacBook Air's stock flash drive with the OWC Aura Pro SSD.
  5. Boot to the USB Drive #2's recovery partition.
  6. Use Disk Utility to do a restore to the OWC Aura Pro SSD.
  7. Restart or Boot to the OWC Aura Pro SSD.
  8. Run Apple Migration Assistant to clone your data from Drive #1.
How to Install the Aura Pro in MacBook Air 2011
  1. 1GB = 1,000,000,000 bytes. Total accessible capacity varies depending upon operating environment (typically 5-10% less). The actual total capacity will depend on your own defined file settings/preferences.
  2. In terms of standard gigabytes, 1GiB ≈ 1.074GB and refers to the actual formatted capacity of shown under Mac OS 10.5 or earlier and Microsoft Windows OS.
  3. Specific application environments such as temperature and duty cycle will affect the overall reliability rates.
Manufacturer provided specifications for Other World Computing p/n S3DAP116G500 UPC#: 810586031783

Gallery

Video

13" 2011 MacBook Air SSD install


11" 2011 MacBook Air SSD install


13" 2010 MacBook Air SSD install


11" 2010 MacBook Air SSD install


This product is compatible with... Learn how to find your Mac's model ID
MacBook Air
MacBook Air (13-inch Mid 2011)
(July, 2011)
Model ID: MacBookAir4,2
1.7GHz, 1.8GHz
MacBook Air
MacBook Air (13-inch Late 2010)
(October, 2010)
Model ID: MacBookAir3,2
1.86GHz, 2.13GHz
MacBook Air
MacBook Air (11-inch Mid 2011)
(July, 2011)
Model ID: MacBookAir4,1
1.6GHz, 1.8GHz
MacBook Air
MacBook Air (11-inch Late 2010)
(October, 2010)
Model ID: MacBookAir3,1
1.4GHz, 1.6GHz
MacBook Air
NOT COMPATIBLE
MacBook Air (13-inch 2012)
Education Model
(July, 2012)
Model ID: MacBookAir4,2
1.7GHz
MacBook Air
MacBook Air (13-inch Mid 2013)
(June, 2013)
Model ID: MacBookAir6,2
1.3GHz, 1.7GHz
MacBook Air
MacBook Air (11-inch Mid 2013)
(June, 2013)
Model ID: MacBookAir6,1
1.3GHz, 1.7GHz

Reviews

Macworld Best of Show 2011
Best of Show 2011 - Macworld
MacLife Award Winner 2011
Award Winner 2011 Mac Hardware - MacLife
Notebooks.com Best of Macworld 2011
Best of Macworld 2011 - Notebooks.com
Stevies Finalist
Stevies Award Finalist 2011 - The American Business Awards
OWC 500GB Aura™ Pro 6G
Solid-State Drive for MacBook Air (2010-2011)
Mfr P/N: S3DAP116G500 OWC SKU: OWUS3DAP116G500 High performance internal flash storage. 3rd generation, late 2018 model. Improved performance & lower power consumption for longer battery life. 1 Year OWC Limited Warranty Ships: Same Day
Supply Limited: 1 available
Only $109.99Garage Sale Price $84.75
Add to CartOther World Computing S3DAP116G500 In Stock, Click to Buy Now
