We're sorry, but this item is no longer for sale. However, there may be more Internal Hard Drives & SSDs items available.
We recommend OWC Accelsior 4M2 Four-Slot NVMe M.2 SSD to PCIe 3.0 Adapter Card (Mfr P/N: SSDACL4M2000) from OWC for $149.99 as a suitable alternative.

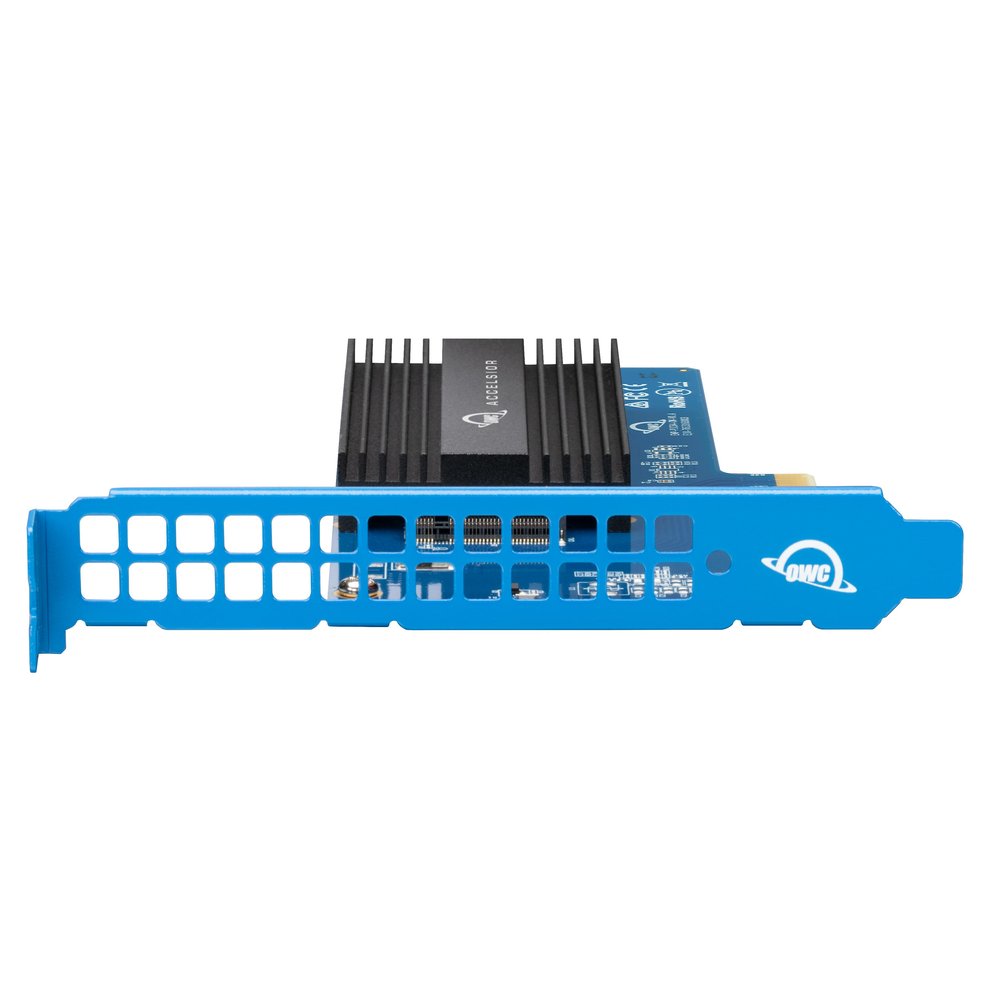

OWC Accelsior 1M2
NVMe M.2 SSD to PCIe 4.0 Adapter Card for Mac Pro (Late 2019 - Current), Mac Pro (2010 - 2012), PC Towers & Thunderbolt PCIe Expansion Chassis
Mfr P/N: SACL1M OWC SKU: OWCSACL1M
-
-
-
-
video
The speed boosting, capacity expanding M.2 SSD to PCIe expansion card for performance upgraders, system builders, and server admins
- Adaptable: supports the latest M.2 NVMe and legacy AHCI SSDs in M-key 2230, 2242, 2260, 2280, and 22110 lengths
- Versatile: installs into x4, x8 or x16 PCIe slots
- Boosts performance: over 3000MB/s real-world speed for bandwidth-heavy projects, high demand server applications, and superior gaming
- Bootable: start working in seconds
- Store more: adds capacity for critical projects, files and games
- Slot-powered: no extra power cables needed
- Plug and play: no drivers needed
- 1 Year OWC Limited Warranty
Boost. Expand. Maximize.
- Near instant start-up and business critical app launching
- Real-time processing of intensive transfer tasks like multi-stream video editing
- Shorter render, capture, and process times in video suites like Adobe Premier, Final Cut Pro/Pro X, DaVinci Resolve, and Avid Pro Tools
- Quicker production capabilities in photo and audio platforms like Adobe Photoshop, Lightroom, and Apple Logic Pro X
- Faster game level-loading, responsiveness, and save times
- More years of productive use from your machine
Low Frills…High Thrills
Perfect Inside or Out
Adaptable and Easy
- Insert your choice of PCIe SSD, from an M.2 AHCI to the latest high-speed M.2 NVMe, into the Accelsior 1M2 adapter card’s connector port.
- Secure the SSD to the Accelsior 1M2 adapter card with supplied screw.
- Install the Accelsior 1M2 adapter card into an open PCIe slot inside your computer.
- Performance will vary depending on SSD used, CPU speed, and PCIe version.
- Performance in a Thunderbolt 3 PCIe expansion chassis limited by maximum Thunderbolt 3 PCIe bandwidth of 2,800MB/s.
- Select drives may disable the LED function of this product.
Includes
Back to top
- (1) OWC Accelsior 1M2 PCIe 4.0 Expansion Card
- (1) Assembly Guide & User Manual for OWC Accelsior 1M2
- 1 Year OWC Limited Warranty
Specs
Back to top
Drive Bays
- 1 bay supporting: M.2 drives
- Supports NVMe M.2 SSDs with 2230, 2242, 2260, 2280, and 22110 form factor and "M Key" connector type. Single- and double-sided SSDs are supported.
RAID Support
- No
Card Interface
- PCIe
PCIe Bus Interface
- PCI Express 4.0 x4
PCIe Form Factor
- PCIe x4 half length, half height
- Compatible with PCIe x4 slots or larger
Mac OS Compatibility
- macOS 10.13 High Sierra
- macOS 10.14 Mojave
- macOS 10.15 Catalina
- macOS 11.x Big Sur
- macOS 12.x Monterey
- macOS 13.x Ventura
- macOS 14.x Sonoma
- macOS 15.x Sequoia
PC OS Compatibility
- Windows 10 64-bit Edition
- Windows Server 2016
- Windows Server 2022
- Windows 11
Other Requirements
- macOS 10.13.6 or later required.
Power/Activity LED
- Yes
- *Select drives may disable the LED function of this product.
Dimensions
- Height: 6.7 cm (2.6 in)
- Length: 15.4 cm (6.1 in)
Weight
- 101.0 g (0.22 lbs)
Certifications
- BSMI
- CE
- FCC
- RCM
- VCCI
RoHS Compliant
- Yes
Ambient Temperature
- Operating: 41°F to 95°F (5°C to 35°C)
- Non-Operating: -4°F to 140°F (-20°C to 60°C)
Altitude
- Operating: -304.8 m to 3,048.0 m (-1,000 ft to 10,000 ft)
- Non-Operating: -304.8 m to 12,192.0 m (-1,000 ft to 40,000 ft)
Humidity
- Operating: 8% to 90% non-condensing
- Non-Operating: 5% to 95% non-condensing
Idle (Typical)
- 0.0 bels
Seek (Typical)
- 0.0 bels
Applications
- High-performance And General Purpose Storage Applications
- Performance will vary depending on SSD used, CPU speed, and PCIe version.
- Performance in a Thunderbolt 3 PCIe expansion chassis limited by maximum Thunderbolt 3 PCIe bandwidth of 2,800MB/s.
- When installed, the following SSDs will only be compatible with Windows 10 systems: Hynix Gold P31, Samsung PM981a.
- The LED function of this product will be disabled and not function if used with an 8TB OWC Aura Ultra IV MVMe M.2 SSD (OWCP4U8T1PT08).
Compatibility & Installation Videos
Back to top
- Please note that compatible AKiTiO or OWC enclosures that utilize a PCIe slot may require their own minimum hardware and OS operating requirements which may differ from the Accelsior 1M2. The minimum system requirements for both the Accelsior 1M2 and enclosure must be met in order for both to operate.
- Booting support requires that your motherboard BIOS support booting via NVMe PCIe drives. Booting on Mac Pro (2010 - 2012) requires macOS 10.14.6.
Mac Pro
PC Compatible
Videos
Back to top
Learn More
Customer Reviews
Back to top
At first I did not know how it worked. I did not realize that the 1 TB card was part of this item so I thought I needed to order a 1TB card. I did then I realized I did not need it and I had to return this to you. Other wise it works great.
I would recommend this product to a friend!
Verified Purchase.- Reviewer:ObedientViper-98609
Thank you so much for your fantastic review! We're thrilled to hear that your 2009 Mac Pro is working great with our product. We understand that the initial confusion about the 1TB card can happen, and we appreciate your willingness to return the extra one. Your feedback is invaluable, and we're always here to help you get the most out of your purchases. Enjoy your upgraded Mac experience!
I bought two of those for my 2019 Mac Pro (MacPro7,1). One, crucially, was for the installation of Windows, which is always a cumbersome and dicey proposition on all Apple hardware at the best of times. The OWC Accelsior has facilitated the job beautifully: Windows Setup had no problem with Accelsior, and Windows 11 boots up — and runs — from the PCIe NVMe SSD perfectly. I wholeheartedly recommend the product: It is decidedly solid and a good value for money.
I would recommend this product to a friend!
Verified Purchase.- Reviewer:gimersky
Wow, thank you so much for your fantastic review! We're thrilled to hear that the OWC Accelsior made your Windows installation on the Mac Pro a smooth and effortless experience. It's awesome to know that it's running perfectly for you! We truly appreciate your recommendation and are delighted you're satisfied with the product's value and performance. Happy computing!
Otherworld Computing/MacSales, I highly recommend them and their support is top notch.
I would recommend this product to a friend!
Verified Purchase.- Reviewer:Reviewer3559113943
Thank you so much for your kind words and positive feedback! We are thrilled to hear that you had a great experience with our product and support. Your recommendation means the world to us. We will continue striving to provide excellent service to all our customers. Please feel free to contact us if you have any further questions, comments, or concerns. https://eshop.macsales.com/Service/
