We're sorry, but this item is no longer for sale. However, there may be more Internal Hard Drives & SSDs items available.

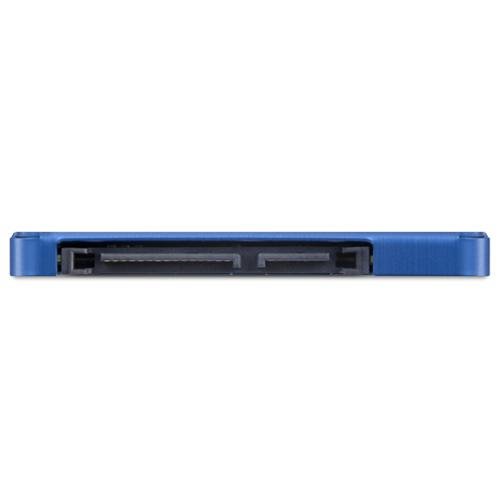

60GB OWC Mercury Electra 3G
2.5-inch 7mm SATA 3.0Gb/s Solid-State Drive
Mfr P/N: SSD7E3G060 OWC SKU: OWCSSD7E3G060
For High Speed Personal Computing, Home/Office, Gaming, and Personal Photography. 3 Year OWC SSD Limited Warranty
- One of the fastest Internal SATA 2.5? SSDs available.
- 3 Year OWC Limited Warranty
High Performance Internal Storage
This internal 2.5" SATA SSD delivers the highest transfer speed, endurance, and performance available today. With sustained reads up to 285MB/s and writes up to 275MB/s, up to 100X greater data protection than enterprise class Hard Disk Drives, and RAISE technology for RAID like data protection and reliability, the OWC 60GB Mercury Electra 3G SSD line delivers unbeatable performance. Replace your conventional hard drive with a reliable solid state drive. Unlike traditional hard disk drives, OWC SSDs have no moving parts, resulting in a quiet, cool, and highly rugged storage solution that also offers near instantaneous system response.
Includes
Back to top
- (1) OWC Mercury Electra 3G Solid-State Drive
- 3 Year OWC Limited Warranty
Specs
Back to top
Capacity
- 60GB Useable Capacity
- Total Flash Memory Components: 64GB
- 4GB Allocated to real-time data redundancy and error correction
Formatted Capacity
- 56GiB
Drive Format
- Unformatted (Instructions on formatting here)
Controller
- SandForce 2181 Series Processor
NAND Flash Components
- Tier 1 Asynchronous Multi-Level Cell (MLC) NAND Flash
S.M.A.R.T. Attributes
- Standard attributes supported
Native Command Queuing (NCQ)
- Up to 32 simultaneous commands
RAID Support
- Yes
Form Factor
- 2.5-inch 7mm
Drive Interface
- SATA 3.0 Gb/s
Random 4K Read
- Up to 60,000 IOPS
Random 4K Write
- Up to 60,000 IOPS
Sustained Read (3Gb/s)
- Up to 275 MB/s
Sustained Write (3Gb/s)
- Up to 275 MB/s
Read Latency (Max)
- 100 µs
Write Latency (Max)
- 100 µs
Read Incompressible Data Rate (up to)
- 208 MB/s
Write Incompressible Data Rate (up to)
- 235 MB/s
Nonrecoverable Read Errors
- 1 per 1016 bits read
TRIM Support
- OS Dependent
Error Correction
- Built-in ECC
Security
- Chip Based Data Encryption: 128-bit AES-compliant
Dimensions
- Height: 0.7 cm (0.3 in)
- Length: 10.0 cm (3.9 in)
- Width: 7.0 cm (2.8 in)
Weight
- 77.0 g (0.17 lbs)
RoHS Compliant
- Yes
Ambient Temperature
- Operating: 32°F to 158°F (0°C to 70°C)
- Non-Operating: -40°F to 185°F (-40°C to 85°C)
Altitude
- Operating: -304.8 m to 3,048.0 m (-1,000 ft to 10,000 ft)
- Non-Operating: -304.8 m to 12,192.0 m (-1,000 ft to 40,000 ft)
Idle (Typical)
- 0.0 bels
Seek (Typical)
- 0.0 bels
- 1GB = 1,000,000,000 bytes. Total accessible capacity varies depending upon operating environment (typically 5-10% less). The actual total capacity will depend on your own defined file settings/preferences.
- Temperature reporting is currently an unsupported feature because due to the operating characteristics of SSDs, it is highly unlikely one would ever exceed an OWC Mercury SSD's stated operating temperature ceiling of 158F/70C. However, we are looking into supporting this feature in the future via a firmware update. Firmware updates can be found here: http://eshop.macsales.com/tech_center/OWC/SSD.
Compatibility & Installation Videos
Back to top
MacBook Pro
MacBook Pro (13-inch, Mid 2012)
Mid 2012
Model ID: MacBookPro9,2
2.5GHz Core i5 & 2.9GHz Core i7
MacBook Pro (15-inch, Mid 2012)
Mid 2012
Model ID: MacBookPro9,1
2.3GHz & 2.6GHz & 2.7GHz Core i7
MacBook Pro (17-inch, Late 2011)
Late 2011
Model ID: MacBookPro8,3
2.4GHz & 2.5GHz Core i7
MacBook Pro (15-inch, Late 2011)
Late 2011
Model ID: MacBookPro8,2
2.2GHz & 2.4GHz & 2.5GHz Core i7
MacBook Pro (13-inch, Late 2011)
Late 2011
Model ID: MacBookPro8,1
2.4GHz Core i5 & 2.8GHz Core i7
MacBook Pro (17-inch, Early 2011)
Early 2011
Model ID: MacBookPro8,3
2.2GHz & 2.3GHz Core i7
MacBook Pro (15-inch, Early 2011)
Early 2011
Model ID: MacBookPro8,2
2.0GHz & 2.2GHz & 2.3GHz Core i7
MacBook Pro (13-inch, Early 2011)
Early 2011
Model ID: MacBookPro8,1
2.3GHz Core i5 & 2.7GHz Core i7
MacBook Pro (13-inch, Mid 2010)
Mid 2010
Model ID: MacBookPro7,1
2.4GHz & 2.7GHz Core 2 Duo
MacBook Pro (15-inch, Mid 2010)
Mid 2010
Model ID: MacBookPro6,2
2.4GHz & 2.5GHz Core i5 & 2.7GHz & 2.8GHz Core i7
MacBook Pro (17-inch, Mid 2010)
Mid 2010
Model ID: MacBookPro6,1
2.5GHz Core i5 & 2.7GHz & 2.8GHz Core i7
MacBook Pro (13-inch, Mid 2009)
Mid 2009
Model ID: MacBookPro5,5
2.3GHz & 2.5GHz Core 2 Duo
MacBook Pro (15-inch, Mid 2009)
Mid 2009
Model ID: MacBookPro5,4 & MacBookPro5,3
2.5GHz & 2.7GHz & 2.8GHz & 3.1GHz Core 2 Duo
MacBook Pro (17-inch, Mid 2009)
Mid 2009
Model ID: MacBookPro5,2
2.8GHz & 3.1GHz Core 2 Duo
MacBook Pro (17-inch, Early 2009)
Early 2009
Model ID: MacBookPro5,2
2.7GHz & 2.9GHz Core 2 Duo
MacBook Pro (15-inch, Early 2009)
Early 2009
Model ID: MacBookPro5,1
2.7GHz & 2.9GHz Core 2 Duo
MacBook Pro (15-inch, Late 2008)
Late 2008
Model ID: MacBookPro5,1
2.4GHz & 2.5GHz & 2.8GHz Core 2 Duo
MacBook Pro (15-inch, Early 2008)
Early 2008
Model ID: MacBookPro4,1
2.4GHz & 2.5GHz Core 2 Duo
MacBook Pro (17-inch, Early 2008)
Early 2008
Model ID: MacBookPro4,1
2.5GHz Core 2 Duo
MacBook Pro (15-inch, Early 2008)
Early 2008
Model ID: MacBookPro4,1
2.6GHz Core 2 Duo
MacBook Pro (17-inch, Early 2008)
Early 2008
Model ID: MacBookPro4,1
2.6GHz Core 2 Duo
MacBook Pro (15-inch, Late 2007)
Late 2007
Model ID: MacBookPro3,1
2.6GHz Core 2 Duo
MacBook Pro (17-inch, Late 2007)
Late 2007
Model ID: MacBookPro3,1
2.6GHz Core 2 Duo
MacBook Pro (15-inch, Mid 2007)
Mid 2007
Model ID: MacBookPro3,1
2.2GHz & 2.4GHz Core 2 Duo
MacBook Pro (17-inch, Mid 2007)
Mid 2007
Model ID: MacBookPro3,1
2.4GHz Core 2 Duo
MacBook Pro (15-inch, Late 2006)
Late 2006
Model ID: MacBookPro2,2
2.2GHz & 2.3GHz Core 2 Duo
MacBook Pro (17-inch, Late 2006)
Late 2006
Model ID: MacBookPro2,1
2.3GHz Core 2 Duo
MacBook Pro (17-inch, Early 2006)
Early 2006
Model ID: MacBookPro1,2
2.2GHz Core Duo
MacBook Pro (15-inch, Early 2006)
Early 2006
Model ID: MacBookPro1,1
1.7GHz Core Duo & 1.8GHz Core Duo & 2.0GHz Core Duo & 2.2GHz Core Duo
MacBook
MacBook (13-inch, Mid 2010)
Mid 2010
Model ID: MacBook7,1
2.4GHz Core 2 Duo
MacBook (13-inch, Late 2009)
Late 2009
Model ID: MacBook6,1
2.3GHz Core 2 Duo
MacBook (13-inch, Mid 2009)
Mid 2009
Model ID: MacBook5,2
2.1GHz Core 2 Duo
MacBook (13-inch, Early 2009)
Early 2009
Model ID: MacBook5,2
2.0GHz Core 2 Duo
MacBook (13-inch, Late 2008)
Late 2008
Model ID: MacBook5,1
2.0GHz & 2.4GHz Core 2 Duo
MacBook (13-inch, Early 2008)
Early 2008
Model ID: MacBook4,1
2.1GHz & 2.4GHz Core 2 Duo
MacBook (13-inch, Late 2007)
Late 2007
Model ID: MacBook3,1
2.0GHz & 2.2GHz Core 2 Duo
MacBook (13-inch, Mid 2007)
Mid 2007
Model ID: MacBook2,1
2.0GHz & 2.2GHz Core 2 Duo
MacBook (13-inch, Late 2006)
Late 2006
Model ID: MacBook2,1
1.8GHz & 2.0GHz Core 2 Duo
MacBook (13-inch, Mid 2006)
Mid 2006
Model ID: MacBook1,1
1.8GHz Core Duo & 2.0GHz Core Duo
iMac (21.5-inch, Late 2011)
Late 2011
Model ID: iMac12,1
3.1GHz Core i3
iMac (27-inch, Mid 2011)
Mid 2011
Model ID: iMac12,2
2.7GHz & 3.1GHz Core i5 & 3.4GHz Core i7
iMac (21.5-inch, Mid 2011)
Mid 2011
Model ID: iMac12,1
2.5GHz & 2.7GHz Core i5 & 2.8GHz Core i7
iMac (27-inch, Mid 2010)
Mid 2010
Model ID: iMac11,3
3.2GHz Core i3 & 2.8GHz & 3.6GHz Core i5 & 2.9GHz Core i7
iMac (21.5-inch, Mid 2010)
Mid 2010
Model ID: iMac11,2
3.1GHz & 3.2GHz Core i3 & 3.6GHz Core i5
iMac (27-inch, Late 2009)
Late 2009
Model ID: iMac11,1
2.7GHz Core i5 & 2.8GHz Core i7
iMac (21.5-inch, Late 2009)
Late 2009
Model ID: iMac10,1
3.1GHz Core 2 Duo
iMac (27-inch, Late 2009)
Late 2009
Model ID: iMac10,1
3.1GHz Core 2 Duo
iMac (21.5-inch, Late 2009)
Late 2009
Model ID: iMac10,1
3.3GHz Core 2 Duo
iMac (27-inch, Late 2009)
Late 2009
Model ID: iMac10,1
3.3GHz Core 2 Duo
iMac (20-inch, Mid 2009)
Mid 2009
Model ID: iMac9,1
2.0GHz & 2.3GHz Core 2 Duo
iMac (20-inch, Early 2009)
Early 2009
Model ID: iMac9,1
2.7GHz Core 2 Duo
iMac (24-inch, Early 2009)
Early 2009
Model ID: iMac9,1
2.7GHz & 2.9GHz & 3.1GHz Core 2 Duo
Mac Pro
Mac Pro (Mid 2012)
Mid 2012
Model ID: MacPro5,1
3.2GHz 4-Core Xeon & 3.3GHz 6-Core Xeon & 2.4GHz & 2.7GHz & 3.1GHz 12-Core Xeon
Mac Pro (Mid 2010)
Mid 2010
Model ID: MacPro5,1
2.8GHz & 3.2GHz 4-Core Xeon & 3.3GHz 6-Core Xeon & 2.4GHz 8-Core Xeon & 2.7GHz & 2.9GHz 12-Core Xeon
Mac Pro (Early 2009)
Early 2009
Model ID: MacPro4,1
2.7GHz & 2.9GHz & 3.3GHz 4-Core Xeon & 2.3GHz & 2.7GHz & 2.9GHz 8-Core Xeon
Mac Pro (Early 2008)
Early 2008
Model ID: MacPro3,1
2.8GHz & 3.0GHz & 3.2GHz 8-Core Xeon
Mac Pro (Mid 2006)
Mid 2006
Model ID: MacPro1,1
2.0GHz & 2.7GHz & 3.0GHz 4-Core Xeon
Mac mini
Mac mini Server (Late 2012)
Late 2012
Model ID: Macmini6,2
2.3GHz Core i7
Mac mini Server (Late 2012)
Late 2012
Model ID: Macmini6,2
2.6GHz Core i7
Mac mini Server (Mid 2011)
Mid 2011
Model ID: Macmini5,3
2.0GHz Core i7
Mac mini (Mid 2011)
Mid 2011
Model ID: Macmini5,2 & Macmini5,1
2.5GHz & 2.7GHz Core i7 & 2.3GHz Core i5
Mac mini (Mid 2010)
Mid 2010
Model ID: Macmini4,1
2.4GHz & 2.7GHz Core 2 Duo
Mac mini Server (Mid 2010)
Mid 2010
Model ID: Macmini4,1
2.7GHz Core 2 Duo
Mac mini (Late 2009)
Late 2009
Model ID: Macmini3,1
2.3GHz & 2.5GHz Core 2 Duo
Mac mini Server (Late 2009)
Late 2009
Model ID: Macmini3,1
2.5GHz Core 2 Duo
Mac mini (Early 2009)
Early 2009
Model ID: Macmini3,1
2.0GHz & 2.3GHz Core 2 Duo
Mac mini (Mid 2007)
Mid 2007
Model ID: Macmini2,1
1.8GHz & 2.0GHz Core 2 Duo
Mac mini (Late 2006)
Late 2006
Model ID: Macmini1,1
1.7GHz Core Duo & 1.8GHz Core Duo
Mac mini (Early 2006)
Early 2006
Model ID: Macmini1,1
1.5GHz Core Solo & 1.7GHz Core Duo
Xserve Xeon (Early 2009)
Early 2009
Model ID: Xserve3,1
2.3GHz Xeon E5520 & 2.7GHz Xeon X5550 & 2.9GHz Xeon X5570
