Name: (*) 2.0TB OWC Mercury Extreme Pro 6G 2.5-inch 7mm SATA 6.0Gb/s Solid-State Drive *NEW*
Brand: OWC
SKU: OWCSSD7P6G02S
Rating: 4.92 (230 reviews)

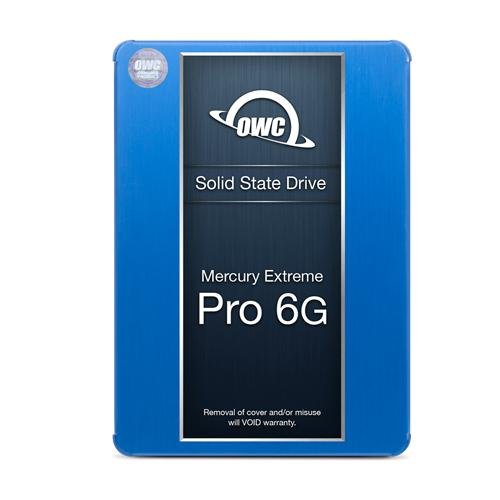

2.0TB OWC Mercury Extreme Pro 6G

We're sorry, but this item is no longer for sale. However, there may be more Internal Hard Drives & SSDs items available.

We recommend 2.0TB OWC Mercury Extreme Pro 6G 2.5-inch 7mm SATA 6.0Gb/s Solid-State Drive (Mfr P/N: S3D7P6GS2.0) from OWC for $244.99 as a suitable alternative.

High-Performance Storage for Notebook and Desktop Computers.

One of the fastest Internal SATA 2.5" SSDs available.
2 Year OWC Limited Warranty

Reviews (230)

Overview
Includes
Specs
Compatibility
Videos
Reviews
Related

scroll for more options >

For mission critical applications that require the utmost in speed and reliability, Mercury Extreme® Pro 6G SSDs deliver performance you can count on.

The Mercury SSD line features a suite of industry leading controller technologies for performance and reliability:

Global wear leveling algorithms automatically distribute data evenly and manage program/erase count, maximizing SSD lifespan.
StaticDataRefresh manages free space, gradually refreshing data across the SSD over time, preventing data corruption.
Hardware BCH ECC corrects errors up to 66-bit/1KB for superior data retention and drive life.
Advanced security protocols support 128/256-bit-AES disk encryption.

No Risk, No Hassle 30-Day Money Back Guarantee.

For more information on OWC return policies, click here.

This internal 2.5" SATA SSD delivers outstanding transfer speeds, endurance, and reliability. With speeds over 500MB/s, the OWC 2.0TB Mercury Extreme® Pro 6G SSD line delivers unbeatable performance. A 7% over provisioning set-aside further ensures exceptional long-term reliability, performance consistency, and durability with an amazing 1.92TB of visible storage capacity after over provision. Built to perform and backed by a 5 Year OWC SSD Limited Warranty.

High Performance Internal Storage

Replace your conventional hard drive with a reliable solid state drive. Unlike traditional hard disk drives, OWC SSDs have no moving parts, resulting in a quiet, cool, highly rugged storage solution that also offers near instantaneous system response.

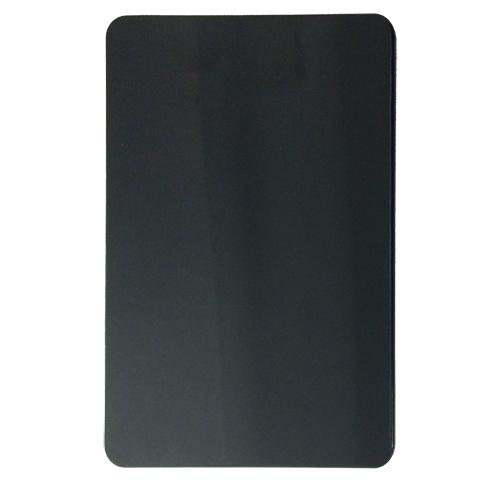

Includes 7 mm to 9.5 mm Adapter / Spacer

Attach this adapter to the top of any 7mm, 2.5-inch drive for installations that require a 9.5mm drive height for proper use, whether you need a 9.5mm drive height for a dock, camera, server, device, PC, or external drive. This adapter is not needed for 2.5-inch drive installations that use the standard side or bottom mounting positions to secure the drive in place, and is not needed for any installation of a 7mm drive in Apple Macintosh computers.

Includes

(1) OWC Mercury Extreme Pro 6G Solid-State Drive
(1) 7 mm - 9.5 mm Adapter
2 Year OWC Limited Warranty

Specs

Capacity

1920GB Useable Capacity
Total Flash Memory Components: 2048GB
128GB Allocated to real-time data redundancy and error correction

Formatted Capacity

1788GiB

Drive Format

Unformatted (Instructions on formatting here)

Controller

Silicon Motion SM2246EN Series Processor with 7% over-provisioning

NAND Flash Components

Tier 1 Major Synchronous Multi-Level Cell (MLC) NAND Flash

S.M.A.R.T. Attributes

Standard attributes supported

Native Command Queuing (NCQ)

Up to 32 simultaneous commands

RAID Support

Form Factor

2.5-inch 7mm

Drive Interface

SATA 6.0 Gb/s

Random 4K Read

Up to 60,000 IOPS

Random 4K Write

Up to 60,000 IOPS

Sequential Read (Max)

Up to 527 MB/s

Sequential Write (Max)

Up to 400 MB/s

Read Latency (Max)

100 µs

Nonrecoverable Read Errors

1 per 10¹⁶ bits read

TRIM Support

Error Correction

Built-in ECC

Security

Chip Based Data Encryption: 256-bit AES-compliant

Read Mode (Max)

Up to 2 Watts

Write Mode (Max)

Up to 2 Watts

Idle Mode (Max)

Up to 0.7 Watts

Dimensions

Height: 0.7 cm (0.3 in)
Length: 10.0 cm (3.9 in)
Width: 7.0 cm (2.8 in)

Weight

77.0 g (0.17 lbs)

RoHS Compliant

Reach Certification

Ambient Temperature

Operating: 32°F to 158°F (0°C to 70°C)
Non-Operating: -40°F to 185°F (-40°C to 85°C)

Altitude

Operating: -304.8 m to 3,048.0 m (-1,000 ft to 10,000 ft)
Non-Operating: -304.8 m to 12,192.0 m (-1,000 ft to 40,000 ft)

Idle (Typical)

0.0 bels

Seek (Typical)

0.0 bels

1GB = 1,000,000,000 bytes. Total accessible capacity varies depending upon operating environment (typically 5-10% less). The actual total capacity will depend on your own defined file settings/preferences.
In terms of standard gigabytes, 1GiB ˜ 1.074GB and refers to the actual formatted capacity of shown under Mac OS 10.5 or earlier and Microsoft Windows OS.
Specific application environments such as temperature and duty cycle will affect the overall reliability.
Temperature reporting is currently an unsupported feature because due to the operating characteristics of SSDs, it is highly unlikely one would ever exceed an OWC Mercury SSD's stated operating temperature ceiling of 158F/70C. However, we are looking into supporting this feature in the future via a firmware update. Firmware updates can be found here: http://eshop.macsales.com/tech_center/OWC/SSD.
