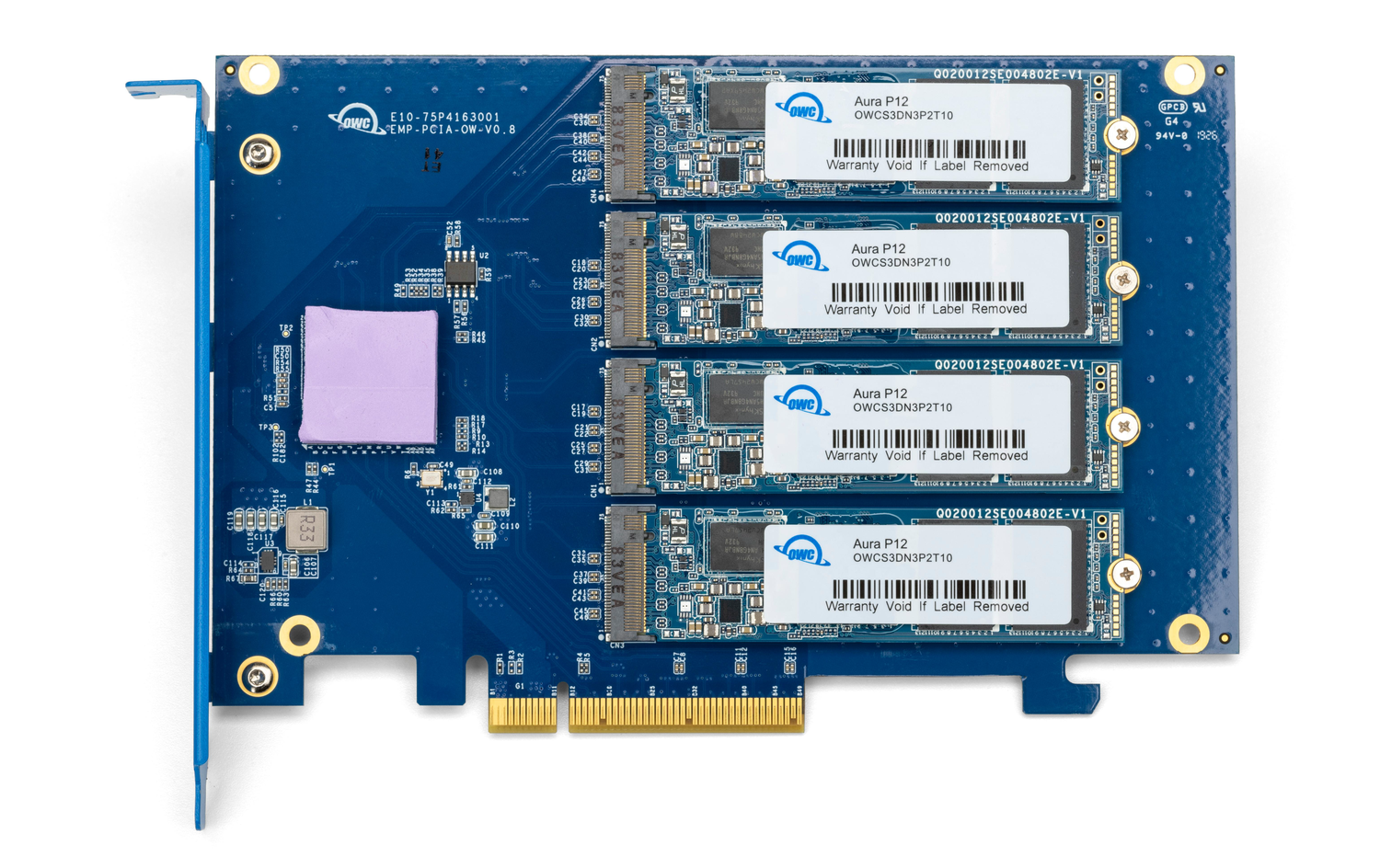

2.0TB OWC Accelsior 4M2
Four-Drive NVMe M.2 PCIe 3.0 SSD Storage Solution with SoftRAID for Mac Pro (Late 2019 - Current), Mac Pro (2010 - 2012), PC Towers & Thunderbolt PCIe Expansion Chassis
Mfr P/N: SSDACL4M202T OWC SKU: OWCSSDACL4M202T
High-Performance PCIe NVMe M.2 SSD Storage Solution
- Supercharges Mac and PC: ideal for Mac Pro 2019, Mac Pro 2012 or 2010, and PC towers
- Work faster: over 6,000MB/s real-world speed in RAID 0
- Store more: add capacity for critical footage, images, files, and games
- Includes SoftRAID: robust software for creating, monitoring, and managing advanced RAID sets
- Silent cooling: finned heat sink cover for fanless operation
- Highly versatile: installs into a full-height, half-length x8 or x16 PCIe 3.0 or 2.0 slot
- Plug and play: no drivers needed
- 5 Year OWC Limited Warranty
Meet the Fastest OWC SSD Ever Built
Highly Versatile with Mobile Possibilities
Change Your Reality
- Stream and edit high-res video and graphics files without a glitch.
- Experience faster previews, renders, and processing in VFX programs.
- Keep page scenery and textures looking sharp and flowing uninterrupted in virtual reality environments.
- Enhance the realism of augmented reality visualizations.
- Change levels seamlessly and play simulation and MMO games with continuously changing scenery or heavy mods without micro-stuttering.
- Give your computer a significant speed boost with improved system "snappiness," a fast OS boot drive, or a bottleneck-free scratch drive.
The Most Powerful RAID Tool on the Planet.
- High-Performance RAID 0/1/4/5/1+0 (10) volumes
- Predictive Health Monitoring proactively notifies of Volume and Disk issues well before failure — provided on your computer and remotely
- 35+ Years of Experience of Pro Support to provide peace-of-mind with setup help, ongoing questions, or urgent disk issues
- And many more unique features.
- Learn more about SoftRAID
Professional Grade = Ready to Work
- SoftRAID works with macOS 10.14+, Windows 10+, and Windows Server 2019/2022. M1 Macs require macOS 11.3 or later.
- SoftRAID is licensed per computer.
Includes
Back to top
- (1) OWC Accelsior 4M2 Storage Solution
- (1) Quick Start Guide for OWC Accelsior 4M2
- (1) Support Manual for OWC Accelsior 4M2
- (1) 3 Years of SoftRAID Premium Access (License located on device)
- (1) Quick Start Guide for OWC SoftRAID (Digital)
- 5 Year OWC Limited Warranty
Specs
Back to top
Drive Bays
- 4 bays supporting: M.2 drives
- Supports NVMe M.2 SSDs with 2280 form factor and "M Key" connector type. Single- and double-sided SSDs are supported.
Total Capacity
- 2.0TB
Formatted Capacity
- 1863GiB
Drive Mechanism
- (4) 480GB OWC Aura Ultra III PCIe 3.0 NVMe M.2 2280 Solid-State Drive
- *OWC reserves the right to replace or upgrade to equivalent or better components.
Controller
- Phison E12
NAND Flash Components
- Toshiba Synchronous Triple-Level Cell (TLC) 3D NAND Flash
S.M.A.R.T. Attributes
- Standard attributes supported
Native Command Queuing (NCQ)
- Up to 32 simultaneous commands
RAID Support
- Yes
Form Factor
- M.2 -
Drive Interface
- PCIe 3.0 x8, NVMe 1.3
RAID Capable
- Yes
RAID Features
- Software RAID
RAID Management
- Includes OWC SoftRAID RAID Management Software
Sequential Read (Max)
- Up to 6318 MB/s
Sequential Write (Max)
- Up to 6775 MB/s
Sequential Read (Average)
- 6280 MB/s
Sequential Write (Average)
- 6356 MB/s
Card Interface
- PCIe
PCIe Bus Interface
- PCI Express 3.0 x8
PCIe Form Factor
- PCIe x8 full height, half length
- Compatible with PCIe x8 slots or larger
PCIe Bandwidth Allocation
- Advanced Switch: A total of eight lanes of bandwidth are available with any single drive using up to four lanes max.
Chipset / Controller
- ASMedia ASM2824
Nonrecoverable Read Errors
- 1 per 1016 bits read
TRIM Support
- OS Dependent
Error Correction
- Built-in ECC
Endurance
- 800TB total bytes written (TBW), equal to 314 GB per day for 7 years
Mac OS Compatibility
- macOS 10.13 High Sierra
- macOS 10.14 Mojave
- macOS 10.15 Catalina
- macOS 11.x Big Sur
- macOS 12.x Monterey
- macOS 13.x Ventura
- macOS 14.x Sonoma
- macOS 15.x Sequoia
PC OS Compatibility
- Windows 10 64-bit Edition
- Windows Server 2022
- Windows 11
Other OS Compatibility
- Linux kernel versions 5.4 or later
Other Requirements
- SoftRAID works with macOS 10.14 or later and Windows 10 or later. SoftRAID is licensed per computer. The SoftRAID serial number will work with both Mac and Windows but can only be active on one computer at a time. Additional seats can be purchased. RAID 4/1+0 (10) are currently Mac only at this time.
Dimensions
- Height: 12.6 cm (5.0 in)
- Length: 18.1 cm (7.1 in)
- Width: 2.2 cm (0.9 in)
Weight
- 381.0 g (0.84 lbs)
Activity LED
- Yes
Certifications
- CE
- FCC
RoHS Compliant
- Yes
Ambient Temperature
- Operating: 41°F to 95°F (5°C to 35°C)
- Non-Operating: -4°F to 140°F (-20°C to 60°C)
Altitude
- Operating: -304.8 m to 3,048.0 m (-1,000 ft to 10,000 ft)
- Non-Operating: -304.8 m to 12,192.0 m (-1,000 ft to 40,000 ft)
Humidity
- Operating: 8% to 90% non-condensing
- Non-Operating: 5% to 95% non-condensing
Idle (Typical)
- 0.0 bels
Seek (Typical)
- 0.0 bels
- Before installing this product in a host device, write down the SoftRAID serial number that is listed on the back of the PCIe card. It is needed to setup the SoftRAID application.
- Data transfer rates will vary based on SSDs used, CPU speed, RAID setting, and PCIe version.
- Backward compatible with PCIe 2.0 slots with reduced speeds.
- Performance in a Thunderbolt 3 PCIe expansion chassis limited by maximum Thunderbolt 3 PCIe bandwidth of 2800MB/s.
- Bootable using a single, independent M.2 startup disk, with the other three M.2 SSDs configured as independent volumes or as a software RAID (SoftRAID or Apple RAID). Mac Pro (2010-2012) requires macOS 10.14.6. Mac Pro (2019) requires macOS 10.15.1 or later.
Benchmarks
Back to top
Truth in Numbers: Another OWC Difference
There are many attributes that define “The OWC Difference.” By listing real-world performance tests of OWC solutions, we’re confident you’ll be completely satisfied with your technology investment.
macOS RAID 0 Test Results
Blackmagic Disk Speed Test
PCI 2.0
Blackmagic Disk Speed Test
PCI 3.0
Blackmagic Disk Speed Test
Thunderbolt 3
AJA System Test
PCI 2.0
AJA System Test
PCI 3.0
AJA System Test
Thunderbolt 3
Windows RAID 0 Test Results
CrystalDiskMark
PCI 3.0
CrystalDiskMark
Thunderbolt 3
AJA System Test
PCI 3.0
AJA System Test
Thunderbolt 3
Compatibility & Installation Videos
Back to top
Mac Pro
