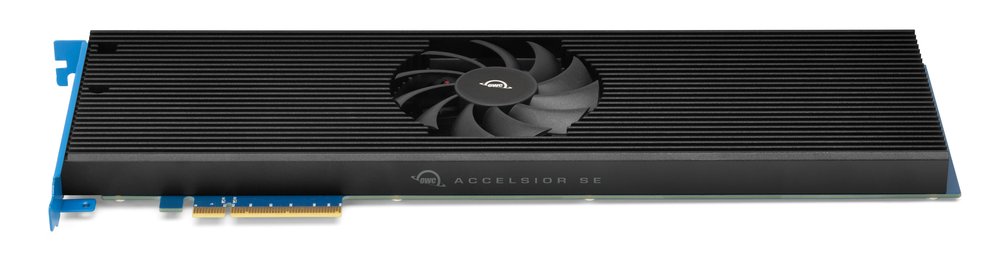

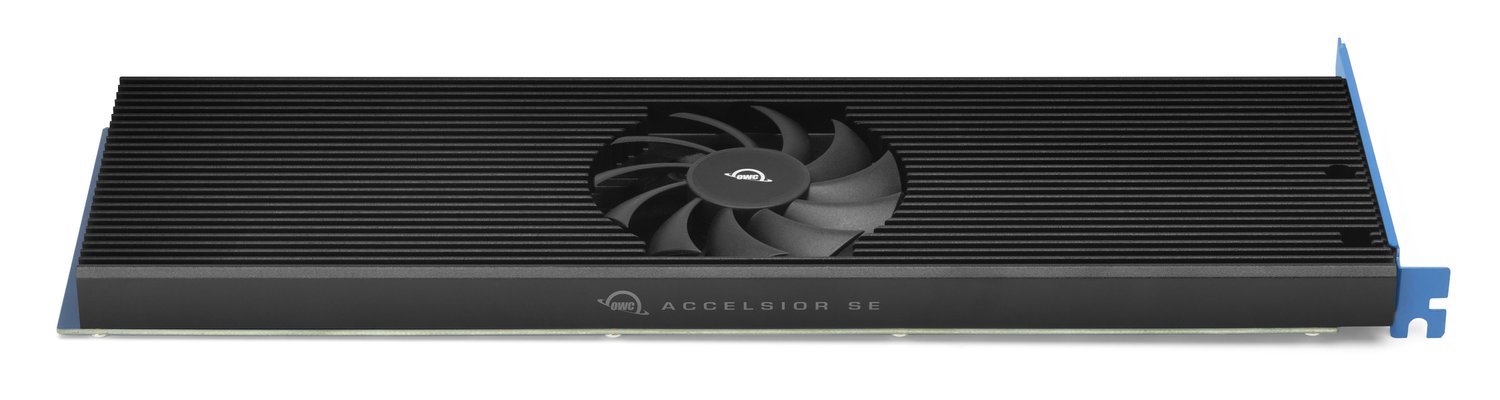

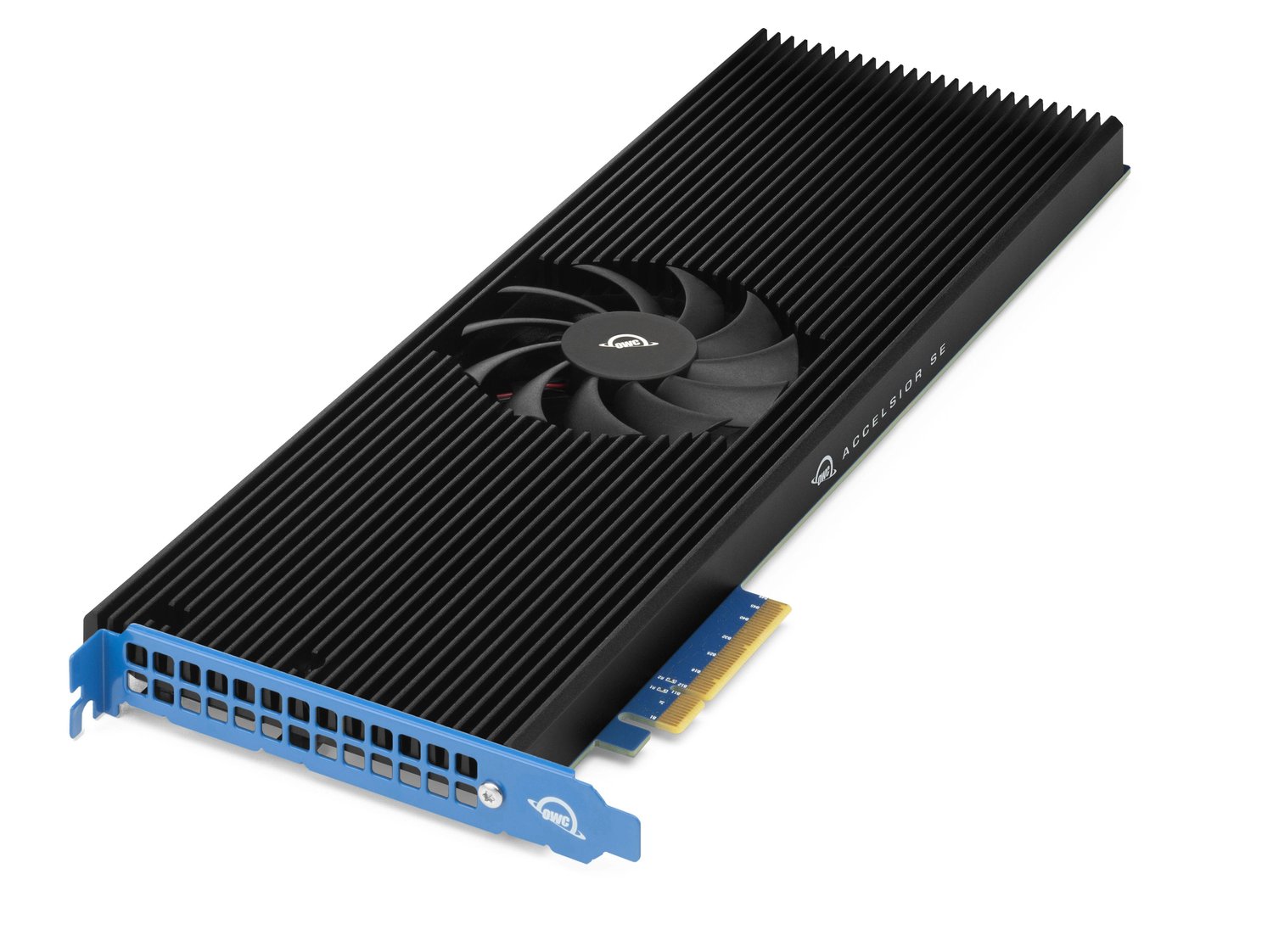

9.0TB OWC Accelsior SE
Nine-Drive NVMe M.2 PCIe 3.0 SSD Storage Solution with SoftRAID for Mac Pro (Late 2019 - Current), PC Towers & Thunderbolt PCIe Expansion Chassis
Mfr P/N: SSDACLSE009 OWC SKU: OWCSSDACLSE009
The highest capacity NVMe RAID available for professional video, multicam ingestion and on-location backups for DITs, and active storage for large media projects.
- Mind-Blowing Performance: up to 6,744MB/s speeds with PCIe Gen 4 Mac Pro models1
- Massive Space: nine NVMe SSD blades combine to deliver jaw-dropping storage capacity up to 72TB
- Customizable RAID: your choice of RAID 0/1/4/5/1+0 (10) for speed, data protection, or both
- Includes SoftRAID: robust software for creating, monitoring, and managing advanced RAID sets
- Pre-Tested and Certified: full burn-in for assured performance and reliability
- Highly Versatile: installs into a full-height, full-length x8 or x16 PCIe 3.0 or 2.0 slot
- Slot Powered: eliminates hassle of needing extra power cables

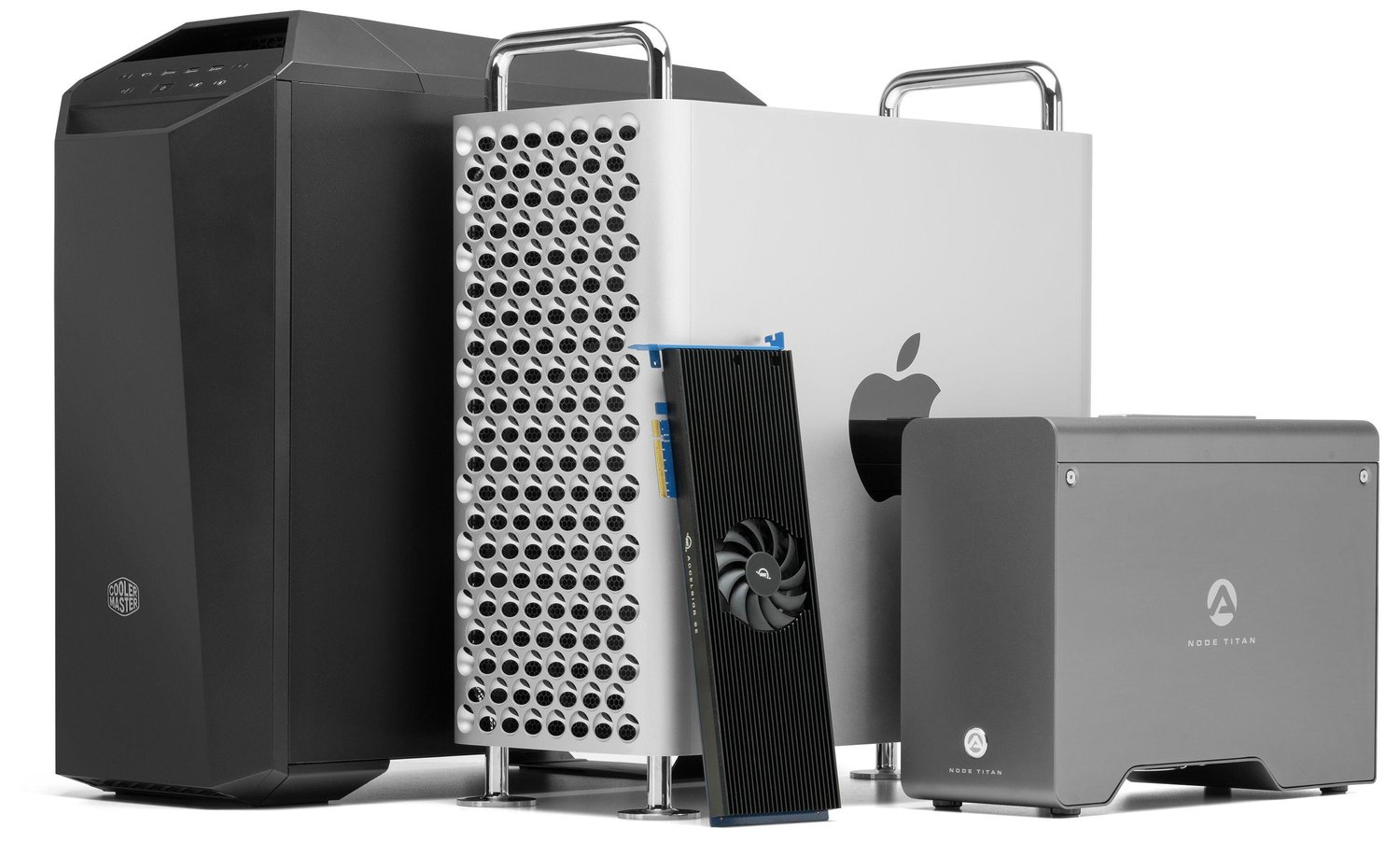

- Expansion Chassis Ready: can also be used with full length external PCIe slot solutions like the AKiTiO Node Titan
- 5 Year OWC Limited Warranty
Thunderbolt Certified, High-Performance Arrays for Demanding Data Needs
We both know you require special tools to get the job done and be your best. Whether you’re a DIT, pro video editor, VFX artist, or a colorist, you need extremely large and exceptionally fast storage in a single solution. The Accelsior SE (Special Edition) is the industry’s largest single internal NVMe SSD RAID solution available, and it will completely transform how you utilize your Mac Pro 2019-current or PC tower computer.
You’re Special. Have it All.
Up to 72TB of usable storage in RAID 0 with speeds up to 6496MB/s for seamless editing and cutting edge VFX, 8K and 360VR workflows. Perhaps you need RAID 5 data reliability for peace-of-mind or production requirements. That’s where this special storage solution really shines. You still get up to 64TB storage and up to 5546MB/s throughput. Speed. Capacity. Reliability. You truly can have it all with the Accelsior SE.
Designed For Those That Need More
Our team is filled with creatives highly experienced in all phases of the video production world. We get your need for more speed and capacity when it comes to everything from backup to editing. Accelsior SE is a Simply Elegant problem-solver for pros like you that need more from their storage:
- DITs needing to offload OCF from several media cards in parallel at maximum speeds while also having the ability to choose RAID 5 reliability for either peace-of-mind confidence or to meet production requirements.
- Professional video editors desiring a high-performance scratch disk for seamless editing experience with all their files centralized for quick accessibility.
- VFX 3D artists wanting to speed up cached simulations and image sequences processing by reducing the workload (and slowdown) placed on their computer’s processor and RAM storage.
- Colorists needing the bandwidth and capacity to effectively work with 8K sequence files or performing HDR color grading with Dolby Vision 16-bit TIFF images sequences.
- Any creative content producer seeking the highest internal drive performance from their PCIe card compatible workstation.
Using RAID 5 in the past meant giving up precious capacity and taking a big hit on performance. Accelsior SE solves that problem by offering massive amount of storage while still offering eye-popping speeds up to 5546MB/. Now you can streamline ingestion and backup times on set, edit ultra high-res multi-cam sequences, and adhere to mandatory requirements (the 3-2-1 Principle) when producing content for large studios such as Netflix.
The Most Powerful RAID Tool on the Planet.
SoftRAID is the world’s fastest and most flexible application to configure, maintain, and protect your RAID volumes on Mac and PC. OWC enclosures include 3 Years of SoftRAID Premium.
- High-Performance RAID 0/1/4/5/1+0 (10) volumes
- Predictive Health Monitoring proactively notifies of Volume and Disk issues well before failure — provided on your computer and remotely
- 35+ Years of Experience of Pro Support to provide peace-of-mind with setup help, ongoing questions, or urgent disk issues
- And many more unique features.
- Learn more about SoftRAID
SoftRAID works with macOS 10.14+, Windows 10+, and Windows Server 2019/2022. M1 Macs require macOS 11.3 or later. SoftRAID is licensed per computer.
100% Certified for Demanding Use
We understand the importance of your data. That is why every OWC solution receives comprehensive testing to deliver the reliability you expect. Your Accelsior SE undergoes a complete burn-in and performance certification process to ensure it’s ready for your most demanding workflow right from the packaging.
- Up to 6,744MB/s sequential read/write (max) performance based on testing a 9TB (9 x 1.0TB) RAID 0 OWC Aura Ultra IV SSD equipped Accelsior SE installed in a Mac Pro 2023 (Mac14,8) with M2 Ultra 24 core processor and 192GB RAM, running AJA System Test (8K-Full resolution, 64GB file size, 16 bit RGBA codec, single file test). Performance will vary depending on SSDs used, CPU speed, RAID setting, and PCIe version. 2. RAID 4/1+0 (10) is available for Mac only at this time.
- SoftRAID works with macOS 10.14+, Windows 10+, and Windows Server 2019/2022. M1 Macs require macOS 11.3 or later.
- SoftRAID is licensed per computer.
- The Accelsior SE, when used with Windows, doesn’t have a driver that displays the device name. Windows lists the device as a Mass Storage Controller due to the absent driver. Performance of the Accelsior SE in Windows is NOT affected by this device error.
Includes
Back to top
- (1) OWC OWC Accelsior SE Storage Solution
- (1) Getting Started QR Insert Card
- (1) Support Manual for OWC Accelsior SE (Digital)
- (1) 3 Years of SoftRAID Premium Access (License located on device)
- (1) Quick Start Guide for OWC SoftRAID (Digital)
- 5 Year OWC Limited Warranty
Specs
Back to top
Drive Bays
- 9 bays supporting: M.2 drives
- Supports NVMe M.2 SSDs with 2280 form factor and "M" key type
Total Capacity
- 9000GB Useable Capacity
- Total Capacity: 9216GB
- 216GB Allocated to real-time data redundancy and error correction
Formatted Capacity
- 8382GiB
Drive Mechanism
- (9) 1.0TB OWC Aura Ultra IV PCIe 4.0 NVMe M.2 SSD
- *OWC reserves the right to replace or upgrade to equivalent or better components.
NAND Flash Components
- Triple-Level Cell (TLC) 3D NAND Flash
Drive Interface
- PCIe 3.0 x8, NVMe 1.3
RAID Capable
- Yes
RAID Features
- Software RAID
RAID Management
- SoftRAID RAID 0 Software RAID
- Includes 3 Year OWC SoftRAID Upgrade and Support Plan
Card Interface
- PCIe
PCIe Bus Interface
- PCI Express 3.0 x8
PCIe Form Factor
- PCIe x8 full height, full length
- Compatible with PCIe x8 slots or larger
PCIe Bandwidth Allocation
- Advanced Switch: A total of eight lanes of bandwidth are available with any single drive using up to one lane max, or with two specific single drives each using two lanes max.
Mac OS Compatibility
- macOS 10.13 High Sierra
- macOS 10.14 Mojave
- macOS 10.15 Catalina
- macOS 11.x Big Sur
- macOS 12.x Monterey
- macOS 13.x Ventura
- macOS 14.x Sonoma
- macOS 15.x Sequoia
PC OS Compatibility
- Windows 10 32-bit Edition
- Windows 10 64-bit Edition
- Windows Server 2019
- Windows Server 2016
- Windows Server 2022
- Windows 11
Dimensions
- Height: 12.7 cm (5.0 in)
- Length: 32.5 cm (12.8 in)
- Width: 2.2 cm (0.9 in)
Weight
- 806.0 g (1.78 lbs)
Ambient Temperature
- Operating: 41°F to 95°F (5°C to 35°C)
- Non-Operating: -4°F to 140°F (-20°C to 60°C)
Altitude
- Operating: -304.8 m to 3,048.0 m (-1,000 ft to 10,000 ft)
- Non-Operating: -304.8 m to 12,192.0 m (-1,000 ft to 40,000 ft)
Humidity
- Operating: 8% to 90% non-condensing
- Non-Operating: 5% to 95% non-condensing
Idle (Typical)
- 2.0 bels
Seek (Typical)
- 2.0 bels
- Before installing this product in a host device, write down the SoftRAID serial number that is listed on the back of the PCIe card. It is needed to setup the SoftRAID application.
- Performance will vary depending on SSDs used, CPU speed, RAID setting, and PCIe version.
Benchmarks
Back to top
Truth in Numbers: Another OWC Difference
There are many attributes that define “The OWC Difference.” By listing real-world performance tests of OWC solutions, we’re confident you’ll be completely satisfied with your technology investment.
macOS RAID 0 Test Results
Blackmagic Disk Speed Test - Intel
PCIe 3.0 x8
Benchmark for 9x 1TB NVMe M.2 SSDs in RAID 0 (OWCS3DIGP4XT10)
Mac Pro (2019; MacPro7,1) with 3.3GHz 12-core Intel processor and 768GB RAM
Blackmagic Disk Speed Test - Intel
Thunderbolt 3
Benchmark for 9x 1TB NVMe M.2 SSDs in RAID 0 in a NodeTitan (OWCS3DIGP4XT10)
MacBook Pro (16-inch, 2019, MacBookPro16,1) with 2.4GHz processor and 64GB RAM

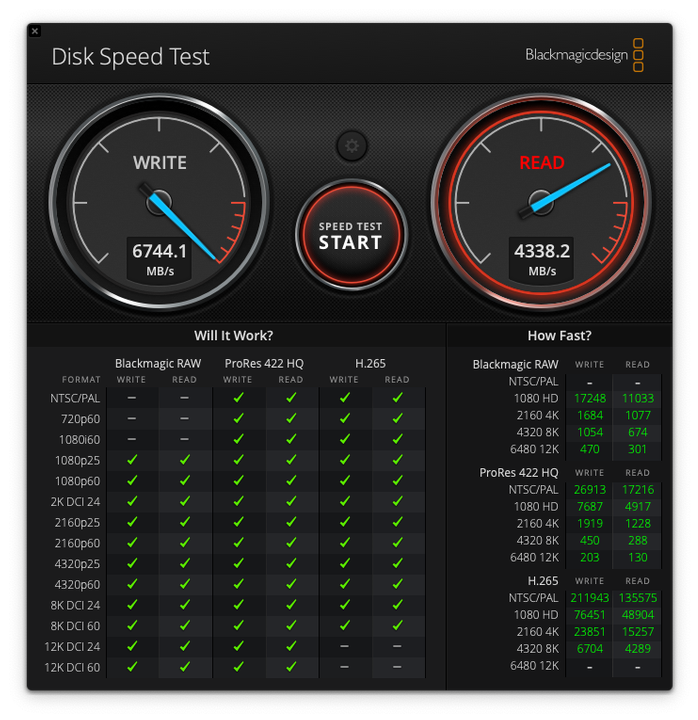

Blackmagic Disk Speed Test - Apple silicon
PCIe 4.0 x8
Benchmark for 9x 1TB NVMe M.2 SSDs in RAID 0 (OWCS3DIGP4XT10)
Mac Pro (2023; Mac14,8) with Apple M2 Ultra processor and 192GB RAM

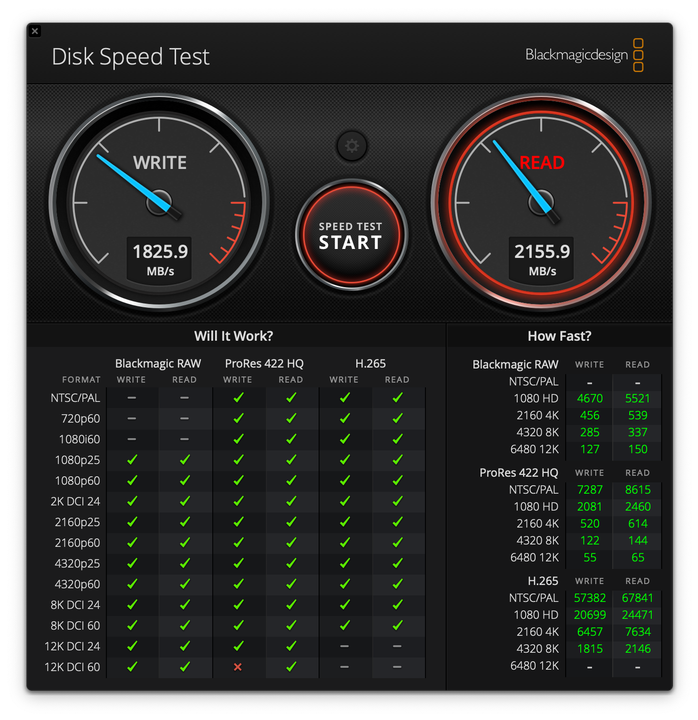

Blackmagic Disk Speed Test - Apple silicon
Thunderbolt 3
Benchmark for 9x 1TB NVMe M.2 SSDs in RAID 0 in a NodeTitan (OWCS3DIGP4XT10)
MacBook Pro (16-inch, 2021, MacBookPro18,1) with Apple M1 Pro processor and 16GB RAM
AJA System Test - 8K - Intel
PCIe 3.0 x8
Benchmark for 9x 1TB NVMe M.2 SSDs in RAID 0 (OWCS3DIGP4XT10)
Mac Pro (2019; MacPro7,1) with 3.3GHz 12-core Intel processor and 768GB RAM
AJA System Test - 8K - Intel
Thunderbolt 3
Benchmark for 9x 1TB NVMe M.2 SSDs in RAID 0 in a NodeTitan (OWCS3DIGP4XT10)
MacBook Pro (16-inch, 2019, MacBookPro16,1) with 2.4GHz processor and 64GB RAM

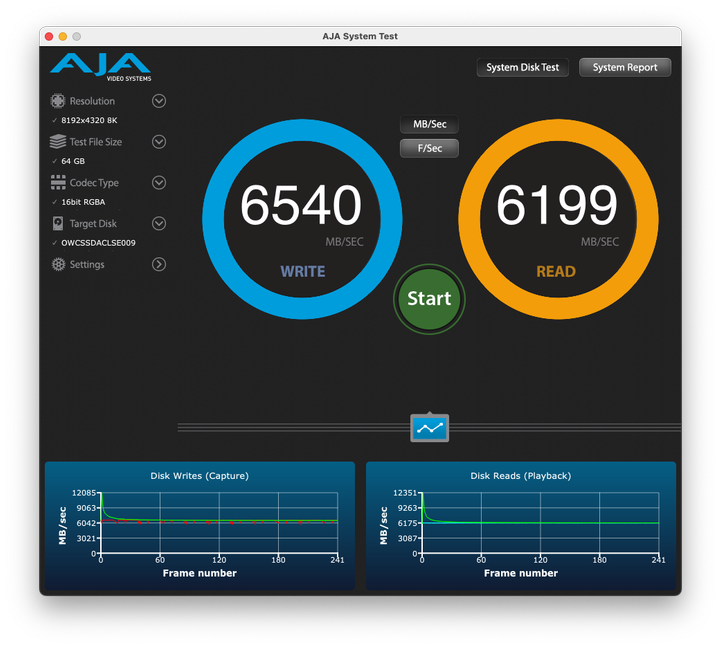

AJA System Test - 8K - Apple silicon
PCIe 4.0 x8
Benchmark for 9x 1TB NVMe M.2 SSDs in RAID 0 (OWCS3DIGP4XT10)
Mac Pro (2023; Mac14,8) with Apple M2 Ultra processor and 192GB RAM

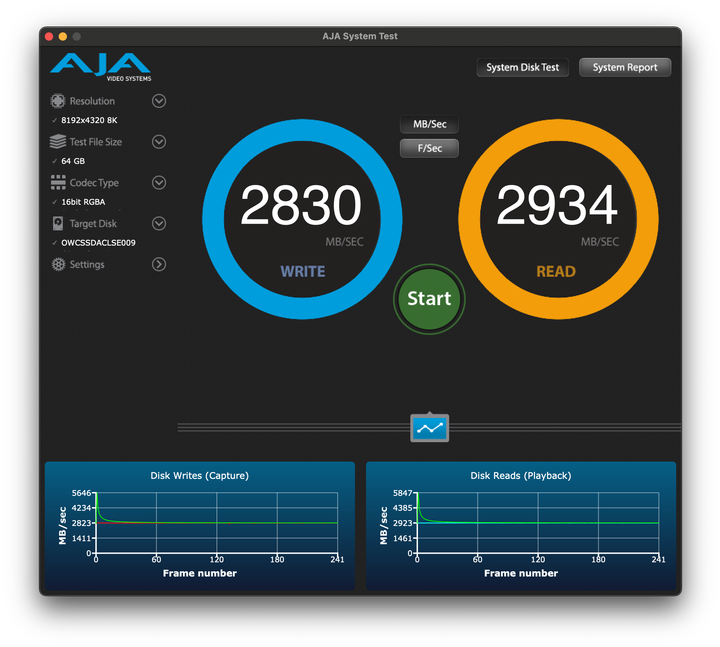

AJA System Test - 8K - Apple silicon
Thunderbolt 3
Benchmark for 9x 1TB NVMe M.2 SSDs in RAID 0 in a NodeTitan (OWCS3DIGP4XT10)
MacBook Pro (16-inch, 2021, MacBookPro18,1) with Apple M1 Pro processor and 16GB RAM

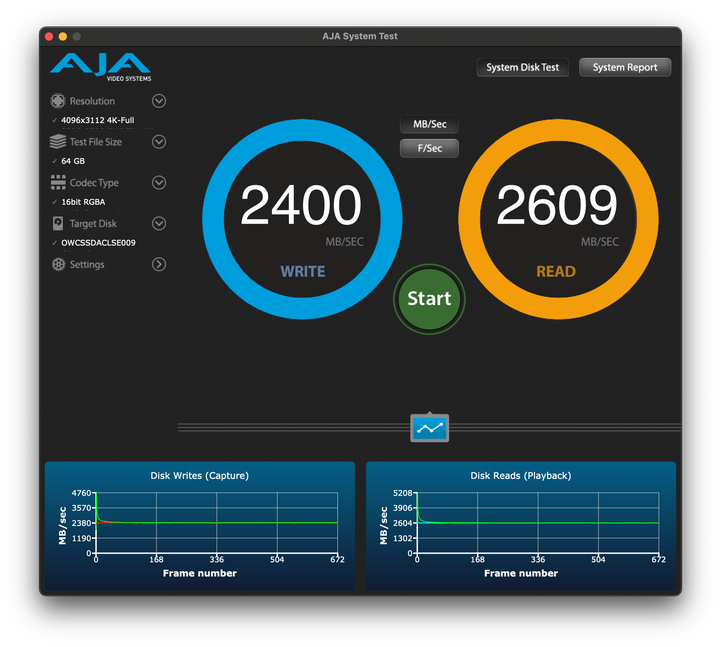

AJA System Test - 4K - Intel
PCIe 3.0 x8
Benchmark for 9x 1TB NVMe M.2 SSDs in RAID 0 (OWCS3DIGP4XT10)
Mac Pro (2019; MacPro7,1) with 3.3GHz 12-core Intel processor and 768GB RAM
AJA System Test - 4K - Intel
Thunderbolt 3
Benchmark for 9x 1TB NVMe M.2 SSDs in RAID 0 in a NodeTitan (OWCS3DIGP4XT10)
MacBook Pro (16-inch, 2019, MacBookPro16,1) with 2.4GHz processor and 64GB RAM

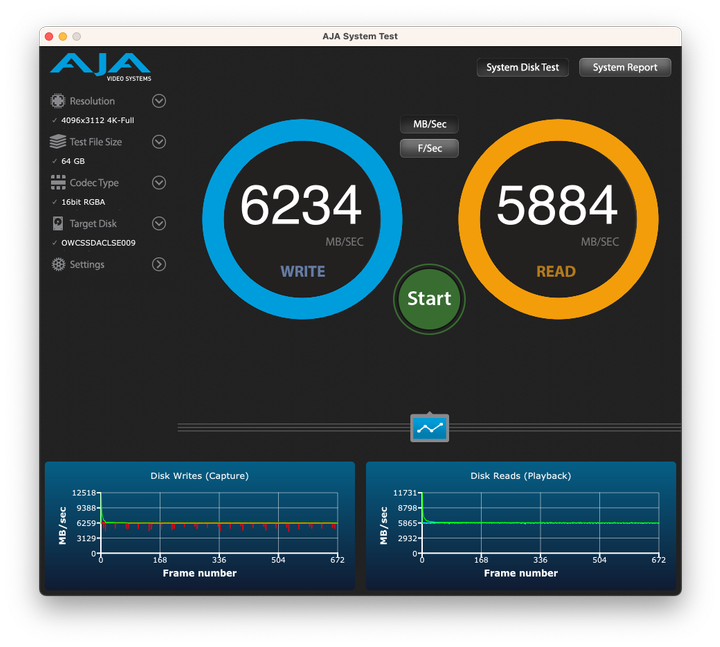

AJA System Test - 4K - Apple silicon
PCIe 4.0 x8
Benchmark for 9x 1TB NVMe M.2 SSDs in RAID 0 (OWCS3DIGP4XT10)
Mac Pro (2023; Mac14,8) with Apple M2 Ultra processor and 192GB RAM

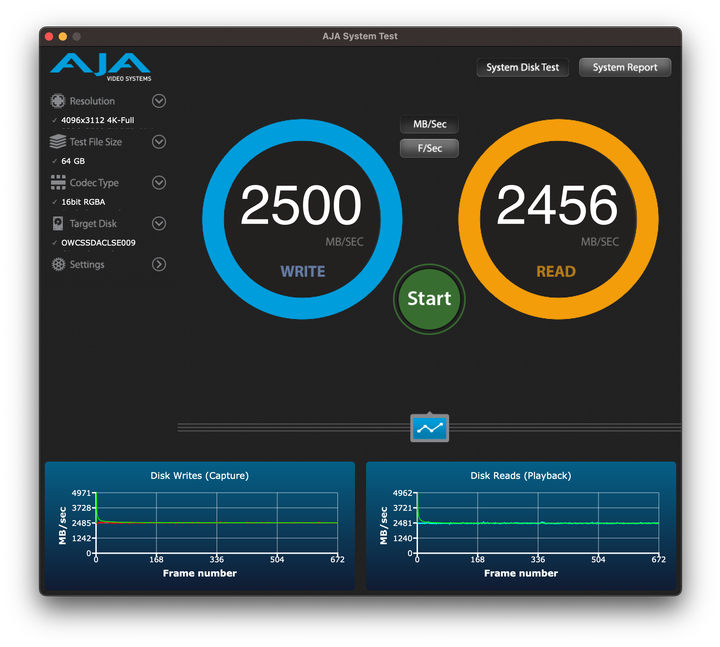

AJA System Test - 4K - Apple silicon
Thunderbolt 3
Benchmark for 9x 1TB NVMe M.2 SSDs in RAID 0 in a NodeTitan (OWCS3DIGP4XT10)
MacBook Pro (16-inch, 2021, MacBookPro18,1) with Apple M1 Pro processor and 16GB RAM
macOS RAID 5 Test Results

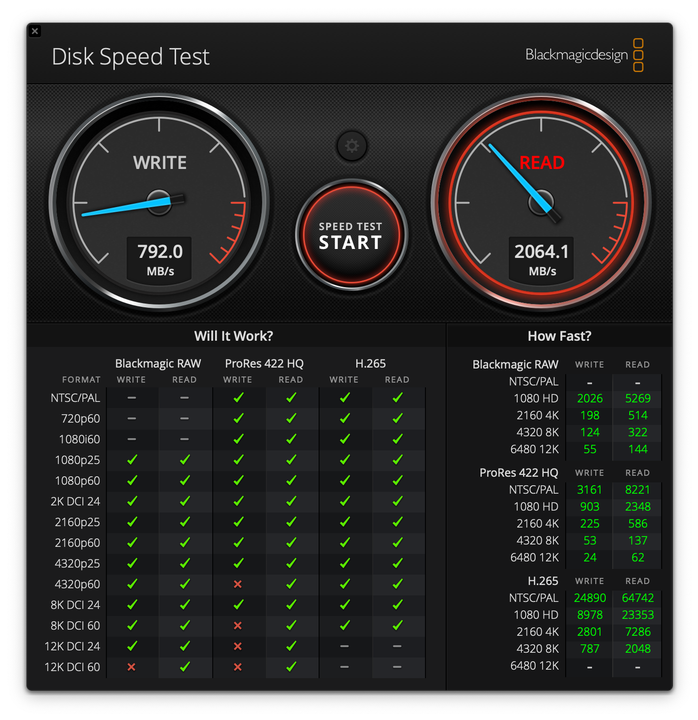

Blackmagic Disk Speed Test - Intel
PCIe 3.0 x8
Benchmark for 9x 1TB NVMe M.2 SSDs in RAID 5 (OWCS3DIGP4XT10)
Mac Pro (2019; MacPro7,1) with 3.3GHz 12-core Intel processor and 768GB RAM
Blackmagic Disk Speed Test - Intel
Thunderbolt 3
Benchmark for 9x 1TB NVMe M.2 SSDs in RAID 5 in a NodeTitan (OWCS3DIGP4XT10)
MacBook Pro (16-inch, 2019, MacBookPro16,1) with 2.4GHz processor and 64GB RAM
Blackmagic Disk Speed Test - Apple silicon
PCIe 4.0 x8
Benchmark for 9x 1TB NVMe M.2 SSDs in RAID 5 (OWCS3DIGP4XT10)
Mac Pro (2023; Mac14,8) with Apple M2 Ultra processor and 192GB RAM
Blackmagic Disk Speed Test - Apple silicon
Thunderbolt 3
Benchmark for 9x 1TB NVMe M.2 SSDs in RAID 5 in a NodeTitan (OWCS3DIGP4XT10)
MacBook Pro (16-inch, 2021, MacBookPro18,1) with Apple M1 Pro processor and 16GB RAM
AJA System Test - 8K - Intel
PCIe 3.0 x8
Benchmark for 9x 1TB NVMe M.2 SSDs in RAID 5 (OWCS3DIGP4XT10)
Mac Pro (2019; MacPro7,1) with 3.3GHz 12-core Intel processor and 768GB RAM
AJA System Test - 8K - Intel
Thunderbolt 3
Benchmark for 9x 1TB NVMe M.2 SSDs in RAID 5 in a NodeTitan (OWCS3DIGP4XT10)
MacBook Pro (16-inch, 2019, MacBookPro16,1) with 2.4GHz processor and 64GB RAM
AJA System Test - 8K - Apple silicon
PCIe 4.0 x8
Benchmark for 9x 1TB NVMe M.2 SSDs in RAID 5 (OWCS3DIGP4XT10)
Mac Pro (2023; Mac14,8) with Apple M2 Ultra processor and 192GB RAM
AJA System Test - 8K - Apple silicon
Thunderbolt 3
Benchmark for 9x 1TB NVMe M.2 SSDs in RAID 5 in a NodeTitan (OWCS3DIGP4XT10)
MacBook Pro (16-inch, 2021, MacBookPro18,1) with Apple M1 Pro processor and 16GB RAM
AJA System Test - 4K - Intel
PCIe 3.0 x8
Benchmark for 9x 1TB NVMe M.2 SSDs in RAID 5 (OWCS3DIGP4XT10)
Mac Pro (2019; MacPro7,1) with 3.3GHz 12-core Intel processor and 768GB RAM
AJA System Test - 4K - Intel
Thunderbolt 3
Benchmark for 9x 1TB NVMe M.2 SSDs in RAID 5 in a NodeTitan (OWCS3DIGP4XT10)
MacBook Pro (16-inch, 2019, MacBookPro16,1) with 2.4GHz processor and 64GB RAM
AJA System Test - 4K - Apple silicon
PCIe 4.0 x8
Benchmark for 9x 1TB NVMe M.2 SSDs in RAID 5 (OWCS3DIGP4XT10)
Mac Pro (2023; Mac14,8) with Apple M2 Ultra processor and 192GB RAM
AJA System Test - 4K - Apple silicon
Thunderbolt 3
Benchmark for 9x 1TB NVMe M.2 SSDs in RAID 5 in a NodeTitan (OWCS3DIGP4XT10)
MacBook Pro (16-inch, 2021, MacBookPro18,1) with Apple M1 Pro processor and 16GB RAM
Windows RAID 0 Test Results
CrystalDiskMark
PCIe 3.0 x8
Benchmark for 9x 1TB NVMe M.2 SSDs in RAID 0 (OWCS3DIGP4XT10)
Asus (Prime X370-PRO) with 3.00GHz AMD Ryzen 7 1700 processor and 16GB RAM
CrystalDiskMark
PCIe 4.0 x8
Benchmark for 9x 1TB NVMe M.2 SSDs in RAID 0 (OWCS3DIGP4XT10)
Gigabyte (x570 Aorus Pro) with 3.40GHz AMD Ryzen 9 5950X processor and 32GB RAM
CrystalDiskMark
Thunderbolt 3
Benchmark for 9x 1TB NVMe M.2 SSDs in RAID 0 in a NodeTitan (OWCS3DIGP4XT10)
Dell (13-inch, XPS 9315) with 12th Gen i5-1230U processor and 8GB RAM
AJA System Test - 8K
PCIe 3.0 x8
Benchmark for 9x 1TB NVMe M.2 SSDs in RAID 0 (OWCS3DIGP4XT10)
Asus (Prime X370-PRO) with 3.00GHz AMD Ryzen 7 1700 processor and 16GB RAM
AJA System Test - 8K
PCIe 4.0 x8
Benchmark for 9x 1TB NVMe M.2 SSDs in RAID 0 (OWCS3DIGP4XT10)
Gigabyte (x570 Aorus Pro) with 3.40GHz AMD Ryzen 9 5950X processor and 32GB RAM
AJA System Test - 8K
Thunderbolt 3
Benchmark for 9x 1TB NVMe M.2 SSDs in RAID 0 in a NodeTitan (OWCS3DIGP4XT10)
Dell (13-inch, XPS 9315) with 12th Gen i5-1230U processor and 8GB RAM

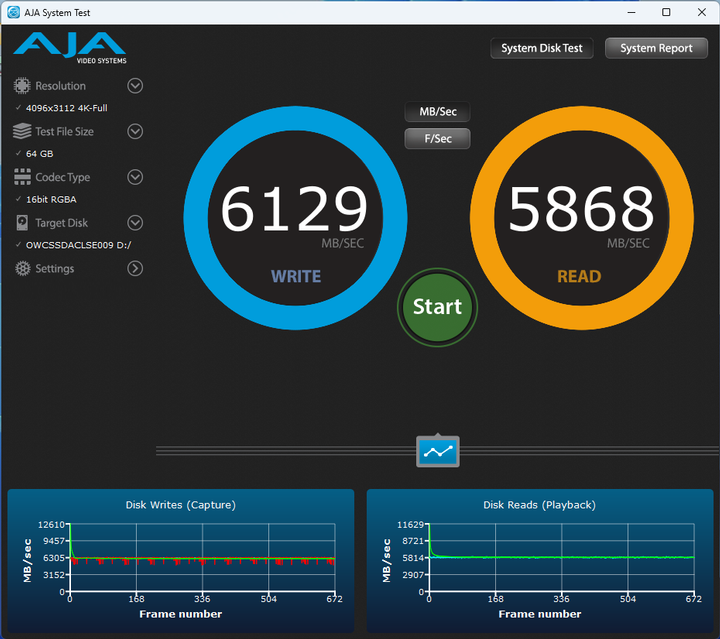

AJA System Test - 4K
PCIe 3.0 x8
Benchmark for 9x 1TB NVMe M.2 SSDs in RAID 0 (OWCS3DIGP4XT10)
Asus (Prime X370-PRO) with 3.00GHz AMD Ryzen 7 1700 processor and 16GB RAM
AJA System Test - 4K
PCIe 4.0 x8
Benchmark for 9x 1TB NVMe M.2 SSDs in RAID 0 (OWCS3DIGP4XT10)
Gigabyte (x570 Aorus Pro) with 3.40GHz AMD Ryzen 9 5950X processor and 32GB RAM
AJA System Test - 4K
Thunderbolt 3
Benchmark for 9x 1TB NVMe M.2 SSDs in RAID 0 in a NodeTitan (OWCS3DIGP4XT10)
Dell (13-inch, XPS 9315) with 12th Gen i5-1230U processor and 8GB RAM
Compatibility & Installation Videos
Back to top
Mac Pro
Mac Pro (Mid 2023)
Mid 2023
Model ID: Mac14,8
Apple M2 Ultra
Mac Pro Rack (Mid 2023)
Mid 2023
Model ID: Mac14,8
Apple M2 Ultra
Mac Pro Rack (Late 2019)
Late 2019
Model ID: MacPro7,1
3.5GHz 8-Core Xeon
Mac Pro Rack (Late 2019)
Late 2019
Model ID: MacPro7,1
3.3GHz 12-Core Xeon
Mac Pro Rack (Late 2019)
Late 2019
Model ID: MacPro7,1
3.2GHz 16-Core Xeon
Mac Pro Rack (Late 2019)
Late 2019
Model ID: MacPro7,1
2.7GHz 24-Core Xeon
Mac Pro Rack (Late 2019)
Late 2019
Model ID: MacPro7,1
2.5GHz 28-Core Xeon
PC Compatible
PC Compatible
