We're sorry, but this item is no longer for sale. However, there may be more Internal Hard Drives & SSDs items available.
We recommend 2.0TB OWC Aura Pro 6Gb/s SSD + OWC Envoy Upgrade Kit for MacBook Pro with Retina Display (2012 - Early 2013) (Mfr P/N: S3DAP12KT02) from OWC for $299.99 as a suitable alternative.

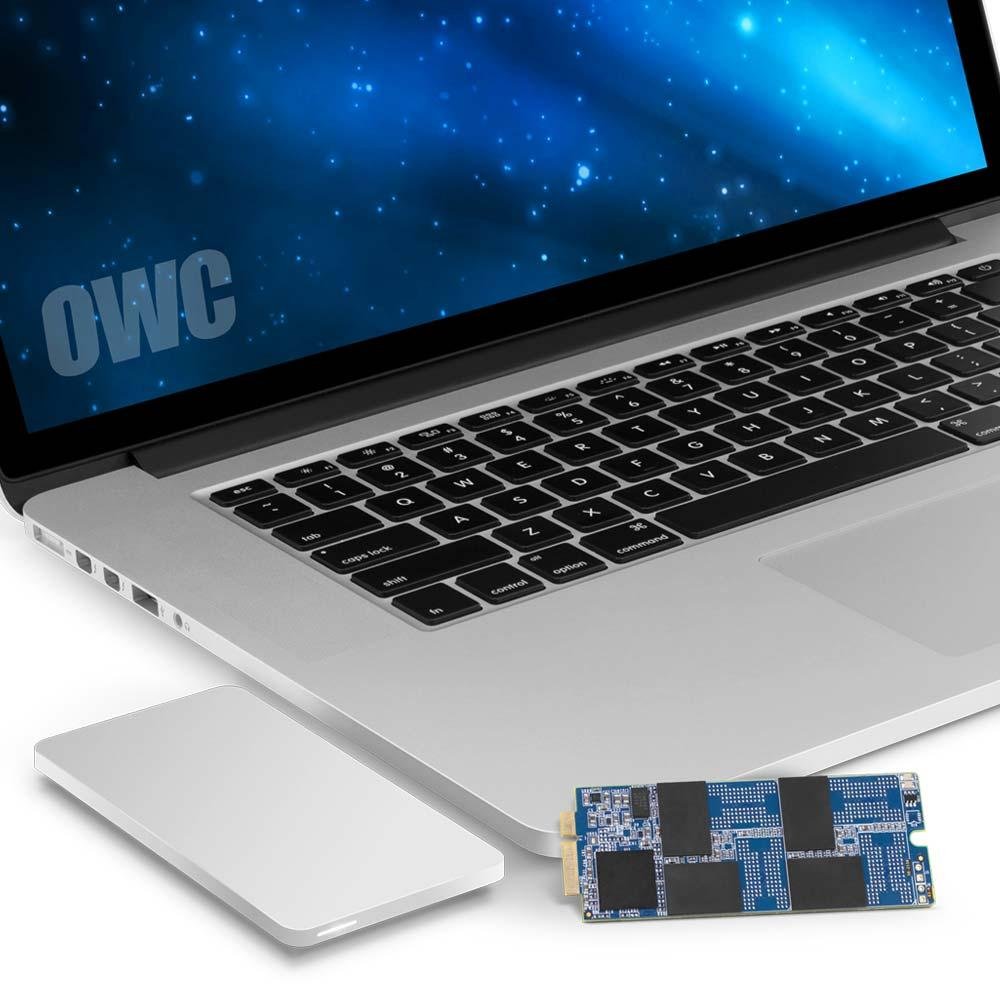

2.0TB OWC Aura Pro
Solid-state Drive and Envoy Pro Storage Solution For 2012 - early 2013 MacBook Pro with Retina display
Mfr P/N: SSDAP12K02S OWC SKU: OWCSSDAP12K02S
Highlights
- Upgrade your MacBook Pro with Retina display factory installed SSD with greater performance and capacity via the Aura Pro.
- Includes sleek, anodized aluminum Envoy Pro storage solution
- Retask the replaced factory SSD as a bus-powered, pocket-sized external storage solution via the Envoy Pro.
- One of the fastest Internal SSDs available.
- 1 Year OWC Limited Warranty
Designed for your Mac
- Global wear leveling algorithm automatically distributes data evenly and manages program/erase count, maximizing SSD lifespan.
- StaticDataRefresh technology manages free space, gradually refreshing data across the SSD over time, enhancing data integrity.
- Hardware BCH ECC corrects errors up to 66-bit/1KB for superior data retention and drive health.
- Best-in-class power consumption
- Advanced security protocols support AES 128/256-bit full-drive encryption
The Only Complete 2-in-1 Upgrade Solution:
- Upgrade your MacBook Pro with Retina display factory installed SSD with greater performance and capacity via the Aura Pro.
- Retask the replaced factory SSD as a bus-powered, pocket-sized external storage solution via the Envoy Pro.
Synchronous Interface NAND

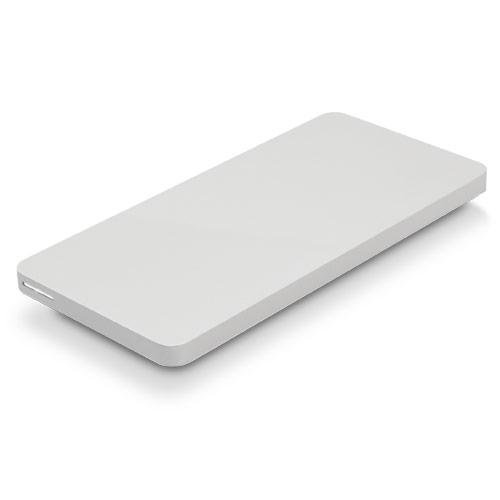

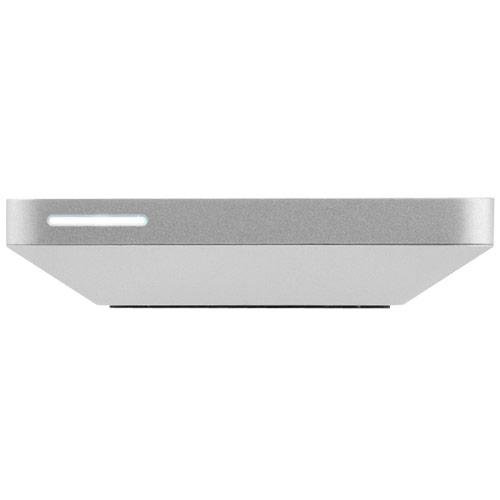

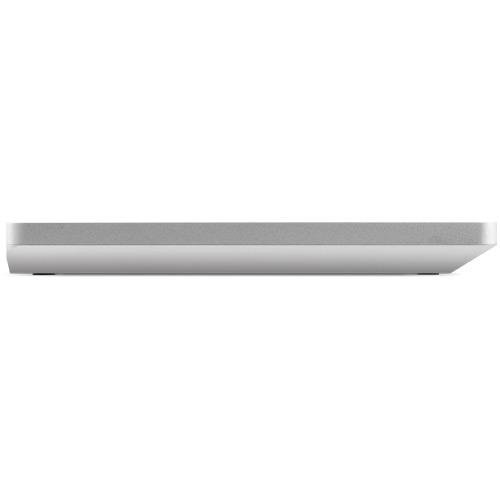

Ultra-portable, bus-powered external storage solution designed to complement the MacBook Pro with Retina display
Better by Design
- The OWC Envoy Pro enclosure is specifically designed for use ONLY with the factory SSD installed in select Apple Macintosh computers. Do NOT attempt to install or use OWC Aura or Aura Pro X SSDs in the Envoy Pro as you may damage the OWC drive, the enclosure, or both, and such damage is not covered under warranty.
Includes
Back to top
- OWC Aura Pro 6G SSD
- Envoy Pro USB 3.0 bus-powered storage solution
- Carrying case
- USB 3.0 (Micro-B to Standard-A) connecting cable
- Pentalobe compatible driver
- Torx T-5 driver
- 1 Year OWC Limited Warranty
Specs
Back to top
OWC Envoy
Drive Bays
- 1 bay
- Specifically designed for use ONLY with the factory SSD found installed in Apple MacBook Air 2010 and 2011 models
Device Ports
- (1) USB 3.0 Port
Data Transfer Rate (Maximum)
- USB 3.2 Gen 1 : Up to 5Gb/s (or 625MB/s)
- USB 2.0 : Up to 480Mb/s (or 60MB/s)
- USB 1.1 : Up to 12Mb/s (or 1.5MB/s)
Chipset / Controller
- ASMedia 1051
MTBF (Mean Time Between Failures)
- Varies depending on drive mechanism installed
Contact Start Stops
- Varies depending on drive mechanism installed
Mac OS Compatibility
- Mac OS X 10.3 Panther
- Mac OS X 10.4 Tiger
- Mac OS X 10.5 Leopard
- Mac OS X 10.6 Snow Leopard
- Mac OS X 10.7 Lion
- Mac OS X 10.8 Mountain Lion
- OS X 10.9 Mavericks
- OS X 10.10 Yosemite
- OS X 10.11 El Capitan
- macOS 10.12 Sierra
PC OS Compatibility
- Windows XP
- Windows XP 64-bit Edition
- Windows XP Professional x64 Edition
- Windows Vista
- Windows 7 32-bit Edition
- Windows 7 64-bit Edition
- Windows 8 32-bit Edition
- Windows 8 64-bit Edition
- Windows 8.1 32-bit Edition
- Windows 8.1 64-bit Edition
- Windows 10 32-bit Edition
- Windows 10 64-bit Edition
- Windows Server 2019
- Windows Server 2022
- Windows 11
External Power Adapter
- No
Power Supply
- Bus-powered
Security Slot
- No
Power/Activity LED
- Yes
Housing Color
- Aluminum
Housing Material
- Aluminum
Dimensions
- Height: 1.2 cm (0.5 in)
- Length: 15.0 cm (5.9 in)
- Width: 4.5 cm (1.8 in)
Weight
- 79.0 g (0.17 lbs)
Ambient Temperature
- Operating: Varies depending on drive mechanism installed
- Non-Operating: Varies depending on drive mechanism installed
Altitude
- Operating: Varies depending on drive mechanism installed
- Non-Operating: Varies depending on drive mechanism installed
Humidity
- Operating: Varies depending on drive mechanism installed
- Non-Operating: Varies depending on drive mechanism installed
Shock
- Operating: Varies depending on drive mechanism installed
- Non-Operating: Varies depending on drive mechanism installed
Noise
- Varies depending on drive mechanism installed
2.0TB OWC Aura Pro 6G Solid-State Drive
Capacity
- 1904GB Useable Capacity
- Total Flash Memory Components: 2048GB
- 144GB Allocated to real-time data redundancy and error correction
Formatted Capacity
- 1773GiB
Format
- Unformatted (Instructions on formatting here)
Controller
- Silicon Motion SM2246EN Series Processor with 8% over-provisioning
S.M.A.R.T. Attributes
- Standard attributes supported
Native Command Queuing (NCQ)
- Up to 32 simultaneous commands
Form Factor
- Custom Blade
Storage Interface
- SATA 6.0 Gb/s
Random 4K Read
- Up to 74,000 IOPS
Random 4K Write
- Up to 73,000 IOPS
Sequential Read (Max)
- Up to 525 MB/s
Sequential Write (Max)
- Up to 401 MB/s
Read Latency (Max)
- 100 µs
Write Latency (Max)
- 100 µs
Nonrecoverable Read Errors
- 1 per 1016 bits read
TRIM Support
- OS Dependent
Error Correction
- Built-in ECC
Security
- Chip Based Data Encryption: 256-bit AES-compliant
Read Mode (Max)
- Up to 3 Watts
Write Mode (Max)
- Up to 3 Watts
Seek Mode (Max)
- Up to 3 Watts
Idle Mode (Max)
- Up to 1.2 Watts
Dimensions
- Height: 4.0 cm (1.6 in)
- Length: 14.0 cm (5.5 in)
- Width: 1.0 cm (0.4 in)
Weight
- 18.0 g (0.04 lbs)
RoHS Compliant
- Yes
Ambient Temperature
- Operating: 32°F to 158°F (0°C to 70°C)
- Non-Operating: -40°F to 185°F (-40°C to 85°C)
Altitude
- Operating: -304.8 m to 3,048.0 m (-1,000 ft to 10,000 ft)
- Non-Operating: -304.8 m to 12,192.0 m (-1,000 ft to 40,000 ft)
Idle (Typical)
- 0.0 bels
Seek (Typical)
- 0.0 bels
