Accelsior Pro Q
480GB PCIe Solid-state Drive

Mac / PC / PCIe
Blazing-Fast PCIe Storage
Create your best work, faster than ever before. Mercury Accelsior Pro Q offers ultra-fast PCIe storage to take your creative workflow to the next level. Step up to the fastest Mac Pro you've ever experienced - With phenomenal data speeds up to 1293 MB/s, Mercury Accelsior Pro Q makes high-demand creative tasks a breeze.
The Ultimate Performance Storage Upgrade
Mercury Accelsior Pro Q delivers a gigantic speed boost to virtually any system. Streamline your workflow and say goodbye to frustrating render wait-times, dropped frames and spinning beachballs. With this much bandwidth, you can preview, render and process files at full resolution, in real-time. The bottom line is you create much more and wait much less.
It's an Easy DIY Install
The Mercury Accelsior Pro Q installs easily into compatible Mac Pro models (PCIe 2.0 x16 slot recommended), or into the OWC Mercury Helios. Download the driver and you're up and running in a flash.
Tested, Tested, Tested Again
The Mercury Accelsior Pro Q is proudly designed in Austin, Texas and undergoes a rigorous 7-stage testing procedure including 100% burn-in, resulting in unwavering dependability. We back the Mercury Accelsior Pro Q with a full 3-year limited warranty and OWC's free USA-based lifetime support.

Accelsior Pro Q Specifications:

Software Requirements

  • OS
    • OS X 10.9 or later
    • Windows 7 or later
  • Driver

Hardware Requirements

  • Mac
    • MacPro3,1 or MacPro4,1 or MacPro5,1
      • PCIe 2.0 x16 slot recommended for best performance
  • PC
    • Desktop PC with an available x8 or x16 slot
      • PCIe 2.0 or higher recommended for best performance
  • PCIe Chassis1
    • Compatible with most Chassis

Bootability

  • Not bootable on Mac or PC

Technology Support

  • SMART: not supported
  • TRIM: not supported

Protection/Security

  • Over-provisioning: 7%
  • Encryption: chip-based, 128-bit AES Compliant

Interface (Chipset)

  • Flash Controller: Sandforce 2281
  • RAID Controller: LSI SAS2308

Performance2

  • Sequential Read/Write (Compressible Data)
    • 1892 MB/s Read
    • 1798 MB/s Write
  • Sequential Read/Write (Compressible Data - 4K)
    • 1809 MB/s Read
    • 1732 MB/s Write
  • Sequential Read/Write (Compressible Data - 2K)
    • 1597 MB/s Read
    • 1607 MB/s Write
  • Sequential Read/Write (Incompressible Data)
    • 1582 MB/s Read
    • 512 MB/s Write

Acoustics

  • Designed to operate silently

Environment

  • Environmental (Operating)
    • Temperature (°F) 32° — 158°
    • Temperature (°C) 0° — 70°
  • Environmental (Non-Operating)
    • Temperature (°F) −40° — 185°
    • Temperature (°C) −40° — 85°

Height (Full-height profile) 3

  • 115.5 mm (4.5 in)

Width

  • 7.5 mm (0.3 in)

Length (Half-length profile)

  • 168 mm (6.6 in)

Weight

  • 200 g (7.1 oz)
  1. Auxiliary power cable required for use in the Mercury Helios.

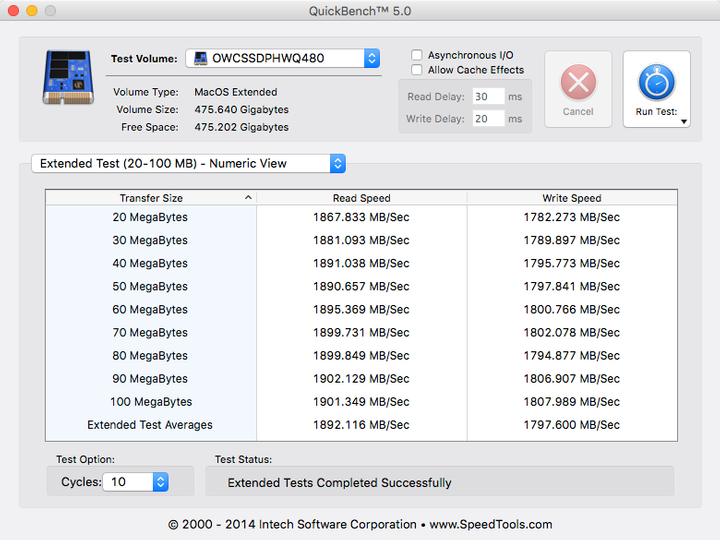

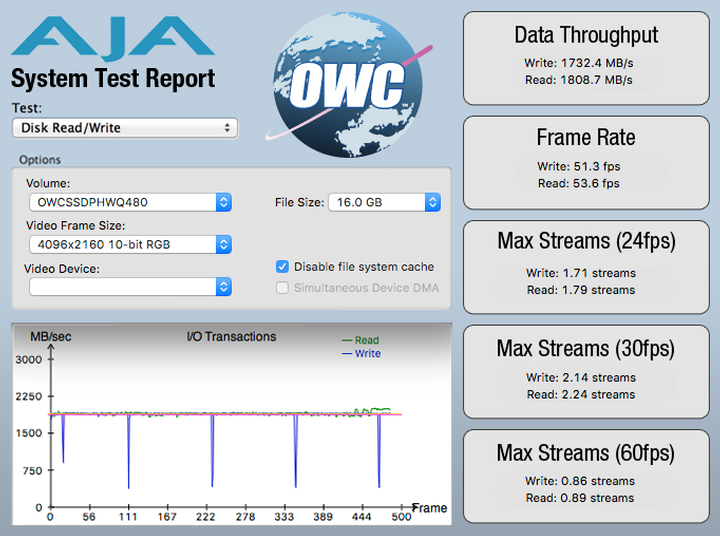

  2. Benchmark testing conducted in March 2017 using a 2.93 GHz Quad-core Intel Xeon Mac Pro with 32GB of RAM and a 960GB 3G SSD. Testing conducted on a OWC Mercury Accelsior Pro Q PCIe SSD with 480GB of flash memory. This PCIe device was installed in the PCIe 2.0 x16 slot. QuickBench 5.0 Extended Test was performed using 10 cycles, with 'Asynchronous I/O' and 'Allow Cache Effects' disabled. Black Magic Speed Disk Test (version 3.0) was performed using the 5GB 'Stress' setting. AJA System Test (version 10.3.3) was performed twice: the 4K (4096x2160 10-bit RGB) 'DiskWhack' test with a 'File Size' of 16.0 GB, and the 1080p (1920x1080 10-bit) 'DiskWhack' test with a 'File Size' of 16.0 GB. [AJA 'Streams' test results depict 'Frame Rate' settings of 23.98, 29.97, and 60 frames per second.] Results represent the extended test average.

  3. Bracket not included in measurements. The "Width" measurement refers to the card's thickness. Notice: currently the Accelsior Pro Q is approximately 4 mm out of spec for a Full Height PCIe card. For this reason it may not fit in some PCIe expansion chassis.
Manufacturer provided specifications for Other World Computing p/n SSDPHWQ480 UPC#: 812437024784

Gallery

This product is compatible with... Learn how to find your Mac's model ID
Mac Pro
Mac Pro 12-Core (Mid 2012)
(June, 2010)
Model ID: MacPro5,1
2.4GHz, 2.66GHz, 3.06GHz
Mac Pro
Mac Pro 6-Core (Mid 2012)
(June, 2012)
Model ID: MacPro5,1
3.33GHz
Mac Pro
Mac Pro 4-Core (Mid 2012)
(June, 2012)
Model ID: MacPro5,1
3.2GHz
Mac Pro
Mac Pro 12-Core (Mid 2010)
(July, 2010)
Model ID: MacPro5,1
2.66GHz, 2.93GHz
Mac Pro
Mac Pro 8-Core (Mid 2010)
(July, 2010)
Model ID: MacPro5,1
2.4GHz
Mac Pro
Mac Pro 6-Core (Mid 2010)
(July, 2010)
Model ID: MacPro5,1
3.33GHz
Mac Pro
Mac Pro 4-Core (Mid 2010)
(July, 2010)
Model ID: MacPro5,1
2.8GHz, 3.2GHz
Mac Pro
Mac Pro 8-Core (Early 2009)
(March, 2009)
Model ID: MacPro4,1
2.26GHz, 2.66GHz, 2.93GHz
Mac Pro
Mac Pro 4-Core (Early 2009)
(March, 2009)
Model ID: MacPro4,1
2.66GHz, 2.93GHz, 3.33GHz
Mac Pro
Mac Pro 8-Core (Early 2008)
(January, 2008)
Model ID: MacPro3,1
2.8GHz, 3.0GHz, 3.2GHz
Mac Pro
Mac Pro 4-Core (Early 2008)
(January, 2008)
Model ID: MacPro3,1
2.8GHz
PC Desktop
PC
PC running Windows 7 or better and available PCI-Express x8 lane or better slot
OWC Helios
OWC Mercury Helios
Thunderbolt PCIe
expansion chassis

Benchmarks

Click any of the benchmarks below to view the results.

Includes

Warranty

The best warranty is one you never have to use - but should the need occur - we're proud to provide a superior level of support and service coverage to our customers.

3 Year OWC SSD Limited Warranty

OWC is proud to provide a superior level of support and warranty coverage to our customers. Even when not used, we understand the peace of mind afforded by a longer warranty period. OWC's industry leading coverage is a testament to our confidence in the reliability of the solutions that we offer. OWC solutions are engineered to demanding quality standards in order to deliver the most reliable, highest performance available on the market in each storage category.
OWC Accelsior Pro Q 480GB PCIe Solid-state Drive Mfr P/N: SSDPHWQ480 MacSales.com SKU: OWCSSDPHWQ480 Ultra-high-performance SSD 3 Year OWC Limited Warranty Ships: Same Day Only $649.99MacSales.com Price $629.75
