We're sorry, but this item is no longer for sale. However, there may be more External Drives and Enclosures items available.

This was an Open Box product listing. For more great deals on Open Box, Refurbished and Used items, keep an eye on our Garage Sale page. Or join our email list and be the first to know when new items become available!

We sell this item brand new for $199.76, view our listing.

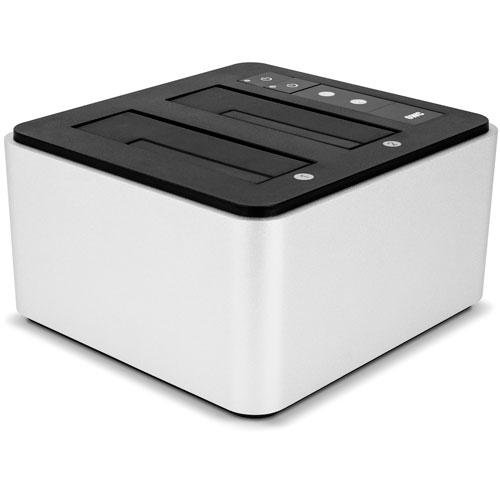

OWC

Drive Dock
Dual Drive Bay Solution

New Condition | Open Box

Mac / PC / Thunderbolt / USB 3.0
For Bare 2.5" and 3.5" SATA Drives
You Need the OWC Drive Dock
The Ultimate Drive Dock
Drive Dock is the ultimate, high-performance bare drive access tool. For creative workflows, backup, or other tasks requiring constant access to multiple drives, Drive Dock delivers a compact, easy solution with the exceptional performance of Thunderbolt™ 2 technology.
An Essential Workflow Solution
OWC Drive Dock is the fastest way to access bare SATA drives. Hot swap, read multiple drives simultaneously, or boot from bare drives, all at the speed of the Thunderbolt 2 and USB 3.0 interfaces. For video and audio content pros working with multiple bare drives on big projects, Drive Dock delivers extreme transfer speeds with amazing flexibility and convenience, making it an indispensable drive tool.
Designed to Accommodate Your Life
Drive Dock's unique design makes hot-swapping a breeze. Two drive bays accommodate both 2.5" and 3.5" drives and can access a drive in each simultaneously. Each bay features its own independent power switch and LED activity monitor. Dual Thunderbolt 2 ports deliver extreme-speed data transfers, and support daisy-chain expansion with up to five additional Thunderbolt devices. Drive Dock also includes a USB 3.0 port for versatile compatibility and the auto-switching internal power supply is compatible with any dual prong cable.
Customized Flexibility
Drive Dock is flexible enough to use on almost any system. It works perfectly as an on-location backup solution, or for industry professionals using multiple bare drives. Featuring rugged aluminum construction, quiet, fanless operation, and complete with USB 3.0 and Thunderbolt cables, the OWC Drive Dock is an essential component to any high-demand workflow.


Note: To use this Drive Dock with the 3.5" Toshiba X300 Series 4.0, 5.0, or 6.0 TB hard drives, please review the following video which addresses a known issue with these specific drives. This issue does not impact other 3.5" hard drives, regardless of brand.

Product Specifications:

Software Requirements

  • OS
    • Thunderbolt
      • OS X 10.10 or later
      • Windows 7 SP1 or later
    • USB 3.0
      • OS X 10.6 or later
      • Windows XP or later
      • Linux Kernel v. 2.6.31 or later
  • Driver
    • Driver not required for OS X
    • Driver required for Windows over a Thunderbolt connection
  • Note(s)
    • Thunderbolt connectivity for OWC Drive Dock is not supported in Boot Camp.

Hardware Requirements

  • Minimum
    • Mac or PC featuring Thunderbolt or USB 2.0 interface
  • Recommended (Best Performance
    • Mac or PC featuring Thunderbolt 2 or USB 3.0 interface

Bootability

  • Thunderbolt: OS X 10.10 or later
  • USB: Any Mac that supports booting via USB

Interface (Chipset)

  • (2) Thunderbolt 20Gbps
  • (1) USB 3.0 (ASMedia ASM1153E)

Drives Supported

  • (2) 3.5" SATA 6Gb/s drives1
  • or (2) 2.5" SATA 6Gb/s drives

Performance

  • Benchmarks
    • Single Drive
      • Thunderbolt: 522 MB/s Read and 477 MB/s Write2
      • USB 3.0: 427 MB/s Read and 347 MB/s Write3
    • RAID 0
      • Thunderbolt: 521 MB/s Read and 482 MB/s Write4
      • USB 3.0: 429 MB/s Read and 352 MB/s Write5
  • Note(s)
    • Speeds will vary based on drives used, setup, and other factors.

Power

  • Power Supply
    • Internal UL-listed universal auto-switching
    • AC input: 100 ~ 240V, 50/60Hz
    • DC output: 12V, 6.25A
    • Adapter plugs for international use sold separately.

Operating Environment

  • Environmental (Operating)
    • Temperature (°F) 41° – 86°
    • Temperature (°C) 5° – 30°
  • Environmental (Non-Operating)
    • Temperature (°F) −4° – 122°
    • Temperature (°C) −20 – 50°
  • Relative Humidity (Operating)
    • 8 – 90% (non-condensing)
  • Relative Humidity (Non-Operating)
    • 5 – 95% (non-condensing)

Dimensions

  • Height: 3.3 in (8.4 cm)
  • Width: 6.3 in (16.0 cm)
  • Length: 5.8 in (15.0 cm)

Weight (Without Drives)

  • 2.15 lb (0.975 kg)
  1. To use this Drive Dock with the 3.5" Toshiba X300 Series 4.0, 5.0, or 6.0 TB hard drives, please review the following video which addresses a known issue with these specific drives. This issue does not impact other 3.5" hard drives, regardless of brand.

  2. Thunderbolt benchmark testing performed by OWC in September 2015 using a 2.6GHz Intel quad-core i7 15-inch MacBook Pro with 16GB RAM and 1TB SSD. Tests conducted on 1 TB OWC Mercury Electra 6G SSDs. Tested using QuickBench™ 5.0 Extended Test (20-100 MB) over 10 cycles, cache disabled. Results represent the extended test average.

  3. USB 3.0 benchmark testing performed by OWC in September 2015 using a 2.6GHz Intel quad-core i7 15-inch MacBook Pro with 16GB RAM and 1TB SSD. Tests conducted on 1 TB OWC Mercury Electra 6G SSDs. Tested using QuickBench™ 5.0 Extended Test (20-100 MB) over 10 cycles, cache disabled. Results represent the extended test average.

  4. RAID 0 Thunderbolt benchmark testing performed by OWC in November 2015 using a 2.6GHz Intel quad-core i7 15-inch MacBook Pro with 16 GB RAM and 1 TB SSD. Tests conducted on two 1 TB Toshiba DT01ACA Series hard drives with 32 MB data buffers in a SoftRAID 5.1 Lite RAID 0configuration. Tested using QuickBench™ 5.0 Extended Test (20-100 MB) over 10 cycles, cache disabled. Results represent the extended test average.

  5. RAID 0 USB 3.0 benchmark testing performed by OWC in November 2015 using a 2.6GHz Intel quad-core i7 15-inch MacBook Pro with 16 GB RAM and 1 TB SSD. Tests conducted on two 1 TB Toshiba DT01ACA Series hard drives with 32 MB data buffers in a SoftRAID 5.1 Lite RAID 0 configuration. Tested using QuickBench™ 5.0 Extended Test (20-100 MB) over 10 cycles, cache disabled. Results represent the extended test average.

Manufacturer provided specifications for Other World Computing p/n TB2U3DKR2 UPC#: 812437022483

Gallery

Includes

  • OWC Drive Dock Dual Bay Solution
  • 0.6 meter (24") USB 3.0 cable (Standard-A to Standard-B)
  • 1 meter (39") Thunderbolt cable
  • Internal power supply and power cable
  • User Guide (Download Only)

Warranty

The best warranty is one you never have to use - but should the need occur - we're proud to provide a superior level of support and service coverage to our customers.

2 Year OWC Solution Limited Warranty

OWC is proud to provide a superior level of support and warranty coverage to our customers. Even when not used, we understand the peace of mind afforded by a longer warranty period. OWC's industry leading coverage is a testament to our confidence in the reliability of the solutions that we offer. OWC solutions are engineered to demanding quality standards in order to deliver the most reliable, highest performance available on the market in each storage category.

Customer Ratings

Write a Review 5 / 5 2 out of 2 (100%) reviewers would recommend this product
Verified Buyer
Reviewer: docgene Location: West Chester, PA Age: 55-65 Experience Level: Home User Owned Product: 1-3 months
Rating: 5/5 Outstanding option for data storage May 7, 2017 This past weekend, there was an electronics recycling event in my town. I gathered up my old external hard drives - mostly old raid units with 1 & 2TB drives - and wiped them for recycling. Then I recalled that I had just recently purchased the OWC Thunderbolt 2 Dual Drive Dock for the two 8TB drives I had to backup my archival movie copies, home videos and photos. So I set about disassembling those old Drive enclosures and retrieved the 3.5" SATA drives from each - a grand total of 4 drives equaling 6TB in storage capacity. The remains drive enclosure parts and circuit boards when to the recycler. I then purchased the Newer Tech bare drive static free storage containers, stacked them, and violá, I had significantly increased my flexible storage capability & capacity. I now have 2 8TB, 2 3TB, 2 2TB, and 2 1TB drives. The Thunderbolt 2 connection to my late 2014 27" iMac is super fast and the drives are whisper quit sitting on my desk next to the iMac. The Thunderbolt 2 cable supplied with the dock was just the right length. Overall, this is a superior option for onsite backups. I now do weekly checks on OWC for 3.5" and 2.5" hard drive sales. The ability to buy bare drives at much lower prices than enclosed ones is the major reason I bought the Dual Dock. I am 100% satisfied with my purchase!!

I would recommend this item to a friend! Customer Videos:

Verified Buyer
Reviewer: Anonymous Location: Mill Valley, CA Age: 55-65 Experience Level: Home User Owned Product: 1-3 months
Rating: 5/5 Fantastic. May 1, 2016 This drive dock is sweet. Better built and better looking on my desk than expected and the performance is remarkable. I am finally able to take advantage of Thunderbolt on my drives that came in slower enclosures.

I would recommend this item to a friend!

OWC Drive Dock Dual Drive Bay Solution Mfr P/N: TB2U3DKR2 OWC SKU: OWCTB2U3DKR2OB High-performance, hot-swappable, bare drive access tool for reading multiple 3.5" and/or 2.5" drives simultaneously 2 Year OWC Limited Warranty
