4TB OWC Envoy Express
Thunderbolt Bus-Powered Portable NVMe SSD
Mfr P/N: TB3ENVXP04 OWC SKU: OWCTB3ENVXP04
-
-
-
-
-
-
video
-
Rocket-Fast Drive with Galactic Sized Capacity
- Super-fast: supports up to 1585MB/s real-world performance
- OWC Aura Pro powered: advanced NVMe flash technology for the fastest and most reliable performance available
- Convenient: bus powered via an integrated Thunderbolt™ cable
- Compact: shorter than a ballpoint pen and weighs a mere 3.3 ounces with drive
- Silent: runs cool and distraction-free
- Stylishly rugged: Black anodized aluminum provides “field-tough” data protection
- Gets onboard: includes back of laptop screen slide mount for safe, out-of-the way use
- 3 Year OWC Limited Warranty
In Stock: Ships Same Day!$448.00
You Save $181.99
Limited supply! Only 4 available.
Portable Storage Rocket
While small in stature, the OWC Envoy Express offers a huge diversity of uses. Its 1585MB/s of real-world speed lets you perform on-location downloads of large media content like 8K video, high-res photo, and audio files in a blink. Imagine transferring 5GB of GoPro footage in just three seconds! Weighing a mere 3.3 ounces and shorter than a ballpoint pen, the Envoy Express puts personal and work files in the palm of your hand. For the ultimate in out-of-the-way mobile use convenience, you can place the Envoy Express on the back of your laptop’s screen with a removable slide mount. More options. More usability. More functionality…only from OWC.
Backup, Play, and Edit. Faster.
Whether you want to backup your growing photo and music libraries, share files, play your favorite games and movies anywhere, or even want to capture and edit up to 8K video, the Envoy Express can do it all. And it’s built to support super-fast sustained data transfer rates up to 1585MB/s…often faster than your machine’s internal drive performance!
Built for Highest Reliability
Engineered with fail-safes, the Envoy Express is optimized for the best and longest working life, especially in write-intensive workflows. From running double checks on data and correcting errors to ensuring the uniform use of its flash media, this high-performance portable NVMe SSD is calibrated for endurance as a factory pre-set.
Small Footprint. BIG Convenience
The Envoy Express is compact and lightweight. Since the Envoy Express is bus powered via its integrated 10-inch Thunderbolt cable, there’s no power adapter needed. Nothing to forget, nothing to lose. Just pure Plug and Play convenience at your fingertips with Thunderbolt and USB4 Macs, PCs, and iPads.

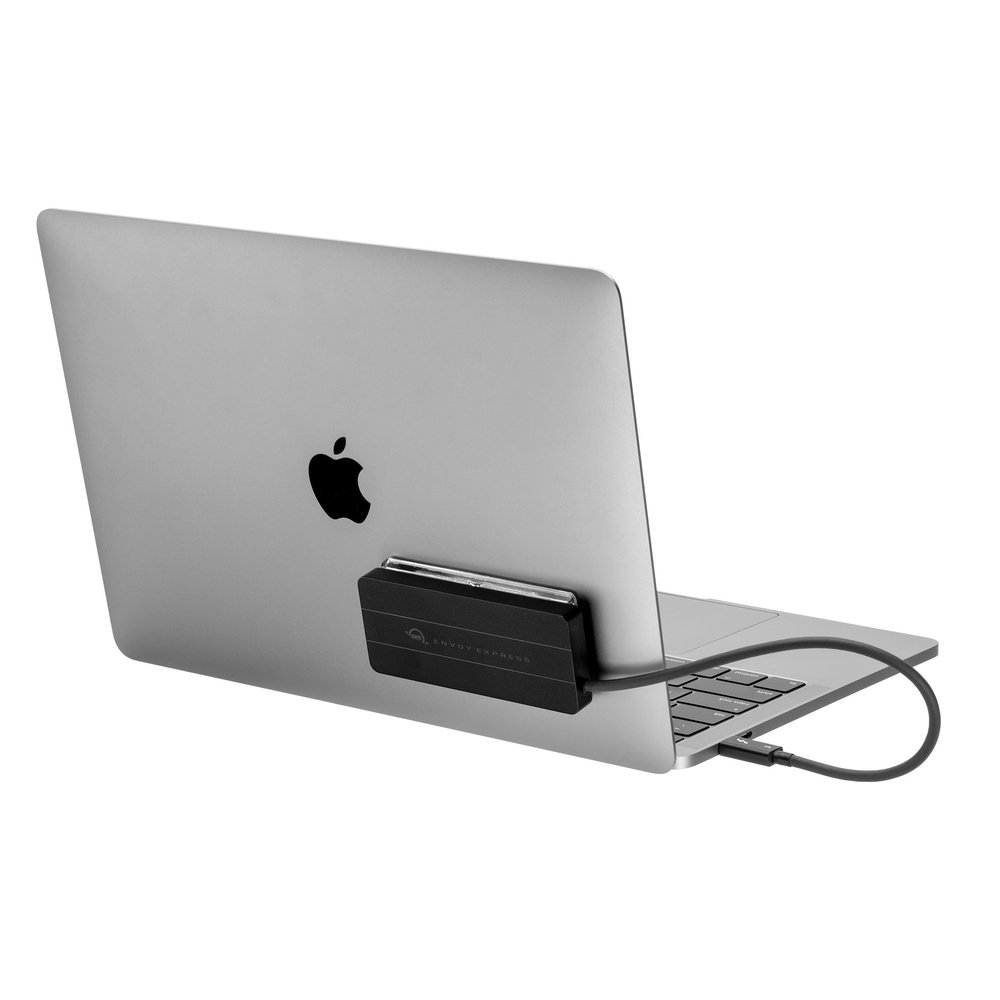

Gets Onboard with Macs and PCs
Today's office is often a tiny bistro table, your lap in a remote location, or a cramped airplane seat. There's no power outlet and not enough room for an external drive. The Envoy Express is the first to include a notebook mounting system.
Removable adhesive gel and a lightweight yet durable plastic holder secures the Envoy Express onto the back of your Thunderbolt™ 3-equipped Mac or PC notebook screen. Easy to add and easy to remove with no marking or marring.
Need to share the Envoy Express? It can work cross-platform with Macs and PCs using OWC MacDrive software (available separately). Peace between the platforms.
Store from Minutes to Millions
All the features and “technospeak” of an external drive don’t mean a thing if you don’t know how much of a particular file type it can hold. For every 1TB of your OWC drive capacity, you can store up to any of the following:
- 250,000 photos
- 250,000 standard quality songs
- 38,000 high quality songs
- 200 high-definition movies
- 41.6 hours of GoPro 4K footage
- 4.3 million MS Office documents
- 24+ PS4/Xbox games
Secure It All
If you have sensitive client project files or personal information that requires access permission, the Envoy Express is fully compatible with macOS and Windows built-in encryption so you can add peace of mind password security to your data.
Difference Making Truth
Big theoretical performance numbers are certainly eye-catchers…but they rarely reflect real-world performance. That’s why we take the extra time to run OWC storage solutions through intensive performance testing. Truthfully listing the Envoy Express up to 1585MB/s real-world test results defines our commitment to the “OWC Difference” which ensures you’ll be completely satisfied the Envoy Express will handle your most demanding needs.
Ready to go. Right out of the box.
OWC products are loved around the world for It Just Works™ ease-of-use and reliability. To provide the highest performance, reliability, and ready-to-run convenience available, your solution comes formatted in the native APFS macOS and iPadOS file system. With OWC, you don’t have to worry about reformatting hassles or confusion like other solutions — just plug your drive into your Mac or iPad and you’re good to go.
OWC, Trusted by Pros & Enthusiasts Around the World
We build our hardware to the highest standards of reliability and performance. Because 100% reliability is always the goal, we rigorously quality test and back the Envoy Express with award-winning customer support.
- 1585MB/s performance based on testing a 2.0TB OWC Aura Pro IV M.2 SSD equipped Envoy Express connected to an iMac Pro Late 2017 (iMacPro1,1) with 32GB RAM and 3.2GHz processor running AJA System Test (4K-Full resolution, 16GB file size, 10bit RGB codec, single file test).
- Storage examples for illustrative purposes only. Individual results may be different based on variety of factors including specific file size and format, settings, features, software and other factors. Storage estimates based on: 12-megapixel camera with 4MB image sizes, 4-minute average 4MB MP3 songs, 4-minute average uncompressed Apple Lossless (ALAC) songs, 1080p HD videos with 5GB average file size, GoPro 4K footage at 60FPS 24GB/hr, 250KB average MS Office document file size, 40GB average game sizes.
Includes
Back to top
- (1) OWC Envoy Express
- (1) Enclosure Slide Mount
- (1) Quick Start Guide for OWC Envoy Express
- (1) Assembly Manual & User Guide for OWC Envoy Express
- 3 Year OWC Limited Warranty
Specs
Back to top

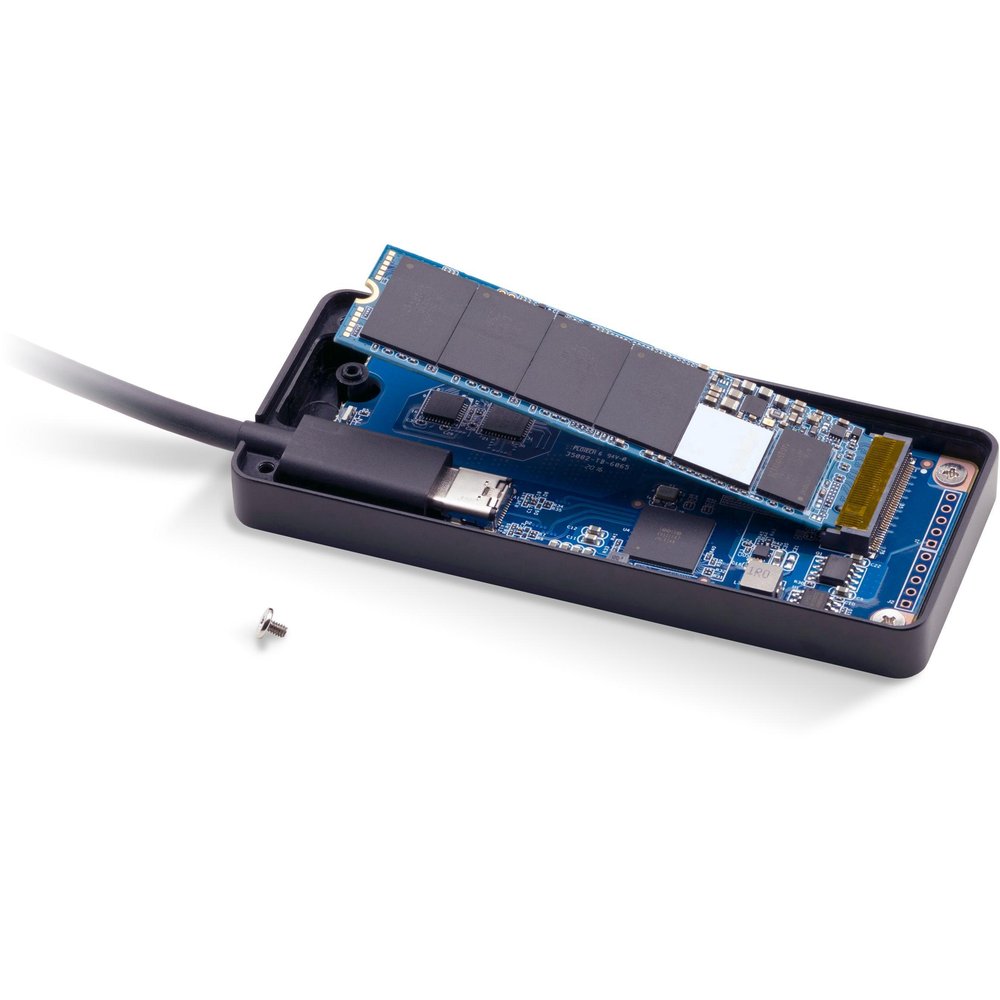

Drive Bays
- 1 bay supporting: M.2 SSDs
- Supports NVMe M.2 SSDs with 2280 form factor and "M Key" connector type. Single- and double-sided SSDs are supported.
Total Capacity
- 3840GB Useable Capacity
- Total Capacity: 4096GB
- 256GB Allocated to real-time data redundancy and error correction
Drive Mechanism
- (1) 4.0TB OWC Aura Pro IV PCIe 4.0 NVMe M.2 2280 Solid-State Drive
- *OWC reserves the right to replace or upgrade to equivalent or better components.
Plug and Play
- Yes
Boot Support
- Mac only. Boot Camp is not supported.
Drive Format
- APFS for Mac and iPad systems
- Windows and Android users please consult OWC Drive Setup for Windows, Chrome, and Android Platforms for formatting instructions
Device Ports
- (1) Host Port - Thunderbolt 3 (USB-C) up to 40Gb/s (5000MB/s)
Captive Cable
- (1) Thunderbolt 3 (USB-C)
Data Transfer Rate (Maximum)
- Thunderbolt 3 : Up to 40Gb/s (or 5000MB/s)
Chipset / Controller
- Thunderbolt 3: Intel Alpine Ridge LP
MTBF (Mean Time Between Failures)
- Varies depending on drive mechanism installed
Contact Start Stops
- Varies depending on drive mechanism installed
Host Interface Requirements
- Thunderbolt (USB-C) port
Mac OS Compatibility
- macOS 10.13 High Sierra
- macOS 10.14 Mojave
- macOS 10.15 Catalina
- macOS 11.x Big Sur
- macOS 12.x Monterey
- macOS 13.x Ventura
- macOS 14.x Sonoma
- macOS 15.x Sequoia
PC OS Compatibility
- Windows 10 64-bit Edition
- Windows Server 2016
- Windows Server 2022
- Windows 11
Mobile OS Compatibility
- iPadOS 18
- iPadOS 17
- iPadOS 16
- iPadOS 15
- iPadOS 14
Driver Required
- No
External Power Adapter
- No
Power Supply
- Bus-powered
Captive Cable
- (1) Thunderbolt 3 (USB-C)
Security Slot
- No
Housing Color
- Black
Housing Material
- Aluminum
Dimensions
- Height: 1.2 cm (0.5 in)
- Length: 10.6 cm (4.2 in)
- Width: 4.4 cm (1.7 in)
- Captive Cable Length: 30.0 cm (11.8 in)
Weight
- 95.0 g (0.21 lbs)
Certifications
- CE
- FCC
- VCCI
- RCM
- BSMI
Ambient Temperature
- Operating: 41°F to 95°F (5°C to 35°C)
- Non-Operating: -4°F to 140°F (-20°C to 60°C)
Altitude
- Operating: -304.8 m to 3,048.0 m (-1,000 ft to 10,000 ft)
- Non-Operating: -304.8 m to 12,192.0 m (-1,000 ft to 40,000 ft)
Humidity
- Operating: 8% to 90% non-condensing
- Non-Operating: 5% to 95% non-condensing
Shock
- Operating: Varies depending on drive mechanism installed
- Non-Operating: Varies depending on drive mechanism installed
Noise
- 0.0dB
- When installed, the following SSDs will only be compatible with Windows 10 systems: Hynix Gold P31. For additional compatibility information, please review our support article.
Benchmarks
Back to top
Truth in Numbers: Another OWC Difference
There are many attributes that define “The OWC Difference.” By listing real-world performance tests of OWC solutions, we’re confident you’ll be completely satisfied with your technology investment.
macOS Test Results

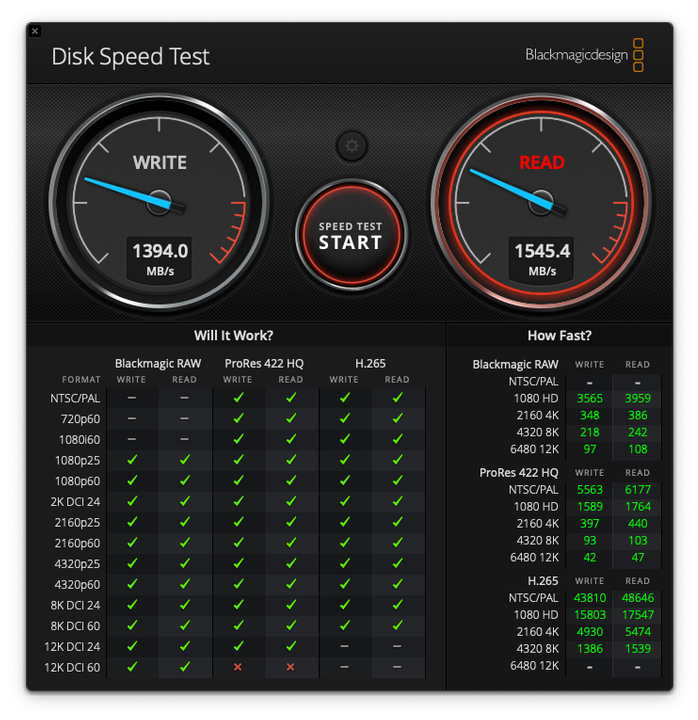

Blackmagic Disk Speed Test - Intel
Thunderbolt 3
Benchmark for 4TB NVMe M.2 SSD (OWCSP4P8T1PT04)
MacBook Pro (16-inch, 2019, MacBookPro16,1) with 2.4GHz processor and 64GB RAM

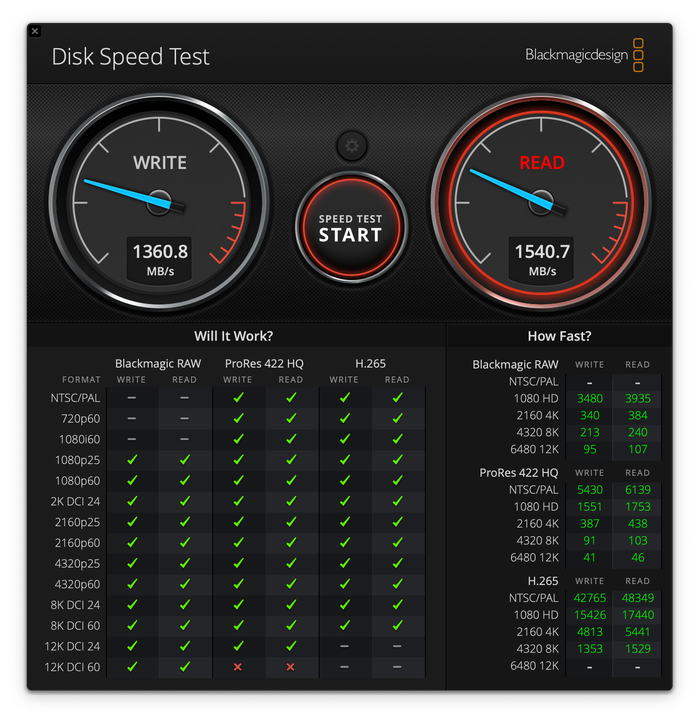

Blackmagic Disk Speed Test - Apple silicon
Thunderbolt 3
Benchmark for 4TB NVMe M.2 SSD (OWCSP4P8T1PT04)
MacBook Pro (16-inch, 2021, MacBookPro18,1) with Apple M1 Pro processor and 16GB RAM

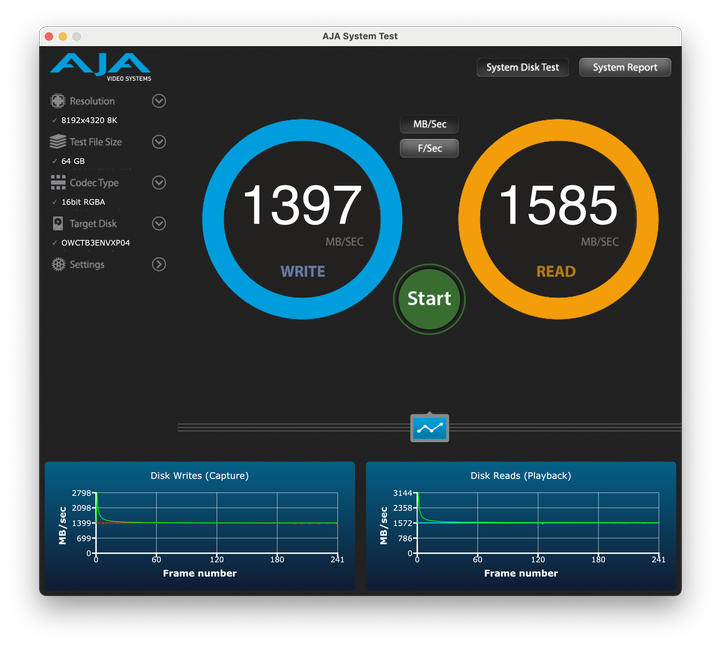

AJA System Test - 8K - Intel
Thunderbolt 3
Benchmark for 4TB NVMe M.2 SSD (OWCSP4P8T1PT04)
MacBook Pro (16-inch, 2019, MacBookPro16,1) with 2.4GHz processor and 64GB RAM
AJA System Test - 8K - Apple silicon
Thunderbolt 3
Benchmark for 4TB NVMe M.2 SSD (OWCSP4P8T1PT04)
MacBook Pro (16-inch, 2021, MacBookPro18,1) with Apple M1 Pro processor and 16GB RAM
AJA System Test - 4K - Intel
Thunderbolt 3
Benchmark for 4TB NVMe M.2 SSD (OWCSP4P8T1PT04)
MacBook Pro (16-inch, 2019, MacBookPro16,1) with 2.4GHz processor and 64GB RAM

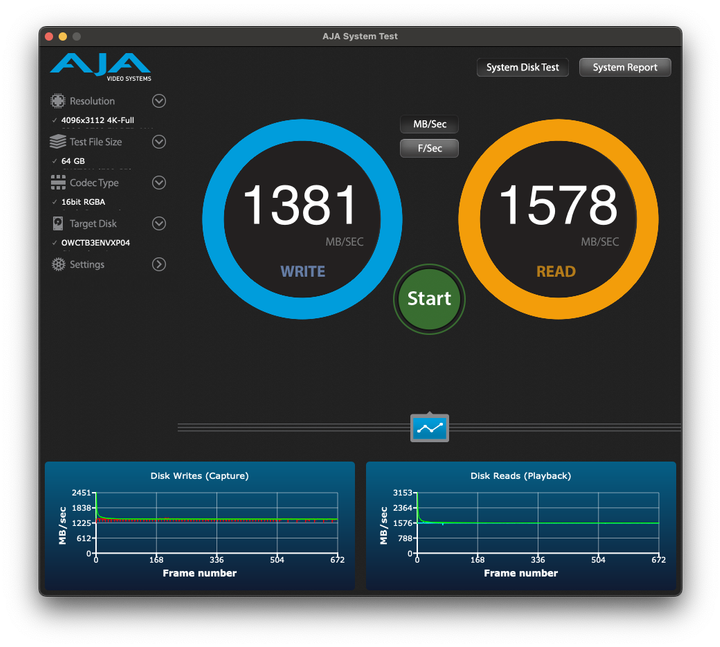

AJA System Test - 4K - Apple silicon
Thunderbolt 3
Benchmark for 4TB NVMe M.2 SSD (OWCSP4P8T1PT04)
MacBook Pro (16-inch, 2021, MacBookPro18,1) with Apple M1 Pro processor and 16GB RAM
Windows Test Results

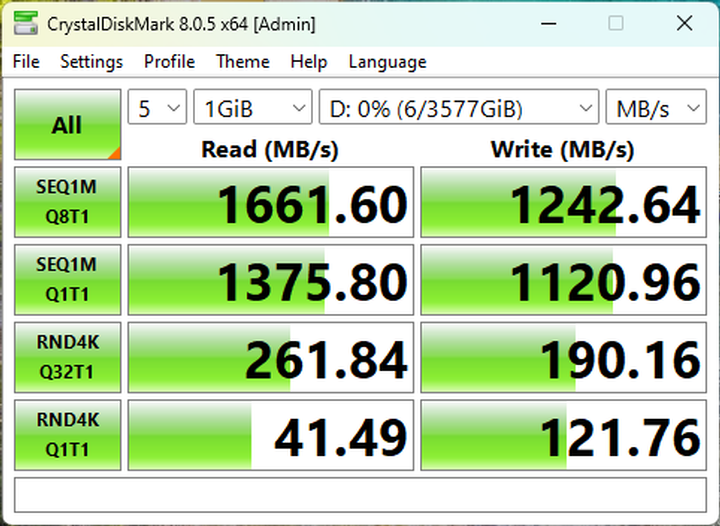

CrystalDiskMark
Thunderbolt 3
Benchmark for 4TB NVMe M.2 SSD (OWCSP4P8T1PT04)
Dell (13-inch, XPS 9315) with 12th Gen i5-1230U processor and 8GB RAM

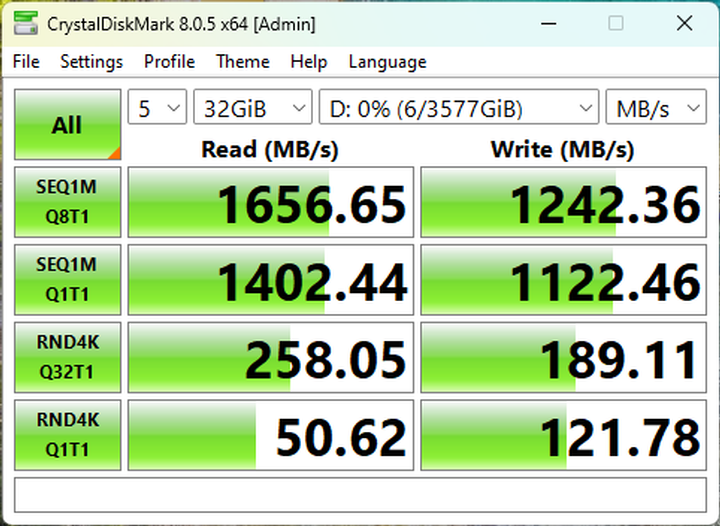

CrystalDiskMark
Thunderbolt 3
Benchmark for 4TB NVMe M.2 SSD (OWCSP4P8T1PT04)
Dell (13-inch, XPS 9315) with 12th Gen i5-1230U processor and 8GB RAM
AJA System Test - 8K
Thunderbolt 3
Benchmark for 4TB NVMe M.2 SSD (OWCSP4P8T1PT04)
Dell (13-inch, XPS 9315) with 12th Gen i5-1230U processor and 8GB RAM

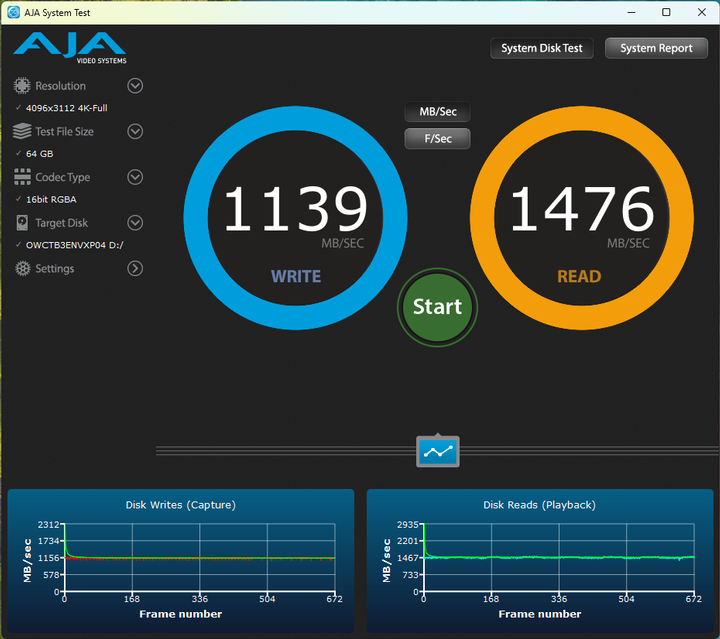

AJA System Test - 4K
Thunderbolt 3
Benchmark for 4TB NVMe M.2 SSD (OWCSP4P8T1PT04)
Dell (13-inch, XPS 9315) with 12th Gen i5-1230U processor and 8GB RAM
