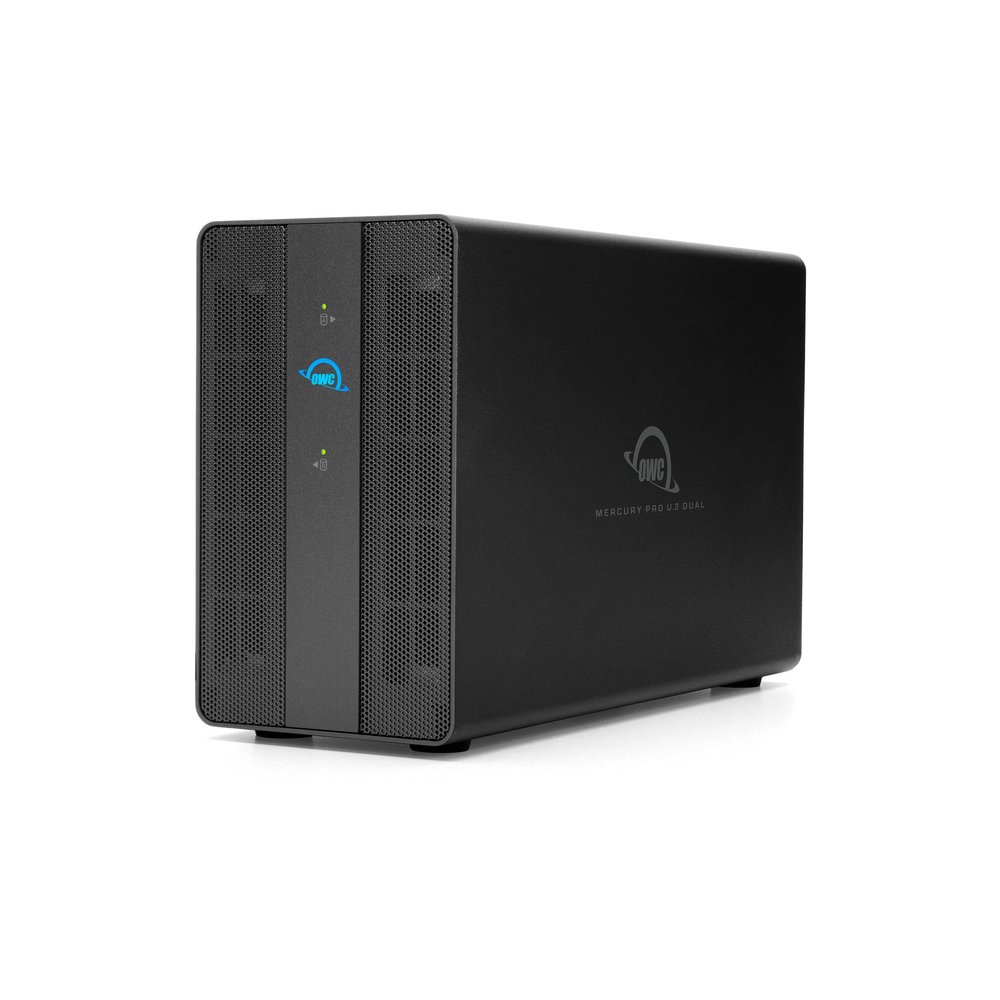

OWC Mercury Pro U.2 Dual
Dual-Bay Thunderbolt External Storage Enclosure for 2.5-inch and 3.5-inch NVMe U.2 Solid-State Drives and Adapters
Mfr P/N: TB3MPDU000J OWC SKU: OWCTB3MPDU000J
-
-
-
-
-
video
Professional Grade Thunderbolt (USB-C) Dual Bay U.2 SSD Enclosure for Mac and Windows PCs
- Blazing fast: utilize Thunderbolt’s full 2800MB/s data bandwidth1
- Unrivaled capacity: the only dual bay solution configurable with up to eight (8) NVMe SSDs
- Easy RAID: Plug and play out of the box or enjoy more RAID choices than traditional dual drive enclosures
- Additional Connectivity: second Thunderbolt USB-C port lets you add up to five Thunderbolt devices, or your choice of a USB-C or DisplayPort device2
- Easy Drive Monitoring: Front panel activity LEDs offer instant status update
- Compatible: works with Mac and Windows computers3
- 1 Year OWC Limited Warranty
Blazing-fast NVMe SSD performance meets massive capacity in this compact, dual-bay Thunderbolt storage enclosure. It’s perfect for everything from routine backups to high-bandwidth pro creative uses.
Edit, Ingest, and Backup in a Blink
The Mercury Pro U.2 Dual is ready for you to install two NVMe U.2 SSDs, so you can edit high-res files on the fly, ingest and duplicate dailies without a hitch, rip through the tightest of timelines, and backup huge music and photo libraries in a flash. While it offers blazingly fast performance with massive storage capacity, this compact solution is small enough to easily fit on a DIT cart, in a rack, or on your desktop.
Nearly 6x Faster SSD Performance
NVMe U.2 SSD use began in the corporate and server market, where ROI is defined in nanoseconds and dependability is paramount. Now, the Mercury Pro U.2 Dual brings enterprise-level performance and reliability to your home or office. The NVMe SSDs utilize Thunderbolt’s full 2800MB/s of data bandwidth capability, so it functions nearly 6x faster than your typical SSD.1
Adaptable Flexibility
The Mercury Pro U.2 Dual easily handles any project backup and storage task you throw at it. Dual drive bays house NVMe U.2 SSDs, ready for the RAID level of your choice, to tackle nearly any data need imaginable. From personal videos to major motion pictures, from photo shoots to file backups... the Mercury Pro U.2 Dual gives you necessary the capacity and horsepower get the job done.
Reconfiguration Ready
Configure the Mercury Pro U.2 Dual to your liking, but you can rest assured that when you want to change your drive configuration for more RAID capabilities or additional storage capacity, there’s no need to buy a costly new enclosure. The Mercury Pro U.2 Dual is ready to change with you. Configure and reconfigure Mercury Pro U.2 Dual…
- For cost-effective and streamlined RAID 0 and RAID 1 storage needs, configure each bay using a 2.5-inch or 3.5-inch NVMe U.2 drive; or configure each bay with an NVMe M.2 SSD with an M.2 to U.2 adapter, like the OWC ShuttleOne.
- For more advanced RAID and capacity needs, configure each bay using an OWC U2 Shuttle with up to four NVMe M.2 SSDs per shuttle for a total of eight (8) SSDs.
Store More, See More, Do More
An extra Thunderbolt USB-C port lets you daisy-chain devices to your Mercury Pro U.2 Dual to expand your capabilities. Add up to five additional Thunderbolt solutions and merge them with a software RAID utility, such as OWC SoftRAID (available separately), for mind-blowing storage. Attach a 5K display or two 4K Thunderbolt displays. You can even place a USB device at the end of the chain. The Mercury Pro U.2 Dual gives you the freedom to use more of what you need.
More Powerful With SoftRAID
Need more power and protection? Choose a solution that includes OWC's powerful SoftRAID RAID software.
SoftRAID is the most powerful, intuitive software RAID utility on the market. Multiple RAID levels let you select the RAID level that fits you or your project’s needs best. If you need maximum volume capacity, optimum drive performance, data protection, or a combination of attributes, SoftRAID has you covered.
Packed with features like drive validation, verification and failure prediction—SoftRAID includes features you simply don’t get with hardware RAID. It’s like having a datacenter on your desktop! From home users looking to protect photos and documents to professionals needing to protect and quickly access projects, SoftRAID is the perfect solution.
Try SoftRAID COMPLETELY FREE for 14 Days
Start protecting yourself and your data today! Get all of SoftRAID's great disk checking and monitoring features, plus the fastest and most efficient software RAID there is.
Ready to Work Anywhere
The Mercury Pro U.2 Dual can be taken wherever you need a compact yet super-fast massive capacity storage solution. At 3.3”W x 5.8”H x 9.4”D and weighing just 4 pounds with drives, the Mercury Pro U.2 Dual can travel anywhere your workflow takes you. It connects to Thunderbolt Macs and PCs and can work cross-platform using OWC MacDrive 10 Pro software (available separately).
- Sequential read/write (max) performance based on testing Mercury Elite Pro U.2 Dual with 8 x 2TB Aura Ultra III SSDs in RAID 0 equipped connected to a MacBook Pro (16-inch 2019) with 64GB RAM and 2.4GHz i9 processor running AJA System Test (4K-Full resolution, 64GB file size, 10bit RGB codec, single file test). Each of the (2) U.2 drive bays are 2x PCIe lanes and support speeds of up to 1500MB/s. Max performance of 2800MB/s requires using both drive bays in a RAID 0 configuration.
- Requires use of DisplayPort to USB-C cable or adapter.
- Thunderbolt 2/Thunderbolt compatibility requires a certified Thunderbolt 3 (USB-C) to Thunderbolt 2 (mDP) adapter and a Thunderbolt 2 cable (not included). This configuration provides data transfer at up to 20Gb/s but does not support notebook charging.
- Select SSDs have been tested by OWC and shown to be incompatible with Mac systems running macOS 10.14 'Mojave' and later regardless of how they are connected to the host computer. Please consult the article "Incompatible SSD List: macOS 10.14 'Mojave' and Later" for a list of affected SSDs.
Includes
Back to top
- (1) OWC Mercury Pro U.2 Dual External Storage Enclosure
- (1) External Power Supply
- (1) US Power Cable
- (1) 0.7M (28") Thunderbolt Cable
- (1) Quick Start Guide for OWC Mercury Pro U.2 Dual
- (1) Assembly Manual & User Guide for OWC Mercury Pro U.2 Dual
- 1 Year OWC Limited Warranty
Specs
Back to top
Drive Bays
- 2 bays supporting: 2.5-inch U.2 SSDs, 3.5-inch U.2 SSDs, M.2 SSDs (with M.2 to U.2 adapter)
Hot Plug Support
- Yes
Boot Support
- Independent volumes bootable in macOS. Boot Camp is not supported.
RAID Capable
- Yes
RAID Levels Supported
- RAID 0
- RAID 1
- JBOD
- RAID 4
- RAID 5
- RAID 0+1
RAID Features
- Software RAID
Device Ports
- (1) Host Port - Thunderbolt 3 (USB-C) up to 40Gb/s (5000MB/s)
- (1) Thunderbolt 3 (USB-C) Port
Power Delivery
- Two Thunderbolt 3 ports (15W each)
Display Support
- Up to one 5K display @ 60Hz,
- or one 4K display @ 60Hz,
- or one 4K display @ 30Hz
Display Support by Port
- Thunderbolt 3: Up to 5K @ 60Hz via a native Thunderbolt 3 display or 4K @ 60Hz via a Thunderbolt display or a USB-C display adapter
Data Transfer Rate (Maximum)
- Thunderbolt 3 : Up to 40Gb/s (or 5000MB/s)
Chipset / Controller
- Thunderbolt 3: Intel JHL6540
MTBF (Mean Time Between Failures)
- Varies depending on drive mechanism installed
Contact Start Stops
- Varies depending on drive mechanism installed
Host Interface Requirements
- Thunderbolt (USB-C) port (backward compatible with Thunderbolt 2/Thunderbolt1)
Mac OS Compatibility
- macOS 10.13 High Sierra
- macOS 10.14 Mojave
- macOS 10.15 Catalina
- macOS 11.x Big Sur
- macOS 12.x Monterey
- macOS 13.x Ventura
- macOS 14.x Sonoma
- macOS 15.x Sequoia
PC OS Compatibility
- Windows 10 64-bit Edition
- Windows Server 2016
- Windows Server 2022
- Windows 11
Driver Required
- No
Other Requirements
- Requires 2.5 or 3.5 inch NVMe U.2 SSDs or U.2 adapters using the same form factors.
External Power Adapter
- Yes
Power Supply
- External UL-listed universal auto-switching power supply
AC Input
- 100-240V, 50-60Hz, 2.0A
DC Output
- +12V, 10A
Wattage
- 120W
Cooling
- (1) 60mm 3,000RPM cooling fan
Security Slot
- Yes
Power/Activity LED
- Yes
Housing Color
- Black
Housing Material
- Aluminum
Dimensions
- Height: 14.7 cm (5.8 in)
- Length: 23.9 cm (9.4 in)
- Width: 8.5 cm (3.3 in)
Weight
- 1.5 kg (3.31 lbs)
Certifications
- BSMI
- CE
- FCC
- RCM
- VCCI
Ambient Temperature
- Operating: 41°F to 95°F (5°C to 35°C)
- Non-Operating: -4°F to 140°F (-20°C to 60°C)
Altitude
- Operating: -304.8 m to 3,048.0 m (-1,000 ft to 10,000 ft)
- Non-Operating: -304.8 m to 12,192.0 m (-1,000 ft to 40,000 ft)
Humidity
- Operating: 8% to 90% non-condensing
- Non-Operating: 5% to 95% non-condensing
Noise
- 32.4dB
- Thunderbolt 2/Thunderbolt compatibility requires a certified Thunderbolt 3 (USB-C) to Thunderbolt 2 (mDP) adapter and a Thunderbolt 2 cable (not included). This configuration provides data transfer at up to 20Gb/s but does not support notebook charging.
- M.2 drives are also supported with M.2 to U.2 adapter such as the OWC U2 Shuttle and OWC U2 ShuttleOne (available separately).
Compatibility & Installation Videos
Back to top
Note: Some Windows PC manufacturers use PCIe resource-limited designs which may be incompatible with switch-based PCIe devices (such as OWC U2 Shuttle) in select configurations. Please contact OWC support if you experience this limitation.
MacBook Pro
MacBook Pro (16-inch, Late 2024)
Late 2024
Model ID: Mac16.5
Apple M4 Max
MacBook Pro (14-inch, Late 2024)
Late 2024
Model ID: Mac16,8
Apple M4 Pro
MacBook Pro (16-inch, Late 2024)
Late 2024
Model ID: Mac16,7
Apple M4 Pro
MacBook Pro (14-inch, Late 2024)
Late 2024
Model ID: Mac16,6 & Mac16,1
Apple M4 Max & Apple M4
MacBook Pro (16-inch, Late 2023)
Late 2023
Model ID: Mac15,9
Apple M3 Max
MacBook Pro (14-inch, Late 2023)
Late 2023
Model ID: Mac15,8
Apple M3 Max
MacBook Pro (16-inch, Late 2023)
Late 2023
Model ID: Mac15,7
Apple M3 Pro
MacBook Pro (14-inch, Late 2023)
Late 2023
Model ID: Mac15,6 & Mac15,3
Apple M3 Pro & Apple M3
MacBook Pro (16-inch, Late 2023)
Late 2023
Model ID: Mac15,11
Apple M3 Max
MacBook Pro (14-inch, Late 2023)
Late 2023
Model ID: Mac15,10
Apple M3 Max
MacBook Pro (14-inch, Early 2023)
Early 2023
Model ID: Mac14,9
Apple M2 Pro
MacBook Pro (16-inch, Early 2023)
Early 2023
Model ID: Mac14,6
Apple M2 Max
MacBook Pro (14-inch, Early 2023)
Early 2023
Model ID: Mac14,5
Apple M2 Max
MacBook Pro (16-inch, Early 2023)
Early 2023
Model ID: Mac14,10
Apple M2 Pro
MacBook Pro (13-inch, Mid 2022)
Mid 2022
Model ID: Mac14,7
Apple M2
MacBook Pro (14-inch, Late 2021)
Late 2021
Model ID: MacBookPro18,4 & MacBookPro18,3
Apple M1 Max & Apple M1 Pro
MacBook Pro (16-inch, Late 2021)
Late 2021
Model ID: MacBookPro18,2 & MacBookPro18,1
Apple M1 Max & Apple M1 Pro
MacBook Pro (Touch, 13-inch, Late 2020)
Late 2020
Model ID: MacBookPro17,1
Apple M1
MacBook Pro (Touch, 13-inch, Mid 2020)
Mid 2020
Model ID: MacBookPro16,3 & MacBookPro16,2
1.4GHz & 1.7GHz & 2.0GHz Core i5 & 2.3GHz Core i7
MacBook Pro (Touch, 16-inch, Mid 2019)
Late 2019
Model ID: MacBookPro16,1
2.6GHz Core i7 & 2.3GHz & 2.4GHz Core i9
MacBook Pro (Touch, 13-inch, Mid 2019)
Mid 2019
Model ID: MacBookPro15,4
1.4GHz Core i5 & 1.7GHz Core i7
MacBook Pro (Touch, 15-inch, Mid 2019)
Mid 2019
Model ID: MacBookPro15,3
2.4GHz & 2.3GHz Core i9
MacBook Pro (Touch, 13-inch, Mid 2019)
Mid 2019
Model ID: MacBookPro15,2
2.4GHz Core i5 & 2.8GHz Core i7
MacBook Pro (Touch, 15-inch, Mid 2019)
Mid 2019
Model ID: MacBookPro15,1
2.6GHz Core i7 & 2.4GHz & 2.3GHz Core i9
MacBook Pro (Touch, 15-inch, Late 2018)
Late 2018
Model ID: MacBookPro15,3
2.6GHz Core i7 & 2.9GHz Core i9
MacBook Pro (Touch, 13-inch, Mid 2018)
Mid 2018
Model ID: MacBookPro15,2
2.3GHz Core i5 & 2.7GHz Core i7
MacBook Pro (Touch, 15-inch, Mid 2018)
Mid 2018
Model ID: MacBookPro15,1
2.6GHz & 2.2GHz Core i7 & 2.9GHz Core i9
MacBook Pro (Touch, 15-inch, Mid 2017)
Mid 2017
Model ID: MacBookPro14,3
2.9GHz & 2.8GHz & 3.1GHz Core i7
MacBook Pro (Touch, 13-inch, Mid 2017)
Mid 2017
Model ID: MacBookPro14,2
3.3GHz & 3.1GHz Core i5 & 3.5GHz Core i7
MacBook Pro (Retina, 13-inch, Mid 2017)
Mid 2017
Model ID: MacBookPro14,1
2.3GHz Core i5 & 2.5GHz Core i7
MacBook Pro (Retina, Touch Bar, 15-inch, Late 2016)
Late 2016
Model ID: MacBookPro13,3
2.9GHz & 2.7GHz & 2.6GHz Core i7
MacBook Pro (Retina, Touch Bar, 13-inch, Late 2016)
Late 2016
Model ID: MacBookPro13,2
2.9GHz & 3.1GHz Core i5 & 3.3GHz Core i7
MacBook Pro (Retina, 13-inch, Late 2016)
Late 2016
Model ID: MacBookPro13,1
2.0GHz Core i5 & 2.4GHz Core i7
MacBook Pro (Retina, 15-inch, Mid 2015)
Mid 2015
Requires Thunderbolt 3 (USB-C) to Thunderbolt 2 (mDP) Adapter and Thunderbolt 2 cable.
Requires Thunderbolt 3 (USB-C) to Thunderbolt 2 (mDP) Adapter and Thunderbolt 2 cable.
Model ID: MacBookPro11,5 & MacBookPro11,4
2.5GHz & 2.8GHz & 2.2GHz Core i7
MacBook Pro (Retina, 13-inch, Early 2015)
Early 2015
Requires Thunderbolt 3 (USB-C) to Thunderbolt 2 (mDP) Adapter and Thunderbolt 2 cable.
Requires Thunderbolt 3 (USB-C) to Thunderbolt 2 (mDP) Adapter and Thunderbolt 2 cable.
Model ID: MacBookPro12,1
2.7GHz & 2.9GHz Core i5 & 3.1GHz Core i7
MacBook Pro (Retina, 15-inch, Mid 2014)
Mid 2014
Requires Thunderbolt 3 (USB-C) to Thunderbolt 2 (mDP) Adapter and Thunderbolt 2 cable.
Requires Thunderbolt 3 (USB-C) to Thunderbolt 2 (mDP) Adapter and Thunderbolt 2 cable.
Model ID: MacBookPro11,3 & MacBookPro11,2
2.5GHz & 2.8GHz & 2.2GHz Core i7
MacBook Pro (Retina, 13-inch, Mid 2014)
Mid 2014
Requires Thunderbolt 3 (USB-C) to Thunderbolt 2 (mDP) Adapter and Thunderbolt 2 cable.
Requires Thunderbolt 3 (USB-C) to Thunderbolt 2 (mDP) Adapter and Thunderbolt 2 cable.
Model ID: MacBookPro11,1
2.6GHz & 2.8GHz Core i5 & 3.0GHz Core i7
MacBook Pro (Retina, 15-inch, Late 2013)
Late 2013
Requires Thunderbolt 3 (USB-C) to Thunderbolt 2 (mDP) Adapter and Thunderbolt 2 cable.
Requires Thunderbolt 3 (USB-C) to Thunderbolt 2 (mDP) Adapter and Thunderbolt 2 cable.
Model ID: MacBookPro11,3 & MacBookPro11,2
2.3GHz & 2.6GHz & 2.0GHz Core i7
MacBook Pro (Retina, 13-inch, Late 2013)
Late 2013
Requires Thunderbolt 3 (USB-C) to Thunderbolt 2 (mDP) Adapter and Thunderbolt 2 cable.
Requires Thunderbolt 3 (USB-C) to Thunderbolt 2 (mDP) Adapter and Thunderbolt 2 cable.
Model ID: MacBookPro11,1
2.4GHz & 2.6GHz Core i5 & 2.8GHz Core i7
MacBook Air
MacBook Air (15-inch, Early 2025)
Early 2025
Model ID: Mac16,13
Apple M4
MacBook Air (13-inch, Early 2025)
Early 2025
Model ID: Mac16,12
Apple M4
MacBook Air (15-inch, Early 2024)
Early 2024
Model ID: Mac15,13
Apple M3
MacBook Air (13-inch, Early 2024)
Early 2024
Model ID: Mac15,12
Apple M3
MacBook Air (15-inch, Mid 2023)
Mid 2023
Model ID: Mac14,15
Apple M2
MacBook Air (13-inch, Mid 2022)
Mid 2022
Model ID: Mac14,2
Apple M2
MacBook Air (13-inch, Early 2020)
Early 2020
Model ID: MacBookAir9,1
1.1GHz Core i3 & 1.1GHz Core i5 & 1.2GHz Core i7
MacBook Air (13-inch, Mid 2019)
Mid 2019
Model ID: MacBookAir8,2
1.6GHz Core i5
MacBook Air (13-inch, Late 2018)
Late 2018
Model ID: MacBookAir8,1
1.6GHz Core i5
MacBook Air (13-inch, Mid 2017)
Mid 2017
Requires Thunderbolt 3 (USB-C) to Thunderbolt 2 (mDP) Adapter and Thunderbolt 2 cable.
Requires Thunderbolt 3 (USB-C) to Thunderbolt 2 (mDP) Adapter and Thunderbolt 2 cable.
Model ID: MacBookAir7,2
1.8GHz Core i5 & 2.2GHz Core i7
MacBook Air (13-inch, Early 2015)
Early 2015
Requires Thunderbolt 3 (USB-C) to Thunderbolt 2 (mDP) Adapter and Thunderbolt 2 cable.
Requires Thunderbolt 3 (USB-C) to Thunderbolt 2 (mDP) Adapter and Thunderbolt 2 cable.
Model ID: MacBookAir7,2
1.6GHz Core i5 & 2.2GHz Core i7
MacBook Air (11-inch, Early 2015)
Early 2015
Requires Thunderbolt 3 (USB-C) to Thunderbolt 2 (mDP) Adapter and Thunderbolt 2 cable.
Requires Thunderbolt 3 (USB-C) to Thunderbolt 2 (mDP) Adapter and Thunderbolt 2 cable.
Model ID: MacBookAir7,1
1.6GHz Core i5 & 2.2GHz Core i7
iMac (Retina 4.5K, 24-inch, Late 2024)
Late 2024
Model ID: Mac16,3 & Mac16,2
Apple M4
iMac (Retina 4.5K, 24-inch, Late 2023)
Late 2023
Model ID: Mac15,5 & Mac15,4
Apple M3
iMac (Retina 4.5K, 24-inch, Mid 2021)
Mid 2021
Model ID: iMac21,2 & iMac21,1
Apple M1
iMac (Retina 5K, 27-inch, Mid 2020)
Mid 2020
Model ID: iMac20,2 & iMac20,1
3.8GHz Core i7 & 3.6GHz Core i9 & 3.3GHz & 3.1GHz Core i5
iMac (Retina 4K, 21.5-inch, Early 2019)
Early 2019
Model ID: iMac19,2
3.6GHz Core i3 & 3.0GHz Core i5 & 3.2GHz Core i7
iMac (Retina 5K, 27-inch, Early 2019)
Early 2019
Model ID: iMac19,1
3.7GHz & 3.1GHz & 3.0GHz Core i5 & 3.6GHz Core i9
iMac Pro (27-inch, Late 2017)
Late 2017
Model ID: iMacPro1,1
2.3GHz Xeon W & 2.5GHz Xeon W & 3.2GHz Xeon W & 3.0GHz Xeon W
iMac (Retina 5K, 27-inch, Mid 2017)
Mid 2017
Model ID: iMac18,3
3.8GHz & 3.5GHz & 3.4GHz Core i5 & 4.2GHz Core i7
iMac (Retina 4K, 21.5-inch, Mid 2017)
Mid 2017
Model ID: iMac18,2
3.4GHz & 3.0GHz Core i5 & 3.6GHz Core i7
iMac (Retina 5K, 27-inch, Late 2015)
Late 2015
Requires Thunderbolt 3 (USB-C) to Thunderbolt 2 (mDP) Adapter and Thunderbolt 2 cable.
Requires Thunderbolt 3 (USB-C) to Thunderbolt 2 (mDP) Adapter and Thunderbolt 2 cable.
Model ID: iMac17,1
3.2GHz & 3.3GHz Core i5 & 4.0GHz Core i7
iMac (21.5-inch, Late 2015)
Late 2015
Requires Thunderbolt 3 (USB-C) to Thunderbolt 2 (mDP) Adapter and Thunderbolt 2 cable.
Requires Thunderbolt 3 (USB-C) to Thunderbolt 2 (mDP) Adapter and Thunderbolt 2 cable.
Model ID: iMac16,2
2.8GHz Core i5
iMac (Retina 4K, 21.5-inch, Late 2015)
Late 2015
Requires Thunderbolt 3 (USB-C) to Thunderbolt 2 (mDP) Adapter and Thunderbolt 2 cable.
Requires Thunderbolt 3 (USB-C) to Thunderbolt 2 (mDP) Adapter and Thunderbolt 2 cable.
Model ID: iMac16,2
3.1GHz Core i5 & 3.3GHz Core i7
iMac (21.5-inch, Late 2015)
Late 2015
Requires Thunderbolt 3 (USB-C) to Thunderbolt 2 (mDP) Adapter and Thunderbolt 2 cable.
Requires Thunderbolt 3 (USB-C) to Thunderbolt 2 (mDP) Adapter and Thunderbolt 2 cable.
Model ID: iMac16,1
1.6GHz Core i5
iMac (Retina 5K, 27-inch, Mid 2015)
Mid 2015
Requires Thunderbolt 3 (USB-C) to Thunderbolt 2 (mDP) Adapter and Thunderbolt 2 cable.
Requires Thunderbolt 3 (USB-C) to Thunderbolt 2 (mDP) Adapter and Thunderbolt 2 cable.
Model ID: iMac15,1
3.3GHz Core i5
iMac (Retina 5K, 27-inch, Late 2014)
Late 2014
Requires Thunderbolt 3 (USB-C) to Thunderbolt 2 (mDP) Adapter and Thunderbolt 2 cable.
Requires Thunderbolt 3 (USB-C) to Thunderbolt 2 (mDP) Adapter and Thunderbolt 2 cable.
Model ID: iMac15,1
3.5GHz Core i5 & 4.0GHz Core i7
Mac Pro
Mac Pro (Mid 2023)
Mid 2023
Model ID: Mac14,8
Apple M2 Ultra
Mac Pro Rack (Mid 2023)
Mid 2023
Model ID: Mac14,8
Apple M2 Ultra
Mac Pro Rack (Late 2019)
Late 2019
Model ID: MacPro7,1
3.5GHz 8-Core Xeon
Mac Pro Rack (Late 2019)
Late 2019
Model ID: MacPro7,1
3.3GHz 12-Core Xeon
Mac Pro Rack (Late 2019)
Late 2019
Model ID: MacPro7,1
3.2GHz 16-Core Xeon
Mac Pro Rack (Late 2019)
Late 2019
Model ID: MacPro7,1
2.7GHz 24-Core Xeon
Mac Pro Rack (Late 2019)
Late 2019
Model ID: MacPro7,1
2.5GHz 28-Core Xeon
Mac Pro (Late 2013)
Late 2013
Requires Thunderbolt 3 (USB-C) to Thunderbolt 2 (mDP) Adapter and Thunderbolt 2 cable.
Requires Thunderbolt 3 (USB-C) to Thunderbolt 2 (mDP) Adapter and Thunderbolt 2 cable.
Model ID: MacPro6,1
3.7GHz 4-Core Xeon & 3.5GHz & 3.7GHz 6-Core Xeon & 3.0GHz 8-Core Xeon & 3.0GHz 10-Core Xeon & 2.7GHz 12-Core Xeon
Mac Studio
Mac Studio (Early 2025)
Early 2025
Model ID: Mac16,9 & Mac15,14
Apple M4 Max & Apple M3 Ultra
Mac Studio (Mid 2023)
Mid 2023
Model ID: Mac14,14 & Mac14,13
Apple M2 Ultra & Apple M2 Max
Mac Studio (Early 2022)
Early 2022
Model ID: Mac13,2 & Mac13,1
Apple M1 Ultra & Apple M1 Max
Mac mini
Mac mini (Late 2024)
Late 2024
Model ID: Mac16,11 & Mac16,10
Apple M4 Pro & Apple M4
Mac mini (Early 2023)
Early 2023
Model ID: Mac14,3 & Mac14,12
Apple M2 & Apple M2 Pro
Mac mini (Late 2020)
Late 2020
Model ID: Macmini9,1
Apple M1
Mac mini (Late 2018)
Late 2018
Model ID: Macmini8,1
3.6GHz Core i3 & 3.0GHz Core i5 & 3.2GHz Core i7
Mac mini (Late 2014)
Late 2014
Requires Thunderbolt 3 (USB-C) to Thunderbolt 2 (mDP) Adapter and Thunderbolt 2 cable.
Requires Thunderbolt 3 (USB-C) to Thunderbolt 2 (mDP) Adapter and Thunderbolt 2 cable.
Model ID: Macmini7,1
1.4GHz & 2.6GHz & 2.8GHz Core i5 & 3.0GHz Core i7
PC Compatible
PC Compatible
PC must have a compatible Thunderbolt port
Videos
Back to top
U.2 Drives / Adapters Install Video
Learn More
Customer Reviews
Back to top
Very fast storage with U.2 SSDs
Using the U.2 dock, this storage system is very fast with U.2. SSDs
I would recommend this product to a friend!
Verified Purchase.WayneU444,
Oct, 10 2023
- Reviewer:WayneU444
Response from OWC, Support
Thank you so much for your amazing 5-star review! We're thrilled to hear that you're experiencing lightning-fast storage performance with our U.2 SSDs and U.2 dock. Your feedback truly means a lot to us. We're grateful for your support and look forward to serving you again in the future.
8.0TB OWC Mercury Pro U.2 Dual High-Performance Thunderbolt SSD
I had several external Hard Drives daisy chained off of my iMac and was it not only hard to manage, one of the drives maxed and did not allow further saving. It was crippling. So after some research on SSD Hard Drives, the 8.0TB OWC Mercury Pro U.2 Dual High-Performance Thunderbolt SSD fit my performance, storage requirements, and budget. It has been a Godsend, as it quietly sits beside my monitor and hub, which is no longer burdened by the two external SSDs that have been formatted and readied for use should the need arise for additional storage space. I am very happy with my purchase, and if you are juggling external hard drives tor your music and film project, I highly recommend the 8.0TB OWC Mercury Pro U.2 Dual High-Performance Thunderbolt SSD. If you can afford it, a higher memory device, like the 16 and 32 TB units that OWC offers.
I would recommend this product to a friend!
Verified Purchase.gabebey,
Jun, 12 2023
- Reviewer:gabebey
Response from OWC, Support
Thank you for the feedback on the OWC Mercury Pro U.2 Dual. We appreciate you taking the time to let us know that you received a great product that that it has been a godsend to your set up. Please feel free to contact us if you have any further questions, comments, or concerns. https://eshop.macsales.com/Service/
FAST and Easy Setup
I am using Kingston KC3000 SSDs, setup with RAID 0 via Apple. Is working perfect and very fast indeed. Waiting for another sale on the KC3000 to complete the population out and change to RAID 10. Very happy.
I would recommend this product to a friend!
Verified Purchase.PleasantToucan-52214,
Jun, 6 2023
- Reviewer:PleasantToucan-52214
Response from OWC, Support
Thank you for choosing OWC for your technical needs. I'm so glad to hear the Mercury Pro U.2 is working great for you! Please feel free to contact us if you have any further questions, comments, or concerns. https://eshop.macsales.com/Service/
View More Reviews
…
