OWC

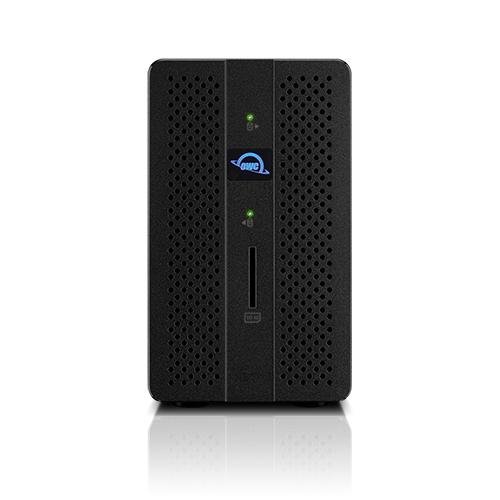

Mercury Elite Pro Dock
8.0TB Thunderbolt 3 Dock and Dual-Drive RAID Solution

Thunderbolt 3 / SATA 6.0Gb/s / USB 3.1 / GbE / DisplayPort
Your Multitool for Digital Workflows
With dual drive bays, seven connectivity ports, and a SD 4.0 card reader, the OWC Mercury Elite Pro Dock is the do-it-all tool that will organize your digital life. You’ll have plenty of room to duplicate footage, create and manage archives, or render and process effects. Connect your favorite peripherals via USB ports. Ingest the day’s shoot or drone footage with the frontside reader.
Hardware RAID: Speed, Reliability, Flexibility
The Mercury Elite Pro Dock utilizes hardware RAID to unleash the full potential of two 3.5" 7200RPM hard drives. Preconfigured in high-speed RAID 0 mode to deliver maximum sustained throughput from its drives, the Mercury Elite Pro Dock offers real-world speeds up to 497MB/s to handle HD video workflows. If you desire the extra security of mirrored data, you can configure the Mercury Elite Pro Dock in RAID 1 mode. Need more drive flexibility? Set up a span to combine the capacity of the two drives into one huge volume or use the drives as independent volumes.
Configure to Your Unique Needs
You can customize the Mercury Elite Pro Dock to quickly adapt to project changes and help you stay ahead of deadlines. With built-in hardware RAID, you have four drive set-up choices:

  • Non-RAID to keep the drives as independent volumes
  • RAID 1 (mirror) for backup reliability
  • RAID 0 (stripe) for optimal performance and maximum speed or use
  • Span to combine the drive capacities into one huge volume for extra-large storage capacities

Done with the drives but need the connectivity? Just eject the RAID from your computer and the Mercury Elite Pro Dock keeps you working smoothly.
Full Stream Ahead
The Mercury Elite Pro Dock features a 1Gb Ethernet port to keep you connected at speeds that leave WiFi in the dust. A must-have for shared workflows and workspaces, Ethernet connectivity speeds up file transfers giving you an edge on your work in progress.
Professional Grade = Ready to Work
We understand having confidence in gear reliability is paramount to creative professionals. That’s why every Mercury Elite Pro Dock configured solution undergoes OWC's multi-hour drive "burn-in" performance certification procedure prior to shipping. This ensures it arrives operating properly and immediately ready for demanding use.
Disconnect in One Click
OWC Dock Ejector software safely disconnects drives in a single click. Designed by OWC hardware and software engineers, Dock Ejector ensures all data is written before disconnection, saving time and protecting against data loss. Use it to move quickly between workstations and get the most out of your OWC Dock. Learn more and download the OWC Dock Ejector.

Product Specifications:

Standard Mechanism

    4.0TB Toshiba X300 Specifications:

    Specifications

    Form Factor
    3.5″ HDD
    Interface
    SATA 6.0Gb/s
    Capacity1
    4.0TB
    Formatted Capacity2
    3720GiB
    Rotational Speed
    7,200 RPM
    Cache / Data Buffer
    128MB
    Manufacturer Model Number
    HDWE140XZSTA
    Format

    Physical

    Height (max)
    26.1mm (1.027″)
    Width (max)
    101.6mm (4.0″)
    Length (max)
    147mm (5.787″)
    Weight (typical)
    720g (1.587 lbs.)
    Bytes per Sector
    512 / 4096

    Reliability3

    MTBF (Mean Time Between Failures)
    1,400,000 hours
    Load/Unload
    600,000 times
    Warranty
    2 Year Toshiba Limited Warranty

    Performance

    Transfer Rate (Max)
    6.0Gb/s
    Average Seek Time
    8.5ms
    Average Latency
    4.17ms

    Power

    Read Power
    11.3 Watts
    Write Power
    11.3 Watts
    Idle Mode
    6.0 Watts

    Environmental (Operating)

    Shock
    70 G max at 2ms
    Ambient Temperature (°F)
    32°F to 140°F
    Ambient Temperature (°C)
    0°C to 60°C
    Vibration
    0.75 G (5 to 500 Hz)
    Relative Humidity (non-condensing)
    8% to 90%
    Altitude
    -304.8 m to 3,048 m (-1,000 ft to 10,000+ ft)

    Environmental (Non-Operating)

    Shock
    300 G max at 1ms
    Ambient Temperature (°F)
    -40°F to 158°F
    Ambient Temperature (°C)
    -40°C to 70°C
    Vibration
    1.04 G (5 to 500 Hz)
    Relative Humidity (non-condensing)
    5% to 95%
    Altitude
    -304.8 m to 12,192 m (-1000 ft to 40,000+ ft)

    Acoustics

    Idle (Typical)
    3.1 bels
    1. 1GB = 1,000,000,000 bytes. Total accessible capacity varies depending upon operating environment (typically 5-10% less). The actual total capacity will depend on your own defined file settings/preferences.
    2. In terms of standard gigabytes, 1GiB ≈ 1.074GB and refers to the actual formatted capacity of shown under Mac OS 10.5 or earlier and Microsoft Windows OS.
    3. Specific application environments such as temperature and duty cycle will affect the overall reliability rates.
  • 2 x 4.0TB* Toshiba Hard Disk Drives**
  • *1GB = 1,000,000,000 bytes. Total accessible capacity varies depending upon operating environment (typically 5-10% less). The actual total capacity will depend on your own defined file settings/preferences.

    **OWC reserves the right to replace or upgrade to equivalent or better components.

Total Capacity

  • 8.0TB

Number of Bays

  • (2) 2.5" or 3.5" SATA drives

Mac OS Compatibility

  • macOS 10.14 Mojave

PC Compatibility

  • Windows Server 2016
  • Windows 10 64-bit Edition

Other Requirements

  • Computer with Thunderbolt™ 3 port

Certifications

  • CE
  • FCC
  • VCCI
  • BSMI
  • RCM
  • Thunderbolt™ technology

RoHS Compliant

  • Yes

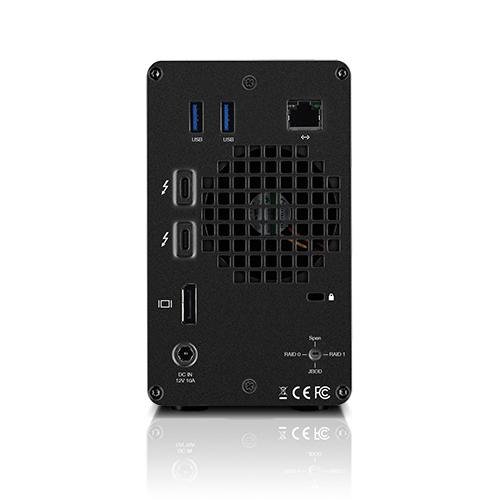

Ports

  • (2) Thunderbolt 3 Ports
  • (2) USB 3.1 Gen 1 Type A Ports
  • (1) DisplayPort 1.2 Port
  • (1) Gigabit Ethernet (GbE) RJ-45 Port

Memory Card Slots

  • (1) Secure Digital (SD)

Chipset

  • Thunderbolt (2): Intel JHL6540
  • Media Reader: Genesis Logic GL-3227
  • USB (2): Fresco Logic FL1100EX
  • Ethernet (1): Intel i210
  • SATA Controller: ASMedia AS

RAID Modes Supported

  • JBOD
  • RAID 0 striping
  • RAID 1 mirroring
  • SPAN

Default Raid Level

  • JBOD

Housing Material

  • High quality aluminum for optimized heat dissipation

Housing Color

  • Black

Cooling

  • (1) Cooling fan

Power / Disk Activity LED

  • Yes

Security Slot

  • Yes

Data Transfer Rate (Max)

  • Thunderbolt 3: 40 Gb/s (or 5000 MB/s)
  • Gigabit Ethernet : 1.0 Gb/s
  • USB 3.1 gen 1 : 5.0 Gb/s (or 625 MB/s)

Power Supply

  • External UL-listed universal auto-switching power supply

AC Input

  • 100-240V, 50-60Hz

DC Output

  • +12V, 10A

Acoustics

  • Varies depending on drive mechanism installed

Environment

  • Ambient Temperature
    • Operating: 41°F to 95°F (5°C to 35°C)
    • Non-Operating: −4°F to 140°F (−20°C to 60°C)
  • Humidity
    • Operating: 8% to 90% non-condensing
    • Non-Operating: 5% to 95% non-condensing
  • Altitude
    • Operating: -304.8 m to 3,048.0 m (-1,000 ft to 10,000 ft)
    • Non-Operating: -304.8 m to 12,192.0 m (-1,000 ft to 40,000 ft)

Dimensions

  • Height: 5.8" (147 mm)
  • Length: 9.4" (238 mm)
  • Width: 3.3" (85 mm)

Weight

  • 2.9 kg (6.39 lbs)

Notes

  • This product was designed for use with the fan on and passed engineering tests with the fan on.
  • This device has to be connected to the computer via Thunderbolt 3 and it cannot be used as a NAS. The Ethernet port provides the computer with an 1GbE network connection over Thunderbolt 3 but it cannot be used to access the data on the drives over the network.
  • When using 8TB or 10TB HDDs from Seagate and connecting the device to a PC running Windows, please make sure to first install the Windows driver.
  • The DisplayPort does not support DP++. When using a DisplayPort to HDMI adapter, make sure to use an active adapter.
Manufacturer provided specifications for Other World Computing p/n TB3RSDK08T UPC#: 810586032230
