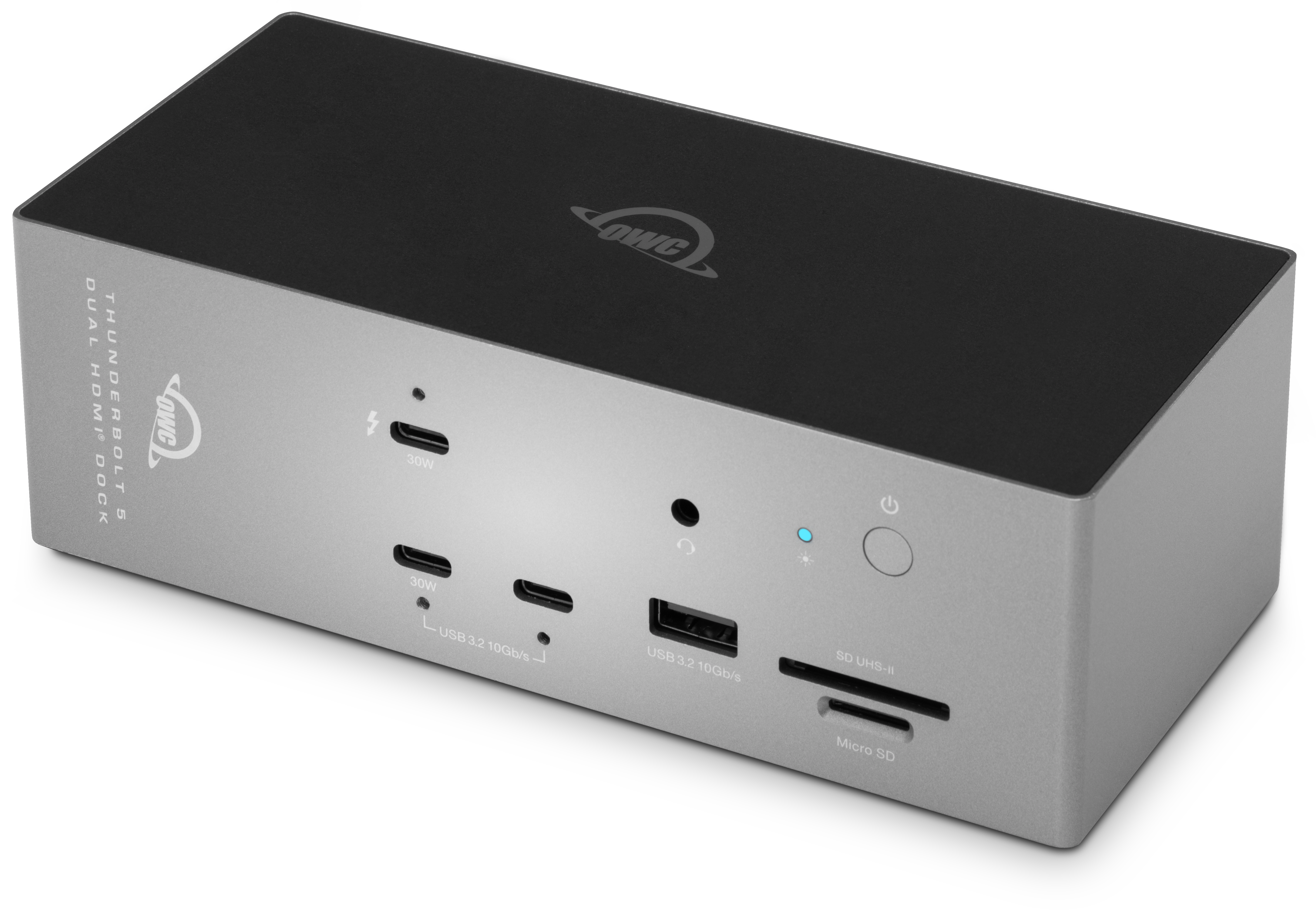

You have HDMI monitors, but your laptop doesn't have HDMI ports. Adapters, dongles, and flicker aren't the answer. OWC Thunderbolt 5 Dock with Dual HDMI is.
Connect your monitors directly without adapter or DisplayPort conversion hassles through two native HDMI 2.1 ports, each running on its own dedicated controller so neither display competes with the other for bandwidth. Plug in one Thunderbolt 5 cable and bring your whole workspace alive at once with wired networking, high-speed storage expansion, memory card offload, and up to 140W of laptop charging.
Just when you think this dock couldn't make things easier for you, it adapts to your desk setup too. Lay it flat next to your keyboard or stand it upright to save space.
Plug any HDMI monitor, TV, or reference display straight into the dock. Run dual 8K displays @ 60Hz on a Thunderbolt 5 host or add a third display through the Thunderbolt 5 port itself at 6K @ 60Hz.
Two HDMI 2.1 ports built right in. Any monitor with HDMI plugs directly into the dock with zero compatibility guesswork.
UHS-II SD and microSD slots let you offload footage without a separate card reader.
A single Thunderbolt 5 connection delivers dual displays, wired networking, storage, card readers, and full laptop charging simultaneously.
Supports dual 4K @ 240Hz or dual 8K @ 60Hz with DSC on Thunderbolt 5 hosts. A third display is possible via Thunderbolt or USB-C. This dock won't become a bottleneck when you upgrade.
Keeps MacBook Pros and high-performance Windows laptops fully charged at peak performance while running the entire connected setup.
Compatible with Thunderbolt 5, Thunderbolt 4, USB4, USB-C, and Thunderbolt 3 (Mac) hosts across Mac and Windows environments.
The downstream Thunderbolt 5 port runs external SSDs and RAID arrays at full rated speed. The dock will never be the slowest thing in the chain.

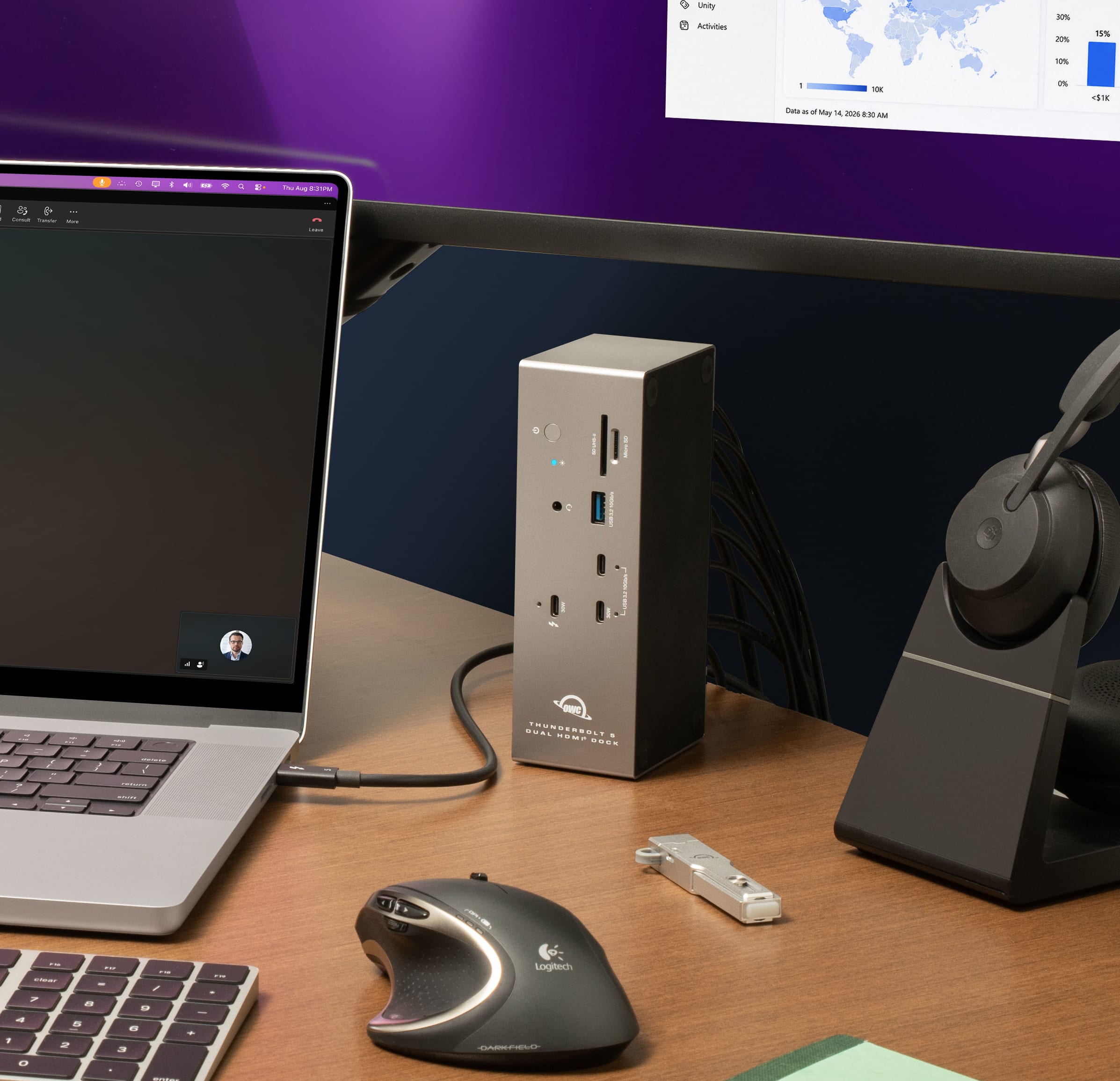

Place it flat or stand it upright. This dock is built to support both horizontal and vertical desk placement.
2.5GbE delivers the throughput needed for NAS workflows, large file transfers, and secure corporate environments.
OWC Dock Ejector unmounts every connected drive in a single click. On macOS, an included driver also enables Apple Super Drive support through the dock.

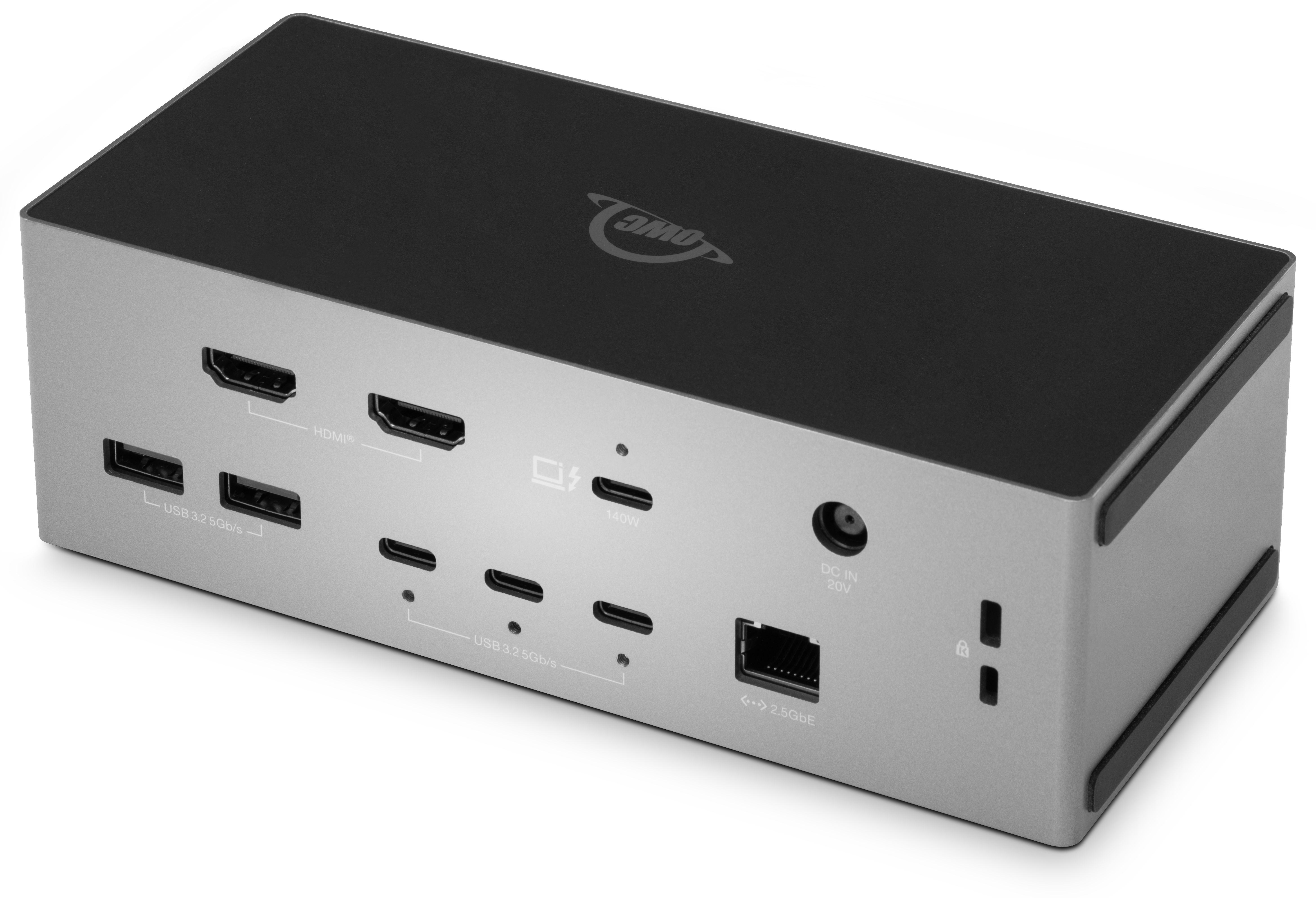

Access a NAS, transfer large files quickly, and log into a secure corporate network without Wi-Fi latency or dropped connections with the 2.5Gb Ethernet port. Round out your desktop setup with eight total USB ports, two USB-C and one USB-A up front, plus three USB-C and two USB-A in back, so your drives, keyboard, mouse, and accessories stay connected without hunting for an open port.
Connect the latest NVMe SSDs, RAID arrays, or Thunderbolt storage enclosures to the second Thunderbolt 5 port and move massive libraries, project files, or backups at full rated speed without shared-bandwidth bottlenecks. Need a third display instead? Drive it from the same port, up to 6K @ 60Hz or 4K @ 144Hz alongside your two HDMI monitors.
Keep the most demanding MacBook Pro or Windows laptop fully charged and ready to hit the field with up to 140W of charging even while running dual displays, storage, and networking simultaneously. Fast charge a phone or tablet alongside it with up to 30W from the front USB-C port.
Pull footage directly from camera cards through the UHS-II SD and microSD slots. When you use OWC Atlas SD cards, you can keep them shoot ready with free Innergize software. Check remaining health and lifespan, restore write performance that's degraded from heavy use, and push firmware updates to stay compatible with new camera releases.
With dual HDMI ports, you no longer need to use a high-speed Thunderbolt 5 port to add a second display. And if you want three displays, you can use the Thunderbolt 5 port! Find out your displays support by host:
|
Number of Displays |
HDMI 1 (Rear) |
HDMI 2 (Rear) |
Thunderbolt Port (Front) |
Max Resolution & Refresh Rate |
|---|---|---|---|---|
|
1 Display Use either HDMI 1 or HDMI 2 port |
|
|
Available |
Up to 8K @ 60Hz or 4K @ 240Hz |
|
2 Displays Use both HDMI 1 and HDMI 2 ports |
|
|
Available |
Up to dual 8K @ 60Hz or dual 4K @ 240Hz |
|
3 Displays Use HDMI 1, HDMI 2, and Thunderbolt ports |
|
|
|
Up to triple 6K @ 60Hz or triple 4K @ 144Hz |
Actual display support depends upon host system specifications, GPU, operating system, display configuration, and DSC support.
|
Number of Displays |
HDMI 1 (Rear) |
HDMI 2 (Rear) |
Thunderbolt Port (Front) |
Max Resolution & Refresh Rate |
|---|---|---|---|---|
|
1 Display Use either HDMI 1 or HDMI 2 port |
|
|
Available |
Up to 8K @ 60Hz or 4K @ 120Hz |
|
2 Displays Use both HDMI ports or either HDMI and Thunderbolt |
|
|
Available |
Up to dual 4K @ 60Hz |
3 displays are not supported on this host. Actual display support depends upon host system specifications, GPU, operating system, display configuration, and DSC support.
|
Number of Displays |
HDMI 1 (Rear) |
HDMI 2 (Rear) |
Thunderbolt Port (Front) |
Max Resolution & Refresh Rate |
|---|---|---|---|---|
|
1 Display Use either HDMI 1 or HDMI 2 port |
|
|
Available |
Up to 5K @ 60Hz |
|
2 Displays Use both HDMI ports or either HDMI and Thunderbolt |
|
|
Available |
Up to dual 4K @ 60Hz on supported hosts |
3 displays are not supported on this host. Actual display support depends upon host system specifications, GPU, operating system, display configuration, and DSC support.
|
Number of Displays |
HDMI 1 (Rear) |
HDMI 2 (Rear) |
Thunderbolt Port (Front) |
Max Resolution & Refresh Rate |
|---|---|---|---|---|
|
1 Display Use either HDMI 1 or HDMI 2 port |
|
|
Available |
Up to 8K @ 60Hz or 4K @ 120Hz on supported hosts |
|
2 Displays Use both HDMI ports or either HDMI and Thunderbolt |
|
|
Available |
Up to dual 4K @ 60Hz on supported hosts |
3 displays are not supported on this host. Actual display support depends upon host system specifications, GPU, operating system, display configuration, and DSC support.
|
Number of Displays |
HDMI 1 (Rear) |
HDMI 2 (Rear) |
Thunderbolt Port (Front) |
Max Resolution & Refresh Rate |
|---|---|---|---|---|
|
1 Display Use either HDMI 1 or HDMI 2 port |
|
|
Available |
Up to 4K @ 60Hz |
|
2 Displays Use both HDMI 1 and HDMI 2 ports |
|
|
Available |
Up to dual 4K @ 60Hz with MST on supported hosts |
3 displays are not supported on this host. Dual extended displays require host and OS support for MST. macOS does not support MST for extended displays. Actual display support depends upon host system specifications, GPU, operating system, display configuration, and DSC support.
All our Thunderbolt connectivity solutions undergo rigorous development testing processes, including intensive mandatory Thunderbolt™ certification. This hyper-focused attention to detail ensures that every OWC Thunderbolt 5 Dock with Dual HDMI will reliably deliver the functionality you expect from your Thunderbolt and USB-C devices.
OWC Dock Ejector unmounts every drive connected to OWC Thunderbolt 5 Dock with Dual HDMI in a single click. All data written, all drives safely disconnected, ready to unplug.
OWC's free Dock Ejector software also includes a special driver that enables your OWC Thunderbolt 5 Dock with Dual HDMI to play and burn CDs and DVDs with the Apple SuperDrive. Just connect the SuperDrive to an open USB-A port on the OWC Thunderbolt 5 Dock for bus power to watch a DVD movie, listen to music CDs, create a backup disk, and install software.
OWC Thunderbolt 5 Dock with Dual HDMI comes with a certified 1.0M OWC Thunderbolt 5 (USB-C) Cable. But if your workflow demands a different length to make the connection, OWC Thunderbolt 5 (USB-C) Cables are the perfect choice.
Active workspaces expose gear to unexpected bumps and shoves. OWC ClingOn custom cable stabilizers (available separately) screw into the OWC Thunderbolt 5 Dock with Dual HDMI to reduce – if not completely eliminate – cable strain on Thunderbolt and USB-C connections so you can work with ultimate confidence even in the highest foot traffic environments.
Since 1988, our mission has focused on maximizing the usefulness and longevity of your technology investment. Our business operations share that same sustainability commitment. As the first 100% on-site wind powered technology manufacturer/distributor in the U.S., we now generate excess power. 97% of solid waste is recycled. These and other actions have resulted in our headquarters being Energy Star® and LEED® Platinum certified. Learn more about our passion for the planet we share at macsales.com/green
Yes, with a Thunderbolt 5 host you can run dual 8K displays @ 60Hz, using either both HDMI ports or one HDMI port plus the second Thunderbolt 5 port.
You can! A Thunderbolt 5 host drives all three display outputs: HDMI 1, HDMI 2, and the Thunderbolt 5 port together at 4K @ 144Hz.
Absolutely. You can use this dock with Thunderbolt 5, Thunderbolt 4, Thunderbolt 3 (Mac only), USB4, and USB-C hosts, with display output dependent on what each host supports.
The Thunderbolt 5 host port delivers up to 140W to your laptop even while everything else connected to the dock is running.
Yes, the front USB-C port delivers up to 30W of fast charging for a phone, tablet, or other mobile device.
They will. The downstream Thunderbolt 5 port supports up to 80Gb/s bidirectional bandwidth so external storage runs at its full rated speed.
Yep, both horizontal and vertical desk placement are supported, so you can lay the dock flat or stand it upright depending on desktop setup.
It does and you can use free OWC Innergize software to monitor health, restore performance, and push firmware updates to your OWC Atlas SD cards through the dock's built-in SD card reader.
Windows 11 is supported, along with Chrome OS and iPadOS, in addition to macOS 26 Tahoe, macOS 15 Sequoia, and macOS 14 Sonoma on Apple silicon.
