OWC Thunderbolt 5 Hub
New | Open Box
Mfr P/N: TB5HUB5P OWC SKU: OWCTB5HUB5POB
-
-
-
-
-
-
-
-
-
-
video
Add More Thunderbolt™ 5 Ports for More Connectivity
- Easy Port Expansion: Adds more universally compatible Thunderbolt 5 (USB-C) ports to a Mac, PC, or iPad Pro to greatly expand device connectivity possibilities and productivity
- Incomparable Speed: Work and play faster with up to 80Gb/s of bi-directional data speed and up to 120Gb/s for higher display bandwidth needs
- Works with Millions: No worries or confusion…connect to Thunderbolt 5, Thunderbolt 4, Thunderbolt 3, USB4, or USB-C machine or device with 100% compatibility1
- Best Today, Best Tomorrow: Delivers the best performance of devices with today's computers and best speed possible in the future with a Thunderbolt 5 Mac or PC
- Multiple Daisy Chains: Create three separate daisy chains of devices – even bus powered – and remove devices from one chain without affecting the other chains
- Powerful: Safely delivers up to 140 watts to charge the most power-hungry notebook computer
- Stunning Visuals: Connect to the latest and future Thunderbolt, USB-C, and DisplayPort displays for incredible 4K, 5K, 6K, and up to three 8K displays2
- Thunderbolt Certified: Built-in OWC reliability and dependability for Mac and Windows
- Silently Cool: Fanless aluminum enclosure for quiet and cool operation
- 2 Year OWC Limited Warranty
In Stock: Ships Same Day!
Overview
Possibilities and Performance Perfection

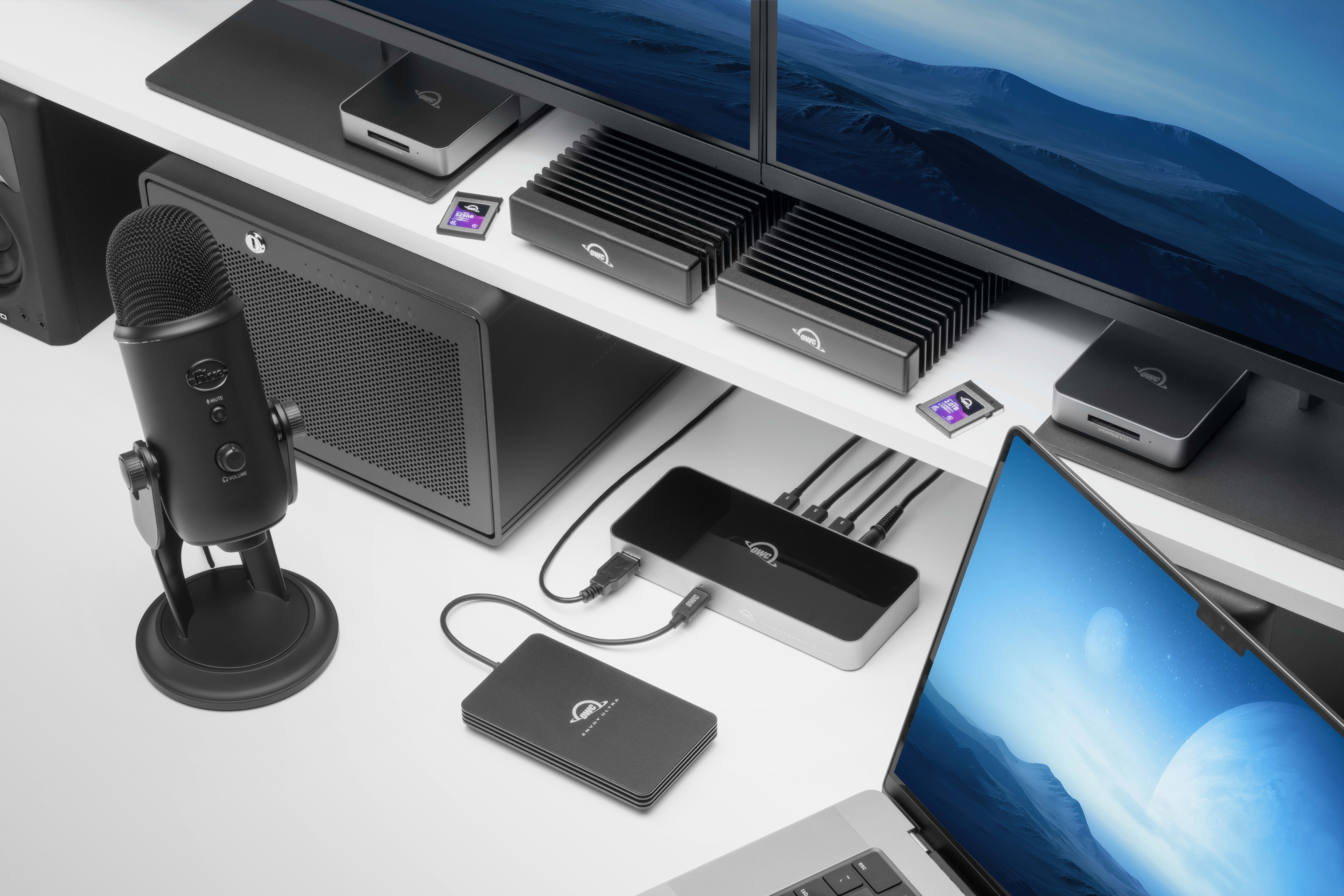

Explore a new world filled with workflow possibilities and state-of-the-art performance with the OWC Thunderbolt 5 Hub. It’s the perfect compact connectivity solution to solve the big problem of not having enough Thunderbolt 5 ports. Now you can turn a single cable connection from your machine into three Thunderbolt 5 ports and one USB-A port. With up to 80Gb/s of bi-directional data speed – up to 2x faster than Thunderbolt 4 and USB4 – and up to 120Gb/s for higher display bandwidth needs, you will redefine your productivity.
Easy Port Expansion
Adds more universally compatible Thunderbolt 5 (USB-C) ports to a Mac, PC, or iPad Pro to greatly expand device connectivity possibilities and productivity
Powerful
Safely delivers up to 140 watts to charge the most power-hungry notebook computer
Incomparable Speed
Work and play faster with up to 80Gb/s of bi-directional data speed and up to 120Gb/s for higher display bandwidth needs
Stunning Visuals
Connect to the latest and future Thunderbolt, USB-C, and DisplayPort displays for incredible 4K, 5K, 6K, and up to three 8K displays2
Works with Millions
No worries or confusion…connect to Thunderbolt 5, Thunderbolt 4, Thunderbolt 3, USB4, or USB-C machine or device with 100% compatibility1
Thunderbolt Certified
Built-in OWC reliability and dependability for Mac and Windows
Best Today, Best Tomorrow
Delivers the best performance of devices with today's computers and best speed possible in the future with a Thunderbolt 5 Mac or PC
Silently Cool
Fanless aluminum enclosure for quiet and cool operation
Multiple Daisy Chains
Create three separate daisy chains of devices – even bus powered – and remove devices from one chain without affecting the other chains
Guaranteed Quality
2 Year OWC Limited Warranty
Bi-Directional Bandwidth Bliss
Give yourself the precious gift of more free time with the OWC Thunderbolt 5 Hub. Its bi-directional design means you can send AND receive data simultaneously at maximum speeds. Connect two OWC Atlas USB4 CFexpress 4.0 Type B Memory Card Readers providing 3300MB/s ingest each while backing up the cards to two high-speed SSDs like the OWC ThunderBlade or OWC Envoy Ultra while exceeding 6000MB/s. With that blissful real-world bit bandwidth, you’ll finish projects faster!

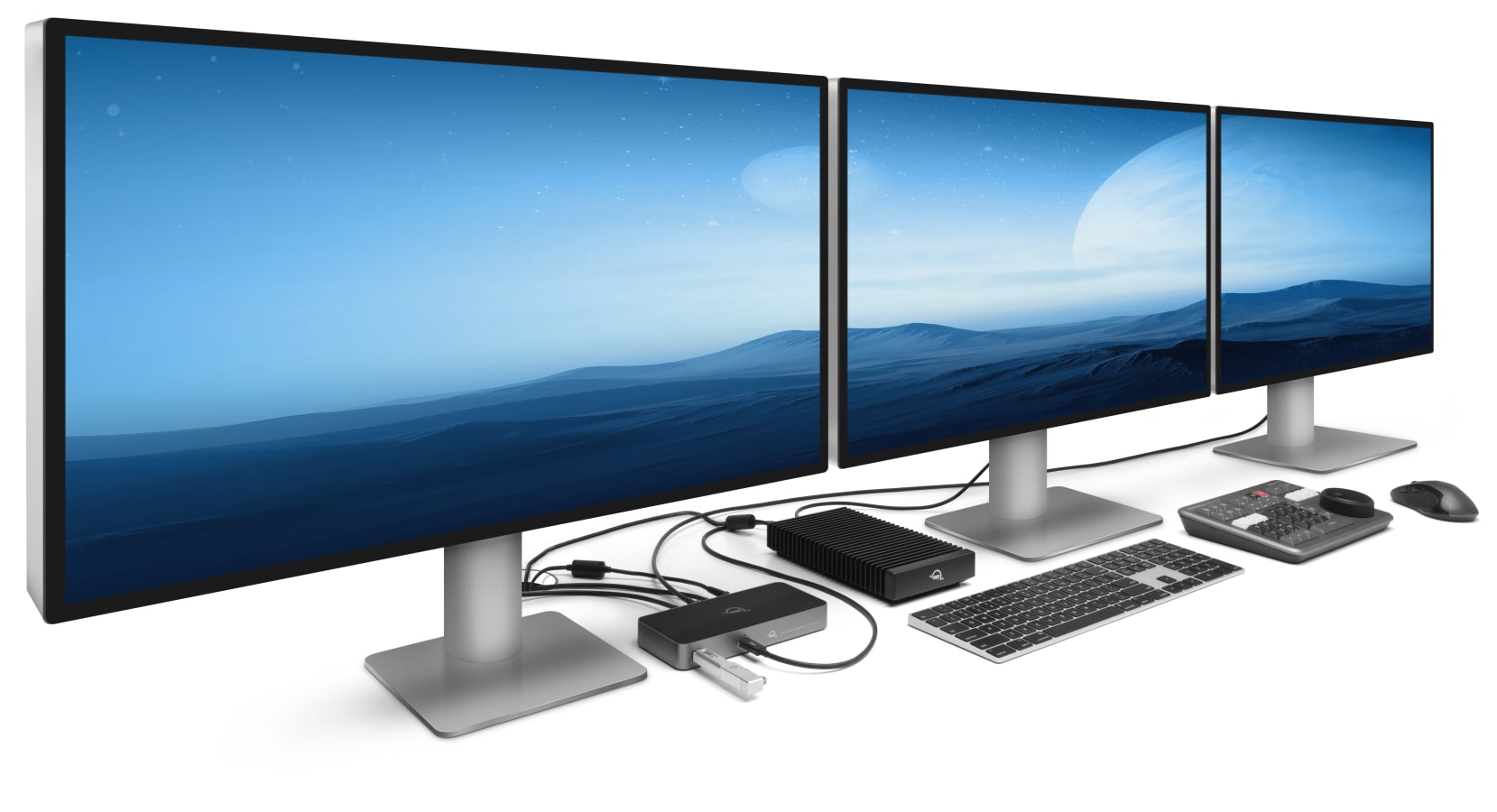

More Pixels and Power Than Ever Before
The OWC Thunderbolt 5 Hub offers more than the fastest bandwidth available to transfer your data and video files. Drive up to three 8K displays2 with the OWC Thunderbolt 5 Hub’s Bandwidth Boost technology for up to 120Gb/s – up to 3x faster than Thunderbolt 4 – of intelligent bandwidth allocation for video intensive usage. Send 140W of power delivery to a demanding notebook to keep it powered and ready for mobile use. Quite simply, the OWC Thunderbolt 5 Hub gives you more to do more than ever before.
Thunderbolt 5
Thunderbolt 4
Thunderbolt 3
USB4
USB-C
Maximum Speed Yesterday, Today and Tomorrow
You can use the OWC Thunderbolt 5 Hub with more than incredibly fast Thunderbolt 5 machines and devices. With 100% USB-C compatibility, you can use it with millions of Macs, iPads, PCs, Chromebooks, Android tablets, and Surface devices and enjoy their maximum possible performance. Whether you have a new Thunderbolt 5 computer or device or want your connectivity to be future-proofed, the OWC Thunderbolt 5 Hub is the universally compatible high-performance connection solution For All Computerkind.™
Built for Speed: Thunderbolt 5 Hub

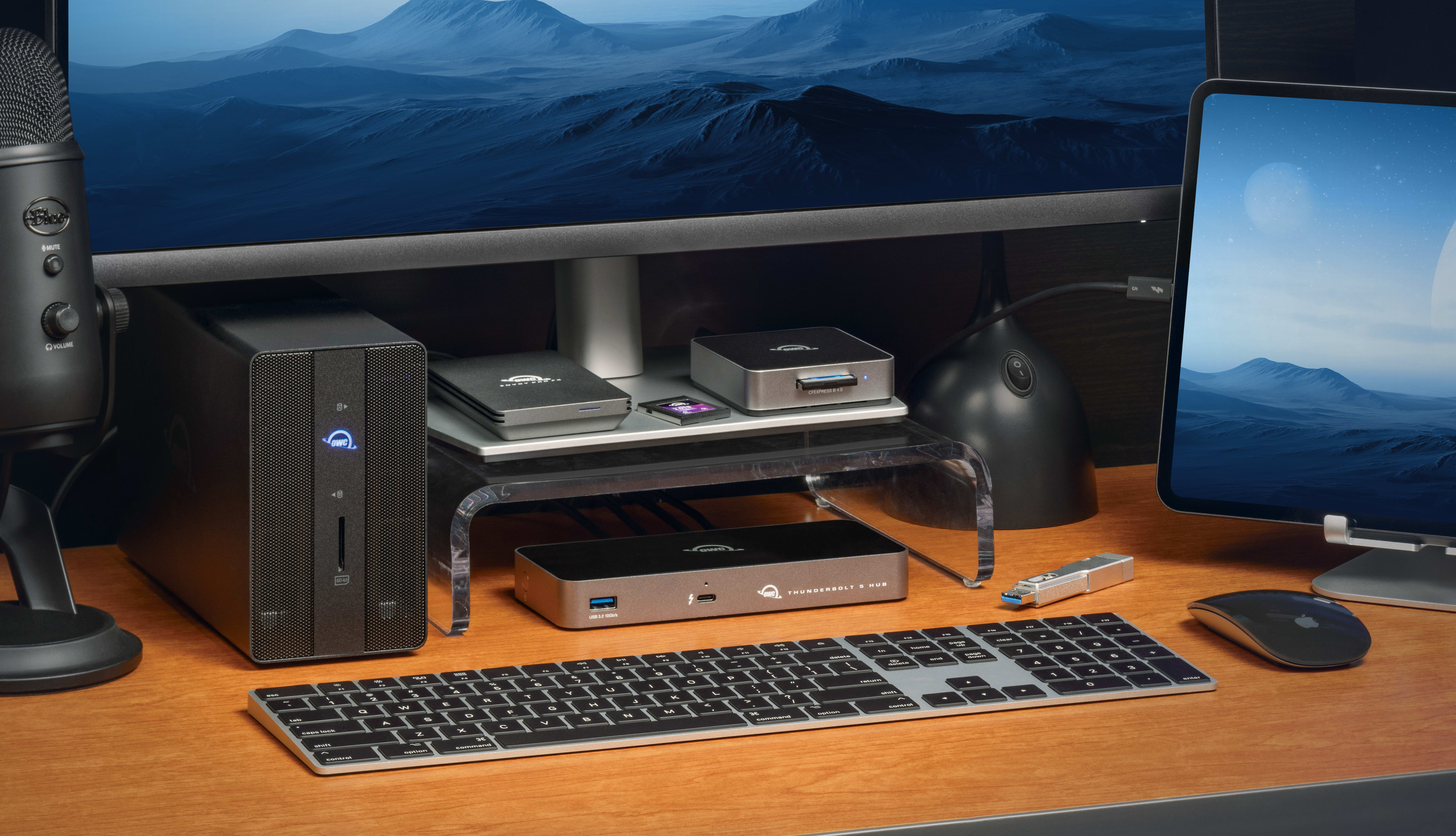

Create A Tablet ProStation
While iPad Pros and other tablet computers offer awesome content creation potential, they’re handcuffed by limited internal storage, display size, and often a single Thunderbolt (USB-C) port. Instead of lugging around a bulky notebook or worse, being chained to a non-portable desktop workstation, capture what you need on the fly with a tablet. Back at a desk, transform that tablet into a “prostation” with an external display, keyboard, mouse, and external drive all connected to the OWC Thunderbolt 5 Hub.
Thunderbolt 5 is REAL
Intel’s Next-Gen Thunderbolt Technology
With 2x the total bandwidth of previous generations, Thunderbolt 5 unlocks the full potential of Apple’s latest M4 Pro and M4 Max chips. Thunderbolt 5 enables drives and hubs that don’t just move data faster, they move more data faster, sending your workflow into a bottleneck-free bliss.

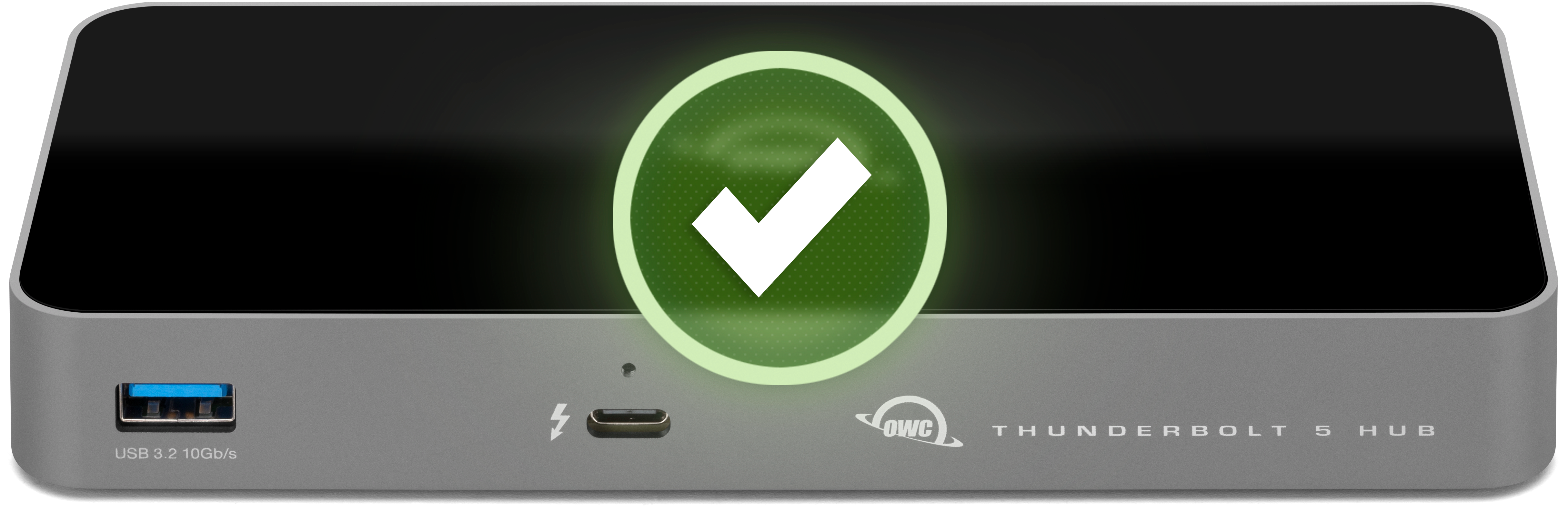

Certified Satisfaction
All our Thunderbolt connectivity solutions undergo rigorous development testing processes, including intensive mandatory Thunderbolt™ certification. This hyper-focused attention to detail ensures the OWC Thunderbolt 5 Hub will reliably deliver the functionality you expect from your Thunderbolt and USB-C devices.
Discover the OWC Difference
Since 1988, our mission has focused on maximizing the usefulness and longevity of your technology investment. Our business operations share that same sustainability commitment. As the first 100% on-site wind powered technology manufacturer/distributor in the U.S., we now generate excess power. 97% of solid waste is recycled. These and other actions have resulted in our headquarters being Energy Star® and LEED® Platinum certified. Learn more about our passion for the planet we share at macsales.com/green
Disconnect in One Click
Safely disconnect multiple drives in a single click. OWC Dock Ejector was designed by OWC hardware and software engineers to ensure all data is written before disconnection, saving time and protecting against data loss. It makes losing your hard-earned work a thing of the past.
OWC Thunderbolt Cable Included
OWC Thunderbolt 5 Hub comes with a certified 0.8M OWC Thunderbolt 5 (USB-C) Cable. But if your workflow demands a different length to make the connection, OWC Thunderbolt 5 (USB-C) Cables are the perfect choice.
Stabilize Thunderbolt and USB-C Cables
Active workspaces expose gear to bumps, shoves, or even the random tail wag from a pet. OWC ClingOn custom cable stabilizers (sold separately) screw into the OWC Dock or OWC Drive housing to reduce – if not completely eliminate – cable strain on Thunderbolt and USB-C connections so you can work with confidence even in the highest traffic environments.
- Compatible with Thunderbolt 3 Mac only. Not compatible with Thunderbolt 3 PCs.
- Thunderbolt 5 is capable of supporting up to three displays from a single computer host port dependent on the host computer's capability. This includes up to three 6K or lower resolution displays, three 8K displays @ 60Hz, or two 8K displays @ 120Hz. For example, presently Apple has only enabled support for a maximum of up to two native displays per connected Apple Mac Thunderbolt host port. Software driver based technologies, such as DisplayLink (as supported by the OWC USB-C Dual HDMI 4K Display Adapter), may enable additional display support.
Includes
Back to top
- (1) OWC Thunderbolt 5 Hub
- (1) 0.8M (31") Thunderbolt 5 Cable
- (1) External Power Supply and Power Cable
- (1) OWC Thunderbolt 5 Hub Getting Started QR Insert
- (1) Support Manual for OWC Thunderbolt 5 Hub (digital)
- (1) OWC Dock Ejector for Mac and Windows (digital download)
- (1) User Guide for OWC Dock Ejector (digital)
- 2 Year OWC Limited Warranty
Specs
Back to top

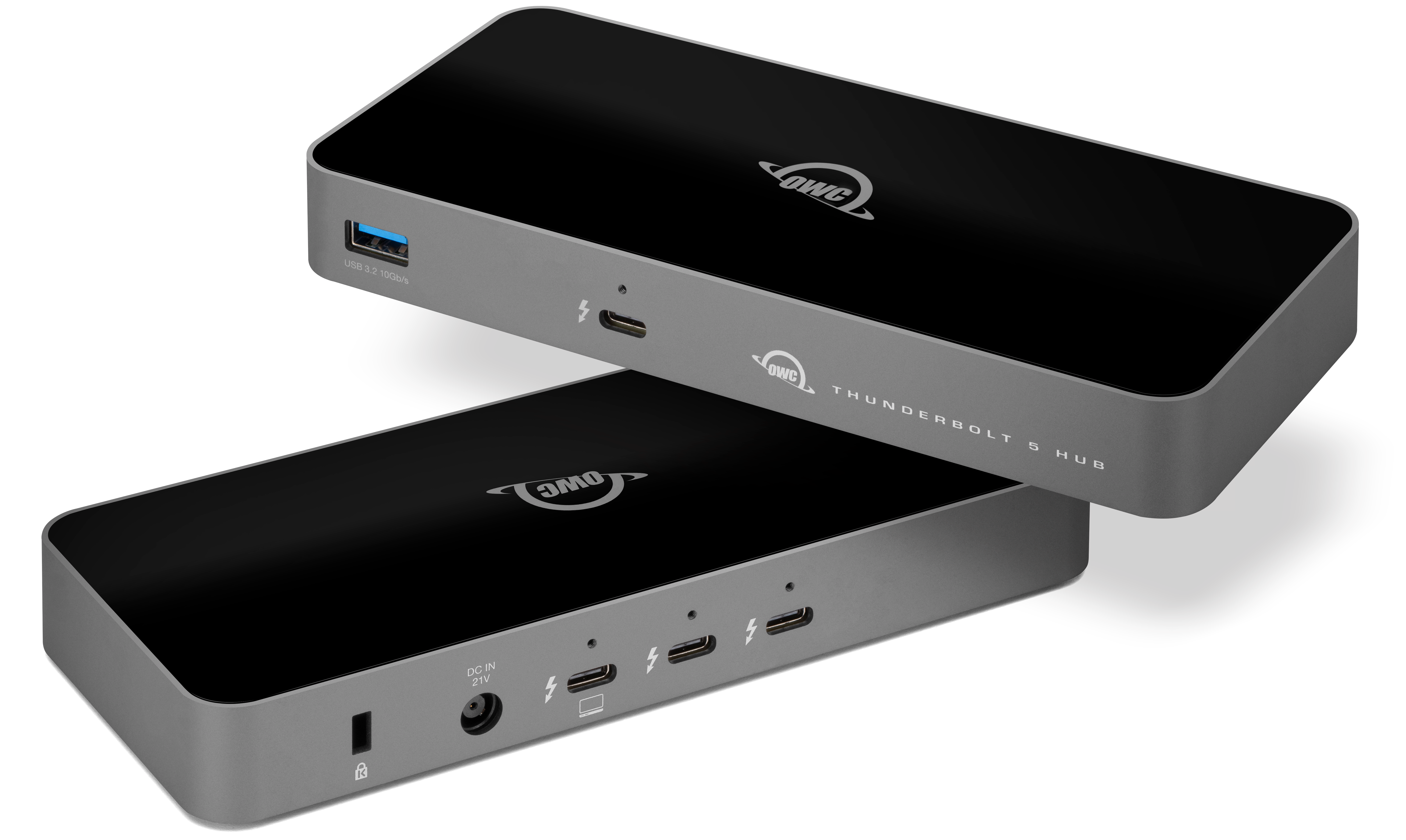

Device Ports
- (1) Host Port - Thunderbolt 5 (USB-C) up to 80Gb/s bi-directional data speed and up to 120Gb/s display bandwidth
- (3) Thunderbolt 5 (USB-C) Ports
- (1) USB 3.2 Gen 2 Type-A Port up to 10Gb/s (1250MB/s) - USB 2.0/3.0 backwards compatible
Power Delivery
- Thunderbolt 5 host port provides up to 140W of power to the host computer.
- Thunderbolt 5 device ports (for external drives and other devices) provide 15W of power.
- USB port provides up to 1.5A of power for bus-powered drives and device charging.
Display Support
- Up to three 8K @ 60Hz,
- or two 8K @ 120Hz,
- or three 4K @ 144Hz
Display Support by Port
- Thunderbolt 5 up to two 8K @ 120Hz or three 4K @ 144Hz via a native Thunderbolt 5 display or other displays that support USB-C connections and DisplayPort 2.1
Host Interface Requirements
- Thunderbolt 5
- Thunderbolt 4
- Thunderbolt 3 (Mac Only)
- USB4
- USB-C
Mac OS Compatibility
- macOS 15.x Sequoia
- macOS 14.x Sonoma
PC OS Compatibility
- Windows 10 64-bit Edition
- Windows 11
- Windows Server 2022
Mobile OS Compatibility
- iPadOS 18
- iPadOS 17
- Android 15.x
- Android 14.x
- Android 13.x
- Android 12.x
Other OS Compatibility
- Chrome OS
Driver Required
- Mac: OWC Dock Ejector for Mac enables Apple Super Drive, Apple USB Keyboard, and charging device support.
Other Requirements
- Thunderbolt 5 Mac systems require macOS 15.3.x or later
- Thunderbolt 5 PC systems require Windows 11 or later
- Thunderbolt 3 support is Mac only and requires macOS 15.x or later.
- Chromebook or Surface systems require the latest version of Chrome OS.
- iPad systems require the latest version of iPad OS
- Linux systems require the latest version of Ubuntu.
External Power Adapter
- Yes
Power Supply
- External UL-listed universal auto-switching power supply
AC Input
- 100-240V, 50/60Hz, 2.5A
DC Output
- +21V, 8.58A
Wattage
- 180W
Security Slot
- Yes
Power Button
- Yes
Housing Color
- Chassis: Space Gray
- Covers: Black
Housing Material
- Chassis: Aluminum
- Covers: Polycarbonate
Dimensions
- Height: 2.2 cm (0.9 in)
- Length: 7.8 cm (3.1 in)
- Width: 17.8 cm (7.0 in)
Weight
- 382.0 g (0.84 lbs)
Certifications
- CE
- FCC
- ICES
- RCM
- VCCI
- UKCA
RoHS Compliant
- Yes
Reach Certification
- Yes
Ambient Temperature
- Operating: 32°F to 86°F (0°C to 30°C)
- Non-Operating: -4°F to 140°F (-20°C to 60°C)
Altitude
- Operating: -304.8 m to 3,048.0 m (-1,000 ft to 10,000 ft)
- Non-Operating: -304.8 m to 12,192.0 m (-1,000 ft to 40,000 ft)
Humidity
- Operating: 8% to 90% non-condensing
- Non-Operating: 5% to 95% non-condensing
- Dual display support, including available resolution and refresh rates, is dependent on host hardware and drivers.
- Apple silicon M1/M2/M3 Pro, M1/M2/M3 Max, and M1/M2 Ultra Mac models, Apple Intel-based Mac models, and Thunderbolt 4 PCs can support up to two displays at up to 4K @ 60Hz via Thunderbolt.
- Apple silicon M1/M2/M3 Mac models can support one external display up to 4K @ 60Hz via Thunderbolt. - The following Apple silicon M1/M2/M3 Mac models support a single display over a Thunderbolt port:
- MacBook Pro (14-inch, M3, 2023)
- MacBook Pro (13-inch, M1, 2020) - MacBookPro17,1
- MacBook Pro (13-inch, M2, 2022) - Mac14,7
- MacBook Air (M1, 2020) - MacBookAir10,1
- MacBook Air (M2, 2022) - Mac14,2
- Mac mini (M1, 2020) - Macmini9,1 - The following Mac models provide only partial support for DisplayPort 1.4, including limiting resolution to 5K or 6K at 60Hz. Please review Apple's display specifications for your specific Mac to determine the maximum supported resolution and color depth:
- MacBook Pro (15-inch, 2018) - MacBookPro15,1
- MacBook Pro (13-inch, 2018, Four Thunderbolt 3 ports) - MacBookPro15,2
- MacBook Pro (13-inch, 2019, Four Thunderbolt 3 ports) - MacBookPro15,2
- MacBook Pro (15-inch, 2019) - MacBookPro15,1 and MacBookPro15,3
- MacBook Pro (13-inch, 2019, Two Thunderbolt 3 ports) - MacBookPro15,4
- MacBook Pro (16-inch, 2019) - MacBookPro16,1 and MacBookPro16,4
- MacBook Pro (13-inch, 2020, Four Thunderbolt 3 ports) - MacBookPro16,2
- MacBook Pro (13-inch, 2020, Two Thunderbolt 3 ports) - MacBookPro16,3
- MacBook Air (Retina, 13-inch, 2018) - MacBookAir8,1
- MacBook Air (Retina, 13-inch, 2019) - MacBookAir8,2
- MacBook Air (Retina, 13-inch, 2020) - MacBookAir9,1
- iMac (Retina 5K, 27-inch, 2019) - iMac19,1
- iMac (Retina 4K, 21.5-inch, 2019) - iMac19,2
- iMac (Retina 5K, 27-inch, 2020) - iMac20,1 and iMac20,2
- Mac mini (2018) - Macmini8,1
- Mac Pro (2019) - MacPro7,1
- Mac Pro (Rack, 2019) - MacPro7,1 - Mac Users: A software driver is required to enable Apple Super Drive, Apple USB Keyboard, and for charging iPad generations 1, 2 and 3. This driver is included in the OWC Dock Ejector software download package. If your SuperDrive doesn't respond when connected to an external display or USB hub, connect your SuperDrive to a USB port directly on your Mac.
- UltraStudio Recorder 3G is not compatible with OWC Thunderbolt Hub. System Report will show the device being connected; however, the driver won’t load which doesn’t allow for use of the device. UltraStudio Recorder 3G works properly when directly connected to a system.
- Apples's Pro 6K XDR Display is not supported. Apple recommends connecting the included Thunderbolt 3 Pro Cable (2 m) to the Thunderbolt 3 port on your display and a Thunderbolt 3 port directly on your Mac, not daisy-chained through another Thunderbolt 3 device or hub.
