SIIG

DP 2-Port FireWire 400 PCIe Host Adapter

Mac / PC / PCIe / FireWire 400
Two External FW400 Ports
Plug & Play

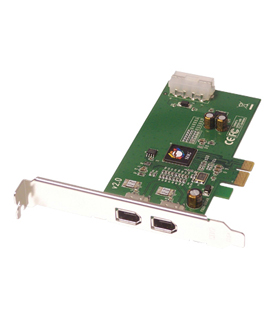

SIIG's DP FireWire 2-Port PCIe is an excellent adapter card for you to connect multiple high-speed FireWire devices to your system. It is designed to easily add two external FireWire 400 (1394a) ports to your PCI Express-enabled PC or Mac® desktop computer. It supports data transfer rates of up to 400 Mb/s, and allows you to hot-swap devices (connect and disconnect) without first turning your system off.
Add more FireWire ports to PowerMac G5, Mac Pro, or PC.
This 2-port dual profile FireWire adapter card comes with an on-board power connector to provide extra reliable power source from the system and a spare low profile bracket for low profile system chassis installations. The DP FireWire 2-Port PCIe works with any available PCI Express slots with different lane width and is a reliable cost-effective solution to connect your high-speed FireWire devices such as hard disk drive enclosures, scanners, CD-RW/DVD-ROMs, digital cameras, and DV camcorders to your PC or Mac computer.

The DP FireWire 2-Port PCIe is powered by Texas Instruments chip and is fully compliant with industry standards, including PCI Express base specification 1.0a and IEEE 1394-1995, 1394a-2000 and OHCI 1.1. It is also FCC Class B (DoC) & CE regulatory approved and RoHS-compliant.

The DP FireWire 2-Port PCIe is fully compatible with a wide variety of Windows and Mac operating systems and is backed by SIIG's limited lifetime warranty.

Product Specifications:

SIIG Part Number

  • NN-E20012-S2

Chipset

  • Texas Instruments TI XIO2200AZGW

Features

  • PCI Express 1-lane (x1) FireWire adapter works with PCI Express slots with different lane width
  • Installs in any available PCI Express slot and supports data rates up to 400Mbps
  • Standard height and low profile brackets are included to work in different chassis form factorsWorks with FireWire (1394a) devices including
  • DV camcorder, CD-RW/DVD-ROM, portable hard disk, digital camera, and other audio/video devices
  • Works with Sony, Panasonic, Cannon, Sharp, JVC and many other DV camcorders for digital video creating/editing

Ports

  • Two FireWire 400

Connections

  • Internal - none
  • External - 2 Ports

Bus Specifications

  • PCI-Express x1

Form Factor

  • Standard PCI

External Connectivity

  • x2 1394a connectors

Internal Connectivity

  • none

Data Transfer Rates

  • FireWire 400 – 400Mbps (or 50MB/sec)

Operating System Support

  • Windows® 8 (32-/64-bit)
  • Windows® 7 (32-/64-bit)
  • Windows® Vista (32-/64-bit)
  • Windows® XP (32-/64-bit)
  • Windows® Server 2003 & 2008 (32-/64-bit)
  • Windows® Server 2008 R2
  • Windows® 2000
  • Mac OS® X v10.4 or later

Certifications

  • FCC, CE, RoHS

Temperature

  • Operating: 32 to 140°F (0 to 60°C)
  • Storage: -4 to 140°F (-20 to 60°C)

Humiditiy

  • Operating: 20% to 80% RH
  • Storage: 10% to 90% RH

Dimensions

  • 4.75" x 2.67" (12.06 x 6.80 cm)

Weight

  • 0.35 lbs (158 g)

Warranty

Manufacturer provided specifications for SIIG p/n NN-E20012-S2 UPC#: 662774027043

Gallery

This product is compatible with... Learn how to find your Mac's model ID
Mac Pro
Mac Pro 12-Core (Mid 2012)
(June, 2010)
Model ID: MacPro5,1
2.4GHz, 2.66GHz, 3.06GHz
Mac Pro
Mac Pro 6-Core (Mid 2012)
(June, 2012)
Model ID: MacPro5,1
3.33GHz
Mac Pro
Mac Pro 4-Core (Mid 2012)
(June, 2012)
Model ID: MacPro5,1
3.2GHz
Mac Pro
Mac Pro 12-Core (Mid 2010)
(July, 2010)
Model ID: MacPro5,1
2.66GHz, 2.93GHz
Mac Pro
Mac Pro 8-Core (Mid 2010)
(July, 2010)
Model ID: MacPro5,1
2.4GHz
Mac Pro
Mac Pro 6-Core (Mid 2010)
(July, 2010)
Model ID: MacPro5,1
3.33GHz
Mac Pro
Mac Pro 4-Core (Mid 2010)
(July, 2010)
Model ID: MacPro5,1
2.8GHz, 3.2GHz
Mac Pro
Mac Pro 8-Core (Early 2009)
(March, 2009)
Model ID: MacPro4,1
2.26GHz, 2.66GHz, 2.93GHz
Mac Pro
Mac Pro 4-Core (Early 2009)
(March, 2009)
Model ID: MacPro4,1
2.66GHz, 2.93GHz, 3.33GHz
Mac Pro
Mac Pro 8-Core (Early 2008)
(January, 2008)
Model ID: MacPro3,1
2.8GHz, 3.0GHz, 3.2GHz
Mac Pro
Mac Pro 4-Core (Early 2008)
(January, 2008)
Model ID: MacPro3,1
2.8GHz
Mac Pro
Mac Pro 8-core (Early 2007)
(April, 2007)
Model ID: MacPro2,1
3.0GHz
Mac Pro
Mac Pro 4-core (Mid 2006)
(August, 2006)
Model ID: MacPro1,1
2.0GHz, 2.66GHz, 3.0GHz
PowerMac G5
Power Mac G5 (Late 2005)
(October, 2005)
Model ID: PowerMac11,2
2.0GHz, 2.3GHz, dual 2.5GHz
PC Desktop
PC Desktops
Compatible with Intel / AMD Process based PCs capable with the specifications listed above. Memory complies with JEDEC Specifications, document JESD79-3B.

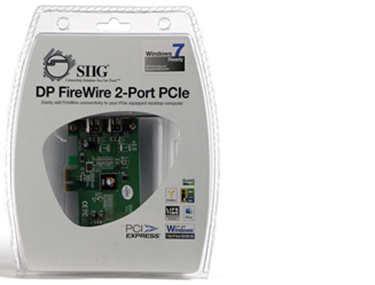

Includes

Included Items
  • DP FireWire 2-Port PCIe
  • Spare enhanced low profile bracket
  • "Y" split power cable
  • User's manual
SIIG DP 2-Port FireWire 400 PCIe Host Adapter Mfr P/N: NN-E20012-S2 OWC SKU: SIINNE20012S2 For the Power Macintosh G5 "Dual Core" and "Quad Core", Mac Pro Systems. SIIG Lifetime Limited Warranty Ships: Same Day Only $79.99OWC Price $47.99
Add to CartSIIG NN-E20012-S2 In Stock, Click to Buy Now
