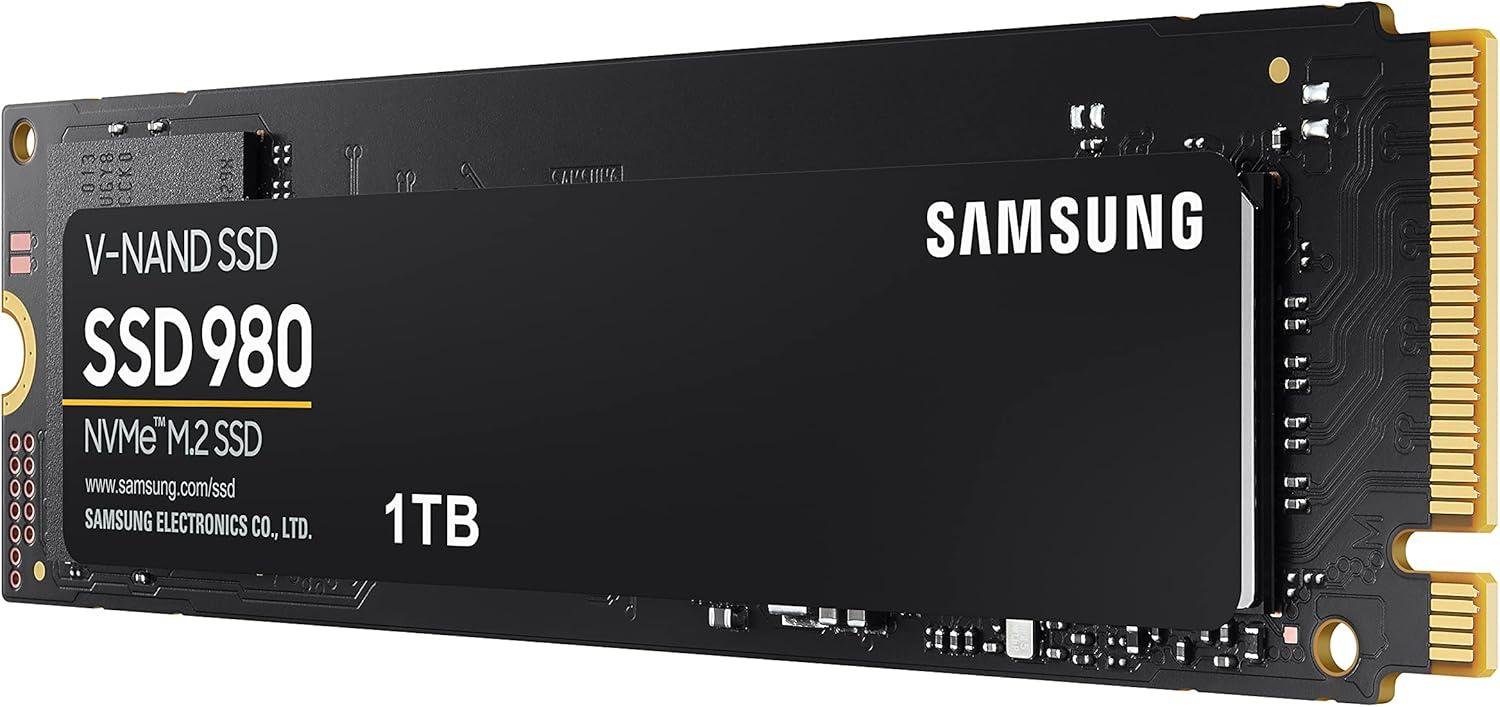

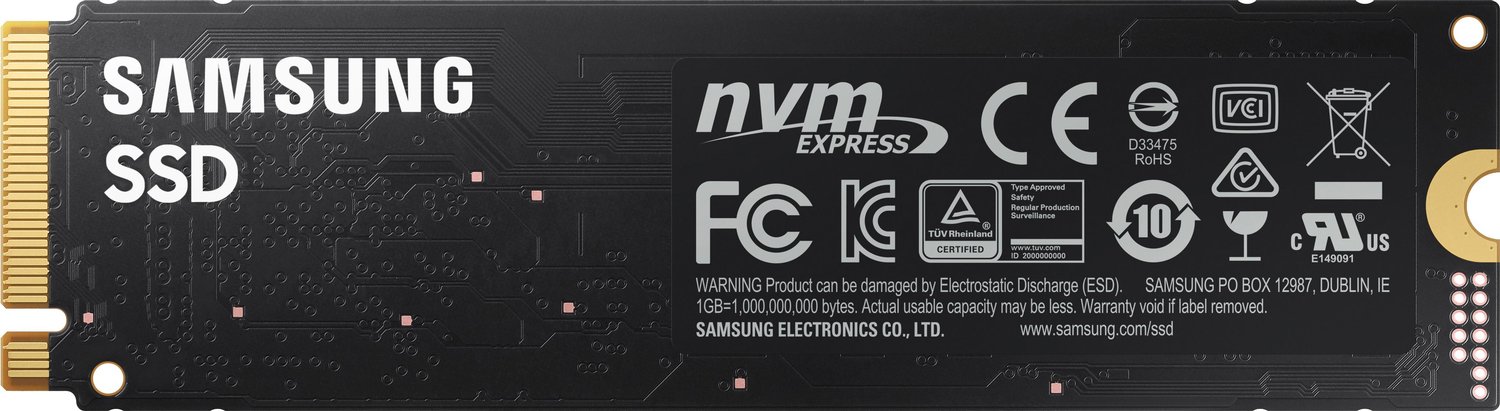

1.0TB Samsung 980

We're sorry, but this item is no longer for sale. However, there may be more Internal Hard Drives & SSDs items available.

This was a used product listing.For more great deals on Open Box, Refurbished and Used items, keep an eye on our Garage Sale page. Or join our email list and be the first to know when new items become available!

1.0TB Samsung 980

PCIe 3.0 NVMe M.2 2280 Solid-State Drive for PCs, Drive Enclosures, and Expansion Cards that support NVMe M.2 2280 SSDs

Used | OWC Tested

Mfr P/N: MZ-V8V1T0 OWC SKU: SAMMZV8V1T0U

1.0TB Samsung 980
1.0TB Samsung 980
1.0TB Samsung 980
1.0TB Samsung 980
  • 1.0TB Samsung 980
  • 1.0TB Samsung 980
  • 1.0TB Samsung 980
  • 1.0TB Samsung 980

Highlights

  • Read speeds up to 3500MB/s
  • Write speeds up to 3000MB/s
  • PCIe 3.0 interface
  • M.2 2280 form factor
  • Samsung 1+ Year Limited Warranty
Reviews (5)
availability

Upgrade to impressive NVMe speed

Harness your PC's potential with the 980. Whether you need a boost for gaming or a seamless workflow for heavy graphics, the 980 is a smart choice for outstanding SSD performance — and it's all backed by an NVMe interface and PCIe 3.0 technology.

Packed with speed

Satisfy your need for speed with PCIe 3.0, using HMB technology1 and NVMe interface for high efficiency. The 980 delivers value, without sacrificing sequential read/write speeds up to 3,500/3,000 MB/s2, over 6.2x the speed of SATA SSDs3.

Keep moving with Full Power Mode

Keep your SSD running at its peak with Full Power Mode, which drives continuous and consistent high performance. Enable through Samsung Magician software to keep your SSD in active mode with no latency, so you can instantly jump back into large intensive work files or graphics-heavy games.

Built for the long run

Keep your files safe with an SSD that's in it for the long haul. With up to 600 TBW (for the 1TB model), the 980's optimized endurance comes with trusted reliability thanks to Samsung's in-house solutions, from the advanced controller to V-NAND and the latest firmware.

Reliable thermal control

High-performance SSDs usually require high-performance thermal control. To ensure stable performance, the 980 uses nickel coating to help manage the controller's heat level and a heat spreader label to deliver effective thermal control of the NAND chip.

Smart thermal solution

Embedded with Samsung's cutting-edge thermal control algorithm, 980 manages heat on its own to deliver durable and reliable performance, while minimizing performance fluctuations during extended usage.
  1. HMB (Host Memory Buffer) technology enables the SSD to use the DRAM of the host system for read/write caching and buffering.
  2. Performance may vary depending on the SSD’s firmware version, system and hardware configuration. Performance measurements are based on IOmeter 1.1.0. The write performances were measured with Intelligent TurboWrite technology activated. The sequential write performances after Intelligent TurboWrite region are: up to 250 MB/s(250GB), 500 MB/s(500GB) and 900 MB/s(1TB). Test system configuration: Intel(R) Core(TM) i7-6700K CPU @ 4.00GHz,DDR4 2133MHz 8GBx2 OS-Windows 10 Pro 64bit Asrock Z-170 Extreme7+.
  3. Results are based on a comparison with Samsung SATA SSDs.

IncludesIncludes

Back to top
  • (1) Samsung 980 NVMe M.2 Solid-State Drive
  • Samsung 1+ Year Limited Warranty

SpecsSpecs

Back to top

    Capacity

    • 1.0 TB

    Formatted Capacity

    • 931GiB

    Host Memory Buffer (HMB)

    • Supported (OS dependent)

    NAND Flash Components

    • Samsung Multi-Level Cell (MLC) NAND Flash

    S.M.A.R.T. Attributes

    • Standard attributes supported

    Form Factor

    • M.2 - 2280

    Drive Interface

    • PCIe 3.0 x4, NVMe 1.4

    Sequential Read (Max)

    • Up to 3500 MB/s

    Sequential Write (Max)

    • Up to 3000 MB/s

    MTBF (Mean Time Between Failures)

    • 1,500,000 hours

    Garbage Collection

    • Auto Garbage Collection Algorithm

    TRIM Support

    • Yes

    Security

    • Chip Based Data Encryption: 256-bit AES-compliant
    • TCG Opal

    Idle Mode (Max)

    • Up to 4.5 Watts

    DEVSLP / DevSleep

    • Up to 1mW

    Dimensions

    • Height: 0.2 cm (0.1 in)
    • Length: 8.0 cm (3.2 in)
    • Width: 2.2 cm (0.9 in)

    RoHS Compliant

    • Yes

    Ambient Temperature

    • Operating: 32°F to 158°F (0°C to 70°C)

    Shock

    • Non-Operating: 1500 G max at 0.5 ms
