Sonnet

Allegro

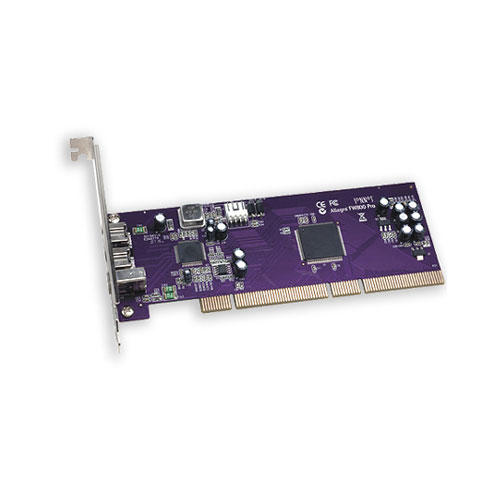

3 Port FireWire 800 PCI Card

Mac / PC / FireWire 800 / FireWire 400 / PCI

Missed Connection? Not Anymore!

Plenty of Ports

Do you work with files stored on external hard drives? You may not be getting the maximum performance from them. Many drive enclosures feature a FireWire 800 (1394b) interface, which provides up to twice the data transfer speeds and bandwidth of FireWire 400 (1394a), both critical attributes when working with multimedia applications. Don't settle for a slower connection and less than maximum performance; get a Sonnet Allegro™ FW800 FireWire 800 adapter card to take advantage of the extra speed FireWire 800 offers!

Convenience on a Card

Allegro FW800's two external FireWire 800 ports guarantee you'll have the right connections for your fastest FireWire peripherals, and the speed and bandwidth required by video and pro audio applications. This card's external FireWire 400 port makes it simple to connect older FireWire peripherals, no adapter necessary. Allegro FW800 is also supports bus-powered peripherals (devices that can work without a separate power supply, including some scanners and small external drives), so some devices can be plugged in and operate without an extra connection to a power supply.

Offering plug and play simplicity, this card installs easily in any PCI or PCI-X slot, features hot-pluggable and hot-swappable device connection support with automatic device configuration, and works with all industry standard FireWire 800 and FireWire 400 peripherals.

Allegro FW800 easily adds 3 FireWire ports-two FireWire 800 and one FireWire 400-- to your Mac or PC. Simply plug the card into an available PCI or PCI-X slot and instantly get access to FireWire speeds!

This Card Adds:

Two External FireWire 800 ports
One External FireWire 400 port

Requires:

Available PCI Slot

See specifications below for system and/or OS compatibility information

Product Specifications:

Sonnet Part Number

FW800A

Hardware Requirements

Mac or PC with available PCI slot

Form Factor

Half-length; full-height

Operating System Support

Mac OS 9.2 (at FireWire 400 speed)
Mac OS X 10.3 to 10.5.2
Windows XP SP2 or later

Data Transfer Rate

FireWire 400: up to 400Mb/s (50MB/s) per port
FireWire 800: up to 800Mb/s (100MB/s) per port

Chipset

Texas Instruments

External Connectivity

2 FireWire 800 9 pin ports
1 FireWire 400 6 pin port

Hot Swappable

Hot Pluggable

Plug and Play

Supported for Mac OS X 10.3 - 10.5
Supported for Windows XP SP2 and later

Standards & Compliances

RoHS
CE
FCC

Dimensions (l x w x h)

5.25" x 4.75" x 0.91" (13.3 x 12.0 x 2.3 cm)

Weight

5.6 oz (0.16 kg)

Operating temperature

20° ∼ 50° C

Storage temperature

0° ∼ 70° C

Operating Humidity

20 ∼ 80% RH, (Non Condensing)

Warranty

Sonnet Technology 1 Year Limited Warranty

Please Note:
- Windows XP and Vista require installation of driver for FireWire 800 support.
- Deep Sleep not supported under Mac OS X Versions 10.4 or 10.3.

Gallery

This product is compatible with... Learn how to find your Mac's model ID

Power Mac G5 (Early 2005)

(April, 2005)

Model ID: PowerMac7,2

dual 2.0GHz

Detailed specs

Install Videos

Power Mac G5 (Late 2004)

(October, 2004)

Model ID: PowerMac9,1

1.8GHz

Detailed specs

Install Videos

Power Mac G5 (June 2004)

(June, 2004)

Model ID: PowerMac7,3

dual 1.8GHz, dual 2.0GHz, dual 2.5GHz

Detailed specs

Install Videos

Power Mac G5

(June, 2003)

Model ID: PowerMac7,2

1.6GHz, 1.8GHz, dual 1.8GHz, dual 2.0GHz

Detailed specs

Install Videos

Power Mac G4 (Mirrored Drive Doors 2003)

(June, 2003)

Model ID: PowerMac3,6

1.25GHz, dual 1.25GHz

Detailed specs

Install Videos

Power Mac G4 (FW 800)

(January, 2003)

Model ID: PowerMac3,6

1.0GHz, dual 1.25GHz, dual 1.42GHz

Detailed specs

Install Videos

Power Mac G4 (QuickSilver 2002 ED)

(August, 2002)

Model ID: PowerMac3,5

867MHz

Install Videos

Power Mac G4 (QuickSilver 2002)

(January, 2002)

Model ID: PowerMac3,5

733MHz, 800MHz, 933MHz, dual 1.0GHz

Detailed specs

Install Videos

Power Mac G4 (QuickSilver)

(July, 2001)

Model ID: PowerMac3,5

733MHz, 867MHz, dual 800MHz

Detailed specs

Install Videos

Power Mac G4 (Digital Audio)

(January, 2001)

Model ID: PowerMac3,4

466MHz, 533MHz, dual 533MHz, 667MHz, 733MHz

Detailed specs

Power Mac G4 (Gigabit Ethernet)

(July, 2000)

Model ID: PowerMac3,3

400GHz, dual 450MHz, dual 500GHz

Detailed specs

Install Videos

Power Mac G4 (AGP Graphics)

(September, 1999)

Model ID: PowerMac3,1

350MHz, 400MHz, 450GHz, 500GHz

Detailed specs

Install Videos

Power Mac G4 (PCI Graphics)

(August, 1999)

Model ID: PowerMac1,2

350MHz, 400MHz

Detailed specs

Install Videos

Power Macintosh G3 (Blue & White)

(January, 1999)

Model ID: PowerMac1,1

300MHz, 350MHz, 400MHz, 450MHz

Detailed specs

Install Videos

PC Desktops

Compatible with Intel / AMD Process based PCs capable with the specifications listed above.

Sonnet Allegro3 Port FireWire 800 PCI Card Mfr P/N: FW800A OWC SKU: STIFW800A 3 Port FireWire Host Bus Adapter for Power Macintosh G3 B&W through Power Macintosh G5 Sonnet Technologies 1 Year Limited Warranty Ships: Same Day
