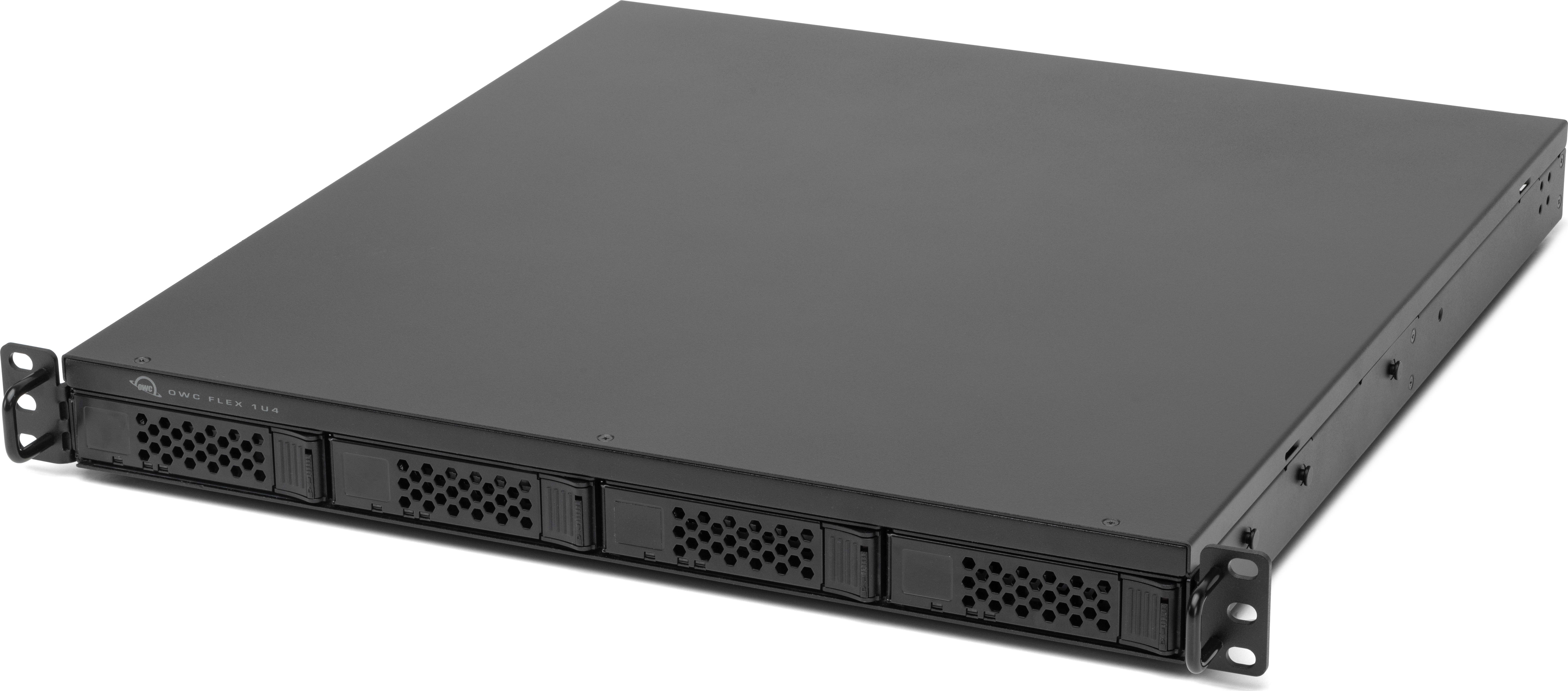

OWC ThunderBay Flex 1U4

Support Manual

Jump to a Topic
Jump to a Topic
1 of 4 matches

Introduction

1.1 System Requirements

Operating System

  • Mac: macOS 10.15 or later

Hardware

  • Works with any Mac with a Thunderbolt (USB-C) port

Supported Drives

  • 4 Drive Bays: 3.5”/ 2.5” SATA, SAS, and NVMe U.2 SSDs/adapters

Supported PCIe Devices

  • Dimensions: Supports one card up to half-length, single-width, full-height
  • Mechanical: x16 PCIe slot
  • Electrical: x4 PCIe 3.0
  • NOTE: Cards with drivers must be Thunderbolt-aware & GPUs are not supported

1.2 Package Contents

  • (1) OWC ThunderBay Flex 1U4
  • (1) Thunderbolt 4 cable
  • (1) Power supply cable

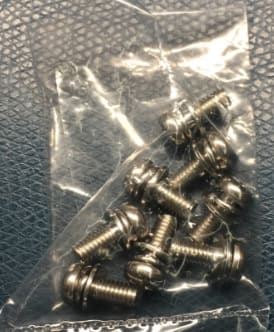

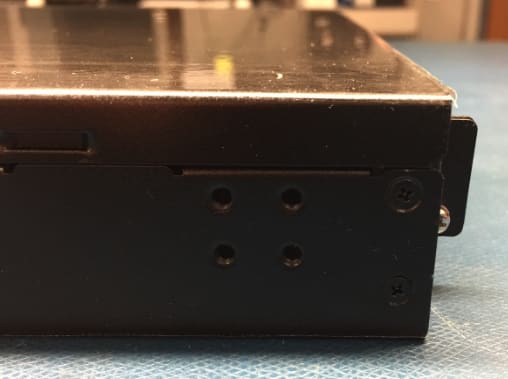

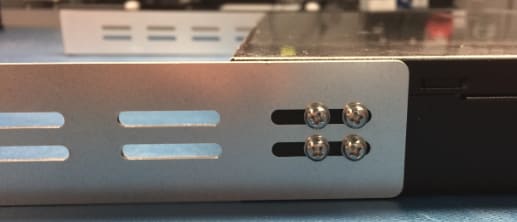

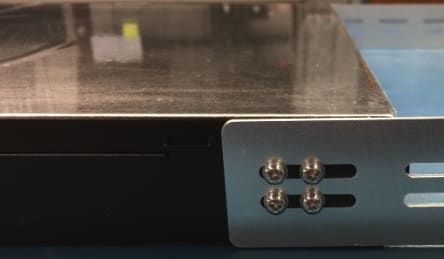

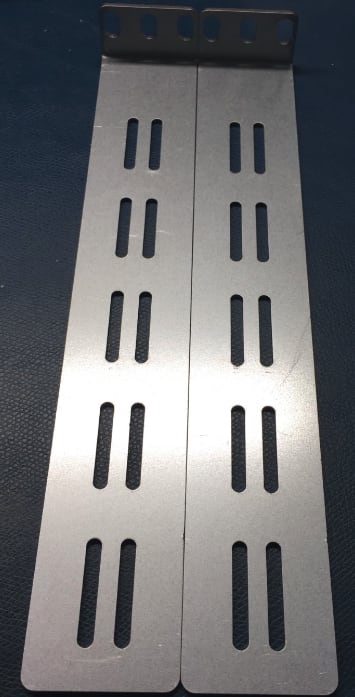

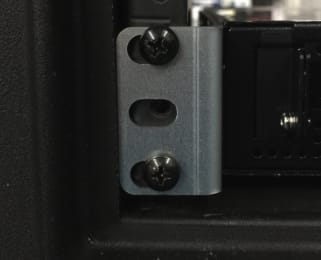

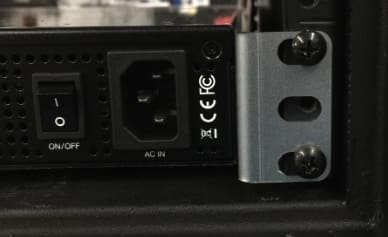

  • 19" Deep Rack Mounting Hardware
  • (1) 3-Year or 1-Year SoftRAID XT Upgrade and Support Plan (based on purchase)
  • (1) SoftRAID License (see bottom of the OWC ThunderBay Flex 1U4)

1.3 About This Manual

The images and descriptions may vary slightly between this manual and the unit shipped. Functions and features may change depending on the firmware version. The latest product details and warranty information can be found on the product web page. OWC’s Limited Warranty is not transferable and subject to limitations.

General Use Precautions

  • To avoid damage, do not expose the device to temperatures outside the following ranges:
    • Environmental (Operating)
      • Temperature (ºF): 50º — 95º
      • Temperature (ºC): 10º — 35º
    • Environmental (Non-Operating)
      • Temperature (ºF): -40º — 149º
      • Temperature (ºC): -40º — 65º
  • Always unplug the device from the electrical outlet if there is a risk of lightning or if it will be unused for an extended period of time. Otherwise, there is an increased risk of electrical shock, short-circuiting or fire.
  • Do not use the device near other electrical appliances such as televisions, radios or speakers. Doing so may cause interference which will adversely affect the operation of the other products.
  • Do not place the device near sources of magnetic interference, such as computer displays, televisions or speakers. Magnetic interference can affect the operation and stability of hard drives.
  • Do not place objects on top of the device.
  • Protect your device from excessive exposure to dust during use or storage. Dust can build up inside the device, increasing the risk of damage or malfunction.
  • Do not block any ventilation openings on the device. These help to keep the device cool during operation. Blocking the ventilation openings may cause damage to the device and cause an increased risk of short-circuiting or fire.

Safety Precautions

  • Read this user guide carefully and follow the recommended steps for assembly.
  • Use proper anti-static precautions while installing drives into this enclosure. Failure to do so can cause damage to your drive mechanisms and/or the enclosure.
  • Do not attempt to disassemble or modify the device. To avoid any risk of electrical shock, fire, short-circuiting or dangerous emissions, never insert any metallic object into the device. If it appears to be malfunctioning, please contact technical support.
  • Never expose your device to rain, or use it near water or in damp or wet conditions. Never place objects containing liquids on the drive, as they may spill into its openings. Doing so increases the risk of electrical shock, short-circuiting, fire or personal injury.

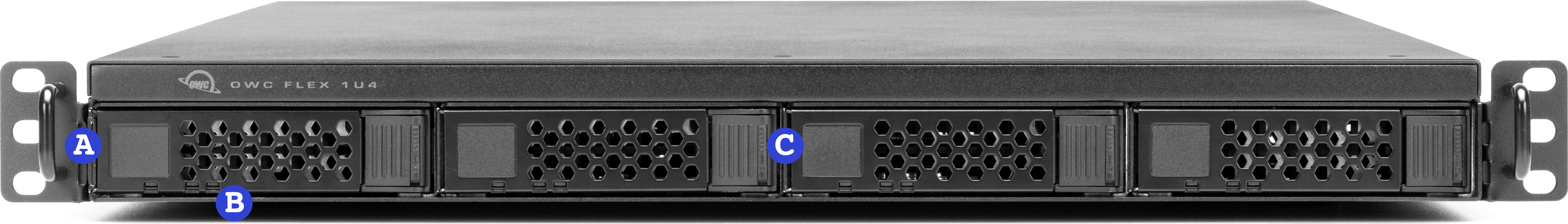

1.4 Front View

A. (2) Rack Handles - Use to pull and remove the Callisto from a rack server cabinet.

B. Drive Status LEDs - Data activity on SATA = Flashing Green / Data activity on U.2 = Flashing Blue

C. (4) Drive Bays

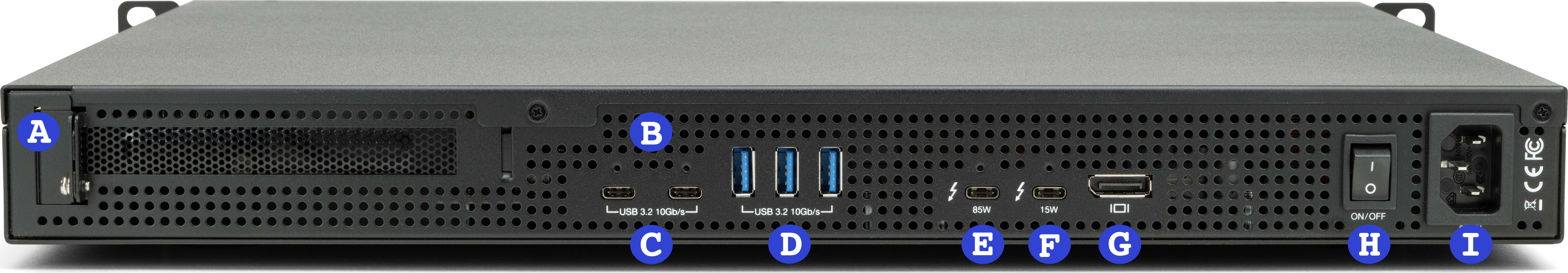

1.5 Rear View

A. (1) PCIe Slot Cover – Becomes replaced by available I/O ports of any installed PCIe card. GPUs are not supported.

B. (2) OWC ClingOn-ready cable stabilizer mount – Affix ClingOn to help prevent accidental cable disconnections (sold separately)

C. (2) USB 3.2 Gen 2 (10Gb/s) Type-C Ports – Supports USB devices with a Type-C connection

D. (3) USB 3.2 Gen 2 (10Gb/s) Type-A Ports – Supports USB devices with a Type-A connection

E.(1) 85W Thunderbolt 4 Port – Connect a compatible host. Connect Thunderbolt devices to the 15W port.

F. (1) 15W Thunderbolt 4 Port – Connect a Thunderbolt device.

G. (1) DisplayPort 1.4 – connect a DisplayPort display here.

H. (1) Power Switch – Engage and disengage power to the device.

I. (1) Power Port – Connect the power cable to power the device

Getting Started

2.1 Device Setup

This section describes the process of setting up the OWC ThunderBay Flex 1U4 if purchased with pre-installed drives.

  1. Plug the power cable into the OWC ThunderBay Flex 1U4 power port located on the back and into a power outlet.
  2. Connect the included Thunderbolt cable the 85W Thunderbolt 4 port located on the back of the OWC ThunderBay Flex 1U4 and into a system.
  3. The OWC ThunderBay Flex 8 is configured as a SoftRAID XT RAID. Downloading and installing the latest version of SoftRAID XT is recommended to experience the best performance.
    NOTE: OWC ThunderBay Flex 1U4 devices purchased with pre-installed drives come bundled with a "3-Year SoftRAID XT Upgrade and Support Plan". More information pertaining to the bundled SoftRAID XT Upgrade and Support Plan can be viewed by visiting: go.owc.com/softraid

Mac SoftRAID XT Setup

2.2 Assembly Steps

Drive Installation

This section describes the process of installing drives into the OWC Thunderbay Flex 1U4

1. Begin by placing the OWC ThunderBay Flex 1U4 on a static free work surface. Careful remove the drive trays from the packaging.

2. The drive trays have locking mechanisms. Press down on the locking mechanism to lock the drive tray. A small amount of red will show indicating the drive tray is locked. Press up to unlock the drive tray. The small amount of red will no longer appear indicating the drive tray is unlocked.
NOTE: Ensure the drive tray locking mechanisms is disengaged.

3. Disengage the drive tray by pushing the tray tab to the right. The drive tray will protrude slightly from the chassis. Carefully remove the drive tray and place on a flat surface.
NOTE: Ensure the drive tray locking mechanisms is disengaged.

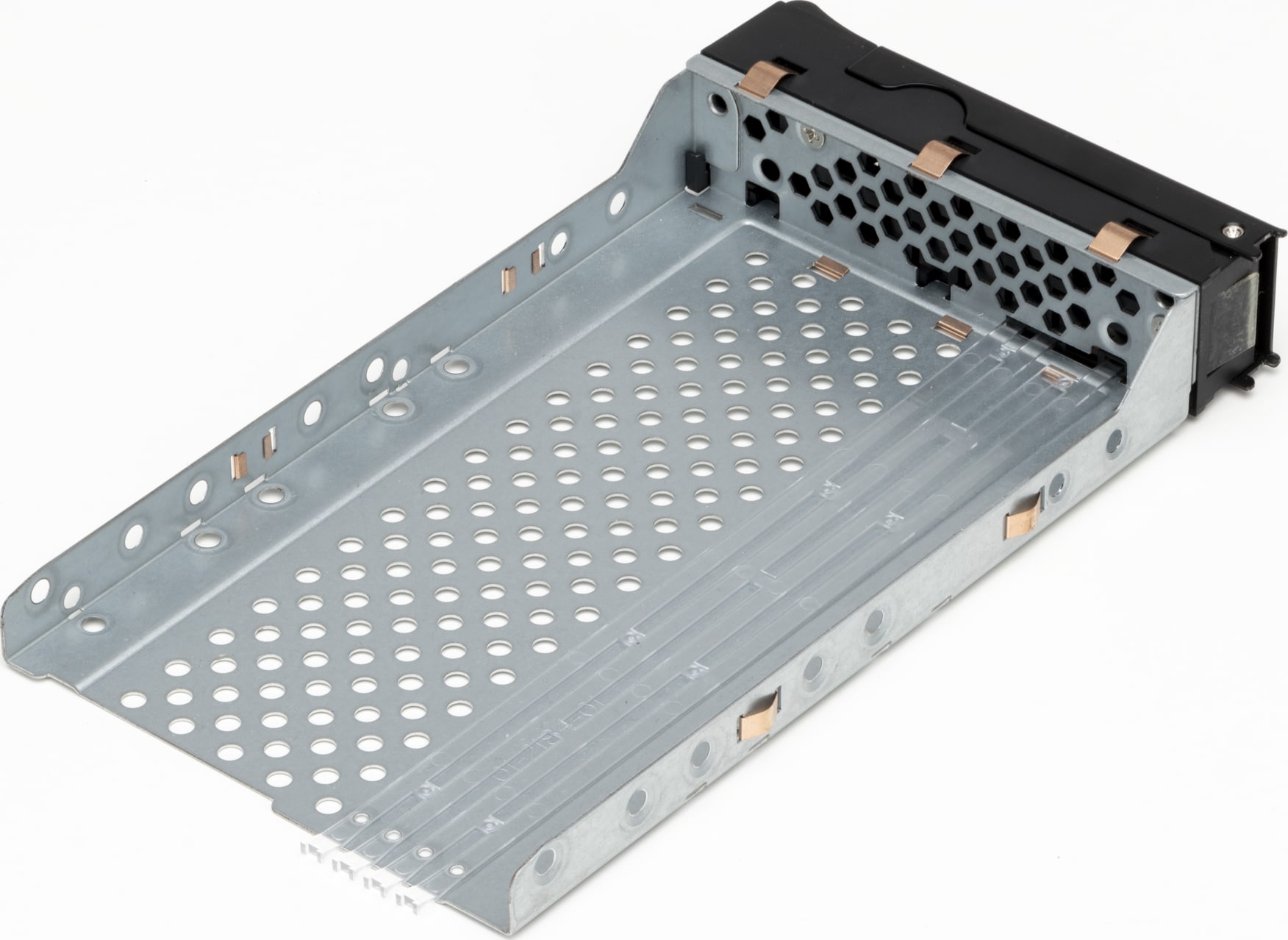

4. Lay the drive tray on a flat surface and place a drive into the drive tray with the label facing upwards. Secure the drive to the drive tray.
NOTE: 2.5-inch drives have screws installed on the bottom of the drive tray. They are also installed with a spacer. The spacer will need to be removed and secured to use with the new drive installation.

3.5-Inch Drive

2.5-Inch Drive

5. Insert the drives, with the drive label facing upwards. Carefully push the drive tray forward into the drive bay. Do not force the drive as a minimal amount is needed. The drive will rest slightly protruded outside the drive bay.
NOTE: The drive trays have locking mechanisms. Ensure the locks are not engaged before installing the drive trays. The lock is disengaged when the locking mechanism is in the up position.

6. Press the drive tray door to finish pushing the drive into the drive bay and completing the connection.

7. The installed drives are ready to be formatted. Move onto Section 2.4 “RAID Configuration Options” for instructions on how to format and configure the RAID Mode of the OWC ThunderBay Flex 1U4

2.3 PCIe Card Assembly Steps (Optional)

This is an optional section that describes the process of install a PCIe card in the OWC ThunderBay Flex 1U4.

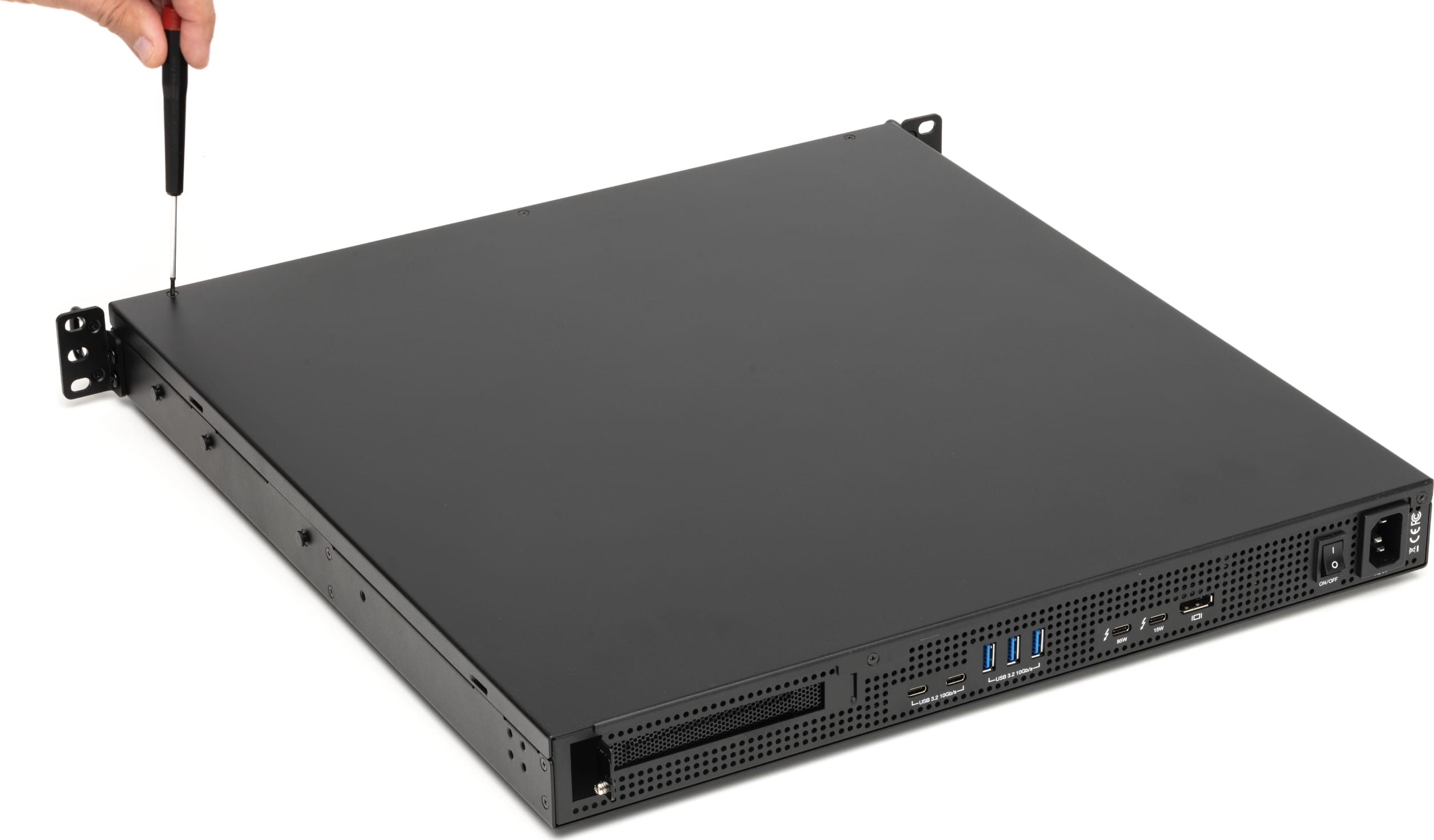

1. Remove the five screws securing the chassis lid. There are three screws to remove from the top and two screws to remove from the back. Once removed, the lid can be slid to the side and taken off the body.

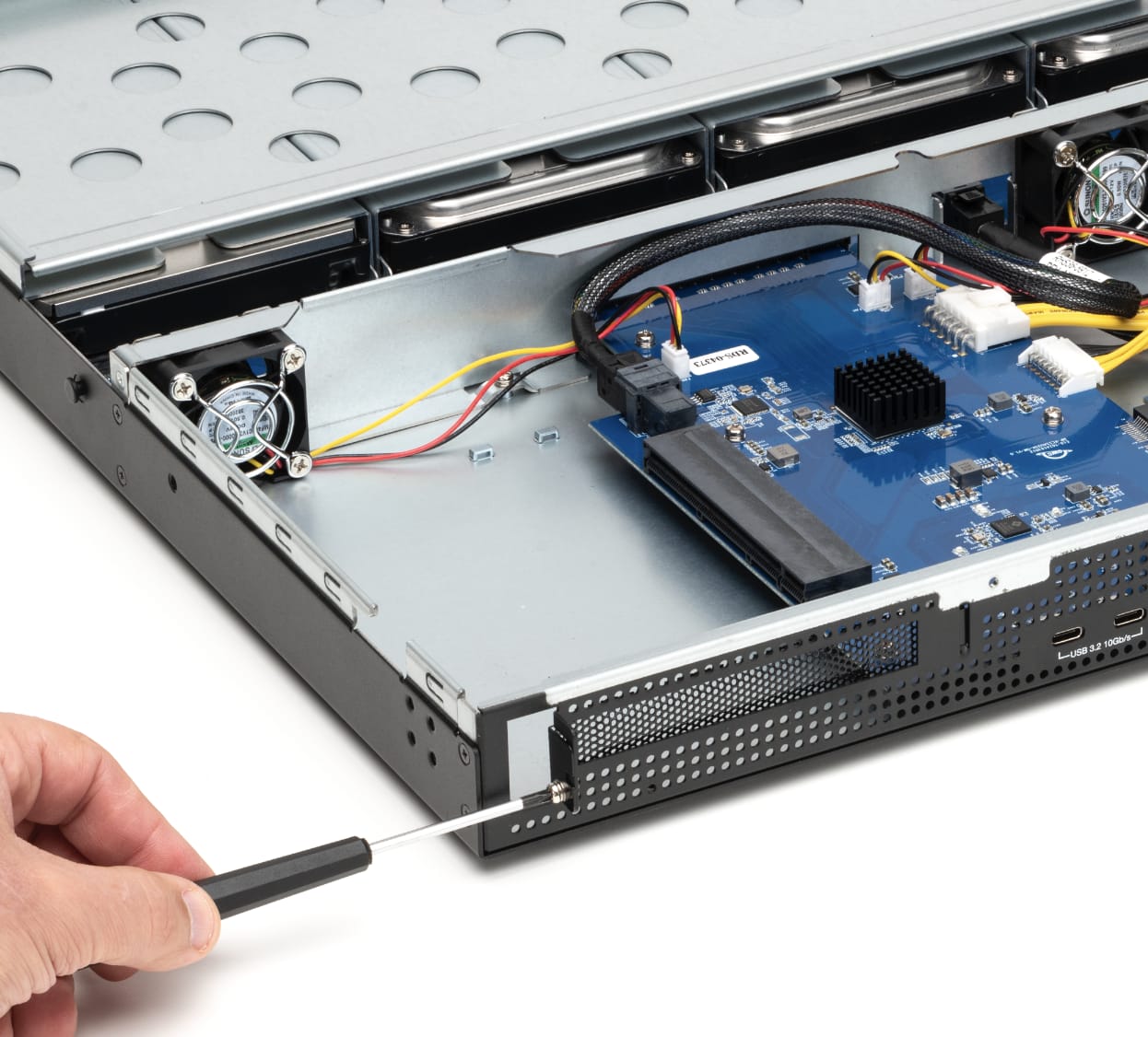

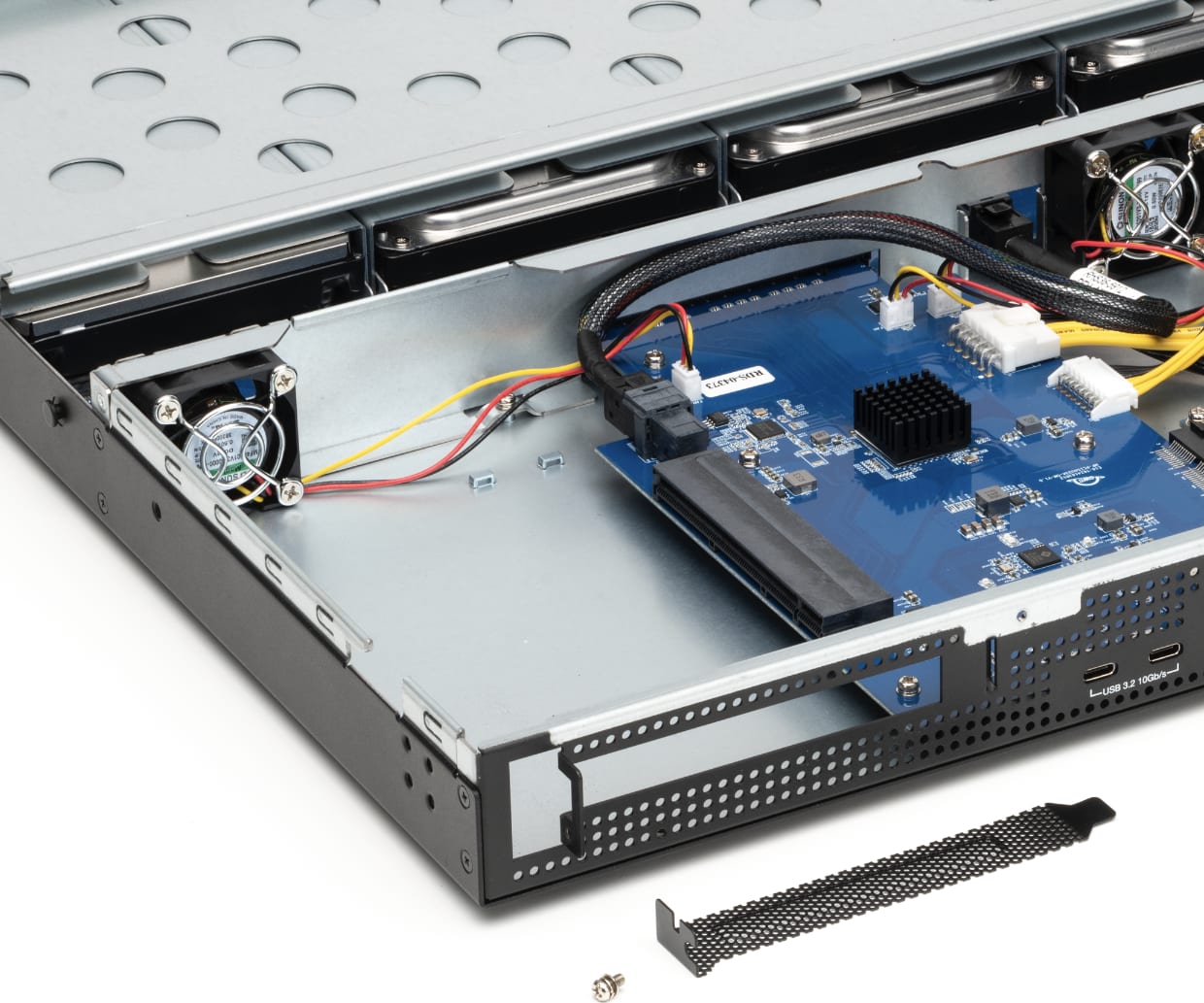

2. Remove the screw holding the PCle slot cover.
NOTE: Keep the slot cover in case an authorized return is needed.

3. Align the PCle connector on the card with the PCle slot of the OWC Flex 1U4. If there is resistance, do not force the card into the slot. Remove it, re-align the card's connector and try again.

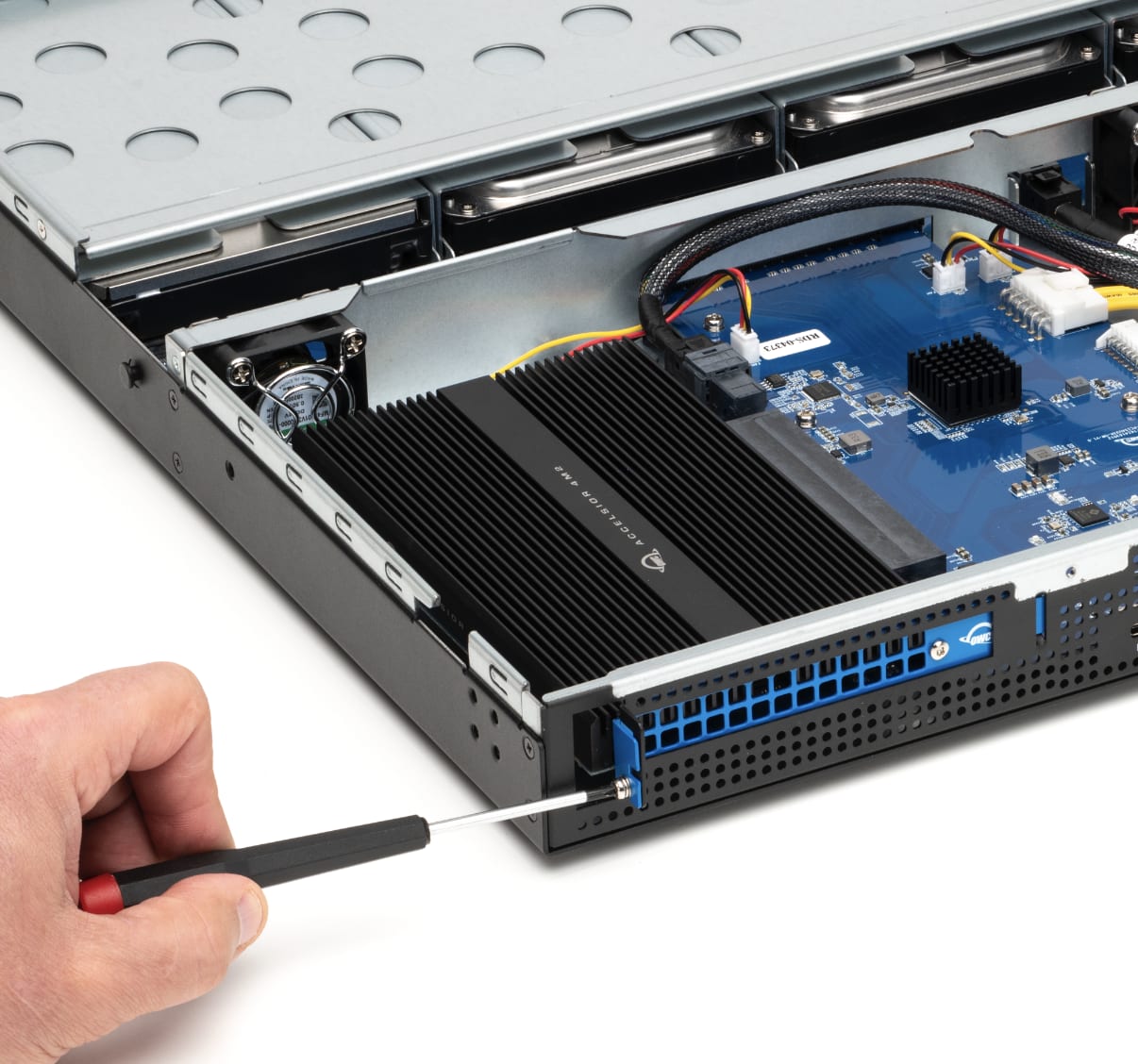

4. Once the card is fully seated, reaffix the screw to the bracket. Place the lid back onto the chassis and secure the five screws that were removed. Three screws secure the top, and two screws secure the back.

2.4 Raid Configuration Options

SoftRAID Raid Configuration

  • Purchasing, downloading, and installing the latest version of SoftRAID is recommended to experience the best performance from the OWC ThunderBay Flex 1U4.
    NOTE: A SoftRAID license will need to be purchased if the OWC ThunderBay Flex 1U4 was purchased with out drives preassembled.
  • SoftRAID will assist with formatting the installed drives and setting up a RAID volume.
  • A powerful software RAID application for macOS and Windows. There are three different versions of SoftRAID, Pro, Lite, and XT, each designed to give you the tools you need for your workflow. To see the differences between each version please review the SoftRAID feature chart. A full guide for SoftRAID: https://softraid.com/docs/softraid-quick-start-guide/
  • The ThunderBay Flex 1U4 can be formatted and configured using the Mac operating system through Disk Utility If SoftRAID isn’t desired.

Mac Raid Configuration

  1. Open the “Disk Utility” application on your Mac.
  2. Choose “File” and select “RAID Assistant”.
  3. Select a set type:
    • Striped (RAID 0) set: A striped RAID set can speed up access to your data. You can’t create a RAID set on your startup disk; you must first start up your computer from another disk.
    • Mirrored (RAID 1) set: Protect your data against hardware failure with a mirrored RAID set. When you create a mirrored RAID set, your data is written to multiple disks so the information is stored redundantly. You can’t create a RAID set on your startup disk; you must first start up your computer from another disk.
    • Concatenated (JBOD) set: Increase storage space with a concatenated disk set. If you need one large disk, but you have several smaller disks, you can create a concatenated disk set to use as one large disk.
  4. Select the checkboxes of the disks you want to include in the set.
  5. For each disk, click the pop-up menu in the Role column and choose “RAID slice” or “Spare” to designate the disk as a standard member or spare in the set, then click Next.
  6. Enter a name for the RAID set in the RAID Name field.
  7. Click the Format pop-up menu, then choose a volume format that you want for all the disks in the set. (See File system formats available in Disk Utility.)
  8. Click the “Chunk size” pop-up menu, then choose a disk chunk size that you want used for all the disks.
    1. When you create a striped set, chunks of data from the same file are distributed across the drives. Ideally, you want data distributed across drives evenly and at an optimum size so that it can be efficiently accessed. If you want high data throughput from your set, choose a smaller chunk size so that data is spread across the drives and one drive can be accessing data while another is seeking the next chunk. With mirrored disk sets, choose a chunk size that matches the data you’re accessing. For example, when working with video files, your Mac is accessing large chunks of data, whereas when using a database of many small records, your disks may be accessing smaller chunks of information.
  9. If you are creating a mirrored RAID set, select the “Automatically rebuild” checkbox to allow the set to be automatically rebuilt when member disks are reconnected.
  10. Click "Create" and then click "Done".

Device Management

3.1 Drive Failure

  • If the OWC ThunderBay Flex 1U4 was configured as a RAID 0, the data on the array is lost and the disk is no longer usable.
  • If the OWC ThunderBay Flex 1U4 was configured as a RAID 5, the RAID card will alert the user with a beeping tone. The RAID can continue to be used, but the drive should be replaced immediately.

3.2 Replacing Drives

  • The Hot-Swap function can be used to rebuild disk drives in arrays with data redundancy such as RAID level 1, 3, 5, 6, 10, 30, 50 and 60. The data will remain accessible via the functioning drive until the array is rebuilt with a new drive.
    • If the enclosure was purchased with drives and it is still under warranty, contact OWC technical support for assistance (see section 4.4 “Contacting Support”). If the unit is outside its warranty or was purchased without drives, follow the assembly instructions to access and replace the failed drive.
      • NOTE: A failed drive must be replaced with an identical drive (model, capacity, firmware). Refer above to section 2.2 “Assembly Steps” for drive replacement steps.
      • NOTE: The OWC ThunderBay Flex 1U4 needs an active data signal to remain powered on. If it is disconnected from the computer, or if the computer goes to sleep or turns off, the device will power off. To minimize the rebuild time, it is recommended to keep the device connected to the computer (with the computer powered on), and disable any drive sleep settings on the computer for the duration of the rebuild.

3.3 Unmounting Options

To ensure no data is lost during normal use, always eject or unmount the corresponding disk(s) from your operating system before powering off the device. Unmounting options are provided below.

OWC Dock Ejector

This application safely ejects all drives connected to the OWC ThunderBay Flex 1U4 with a single click, adding peace of mind to fast-paced mobile workflows. To install this app, please follow the steps below.

  1. Download the installer file for Mac: go.owc.com/dockejector
  2. Launch the installer and follow the prompts. No restart is required.
  3. Once the app is running an icon like the one shown below will appear in the macOS menubar. Clicking on the icon will provide options to unmount the OWC ThunderBay Flex 1U4.
  4. Full user manual can be viewed by visiting go.owc.com/dockejector/manual

Manually Unmounting Drives

macOS

  1. Drag the icon for the disk you wish to unmount to the trash can; OR
  2. Right-click the disk icon on the desktop, then click “Eject”; OR
  3. Highlight the disk on your Desktop and press Command-E.

3.4 Usage Notes

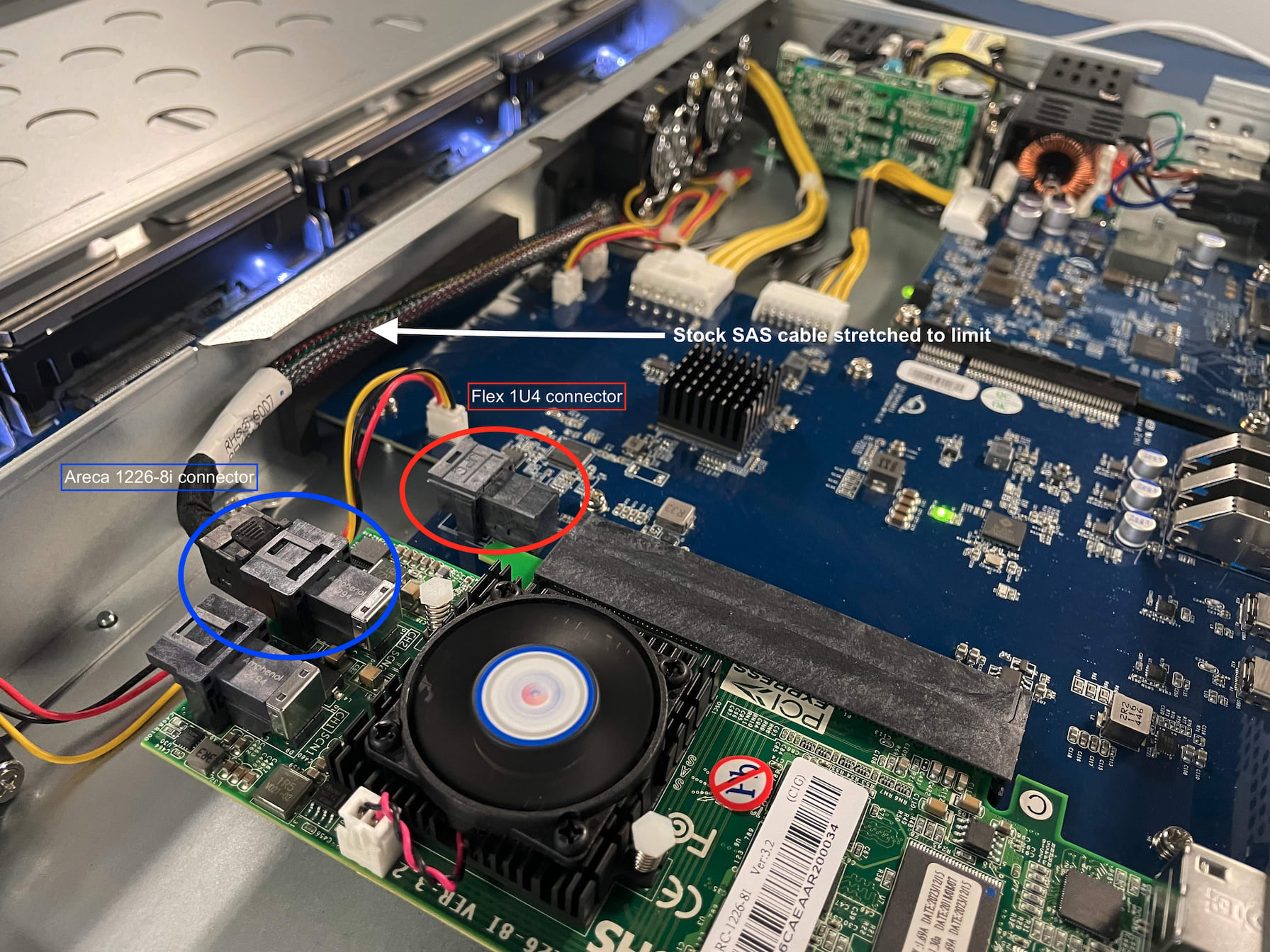

  • SAS drives are supported with SAS drive controller card (available separately).
  • Up to four U.2 drives are supported. M.2 drives are also supported with M.2 to U.2 adapter such as the OWC U2 Shuttle and OWC U2 ShuttleOne (available separately).
  • Full DisplayPort 1.4 capabilities depends on host computer support of DisplayPort 1.4 specification through its Thunderbolt 3 connection, host computer GPU capabilities, and connecting cable capabilities.
  • Thunderbolt 2/Thunderbolt compatibility requires a certified Thunderbolt 3 (USB-C) to Thunderbolt 2 (mDP) adapter and a Thunderbolt 2 cable (available separately). This configuration provides data transfer at up to 20Gb/s but does not support notebook charging.
  • Select SSDs have been tested by OWC and shown to be incompatible with Mac systems running macOS 10.14 'Mojave' and later regardless of how they are connected to the host computer. Please consult the article "Incompatible SSD List: macOS 10.14 'Mojave' and Later" for a list of affected SSDs.

Support Resources

4.1 Troubleshooting

  • Begin troubleshooting by verifying that the power cable is connected to the OWC ThunderBay Flex 1U4 and to a power source. If the power cable is connected to a power strip, make sure that the power switch on the strip is turned on. Then, verify that the Thunderbolt 4 cable is properly plugged into the computer and the OWC ThunderBay Flex 1U4.
  • If the OWC ThunderBay Flex 1U4 is still not working properly, try connecting to another computer or using another Thunderbolt 4 cable. When the computer goes to sleep, the OWC ThunderBay Flex 1U4 will go to sleep. If you are still experiencing problems, consult section 4.4 "Contacting Support" for OWC technical support contact information.
  • If the OWC ThunderBay Flex 1U4 volume isn’t appearing on the Mac system, ensure the driver is installed by going to System Information > PCIe, and verify that “Driver Installed” says yes.

4.2 Online Resources

4.3 About Data Backup

To ensure that your files are protected and to prevent data loss, we strongly suggest that you keep two copies of your data: one copy on your OWC ThunderBay Flex 1U4 and a second copy on your internal drive or another storage medium, such as an optical backup, or on a second external storage unit. Any data loss or corruption while using the ThunderBay Flex 8 is the sole responsibility of the user, and under no circumstances may OWC, its parent, partners, affiliates, officers, employees, or agents be held liable for loss of the use of data including compensation of any kind or recovery of the data.

4.4 Contacting Support

Terms & Conditions of Sale

Warranty

The ThunderBay Flex 1U4 has a 3 Year OWC Limited Warranty if it was bundled with drives. ThunderBay Flex 1U4 enclosures that do not ship with drives have a 1 Year OWC Limited Warranty. For up-to-date product and warranty information, please visit the product web page.

Changes

The material in this document is for information purposes only and subject to change without notice. While reasonable efforts have been made in the preparation of this document to assure its accuracy, OWC, its parent, partners, affiliates, officers, employees, and agents assume no liability resulting from errors or omissions in this document, or from the use of the information contained herein. OWC reserves the right to make changes or revisions in the product design or the product manual without reservation and without obligation to notify any person of such revisions and changes.

FCC Statement

Warning! Modifications not authorized by the manufacturer may void the user’s authority to operate this device.
NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference with radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

  • Reorient or relocate the receiving antenna.
  • Increase the separation between the equipment and receiver.
  • Connect the equipment to an outlet on a circuit different from that to which the receiver is connected.

Copyrights and Trademarks

No part of this publication may be reproduced, stored in a retrieval system, or transmitted in any form or by any means, electronic, mechanical, photocopying, recording or otherwise, without the prior written consent of OWC.

© 2023 Other world Computing, Inc. All rights reserved. OWC, the OWC logo, and ThunderBay are trademarks of New Concepts Development Corporation, registered in the U.S. and/or other countries. Mac and macOS are trademarks of Apple Inc., registered in the U.S. and other countries. Thunderbolt and the Thunderbolt logo are trademarks of Intel Corporation in the U.S. and/or other countries. Other marks may be the trademark or registered trademark property of their owners.
