AKiTiO Node Titan

Support Manual

Jump to a Topic
Jump to a Topic

1.1 System Requirements

Operating System

  • Mac: macOS 10.15 or later
  • PC: Windows 10 or later

Hardware

  • Works with any Mac with a Thunderbolt (USB-C) port

Supported PCIe Devices

  • Dimensions: Supports one card up to full-length, double-width, full-height
  • Mechanical: x16 PCIe slot
  • Electrical: x4 PCIe 3.0
  • NOTE: Cards with drivers must be Thunderbolt-aware

1.2 Package Contents

  • (1) AKiTiO Node Titan
  • (1) 0.7M Thunderbolt Cable
  • (1) Power Cable

1.3 Front View

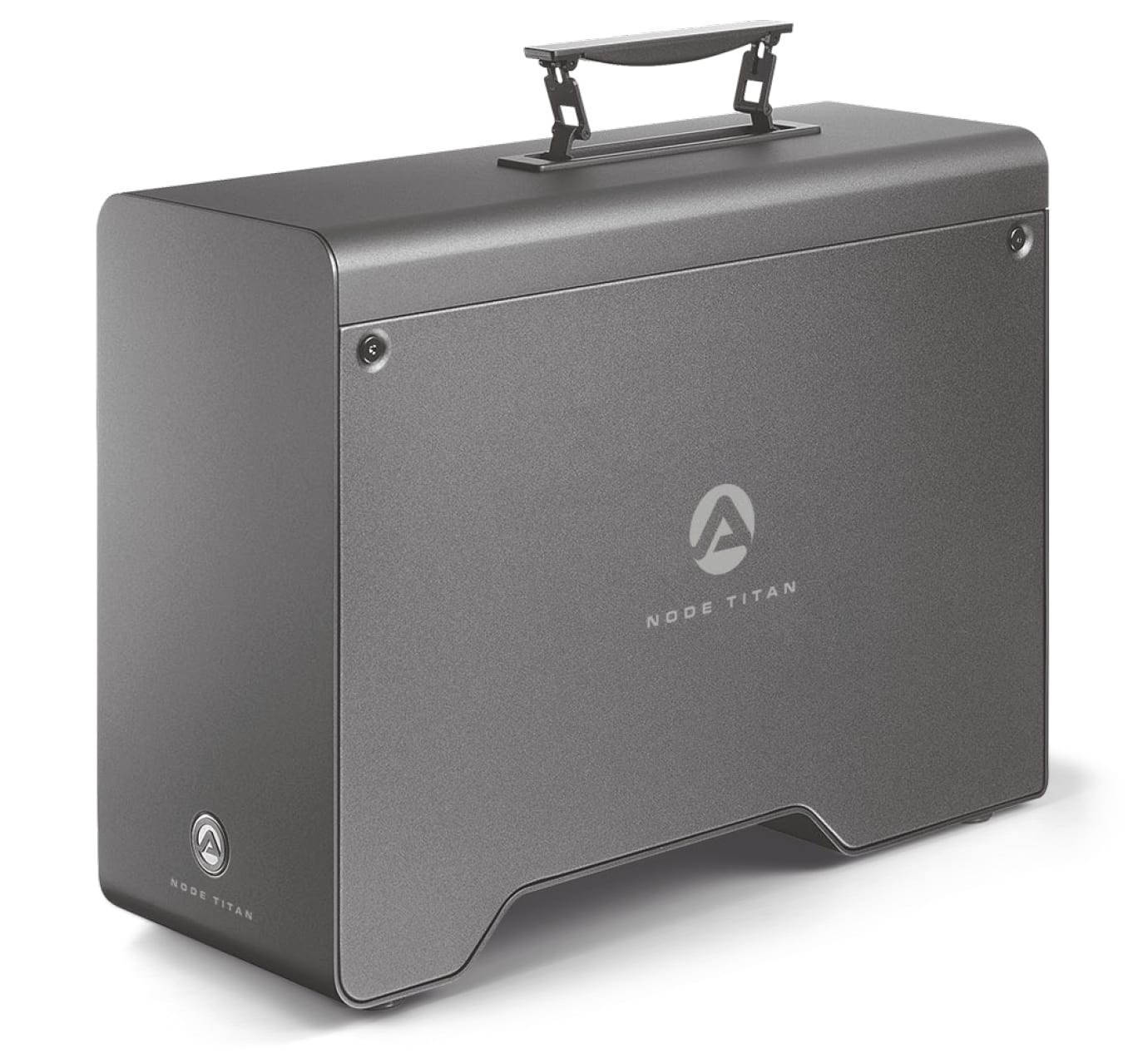

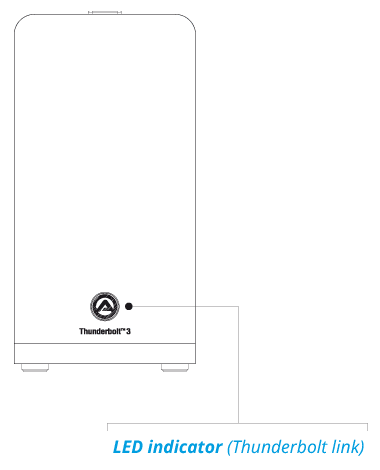

LED Indicator - Established Thunderbolt Connection = Solid Blue

1.4 Back View

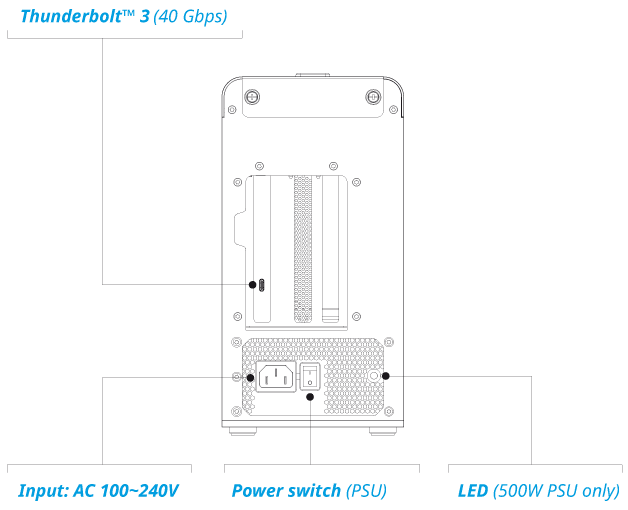

Thunderbolt 3 Port (power delivery) - Connect to the host. Supports up to 85W of power to laptops that support charging from a 15 to 85W power source. This allows the laptop to charge without a power adapter.

Power Switch - Turn the device on | off

Power Input Port - Connect the power cable

Getting Started

2.1 Device Setup

This section describes the process of setting up the AKiTiO Node Titan if purchased with a pre-installed card.

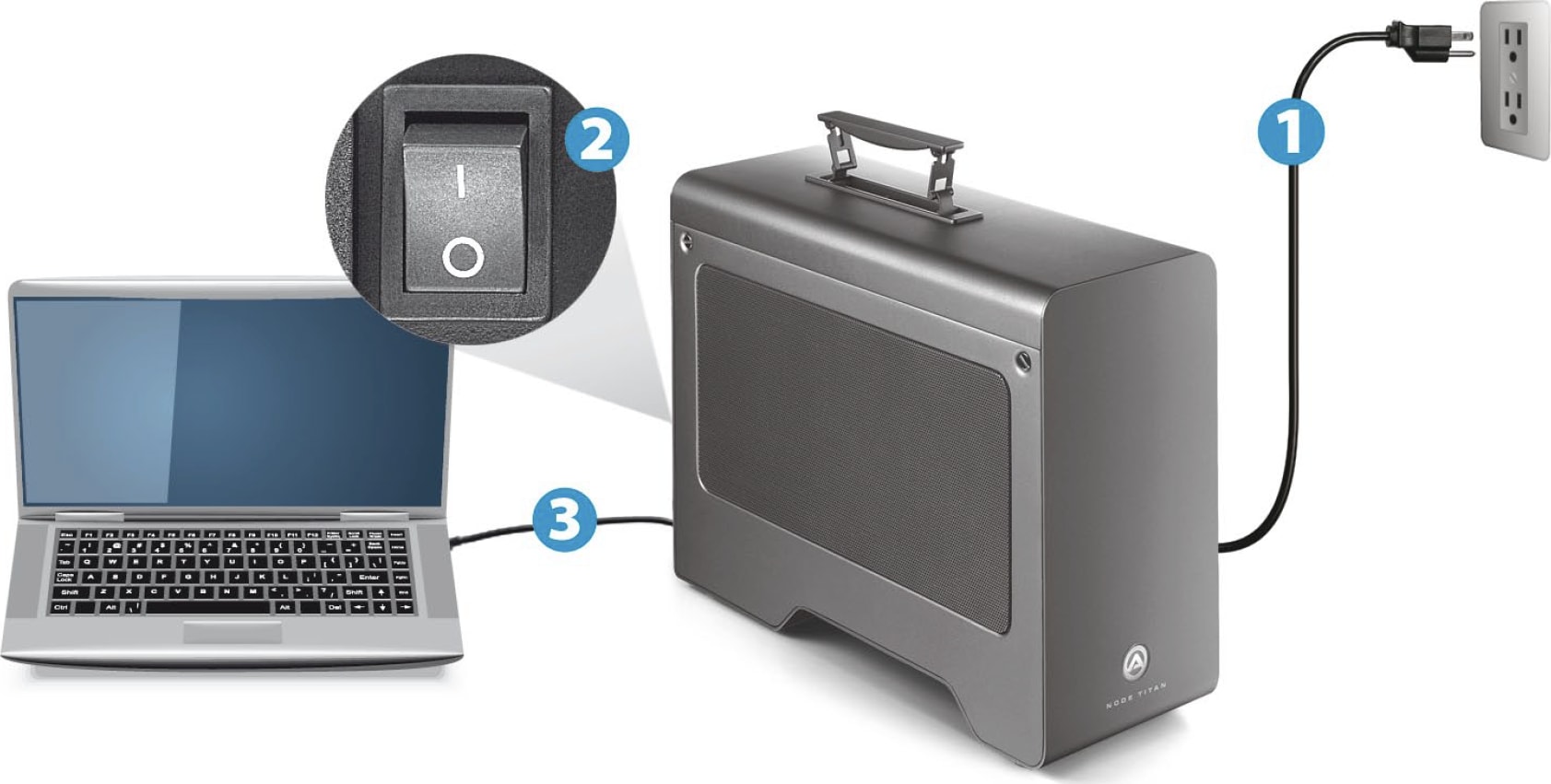

1. Plug the power cable into the AKiTiO Node Titan power port located on the back and into a power outlet.

2. Turn the AKiTiO Node Titan power switch to the on position. The LED indicator will illuminate a solid blue.

3. Connect the included Thunderbolt cable into the Thunderbolt 3 port located on the back of the AKiTiO Node Titan and into a system.

2.2 Assembly Steps

This section describes the process of installing PCIe cards into the AKiTiO Node Titan if purchased as a bare enclosure.
NOTE: The AKiTiO Node Titan is susceptible to invisible damage if not protected during installation. For proper grounding, we recommend using a grounding strap. Work in a clean, static-free area, and avoid wearing clothing that retains static charges. For more information regarding anti-static protection, please review the support article "Discharging Static Electricity".

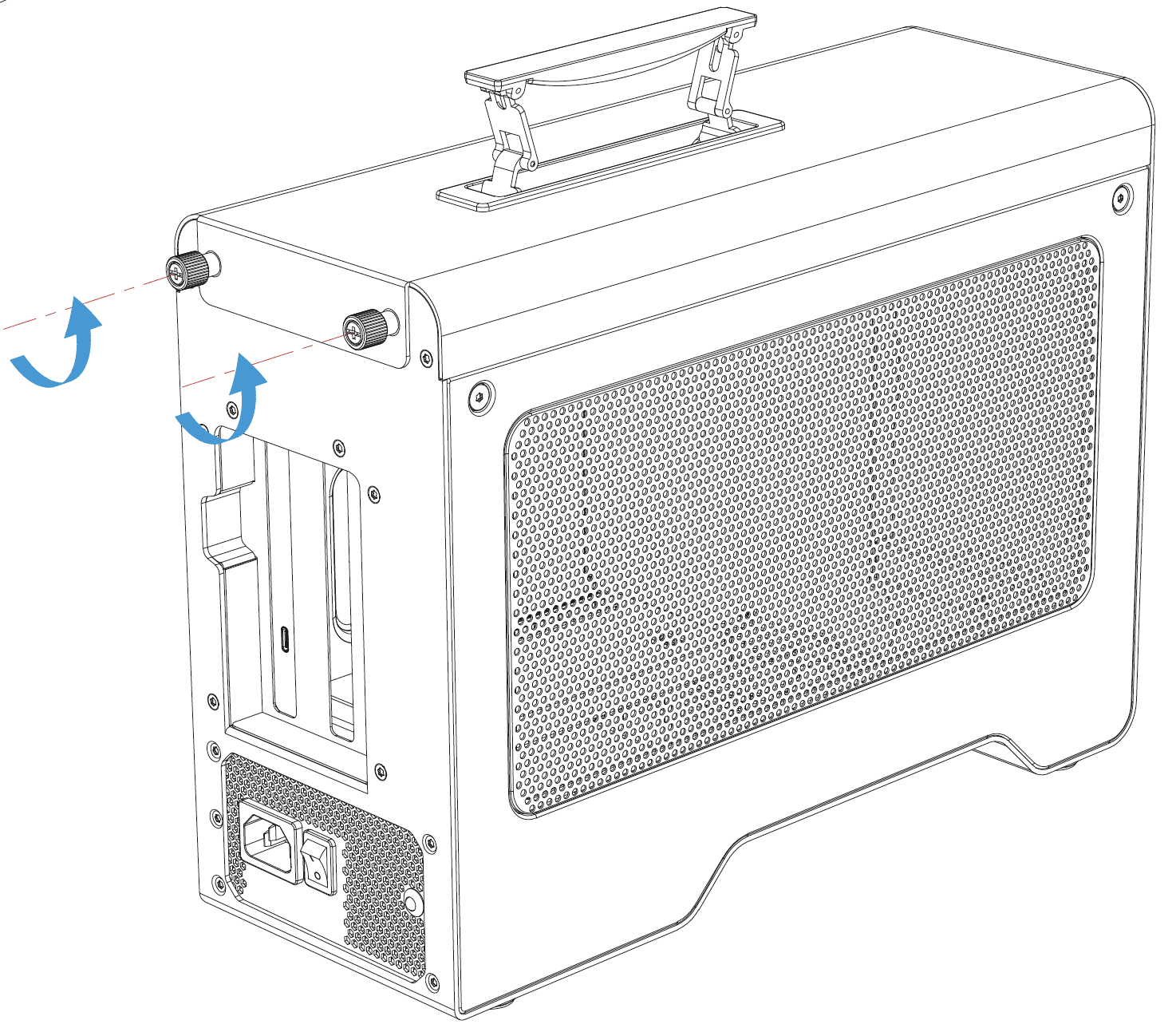

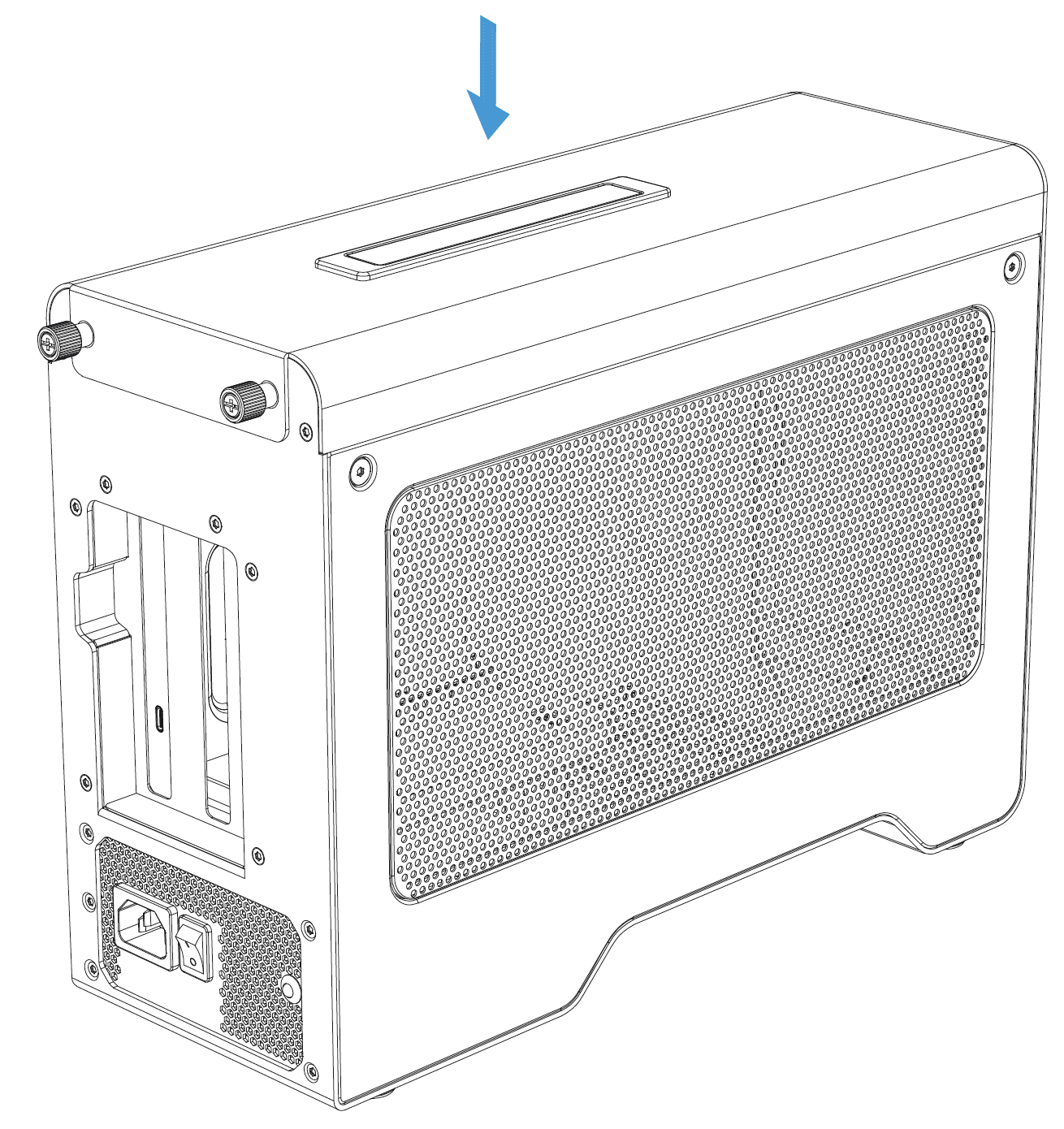

Step 1

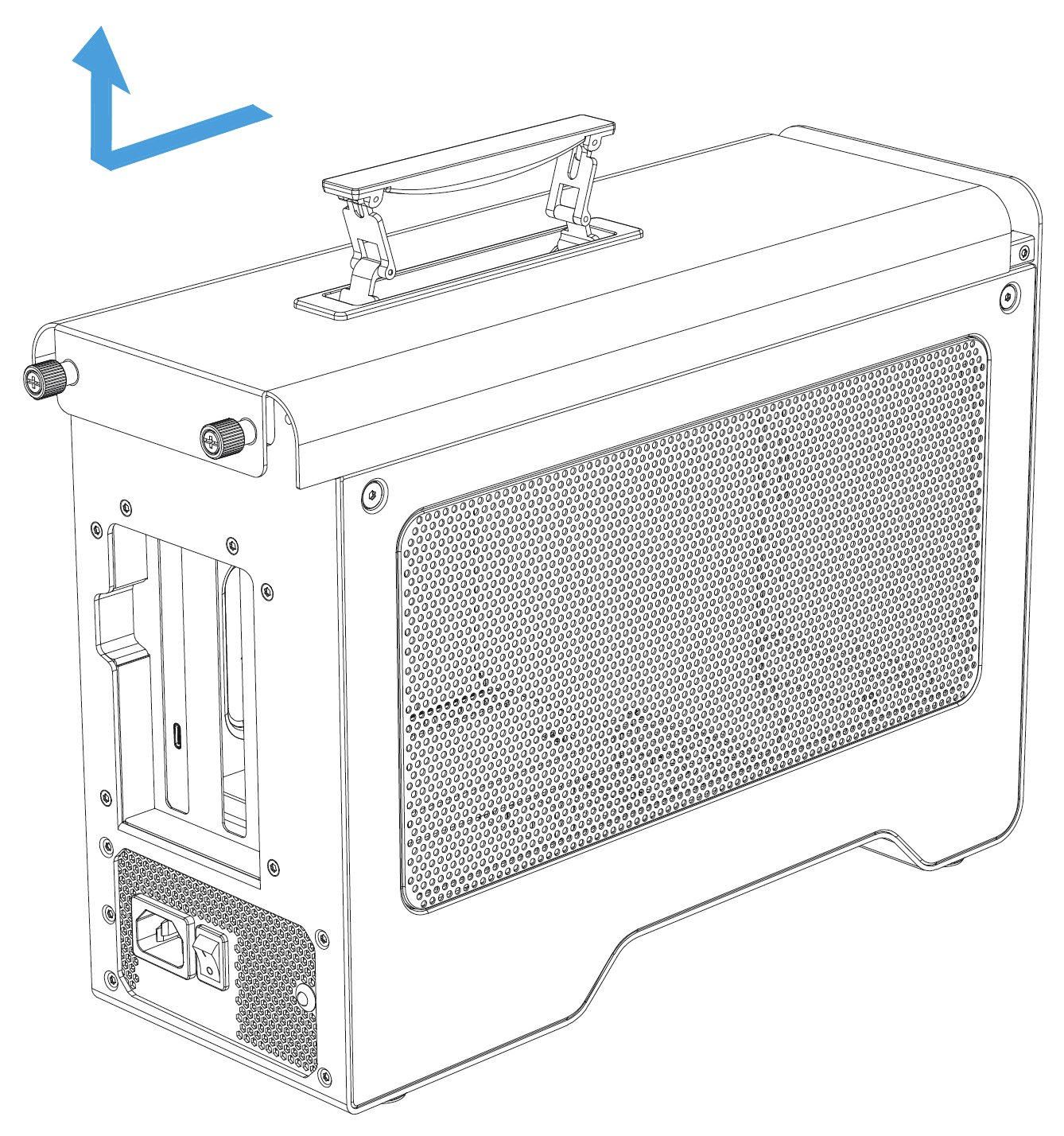

Step 2

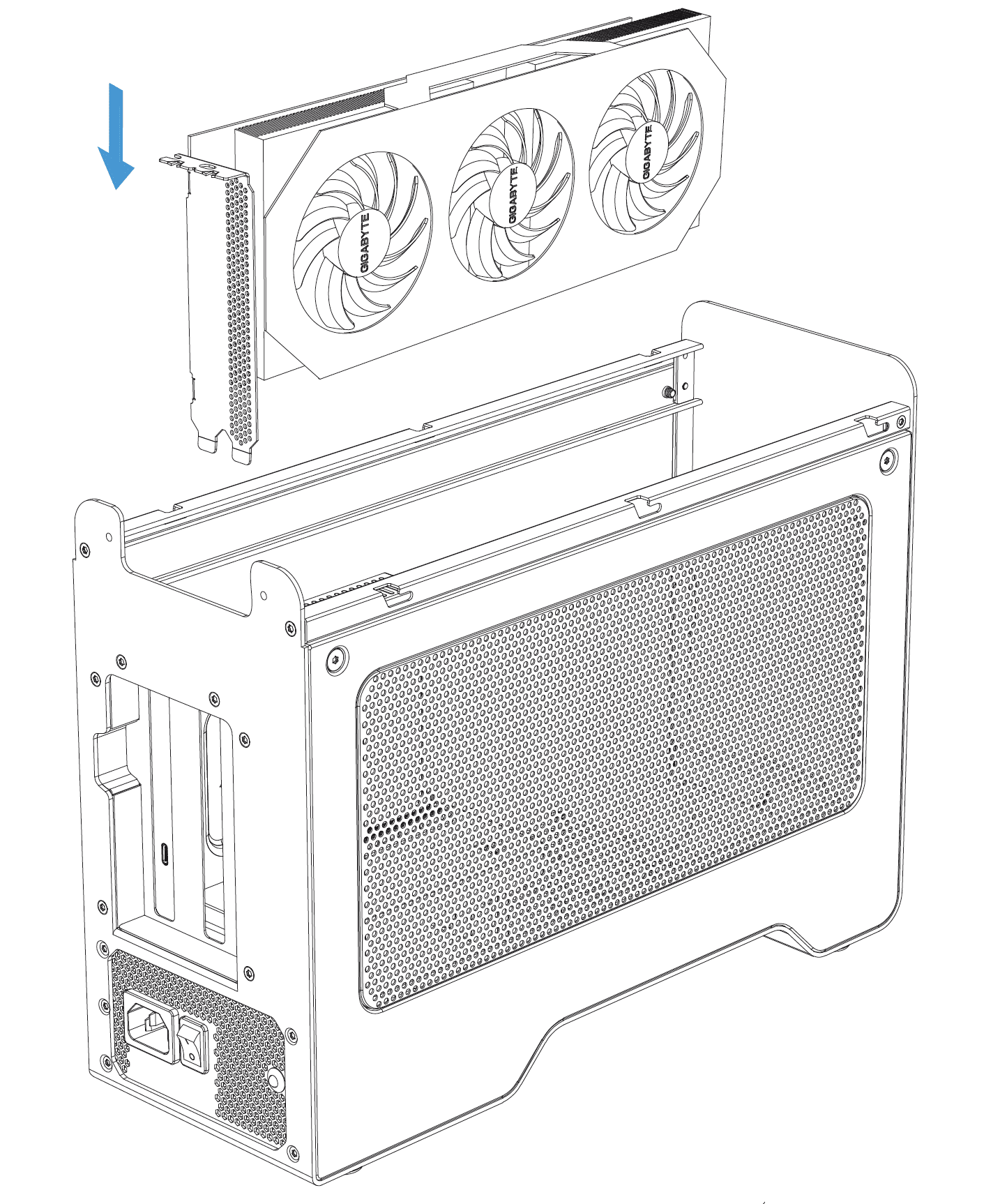

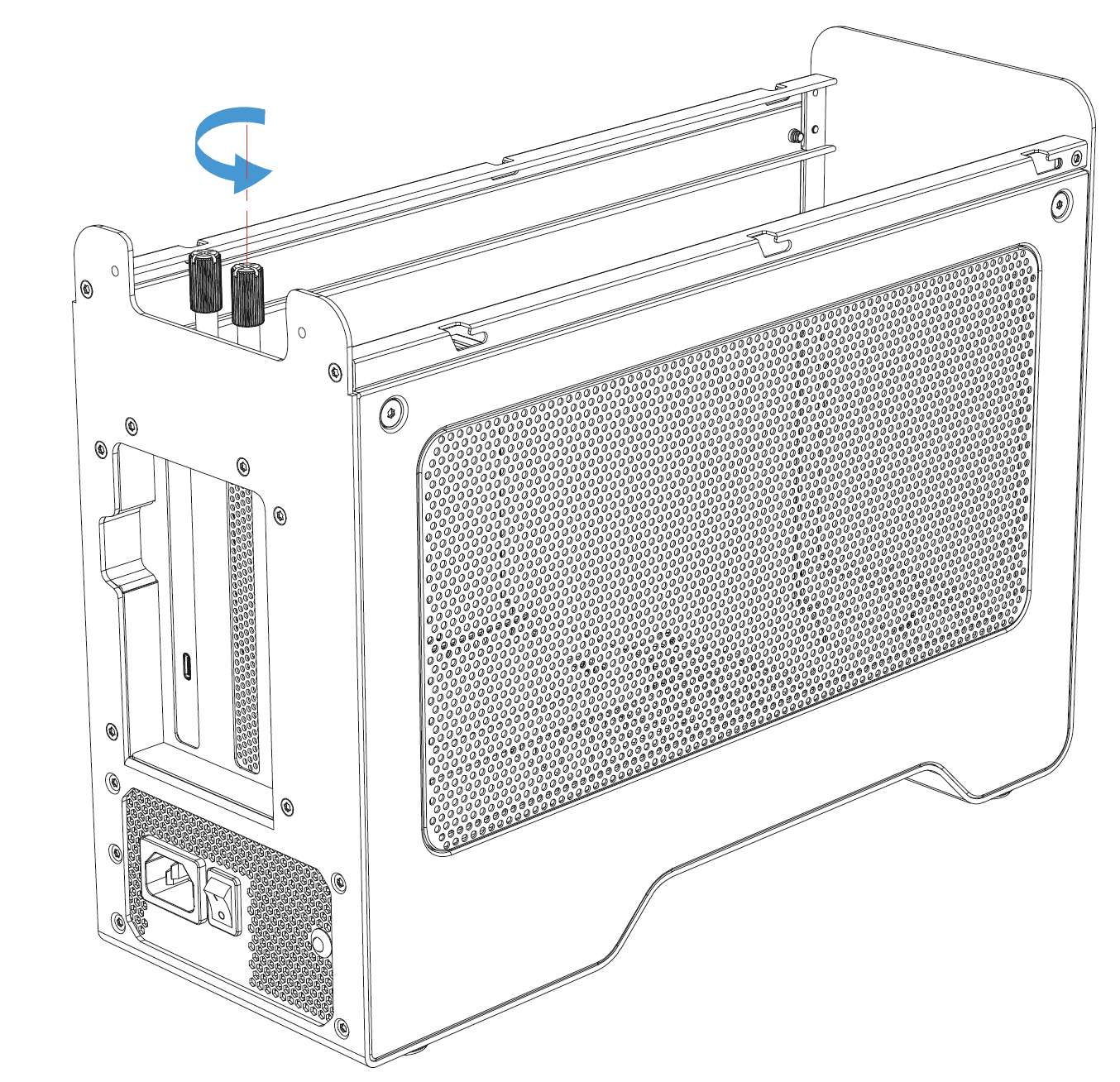

Step 3

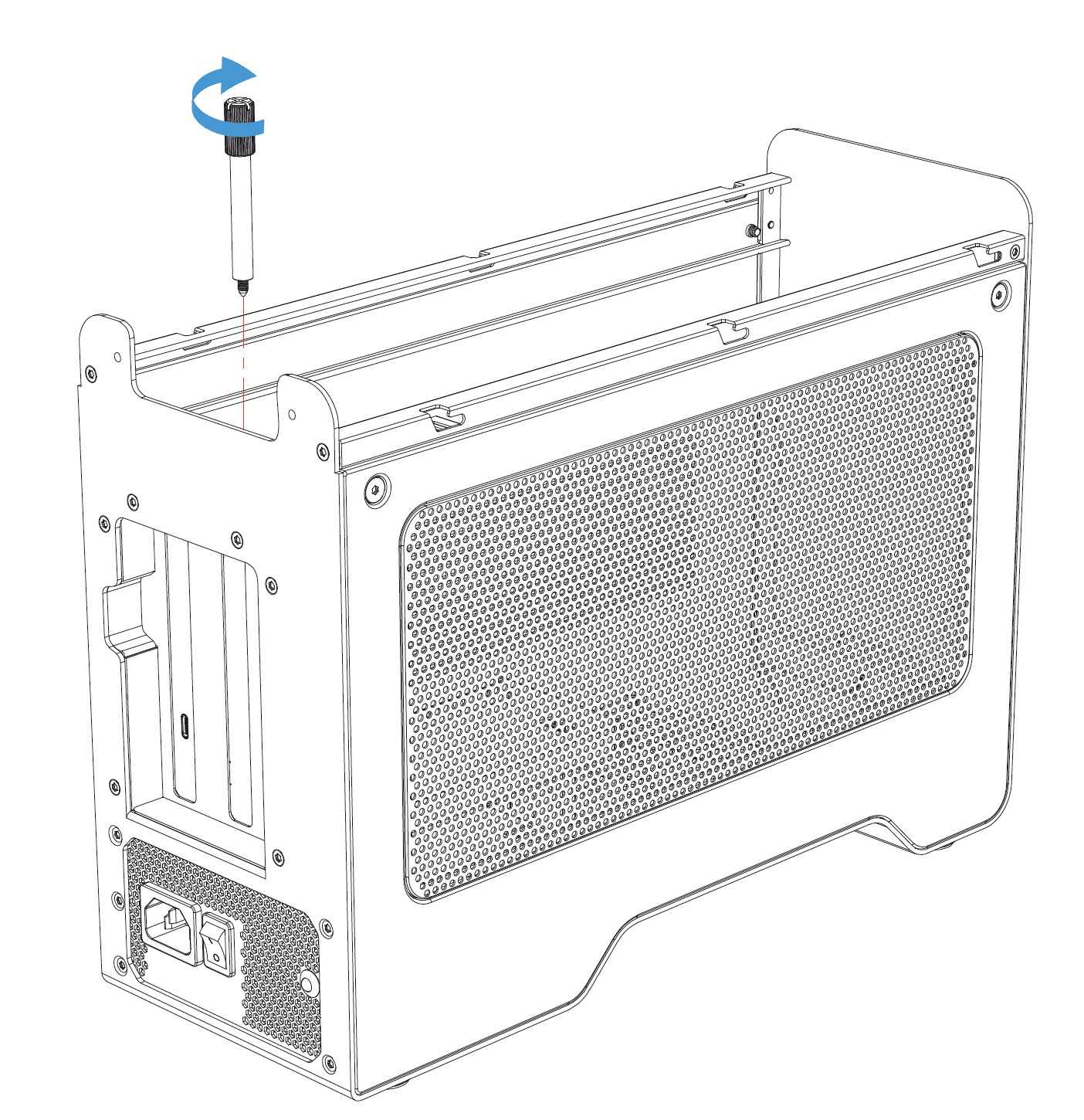

Step 4

  1. Plug the power cable into the AKiTiO Node Titan power port located on the back and into a power outlet.
  2. Turn the AKiTiO Node Titan power switch to the on position. The LED indicator will illuminate a solid blue.
  3. Connect the included Thunderbolt cable into the Thunderbolt 3 port located on the back of the AKiTiO Node Titan and into a system.

Device Management

3.1 Usage Notes

Support Resources

4.1 Troubleshooting

  • Verify the power cable is connected to the AKiTiO Node Titan and to a power source. If the power cable is connected to a power strip, make sure that the power strip switch is in the ON position.
  • Verify that each end of the data cable is properly plugged into the computer and the AKiTiO Node Titan.
  • Connect a different Thunderbolt 3 cable and see if the AKiTiO Node Titan works properly.
  • Connect the AKiTiO Node Titan to a different computer.
  • If issues continue to occur, please know that OWC support is here to help. Contacting support information can be found in Section 4.4. Please have your serial number ready which is located on the bottom of the AKiTiO Node Titan and printed on the original packaging.

4.2 Online Resources

    4.3 Contacting Support

    4.4 About This Manual

    The images and descriptions may vary slightly between this manual and the unit shipped. Functions and features may change depending on the firmware version. The latest product details and warranty information can be found on the product web page. OWC’s Limited Warranty is not transferable and subject to limitations.
