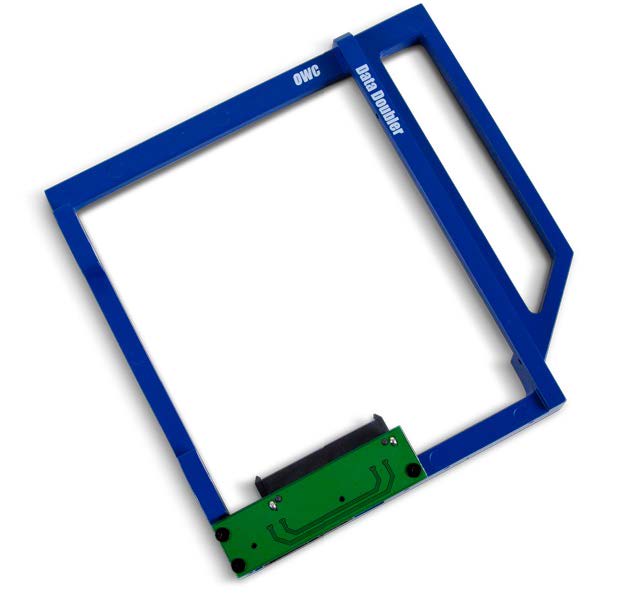

Data Doubler

Apple Mac mini (2009)

Introduction

1.1 Hardware Compatibility

1.1.1 Host Computer Compatibility

Apple Mac mini 2009, model identifier Macmini3,1
Mac mini must have an optical drive (‘Server’ model not supported)

1.1.2 Drive Compatibility

Any 2.5 inch SATA drive (including SSDs) up to 12.5 mm tall
SATA 3.0Gb/s (‘3G’) drives recommended for best performance (see Section 3.1 Mac mini 2009 Drive Compatibility)

1.2 Package Contents

OWC Data Doubler kit (includes mounting screws)
Five-piece toolkit

1.3 About This Manual

Images and descriptions may vary slightly between this manual and the unit shipped. Functions and features may be different from those stated in this manual. Please visit the product web page for the most recent product specifications.

Installation

Attention: Observe Precautions For Handling Electrostatic Sensitive Devices

Your computer is a static-sensitive device. It is susceptible to invisible damage if not protected during installation. We recommend proper grounding by using a grounding strap. Make sure to work in a clean, static-free area, and avoid wearing clothing that retains static charges.

Learn More >>

2.1 Tools Used During Installation

Phillips screwdriver (included in this kit)
Nylon pry tool (included in this kit)
Thin-blade putty knife (not included in this kit)

2.2 Disassembling the Mac mini

1. Place the Mac mini upside down, as shown in the picture. Use a soft surface such as a towel or a mouse pad in order to protect the Mac mini from scratches.

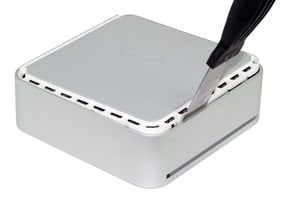

2. Insert a thin-blade putty knife between the aluminum housing and the white plastic inner chassis of the Mac mini at one corner, as shown at left. If your putty knife will not fit in the gap, you can use the nylon pry tool from the included tool kit to help widen the gap, then insert the putty knife.

3. Pull the handle of the putty knife away from the housing to loosen the plastic clips that hold the housing to the inner chassis (shown at right). You will hear cracking noises during the process; this is normal. Move the putty knife along the edge of the Mac mini and continue prying the clips until you get to the corner, then remove the putty knife and start again on the next side. Do this on all sides except the rear of the Mac mini.

4. Once all of the plastic clips have been released, the inner chassis should start to separate from the aluminum housing, as shown below. Turn the Mac mini over and remove the housing from the inner chassis. You may have to wiggle the housing slightly, but as long as all of the plastic clips were removed in Step 3, the housing will lift off.

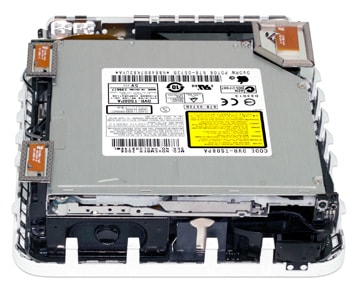

5. When the housing is removed, the Mac mini appears as in the picture below. The next step is to remove the optical drive.

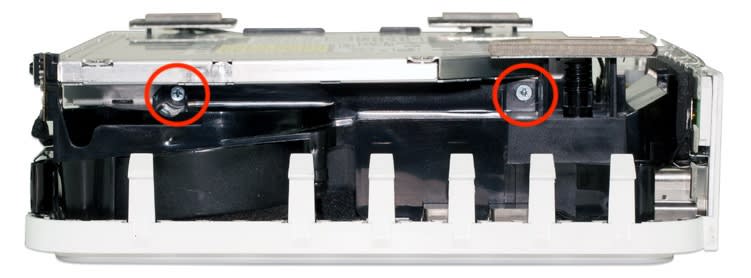

6. Turn the Mac mini so that the rear ports are to your right, as shown in the picture below. Use a Phillips screwdriver to remove the two screws circled in red.

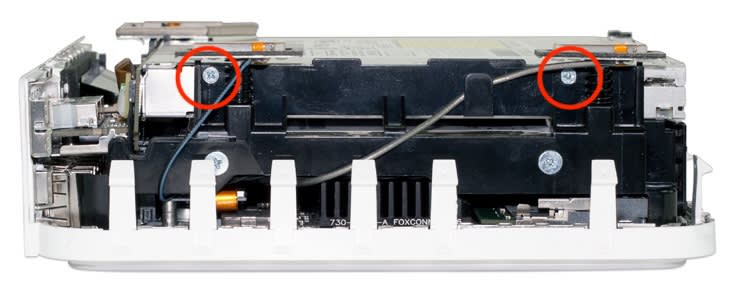

7. Turn the Mac mini around so that the rear ports are to your left, as shown in the picture below. Use a Phillips screwdriver to remove the two screws circled in red.

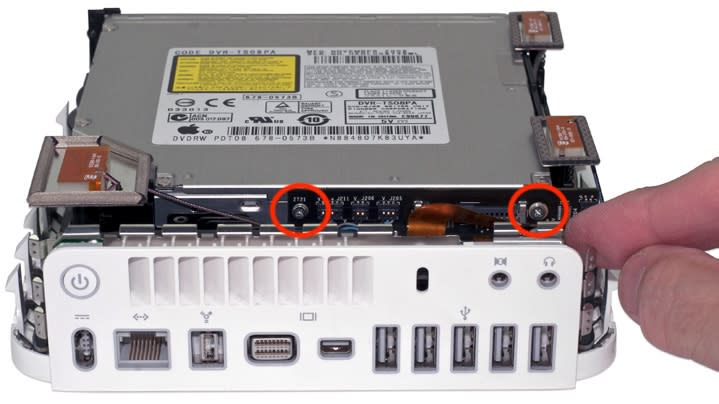

8. Turn the Mac mini so that the rear ports are facing you, as shown in the picture below. Use the Phillips driver to remove the screw circled at left. The screw on the right is hidden by a copper-colored ribbon cable. Disconnect this ribbon cable from the connector that sits directly to the right of the screw, using either your fingernail, as shown, or the nylon pry tool. Once the cable is out of the way, remove the Phillips screw.

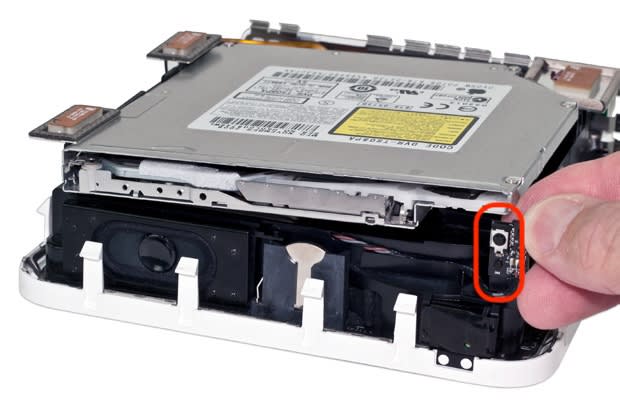

9. Turn the Mac mini so that you can see the front of the optical drive, as shown below. Lift up on the right corner of the optical drive so that it clears the IR receiver (highlighted in red), then pull the optical drive towards you to remove it from the Mac mini. The optical drive is attached to a SATA connector at the rear; if the drive does not come out when you pull, you can disconnect it with a nylon pry tool or your fingernail.

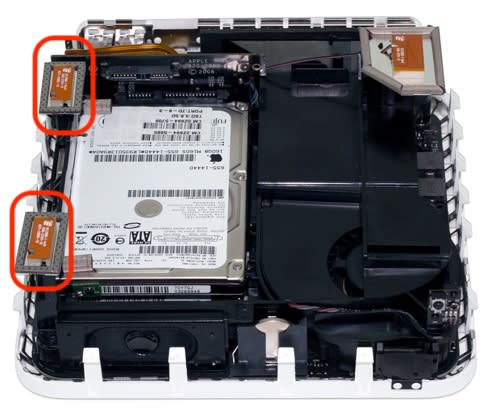

10. Remove the two antennas highlighted in the picture below. These sit on spring posts (see the picture in Step 7 for a side view); you can gently lift straight up to dislodge them. Note: the antenna cables can break if too much force is applied. Move the antennas out of the way, but keep them connected to their cables.

2.3 Installing the Data Doubler

1. Remove the Data Doubler from the box and plastic bag. Note that there is a clear plastic shield on the bottom of the Data Doubler. DO NOT remove this plastic shield. It is a part of the Data Doubler.

2. Install the 2.5 inch SATA drive into the Data Doubler. Start by sliding the SATA connector on the drive into the black SATA connector attached to the green circuit board on the Data Doubler, as shown.

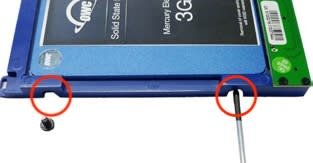

3. Insert the two included Phillips screws into the drive through the screw holes in the Data Doubler, as shown.

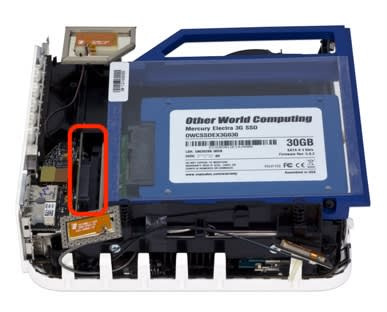

4. Connect the Data Doubler to the SATA connector in the Mac mini, highlighted below. When installing the Data Doubler, be careful not to hit the AirPort® antenna (top left in this picture) or the IR receiver (top right in this picture).

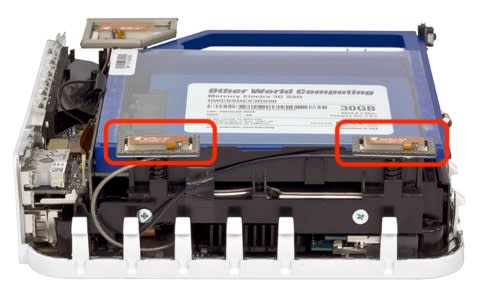

5. When the Data Doubler is fully seated in the SATA connector, lower the corner of the Data Doubler to sit just behind the IR receiver, as shown below. Re-attach the two antennas to their spring posts, as shown.

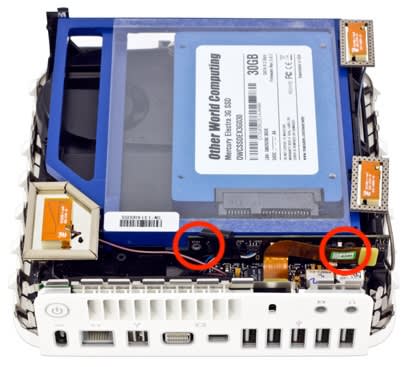

6. Turn the Mac mini so that the ports are facing you. Insert two Phillips screws into the holes shown at right. Be careful not to damage the ribbon cable when installing the screw on the right side.

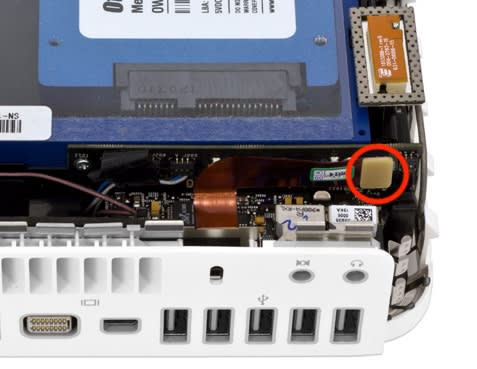

7. After the screws are installed, connect the ribbon cable, as shown. Simply press the cable into the connector with your thumb.

8. Turn the Mac mini so that the ports face to your left, as shown below. Install two Phillips screws into the holes circled in red. If the screw holes are not aligned with the Data Doubler, press down slightly on the front of the Data Doubler (the right edge in this picture), then install the screws.

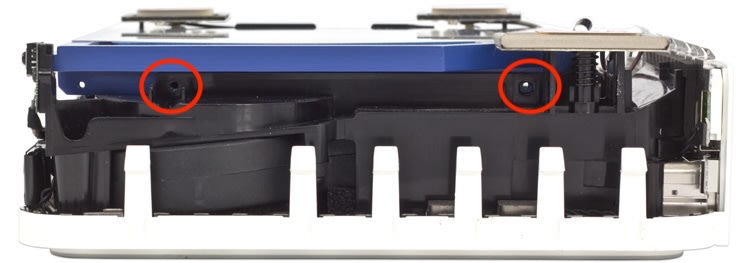

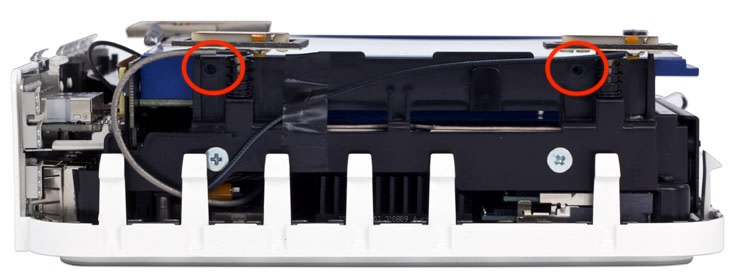

9. Turn the Mac mini so that the ports face to your right, as shown in the picture below. Install the final two Phillips screws into the holes circled in red.

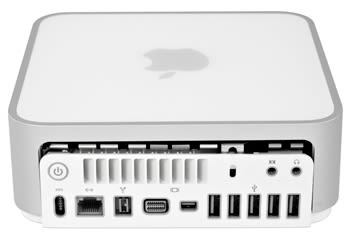

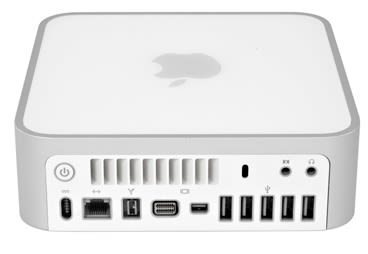

10. Align the cutout in the aluminum housing with the rear ports on the Mac mini, as shown below-left. Press down firmly on the housing to connect all of the clips on the inner chassis to the housing. When the Mac mini is fully assembled there will be no visible gaps between the aluminum housing and the inner-chassis, as shown below-right.

Support Resources

3.1 Mac mini (2009) Drive Compatibility

The SATA controller used in the Mac mini 2009 (model identifier Macmini3,1) has a known limitation when using SATA 6.0Gb/s hard drives and solid state drives (SSDs). If a SATA 6.0Gb/s drive is installed, the computer will limit the drive to 1.5Gb/s. Therefore it is recommended that only SATA 3.0Gb/s drives be used in this computer.

3.2 Troubleshooting

Begin your troubleshooting by verifying that the power cable is connected to the Mac mini and to a power source. If the power cable is connected to a power strip, make sure that the power switch on the strip is turned on. If the Mac mini will not turn on, or if it is experiencing other problems such as no sound or no wireless connectivity, it is possible that one or more of the internal components were not correctly connected or were damaged during the assembly process. Go back through the assembly instructions and compare what you see with the pictures to identify what is different.

If the drive in the Data Doubler is not seen on the desktop on a Mac, check in the sidebar in a Finder window. Some versions of Mac OS X do not show hard drives on the desktop by default. If the drive in the Data Doubler is not seen in Finder, check Disk Utility to see if the drive is recognized by the computer. In Windows, check in Disk Management. If the drive is seen there, it may need to be formatted. www.owcdigital.com/format

If the drive in the Data Doubler is not seen in Disk Utility or Disk Management, remove the aluminum housing of the Mac mini and compare what you see with the pictures in the assembly section of this manual. Specifically check to make sure that the drive is connected correctly to the Data Doubler and that the Data Doubler is connected correctly to the SATA connector in the Mac mini. If problems persist, please Contacting Technical Support.

3.3 About Data Backup

To ensure that your files are protected and to prevent data loss, we strongly suggest that you keep two copies of your data: one copy on your Data Doubler drive and a second copy on either your primary internal drive or another storage medium, such as an optical backup, or on another external storage unit. Any data loss or corruption while using the Data Doubler is the sole responsibility of the user, and under no circumstances may OWC, its parents, partners, and affiliates be held liable for loss of the use of data including compensation of any kind or recovery of the data.
