Initial setup of the OWC Archive Pro Ethernet requires a one time completion of this guide. Connecting the OWC Archive Pro Ethernet after initial setup is simple and accomplished with a few steps.

1.1 Device Power and Connection

1. Plug the power cable into the OWC Archive Pro Ethernet power port located in the rear. Connect the other end into a power outlet. Toggle the power switch to the ON position. The device fans will begin audibly spinning.

  • Using an uninterruptible power supply (UPS) is recommended to help protect from data loss due to electrical anomalies.

2. Connect a qualified Cat-6 or greater ethernet cable to either 10GbE RJ45 SFP+ Data Port or 1GbE RJ45 Management Port located on the rear of the OWC Archive Pro Ethernet. Connect the other end of the ethernet cable into a system's onboard network port or ethernet adapter.

  • Network switches and routers are not recommended initially during setup due to potential conflicts with IP address variations.
  • The factory installed 10GBase-T SFP+ to RJ45 optic module can be removed and replaced with 10GBase-LR SFP+ | 10GBase-SR SFP+ optic modules or SFP+ DAC cable (not included). Please visit Section 3.2 "SFP+ iSCSI Module Removal" of the OWC Archive Pro Ethernet Support Manual for instructions.

    1.2 Static IP Mac Network Setup

    Initial device setup requires editing the Mac network settings to create a Static IP connection.

    • The OWC Archive Pro Ethernet is required to be connected through the Mac onboard network port or ethernet adapter. Network switches and routers are not recommended initially during setup due to potential conflicts with IP address variations.

    1. Select the Apple logo, select "System Settings", and select "Network" in the left hand pane.

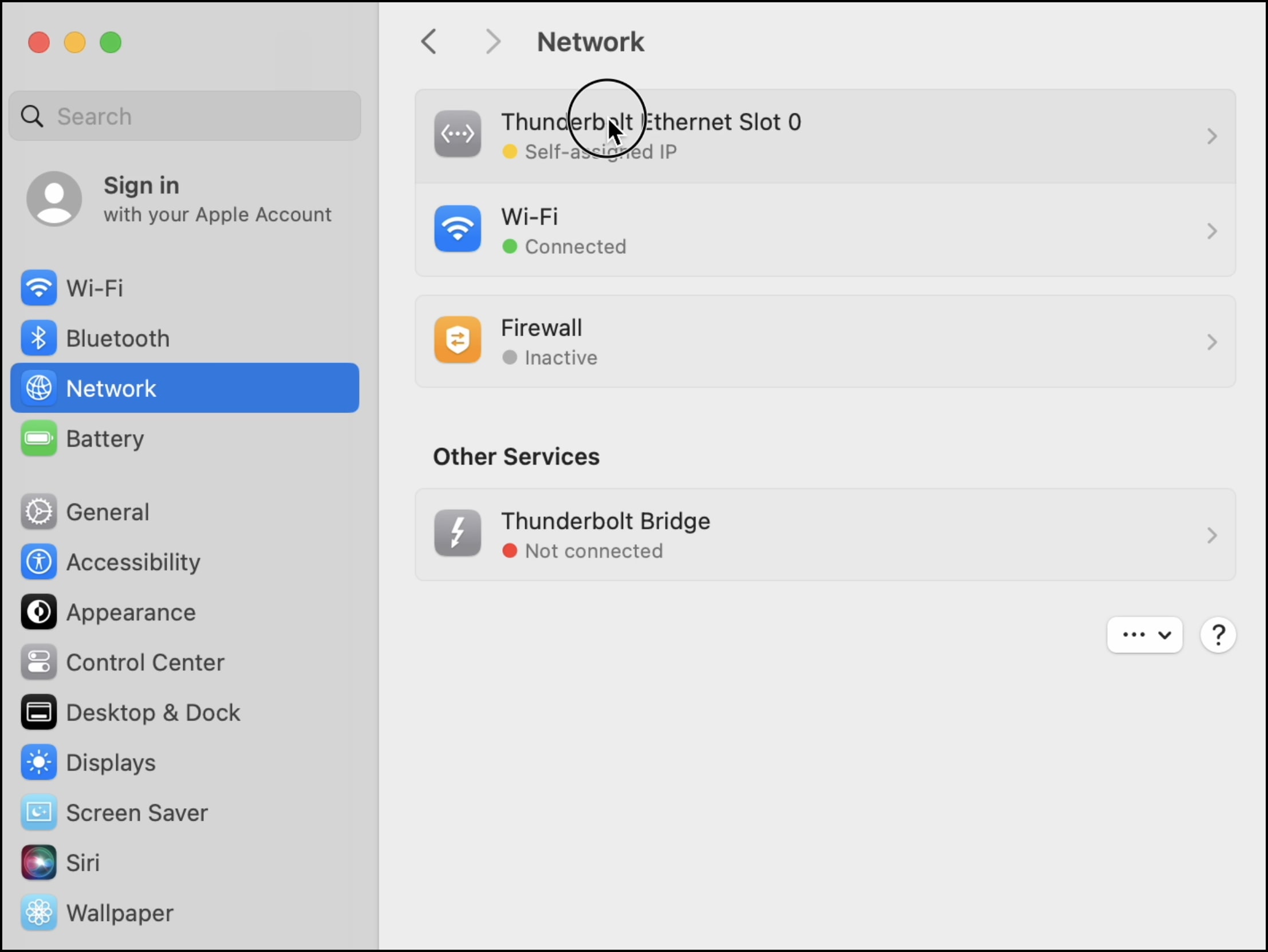

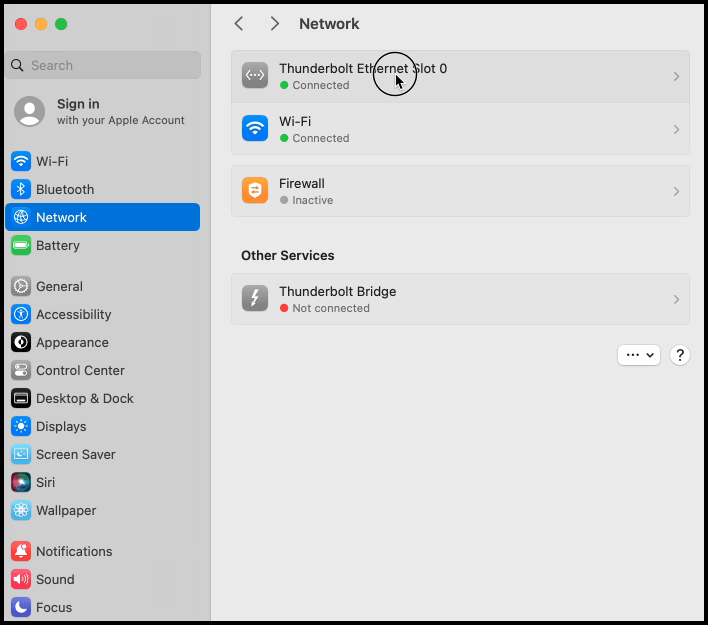

    2. Locate and select the network associated with the OWC Archive Pro Ethernet.

    • Names of the adapters will vary bested on the connection type. Disconnecting and reconnecting the network cable will toggle the connection helping to ensure the proper network is selected.
    • The following examples are of the OWC Archive Pro Ethernet connected through the 10GbE RJ45 SFP+ Data Port 1.

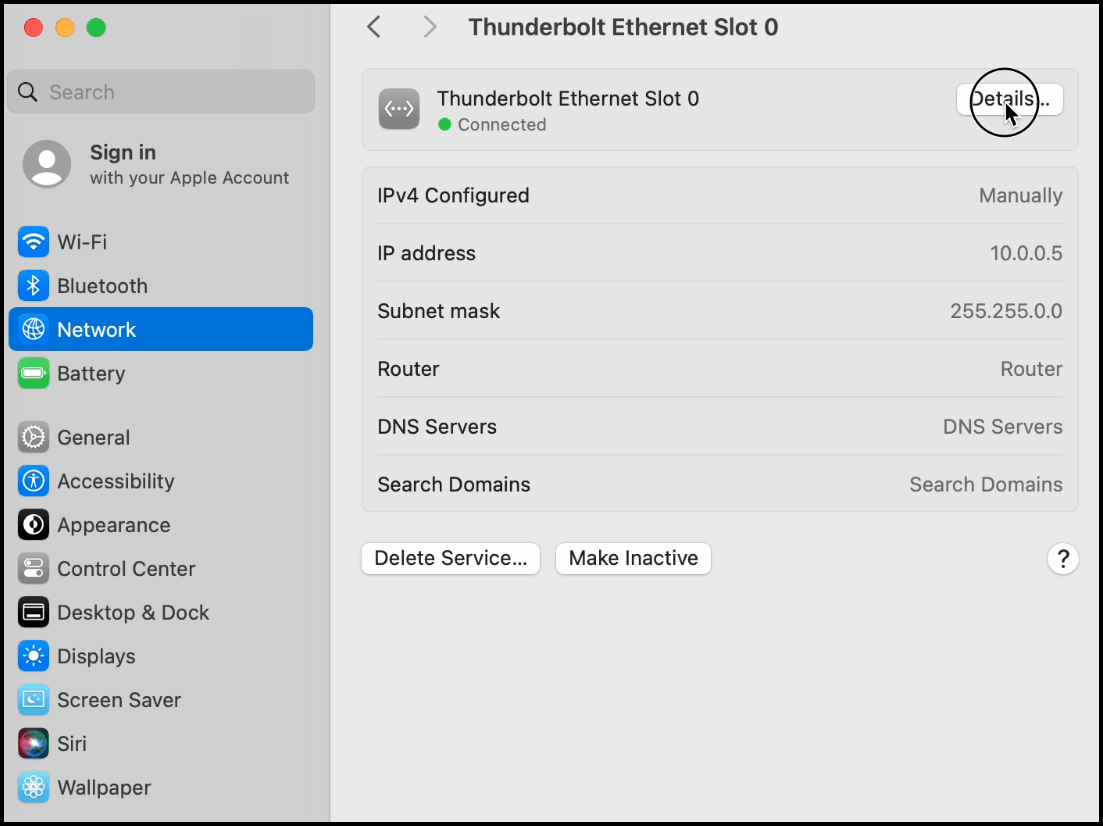

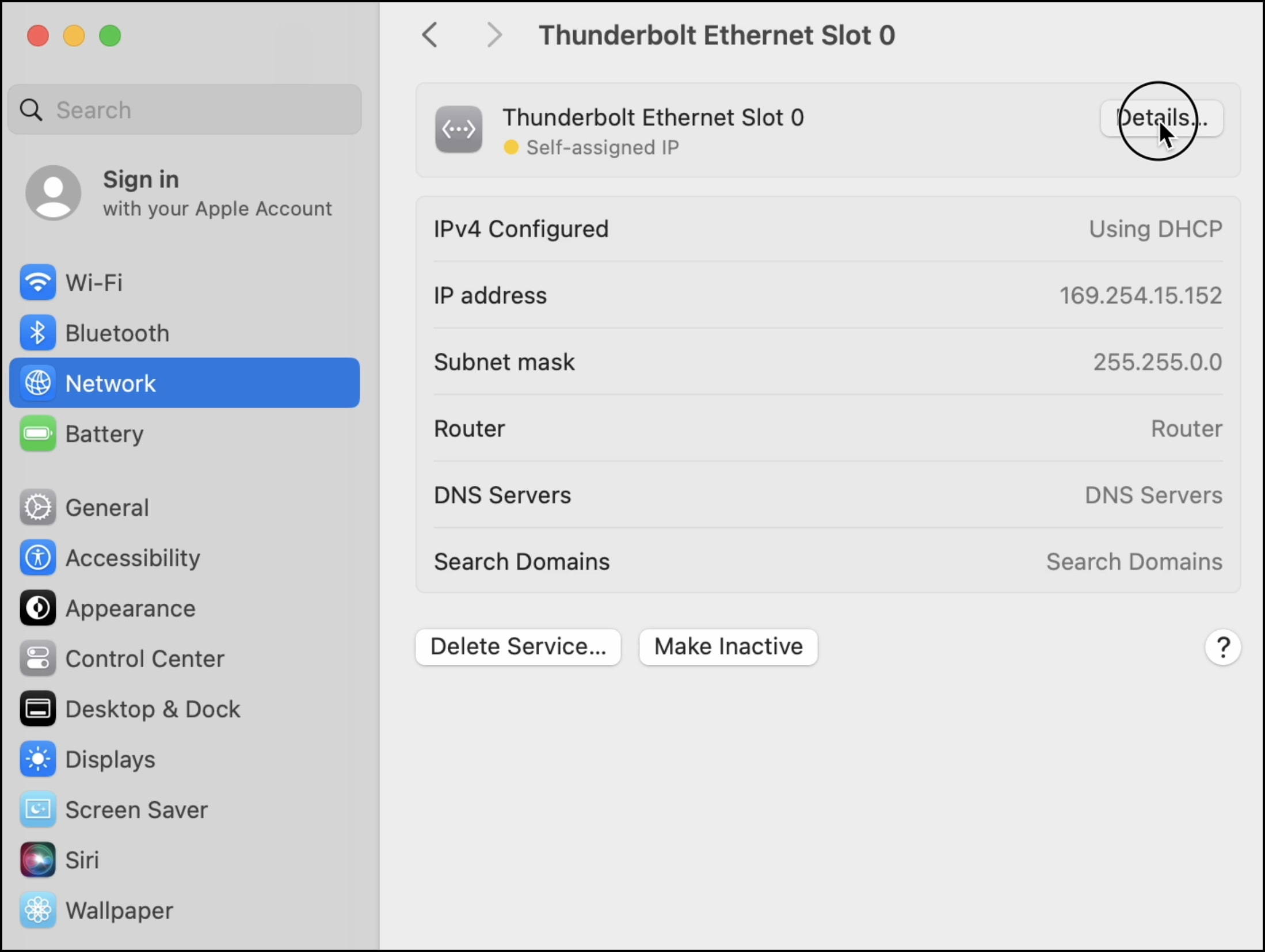

    3. Select "Details."

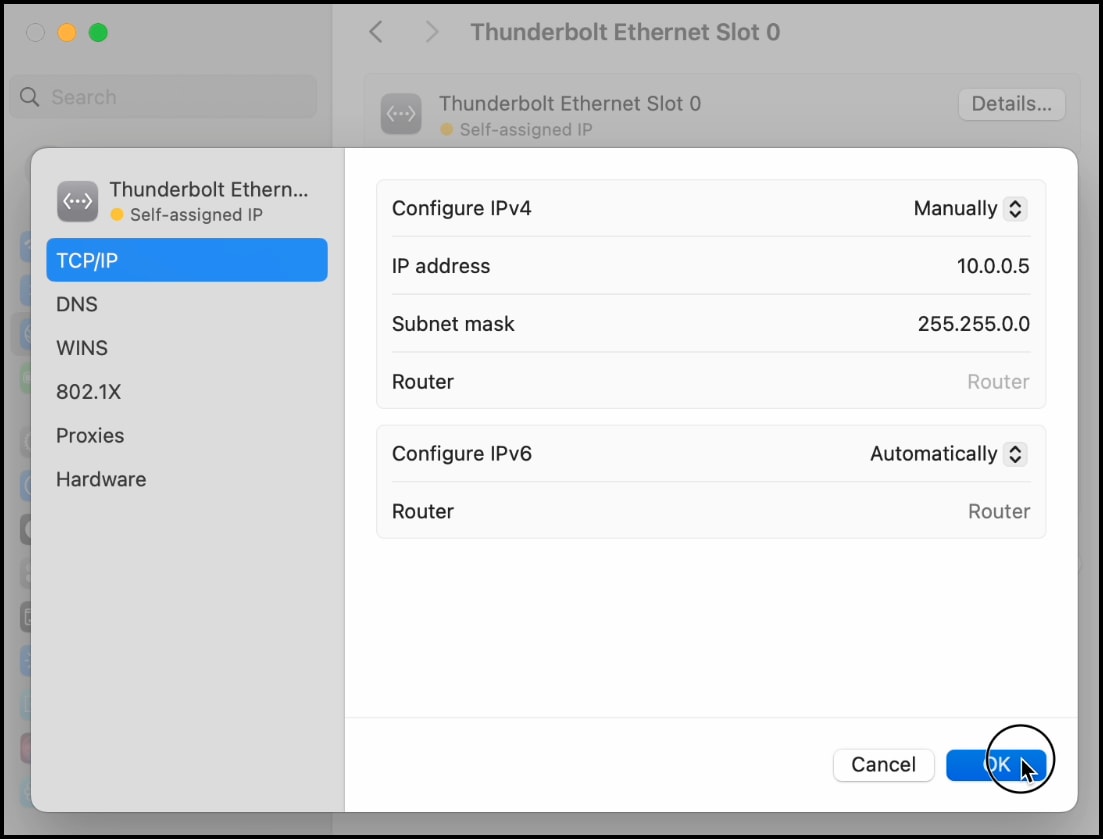

    4. Select the "TCP/IP" category and configure using these settings based on the data or management port currently being used to connect the OWC Archive Pro Ethernet.

    • The last number of the IP address can be set to anything except what is being used by the OWC Archive Pro Ethernet. The following configurations used '5.'

    10GbE RJ45 SFP+ Data Port 1 Connection Mac Network Settings:

    • Configure IPv4: Manually
    • IP address: 10.0.0.5
    • Subnet mask: 255.255.0.0
    • Configure IPv6: Automatically

    10GbE RJ45 SFP+ Data Port 2 Connection Mac Network Settings:

    • Configure IPv4: Manually
    • IP address: 172.16.0.5
    • Subnet mask: 255.240.0.0
    • Configure IPv6: Automatically

    1GbE RJ45 Management Port Connection Mac Network Settings:

    • Configure IPv4: Manually
    • IP address: 192.168.0.5
    • Subnet mask: 255.255.255.0
    • Configure IPv6: Automatically

    5. Click "OK". This completes the Static IP Mac Network Setup.

    1.3 ATTO Web Manager

    The ATTO Web Manager can be used to modify the OWC Archive Pro Ethernet IP address, maximum transmission unit (MTU), change password, or setup a DHCP connection. Users who do not need to make these changes can move onto the next section.

      1. Open a web browser of your choice and type in the address bar the IP address based on the data or management port currently being used to connect the OWC Archive Pro Ethernet. Press "Enter."

      • A non-secure or non-private connection prompt may appear (Safari). Click "show details" and click "visit the website". This prompt relates to local SSL certificates and is not a security concern.

      10GbE RJ45 SFP+ Data Port 1 Connection:

      • Factory Default IP address: 10.0.0.1

      10GbE RJ45 SFP+ Data Port 2 Connection:

      • Factory Default IP address: 172.16.0.1

      1GbE RJ45 Management Port Connection:

      • Factory Default IP address: 192.168.0.1

      2. A login screen for ATTO XstreamCORE 8100T should appear. Enter the following login credentials:

      • Username: admin
      • Password: (located on bottom of device)

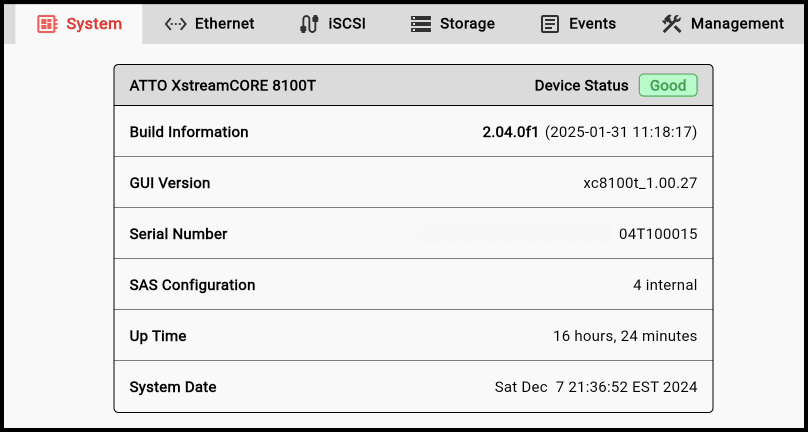

      3. The ATTO XstreamCORE 8100T dashboard will appear. By default the 'System' section will be highlighted displaying device information.

      4. OWC recommends changing the factory default password for the OWC Archive Pro Ethernet. Select the "Management" section. Complete the fields provided under "Reset Password" and select "Change Password."

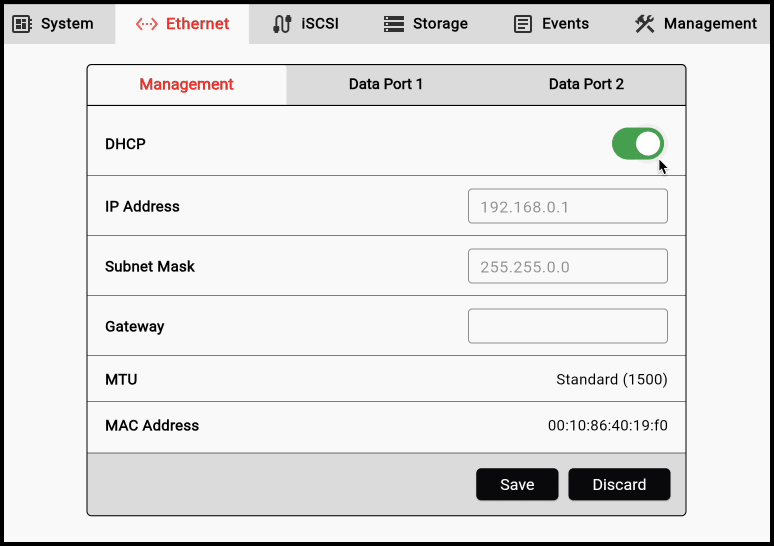

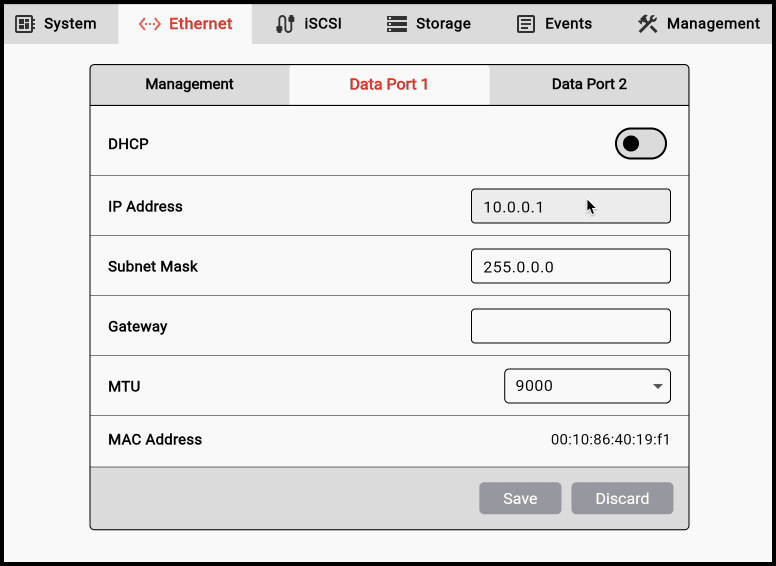

      5. Select the 'Ethernet' category. Users will now have access to edit the OWC Archive Pro Ethernet default network settings for the 10GbE RJ45 SFP+ Data Ports and 1GbE RJ45 Management Port.

      • The IP Address and Subnet Mask can be edited by clicking and typing in the field. Select "Save" after making any changes.
      • The Mac Network Settings may need to be updated if changes were made to the OWC Archive Pro Ethernet. See above Section 1.2 "Static IP Mac Network Setup" for updating instructions.

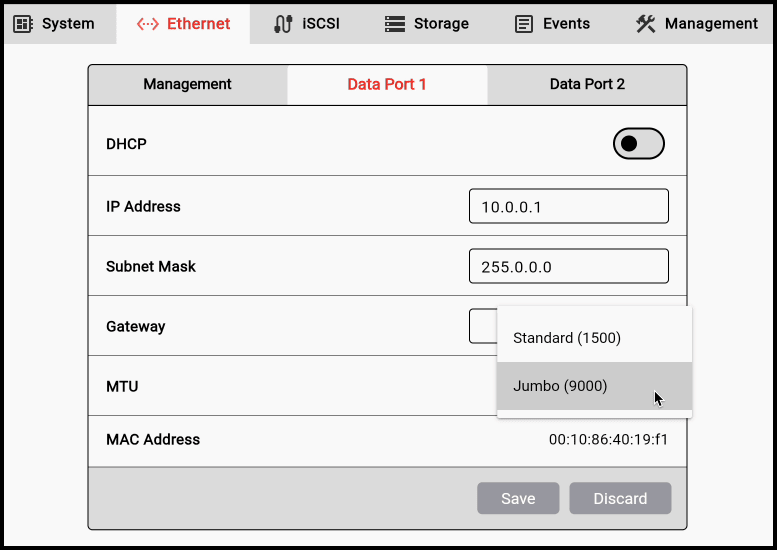

      • Maximum transmission unit (MTU) can be edited by clicking the field and selecting between 'Standard (1500)' or 'Jumbo (9000)'. Click "Save" after making any changes.
        • NOTE: The 1GbE RJ45 Management Port does not support 'Jumbo (9000)' MTU.
      • An optional DHCP connection can be created by toggling on the button. Click "Save" after making any changes.

      6. This completes the (Optional) ATTO Web Manager Setup.

      1.4 Maximum Transmission Unit (MTU) Mac Setup

      The 10GbE RJ45 SFP+ Data Ports of the OWC Archive Pro Ethernet have 'Jumbo (9000)' MTU set from the factory. This requires the editing of the Windows PC network settings.

      • A mixture of devices configured for jumbo frames and standard frames on the same network can cause performance issues. The OWC Archive Pro Ethernet can have 'Jumbo (9000)' MTU edited if a device on the same network doesn't support 'Jumbo (9000)' MTU. Please see Step #4 in Section 1.3 "ATTO Web Manager" for instructions to edit 'Jumbo (9000)' MTU on the OWC Archive Pro Ethernet.

      1. Select the Apple logo, select "System Settings", and select "Network" in the left hand pane.

      2. Locate and select the network associated with the OWC Archive Pro Ethernet.

      • Names of the adapters will vary bested on the connection type. Disconnecting and reconnecting the network cable will toggle the connection helping to ensure the proper network is selected.
      • The following examples are of the OWC Archive Pro Ethernet connected through the 10GbE RJ45 SFP+ Data Port 1.

      3. Select "Details."

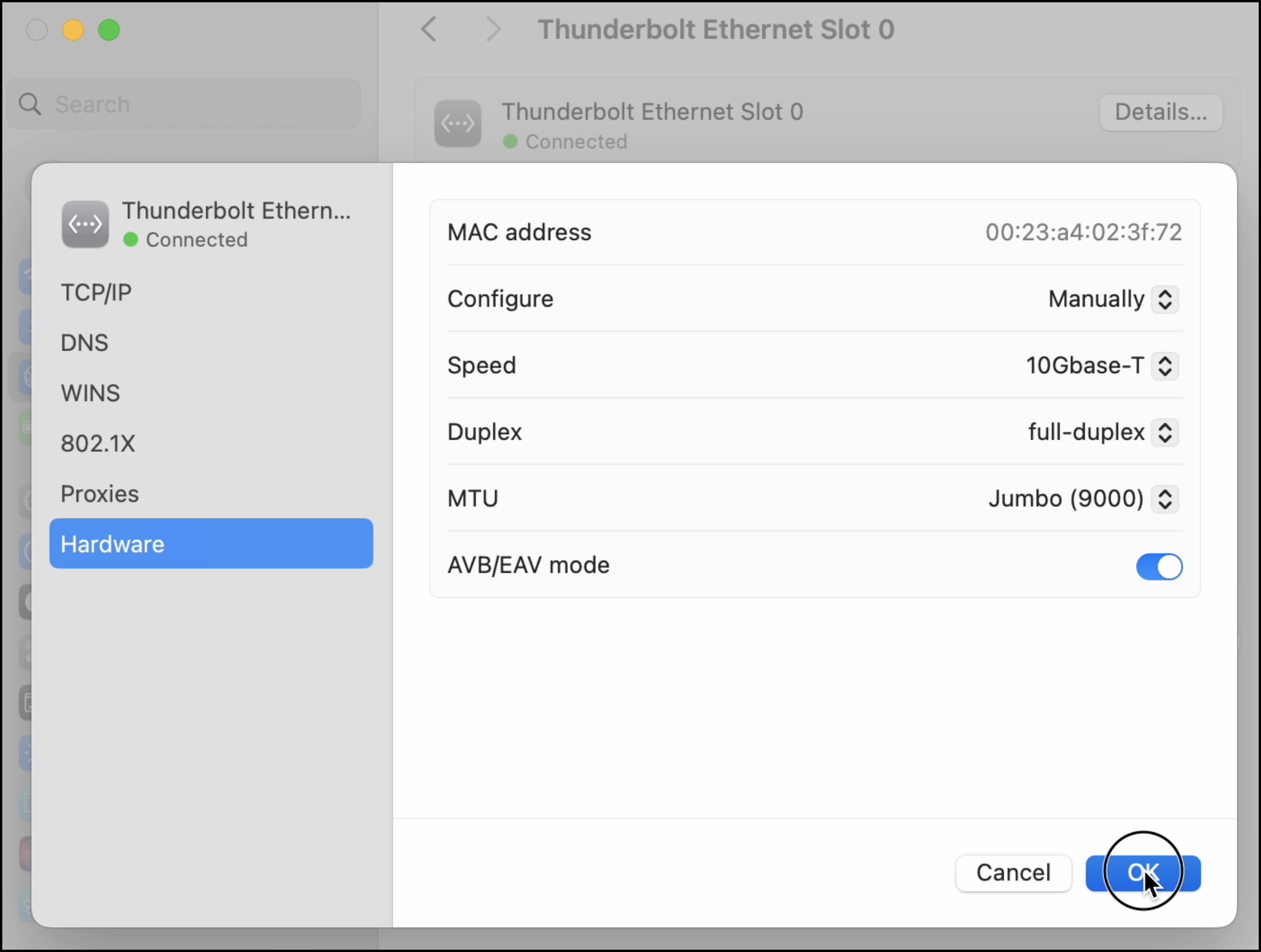

      4. Select the "Hardware" category in the left hand pane and configure the following settings:

      • Configure: Manually
      • Speed: 10Gbase-T
      • Duplex: full-duplex
      • MTU: Jumbo (9000)

      5. Select "OK". This completes the Maximum Transmission Unit (MTU) Mac Setup.

      1.5 iSCSI Initiator Setup

      The OWC Archive Pro Ethernet requires the installation of an iSCSI Initiator to make the device visible for connection. OWC recommends and includes the "ATTO Xtend SAN™ iSCSI Initiator for macOS (v.7)."

      ISCSI Initiator Installation

      1. Download the "ATTO Xtend SAN™ iSCSI Initiator for macOS (v.7)" application. Users may have to scroll down through the software options. Complete the prompts provided during the installation process.

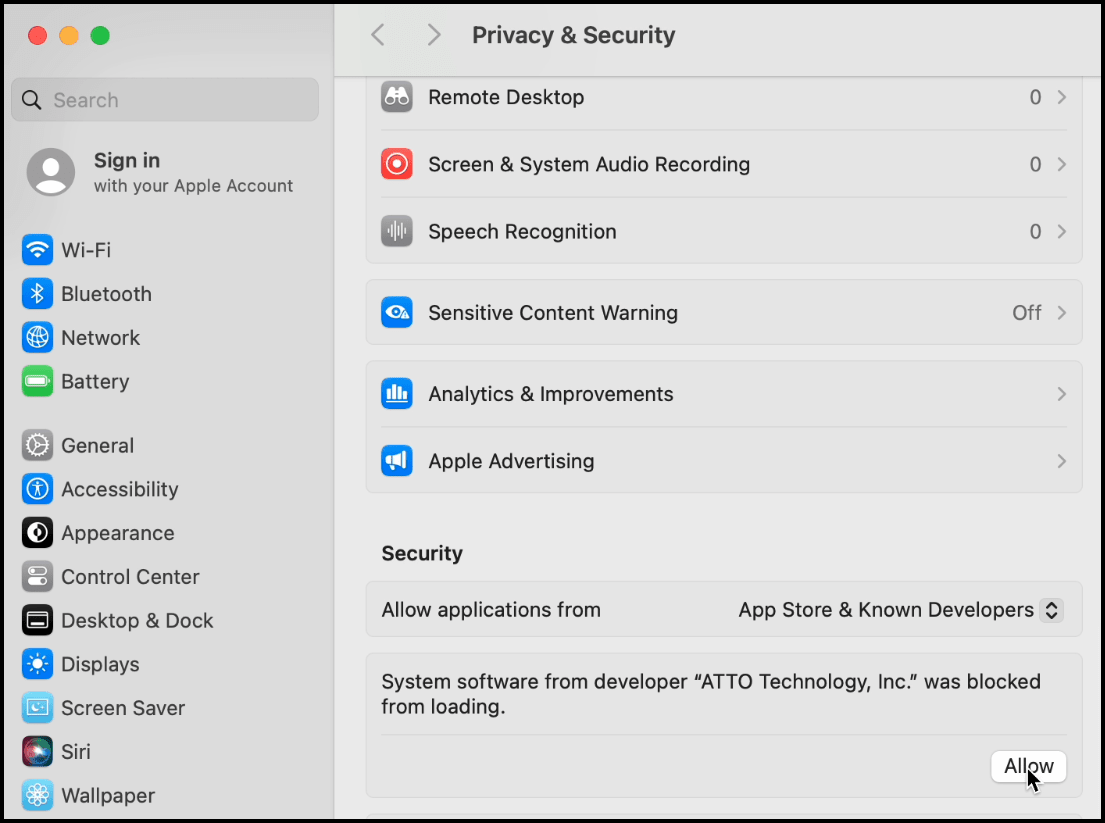

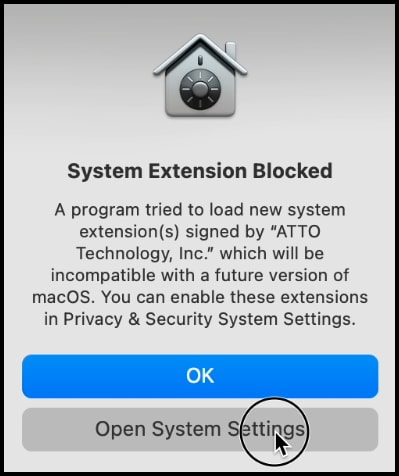

      • The installation may be interrupted with a message asking for system extensions to be enabled. Select "Open System Settings". Users will be directed to the systems Privacy & Security. Select "Allow" to enable the "ATTO Technology, Inc." extension. The system will request a restart. Select "Restart".

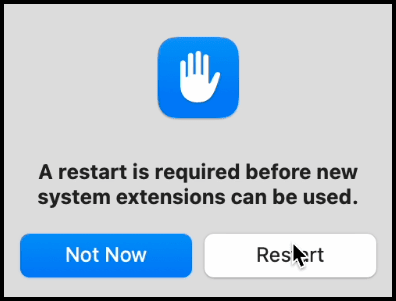

      2. The installation is complete after the system restarts.

      ISCSI Initiator Target Discovery

      1. Launch the "ATTO Xtend SAN™ iSCSI Initiator for macOS (v.7)" application after the system has fully restarted.

      • A license is required to use the ATTO Xtend SAN iSCSI Initiator. Please contact OWC Support for more information about obtaining additional licenses or if the serial number is misplaced.

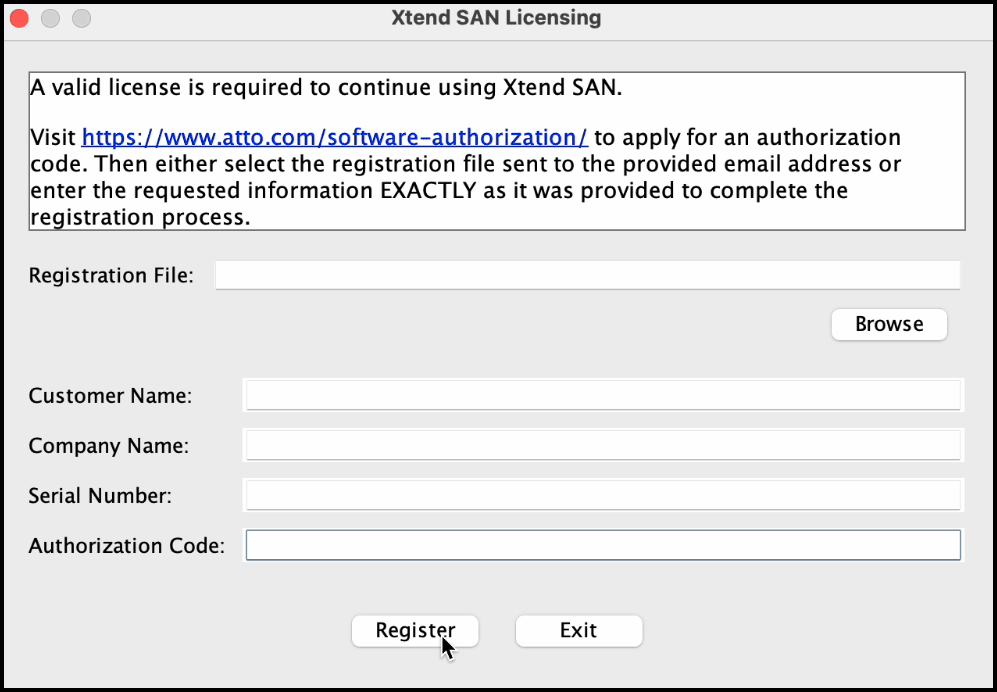

      2. Users will be greeted with a Xtend SAN Licensing window requesting several fields of information. An Authorization Code needs to be obtained from ATTO to complete registration. Begin by visiting the ATTO Software Authorization page.

      • A serial number has been provided on a Getting Started QR Card included with the OWC Archive Pro Ethernet. The Serial Number will be used to obtain the Authorization Code from ATTO.

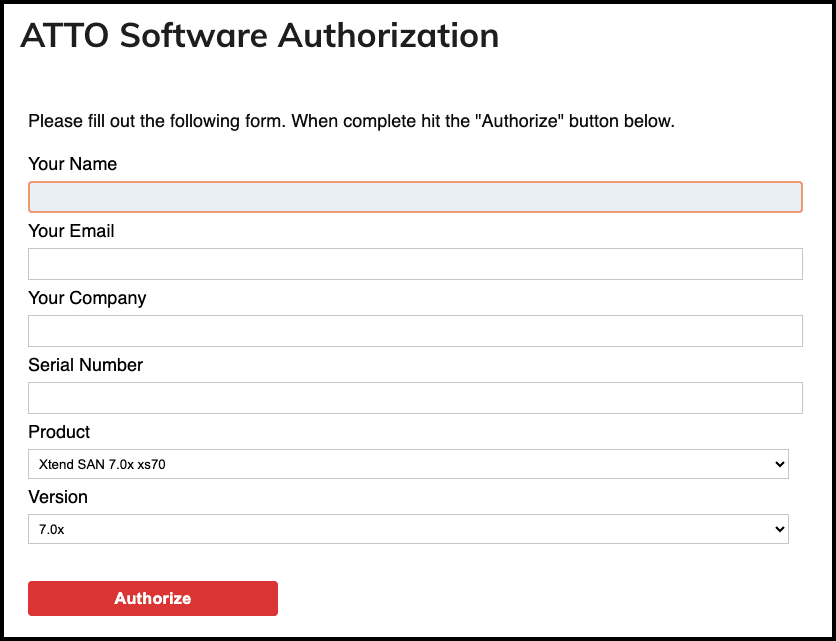

      3. Complete the provided fields and select "Authorize" to obtain an Authorization Code. The Authorization Code may be provided on screen or a Registration File will be sent to the email address provided.

      • Your Name: Enter as user desires
      • Your Email: Enter as user desires
      • Your Company (optional): Enter as user desires
      • Serial Number: Located on Getting Started QR Card included with the OWC Archive Pro Ethernet
      • Product: Xtend SAN 7.0x xs70
      • Version: 7.0x

      4. Complete the provided fields and select "Register."

      • Registration File: Select "Browse" and attached the Registration File if provided by ATTO via email.
      • Customer Name: Same as "Your Name" entered on the ATTO Software Authorization form.
      • Company Name (optional): Same as "Your Company" entered on the ATTO Software Authorization form.
      • Serial Number: Located on Getting Started QR Card included with the OWC Archive Pro Ethernet.
      • Authorization Code: Provided by ATTO after completing the ATTO Software Authorization form.

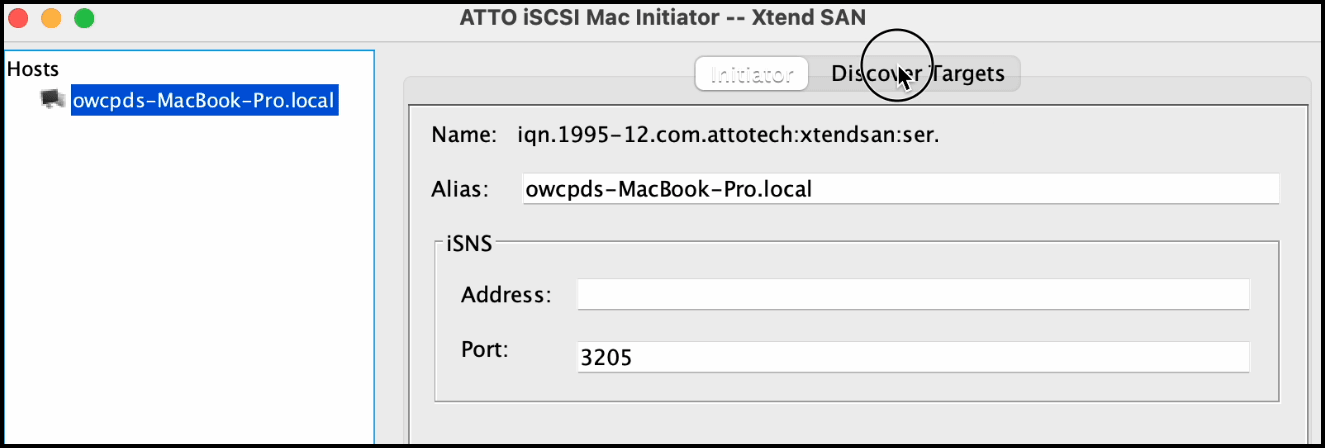

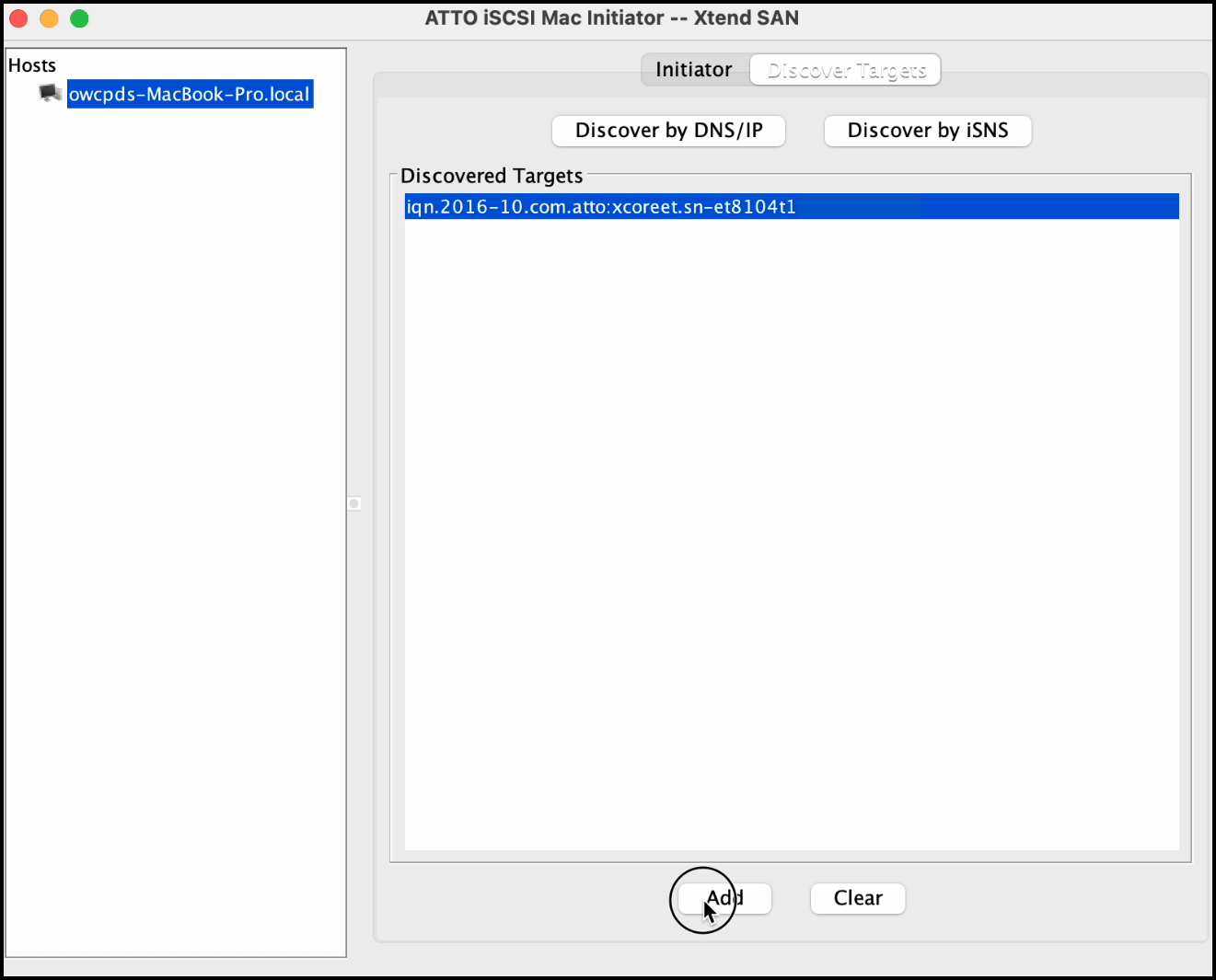

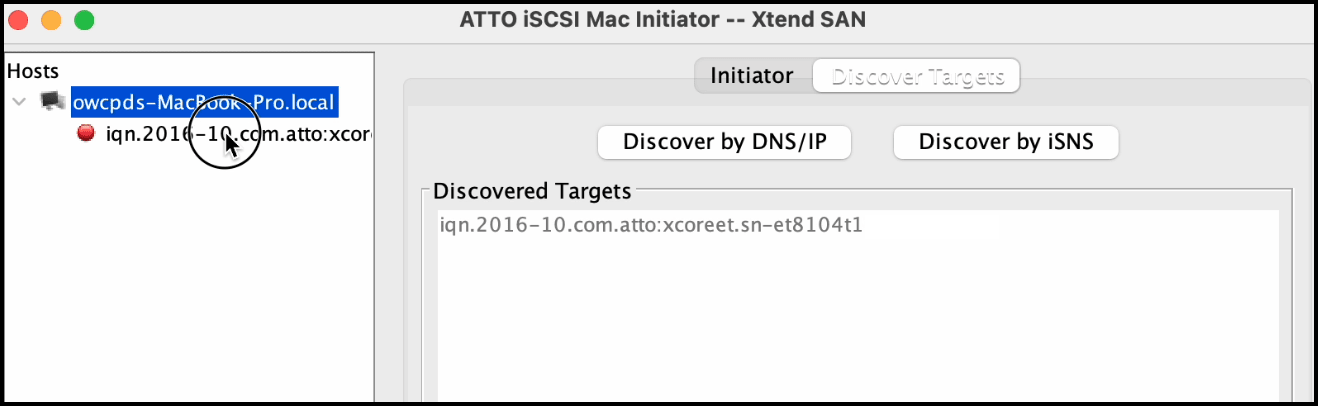

      3. Select "Discover Targets."

      • NOTE: CHAP configuration is supported to add an additional layer of security against unauthorized access. Configuration uses command line access over SSH and requires extensive networking knowledge. Please view Page 22 of the XstreamCORE 8100T User Manual for instructions. Please contact ATTO Technical Support for further assistance with CHAP configuration if needed.

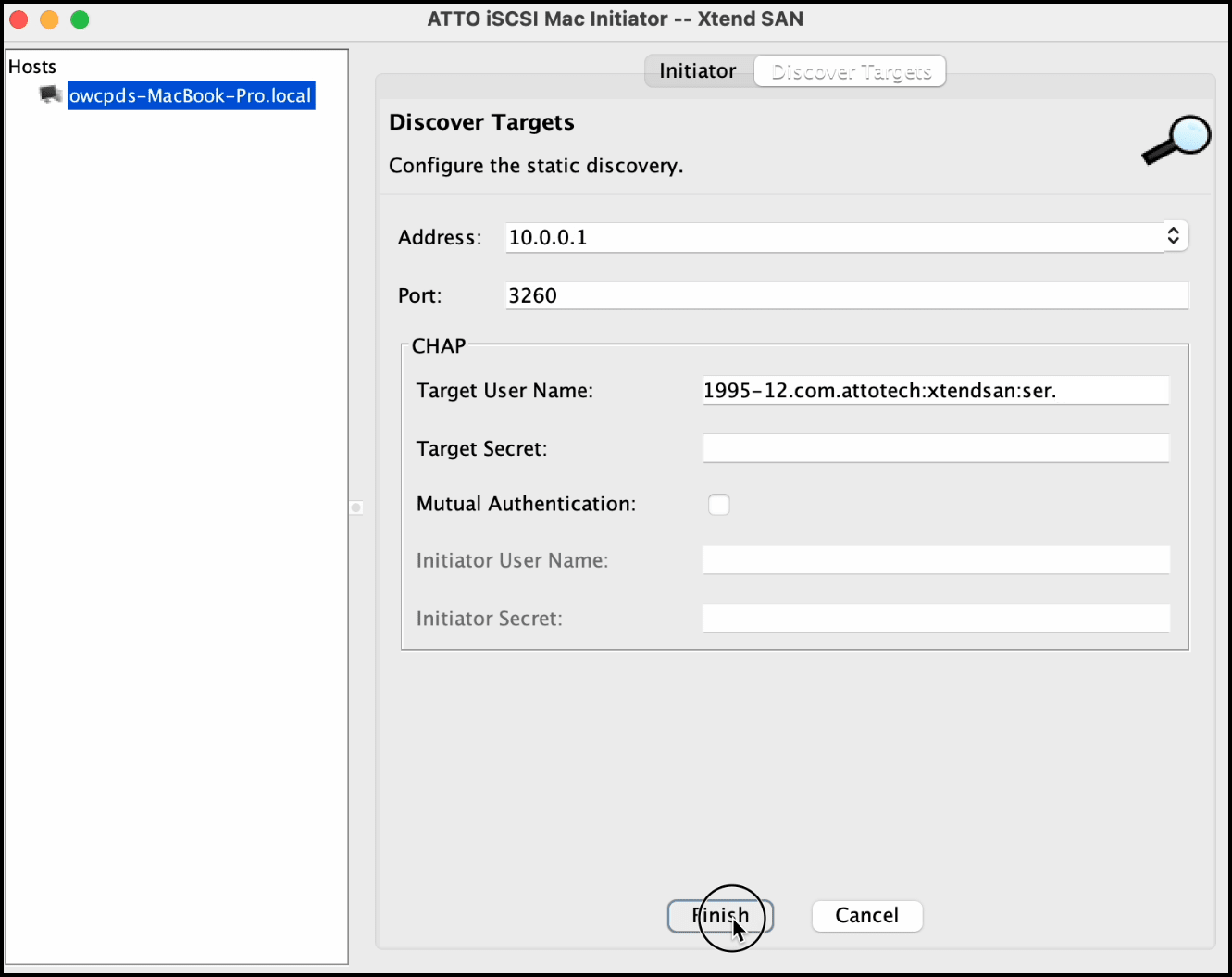

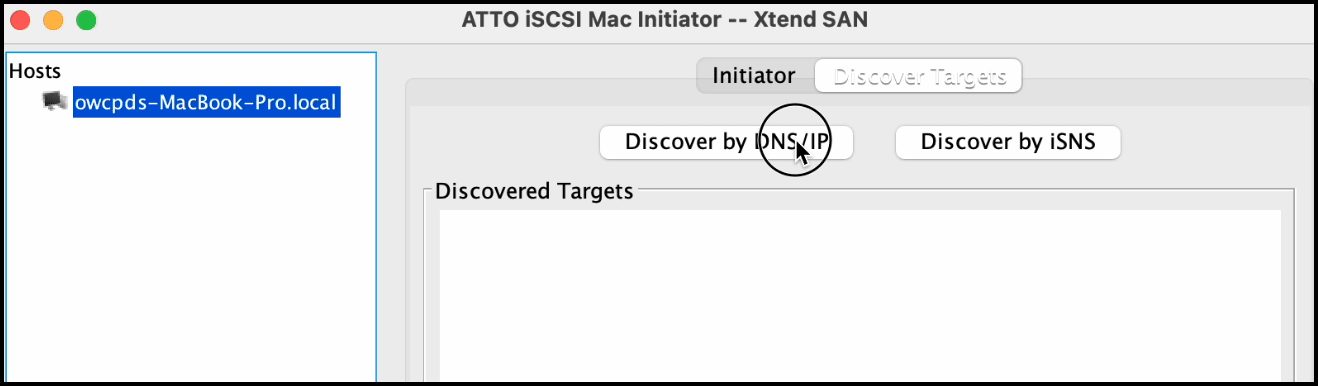

      4. Select "Discover by DNS/IP."

      5. Only edit the IP Address. Enter the IP address based on the data port currently being used to connect the OWC Archive Pro Ethernet. Select "Finish."

      • Use the modified IP address for the OWC Archive Pro Ethernet if changed in the ATTO Web Manager during Section 1.3 "(Optional) ATTO Web Manager Setup."

      10GbE RJ45 SFP+ Data Port 1 Connection:

      • Factory Default IP address: 10.0.0.1

      10GbE RJ45 SFP+ Data Port 2 Connection:

      • Factory Default IP address: 172.16.0.1

      6. Select the Discovered Target from the central panel and select "Add"

      7. Select the added discovered target located under Hosts in the left hand pane.

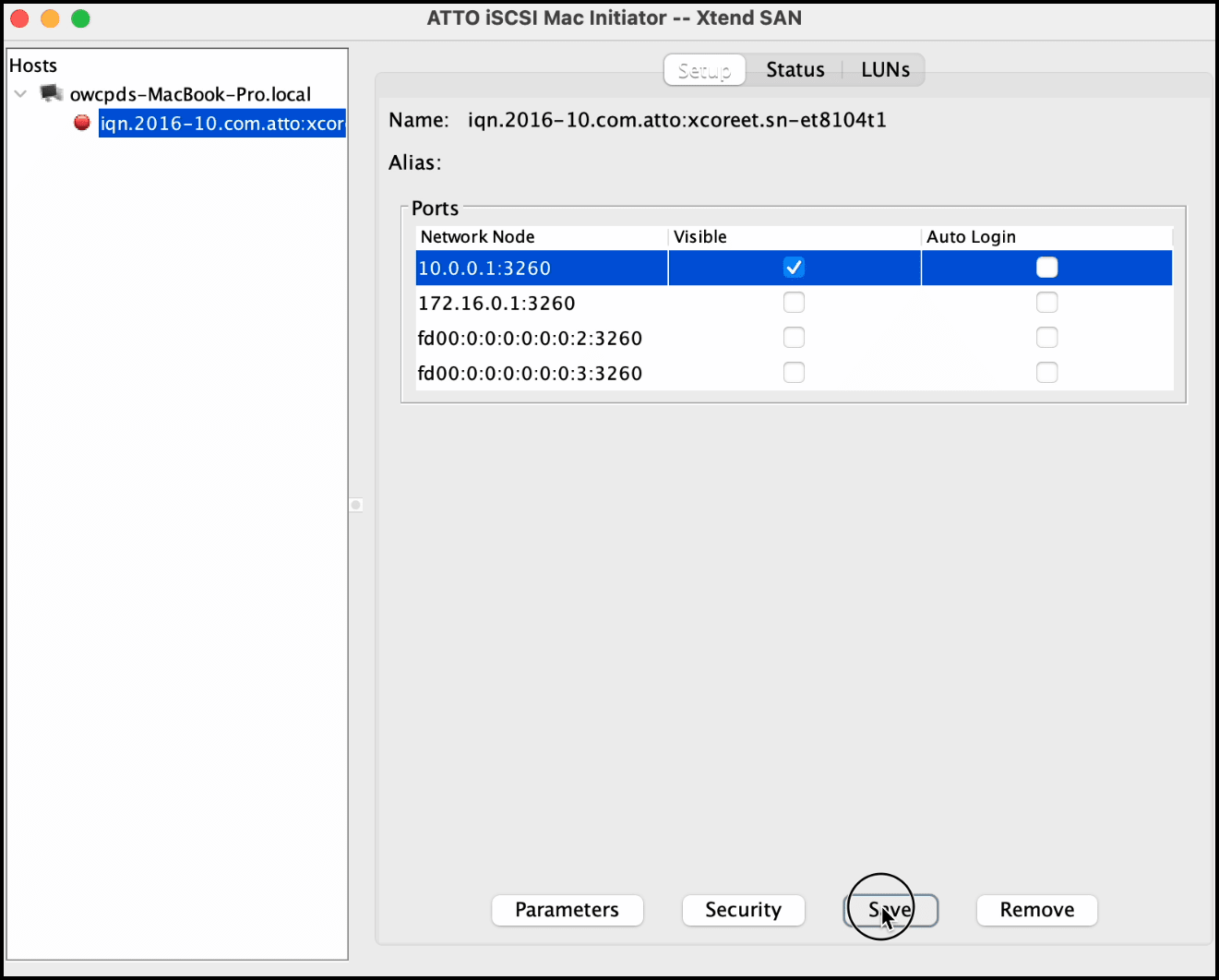

      8. Locate the Network Node associated with the OWC Archive Pro Ethernet and select "Visible". Then select "Save."

      • The Network Node will be the IP Address used for initially locating the target.
      • "Auto Login" can also be selected. Enabling will remove the need to connect the OWC Archive Pro Ethernet through the ATTO iSCSI Initiator.

      9. While the OWC Archive Pro Ethernet network node is highlighted, select the "Status" tab.

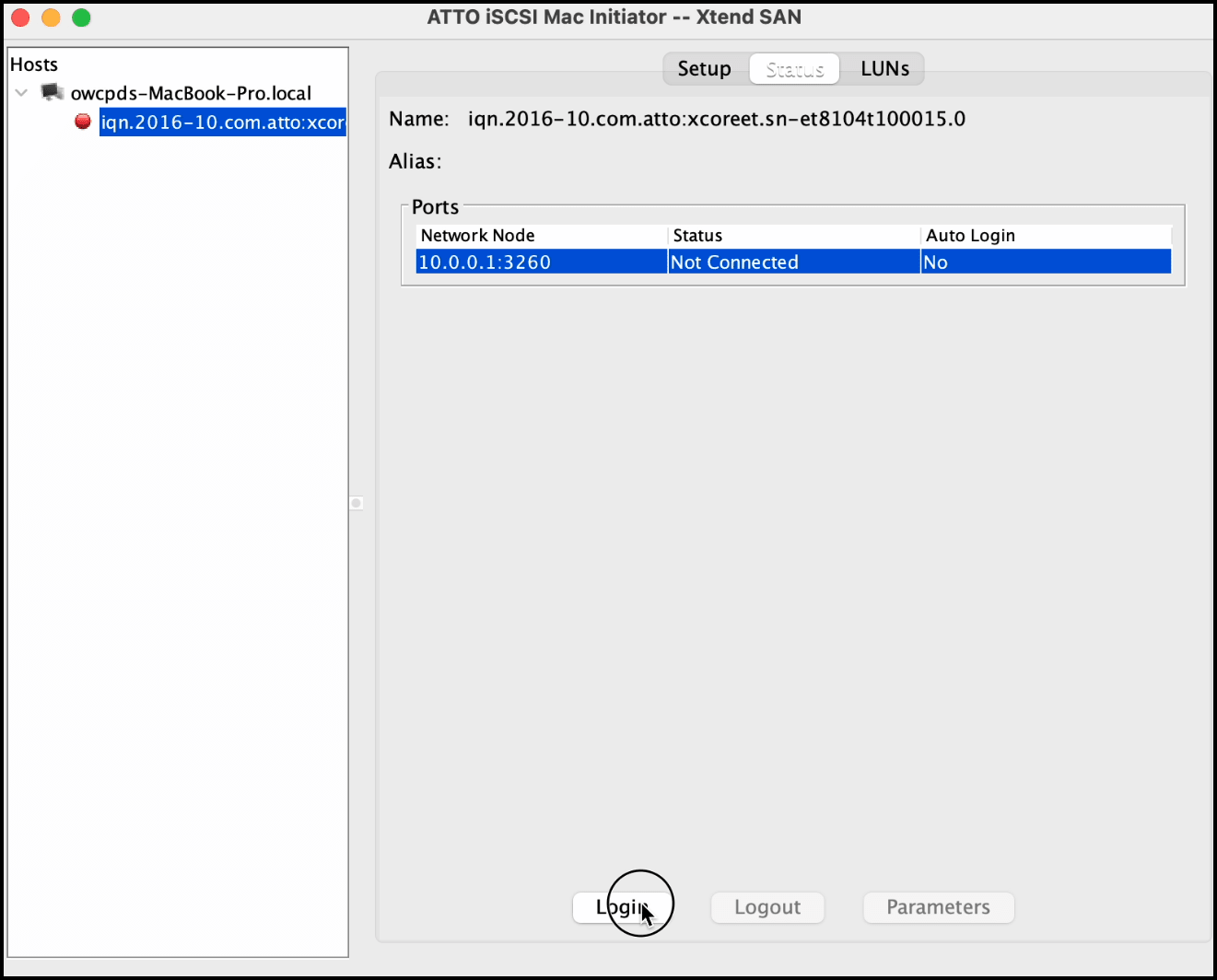

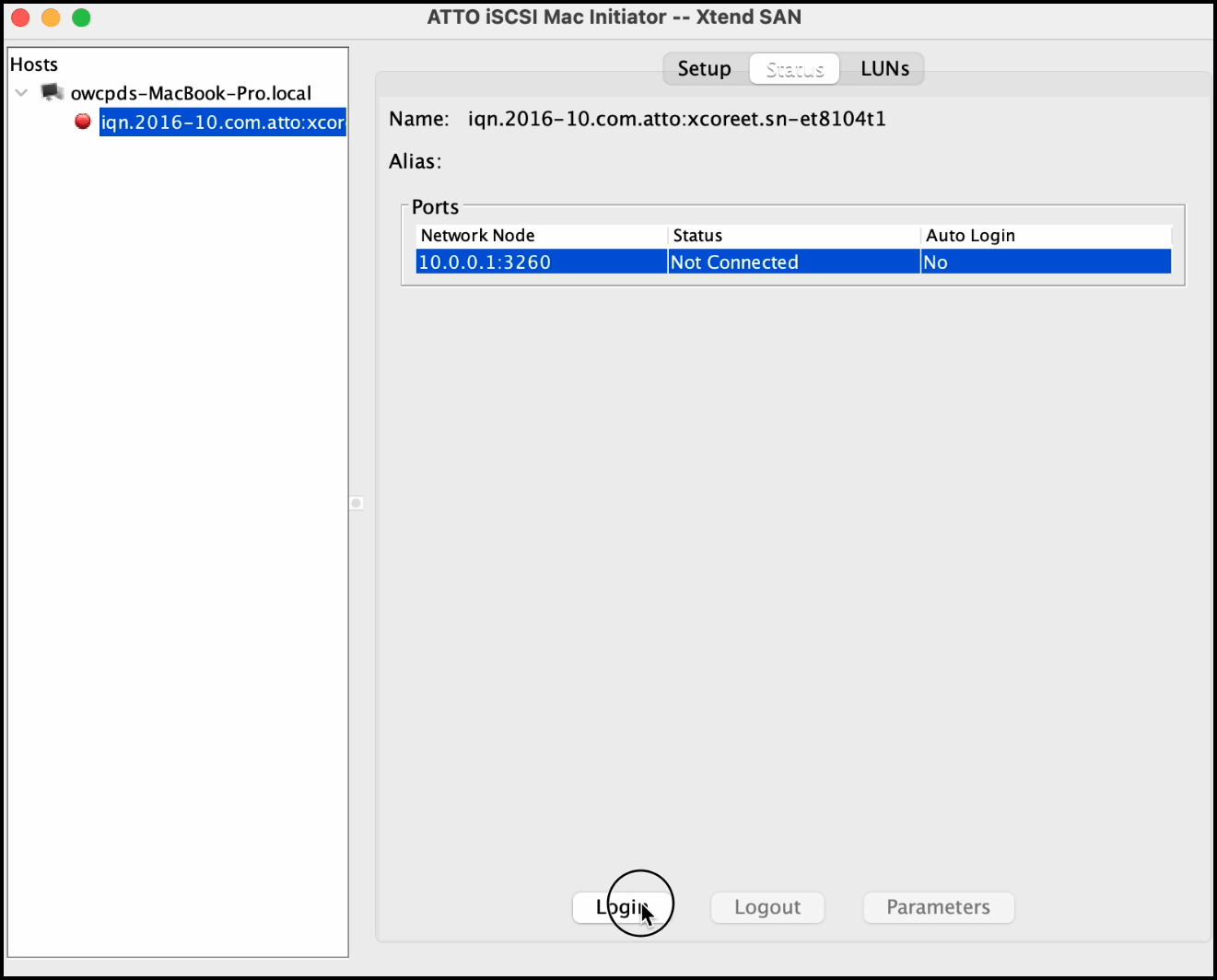

      10. Select the OWC Archive Pro Ethernet network node and select "Login."

      11. The OWC Archive Pro Ethernet is now visible and connected to the Mac.

      1.6 Hedge Canister Drivers

      1. Obtaining a LTO Interface software such as Hedge Canister is needed to acquire additional drivers (IBM ICU, Macfuse, and IBM LTFS).

      • NOTE: Hedge Canister is included with the OWC Archive Pro Ethernet.

        2. Register the copy of Hedge Canister by visiting go.owc.com/canister. Complete the step-by-step instructions presented.

        • The serial number is provided on an insert card that came with the OWC Archive Pro Ethernet. If the serial number is misplaced, please contact OWC Support.
        • Please visit Hedge Canister support for additional details.

        3. LTO-9 tape requires an initializing process before use. Please consult the support guide "LTO-9 Tape Initialization".

        4. This completes the Mac OWC Archive Pro Ethernet Initial Setup.

        Connection Management

        2.1 Disconnecting the Device

        1. Launch the "ATTO Xtend SAN™ iSCSI Initiator for macOS (v.7)" application.

        2. Select the OWC Archive Pro Ethernet target located under Hosts in the left pane and select "Status."

        3. Select the OWC Archive Pro Ethernet network node and select "Logout."

        4. The OWC Archive Pro Ethernet is no longer connected to the Mac.

        2.2 Reconnecting the Device

        1. Launch the "ATTO Xtend SAN™ iSCSI Initiator for macOS (v.7)" application.

        2. Select the OWC Archive Pro Ethernet target located under Hosts in the left pane.

        • NOTE: Enabling "Auto Login" will remove the need to reconnect the OWC Archive Pro Ethernet through the ATTO iSCSI Initiator. Check the "Auto Login" box after selecting the OWC Archive Pro Ethernet under Hosts.

        3. Select "Status."

        4. Select the OWC Archive Pro Ethernet network node and select "Login."

        5. The OWC Archive Pro Ethernet is now connected to the Mac.
