Express
Assembly Manual & User Guide
Introduction
1.1 Minimum System Requirements
Mac Requirements
- USB port: OS X 10.2 or later
PC Requirements
- USB port: Windows XP® or later
1.2 Drive Compatibility
- Any 2.5” SATA drive up to 9.5 mm tall
1.3 Package Contents
- OWC Express enclosure (USB 3 model shown)
- Short, machine-threaded Phillips screws to secure drive in the enclosure (2)
- Long, coarse-threaded Phillips screws to seal the enclosure (2)
- USB cable * (not pictured)
* Cable will be USB 2.0 Mini-B or USB 3.1 Gen 1 Micro-B, depending on the model.
1.4 Enclosure Features

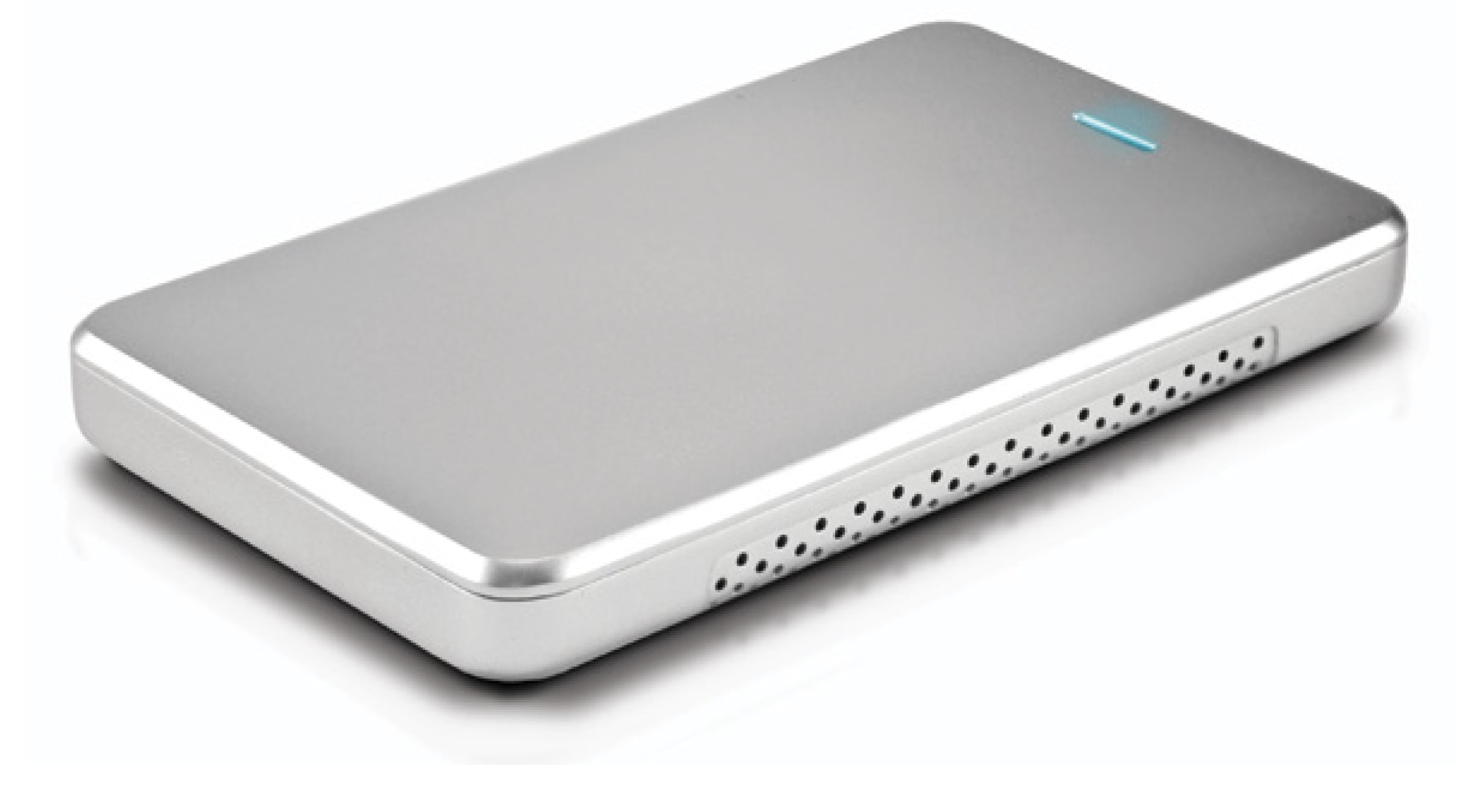

LED indicator (top) — This LED emits a solid blue light when the OWC Express is powered on and flashes during drive activity.
USB port (rear) — Attach the included USB cable here.
1.5 About This Manual
The images and descriptions may vary slightly between this manual and the unit shipped. Functions and features may change depending on the firmware version. Please visit the product web page for the most recent product specifications.
Device Setup
2.1 Assembly
NOTE: The pictures used in these instructions depict the USB 3.1 Gen 1 version of the OWC Express. The exact same steps are used for the USB 2.0 version; only the shape of the connector on the outside of the enclosure is different. In addition, your Express enclosure may be black rather than silver.
1. First, remove the top cover from the Express enclosure. Inside the bottom case you will see a small plastic bag containing the screws needed for assembly. Remove the bag and set aside the screws for now.

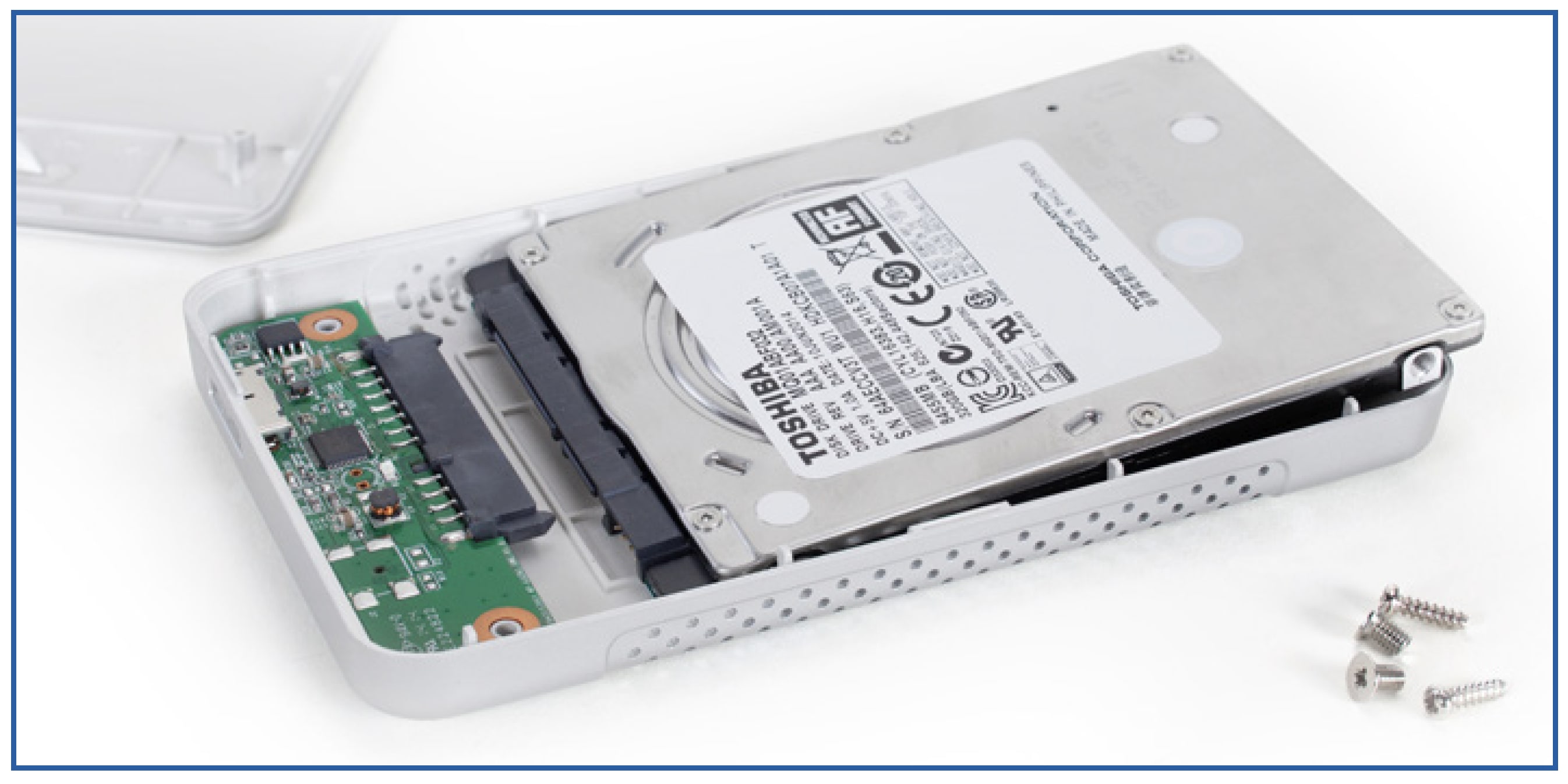

2. Install the 2.5 inch SATA drive (up to 9.5 mm tall). As shown below, insert the drive into the bottom case of the OWC Express at a shallow angle, lining up the SATA connector on the drive with the connector in the case. Make sure the drive is fully seated into the case connector, then proceed to the next step.

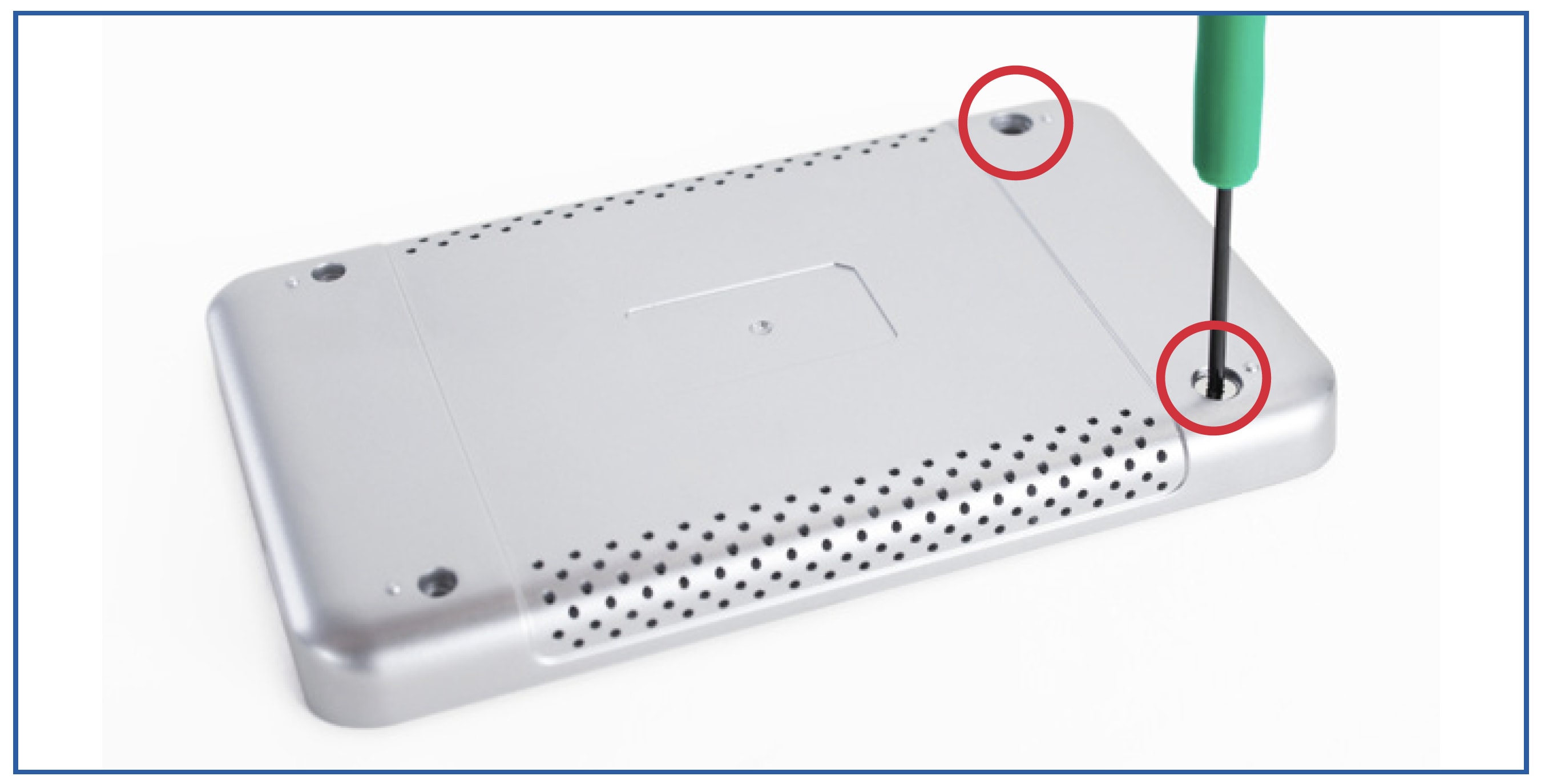

3. Use one hand to keep the drive from falling out of the bottom case, then flip the case upside down to access the screw holes. Use a Phillips driver to install the two shorter screws in the holes highlighted below in red. This will secure the drive to the bottom case. When you have installed both screws, flip the bottom case back over.

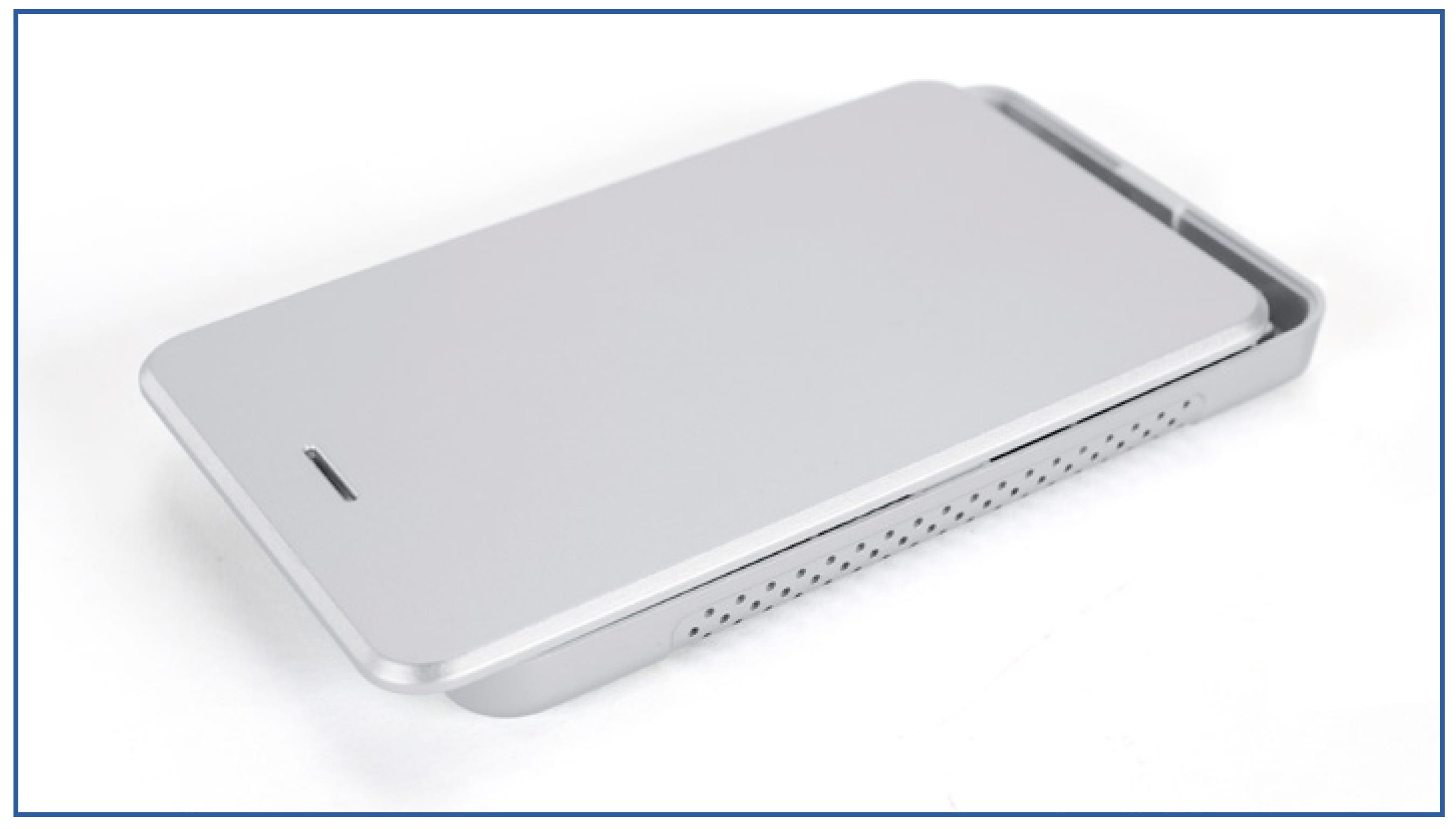

4. Position the top cover on top of the bottom case, as shown in the picture below.

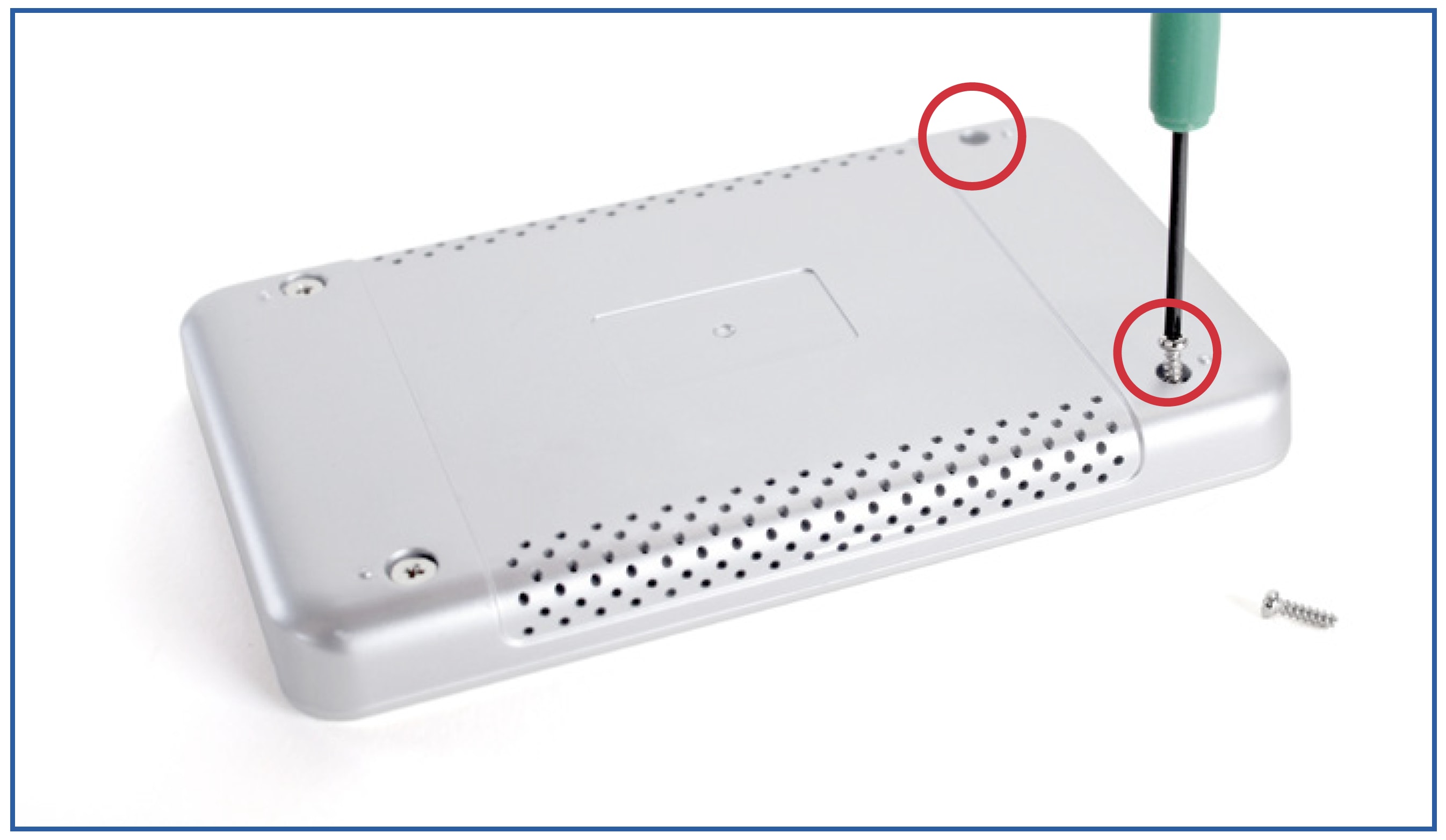

5. Make sure the top cover is aligned with the bottom case. Hold the top cover and the bottom case with one hand then flip the enclosure. Use a Phillips driver to install the two longer screws into the screw holes circled below. This will fully secure the top cover to the bottom case.
The assembly process is now complete.
The OWC Express enclosure is now ready for use. For instructions on how to use the Express enclosure to migrate data from one drive to another, see Section 3.4 About Data Backup.
Support Resources
3.1 Usage Notes
- To see a step-by-step walkthrough for migrating your data from an old drive to a new one, go to: www.owcdigital.com/support/data-transfer
- The OWC Express is designed to receive all needed power through the USB cable, therefore a separate power adapter is not necessary.
- For the safe removal of your drive and to ensure that no data is lost, always eject or unmount the drive from your operating system before disconnecting.
3.2 Formatting
For tips on formatting your Express enclosure, go to: www.owcdigital.com/format
3.3 Troubleshooting
Begin by verifying that the USB cable is properly plugged into the computer and the OWC Express. If the OWC Express is still not working, try a different USB cable. You can also connect it to a different USB port or a different computer. If problems persist, please contact OWC Support.
3.4 About Data Backup
To ensure your files are protected and to prevent data loss, we strongly suggest that you keep two copies of your data: one copy on your OWC Express and a second copy on either your internal drive or another storage medium, such as an optical backup, or on another external storage unit. Any data loss or corruption while using the OWC Express is the sole responsibility of the user, and under no circumstances may OWC, its parent, affiliates, officers, employees, or agents be held liable for loss of the use of data including compensation of any kind or recovery of the data.
