OWC ThunderBay 6

Support Manual

Jump to a Topic
Jump to a Topic


1.1 System Requirements

Operating System

  • Mac: macOS 10.13 or later
  • PC: Windows 10 or later


  • Mac or PC with Thunderbolt 3 or later

Supported Drives

  • 3.5-inch or 2.5-inch SATA drives
  • NVMe or AHCI M.2 SSD with 2280 form factor

1.2 Package Contents

  • (1) OWC ThunderBay 6
  • (1) Thunderbolt cable
  • (1) Power cable
  • (2) Security keys
  • (1) 3 Years of SoftRAID Premium Access (License located on bottom of device)

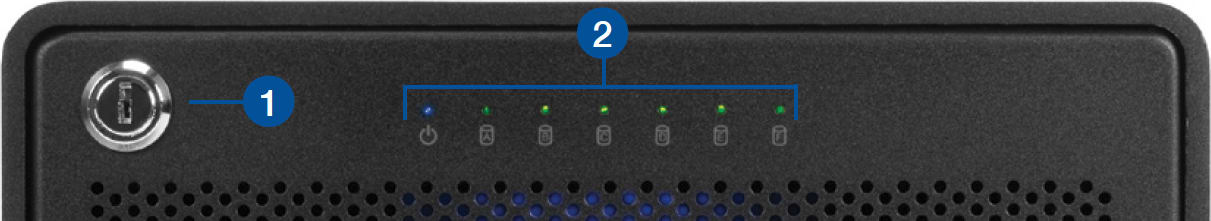

1.3 Front View

  1. Security Faceplate Lock – Use the included keys to lock or unlock the faceplate for access to the drive bays.
  2. Drive Status LEDs - Power Only = Orange / Power & Data = Blue / Drive Activity = Flashing Green

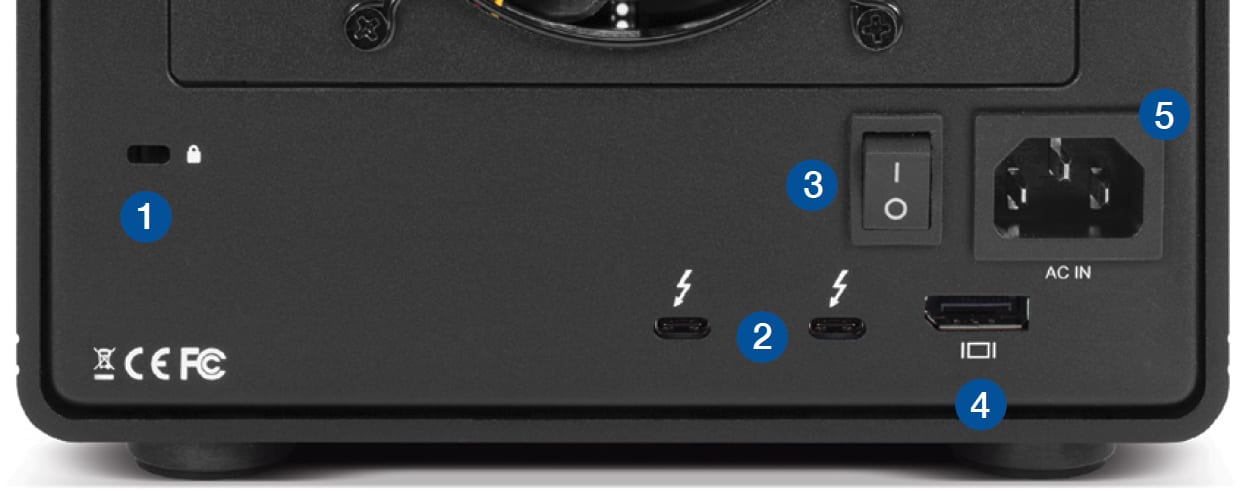

    1.4 Rear View

    1. Kensington Security slot – Attach a Kensington Security lock
    2. Thunderbolt 3 ports – Connect to the computer host or chain additional Thunderbolt 3 devices
    3. Power Switch – Engage and disengage power to the device
    4. DisplayPort 1.2 – Connect a DisplayPort display
    5. Power Port – Connect the power cable to power the device

    Getting Started

    2.1 Device Setup

    • This section describes the process of setting up the OWC ThunderBay 6 if purchased with pre-installed drives. The OWC ThunderBay 6 is available assembled with (8) SATA HDDs configured as an OWC SoftRAID RAID 5.
      • Plug the power cable into the OWC ThunderBay 6 power port located on the back and into a power outlet.
      • Connect the included Thunderbolt cable to the Thunderbolt 3 port located on the back of the OWC ThunderBay 6 and into a computer.
    • The OWC ThunderBay 6 is configured as an OWC SoftRAID RAID 5. Downloading and installing the latest version of SoftRAID is recommended to experience the best performance.
      • NOTE: OWC ThunderBay 6 devices come bundled with "3 Years of SoftRAID Premium Access". Please visit OWC SoftRAID Product Details for more information regarding SoftRAID and the bundled Premium Access.
      • NOTE: The OWC SoftRAID license is located behind the Security Faceplate of the OWC ThunderBay 6.

    Mac OWC SoftRAID Setup

    Windows OWC SoftRAID Setup

    • If you are using the OWC ThunderBay 6 with the Windows operating system, the pre-installed drives need to be reconfigured before they can be used. The following options will allow the Mac formatted OWC ThunderBay 6 to work as a Windows formatted device.

    2.2 Assembly Steps

    This section describes the process of installing drives into the OWC ThunderBay 6 if purchased as a bare enclosure.

    1. Insert one of the keys into the lock on the top left of the security faceplate.

    2. Turn the key clockwise, then pull it towards you. The faceplate will swing open.

    3. Pull up on the faceplate to remove it.

    4. On the drive tray you wish to remove, turn the thumbscrew counter-clockwise until you no longer feel resistance. Then hold onto the thumbscrew and pull the drive tray out

    5. Set the drive tray as shown on your work surface. If you are replacing an existing hard drive, unscrew it from the drive tray at this time. Note: the highlighted screw holes are for 2.5-inch drives. The holes for 3.5-inch drives are highlighted in green (Step 7).

    6. Place the hard drive inside the drive tray as shown. The label should face up and the SATA connectors should be on the far rear corner of the drive.

    7. Fasten the drive into the drive tray using six of the included screws (three per side)

    8. Slide the drive tray back into the rails in the ThunderBay 6 and push until it is seated fully, then push in on the thumbscrew and turn it clockwise until it stops turning. If you encounter resistance, do not force the drive tray. Remove it, check to make sure there are no obstructions and that the drive tray is lined up correctly, then slide it in again.

    9. The installed drives are ready to be formatted. Move onto section 2.3 “RAID Configuration Options” for instructions on how to format and configure the OWC ThunderBay 6.

    2.3 RAID Configuration Options

    OWC SoftRAID RAID Configuration

    • Downloading and installing the latest version of OWC SoftRAID is recommended to experience the best performance from the OWC ThunderBay 6.
      • NOTE: OWC ThunderBay 6 devices come bundled with "3 Years of SoftRAID Premium Access". Please visit OWC SoftRAID Product Details for more information regarding SoftRAID and the bundled Premium Access.
    • SoftRAID will assist with formatting the installed drives and setting up a RAID volume.
      • NOTE: The OWC SoftRAID license is located behind the Security Faceplate of the OWC ThunderBay 6.

    Mac OWC SoftRAID Setup

    Windows OWC SoftRAID Setup

    Mac RAID Configurator

    1. Open the “Disk Utility” application on your Mac.
    2. Choose “File” and select “RAID Assistant”.
    3. Select a set type:
      • Striped (RAID 0) set: A striped RAID set can speed up access to your data. You can’t create a RAID set on your startup disk; you must first start up your computer from another disk.
      • Mirrored (RAID 1) set: Protect your data against hardware failure with a mirrored RAID set. When you create a mirrored RAID set, your data is written to multiple disks so the information is stored redundantly. You can’t create a RAID set on your startup disk; you must first start up your computer from another disk.
      • Concatenated (JBOD) set: Increase storage space with a concatenated disk set. If you need one large disk, but you have several smaller disks, you can create a concatenated disk set to use as one large disk.
    4. Select the checkboxes of the disks you want to include in the set.
    5. For each disk, click the pop-up menu in the Role column and choose “RAID slice” or “Spare” to designate the disk as a standard member or spare in the set, then click Next.
    6. Enter a name for the RAID set in the RAID Name field.
    7. Click the Format pop-up menu, then choose a volume format that you want for all the disks in the set. (See File system formats available in Disk Utility.)
    8. Click the “Chunk size” pop-up menu, then choose a disk chunk size that you want used for all the disks.
      1. When you create a striped set, chunks of data from the same file are distributed across the drives. Ideally, you want data distributed across drives evenly and at an optimum size so that it can be efficiently accessed. If you want high data throughput from your set, choose a smaller chunk size so that data is spread across the drives and one drive can be accessing data while another is seeking the next chunk. With mirrored disk sets, choose a chunk size that matches the data you’re accessing. For example, when working with video files, your Mac is accessing large chunks of data, whereas when using a database of many small records, your disks may be accessing smaller chunks of information.
    9. If you are creating a mirrored RAID set, select the “Automatically rebuild” checkbox to allow the set to be automatically rebuilt when member disks are reconnected
    10. Click "Create" and then click "Done".

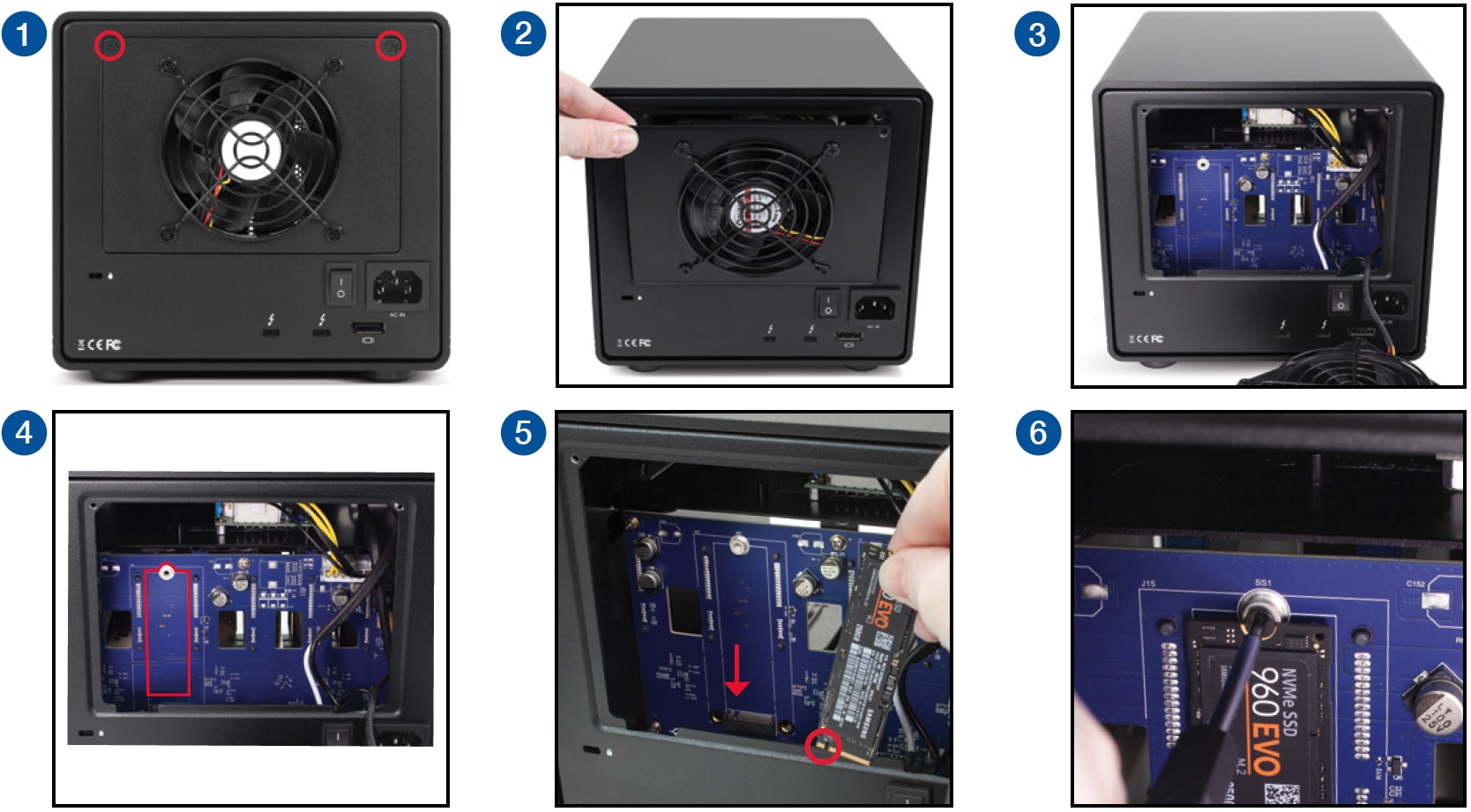

    NVMe M.2 SSD Installation

    Follow the steps shown below to install the optional M.2 drive. This drive can be formatted and used like any other, including with SoftRAID arrays. NVMe and AHCI M.2 SSDs are both supported.

    1. Use the Phillips driver to remove the two fan housing screws highlighted above.
    2. Steady the fan housing, allowing it to tilt away from the rest of the enclosure. Note that the fan cabling will remain connected.
    3. Carefully set the fan housing flat on the work surface as shown, taking care not to disconnect or damage any cabling.
    4. Note the location of the M.2 slot and screw post, highlighted at left. Remove the screw from the post and then set it aside.
    5. Hold the drive so that the “M-Key” (highlighted) is on the left, then place the drive inside the case so its connector align with the corresponding notch (see arrow) and M.2 connector on the circuit board.
    6. Use the screw that was removed in Step 12 to affix the M.2 drive to the mounting post.
    7. Reseat the fan housing that was removed in Step 3, then re-affix the two screws removed in Step 1

    Device Management

    3.1 Drive Failure

    • If the OWC ThunderBay 6 was configured as a RAID 0, the data on the array is lost and the disk is no longer usable.
    • If the OWC ThunderBay 6 was configured as a RAID 5, the RAID card will alert the user with a beeping tone. The RAID can continue to be used, but the drive should be replaced immediately.

    3.2 Replacing Drives

    • The Hot-Swap function can be used to rebuild disk drives in arrays with data redundancy such as RAID level 1, 3, 5, 6, 10, 30, 50 and 60. The data will remain accessible via the functioning drive until the array is rebuilt with a new drive.
      • If the enclosure was purchased with drives and it is still under warranty, contact OWC technical support for assistance (see section 4.4 “Contacting Support”). If the unit is outside its warranty or was purchased without drives, follow the assembly instructions to access and replace the failed drive.
        • NOTE: A failed drive must be replaced with an identical drive (model, capacity, firmware). Refer above to section 2.2 “Assembly Steps” for drive replacement steps.
        • NOTE: The OWC ThunderBay 6 needs an active data signal to remain powered on. If it is disconnected from the computer, or if the computer goes to sleep or turns off, the device will power off. To minimize the rebuild time, it is recommended to keep the device connected to the computer (with the computer powered on), and disable any drive sleep settings on the computer for the duration of the rebuild.

    3.3 OWC Disk Performance

    As of Windows 10 v. 1809 the default Disk Removal Policy is ‘Quick removal’ instead of ‘Better performance’.

    NOTE: OWC storage solutions that are experiencing slow read/write speeds should consider checking and changing the Windows disk removal policy. Changing from "Quick removal" to "Better performance" can increase disk performance. OWC offers the application OWC Disk Performance to help change the Disk Removal Policy. Changing from "Quick removal" to "Better performance" can also be changed through OWC SoftRAID or manually through the operating system.

    Please review the support article Storage Solutions: OWC Disk Performance for additional details.

    3.4 Manually Unmounting Volumes

    To ensure no data is lost during normal use, always eject or unmount the corresponding volume(s) from the operating system before powering off and disconnecting the device. Unmounting options are provided below.


    • Drag the icon for the device you wish to unmount to the trash can; OR
    • Right-click the device icon on the desktop, then click “Eject”; OR
    • Highlight the device on your Desktop and press Command-E.


    • Windows 10 build 1809 (October 2018) or later:
      • Eject the drive by clicking the ‘Show hidden items’ menu in the Taskbar, then clicking ‘Safely Remove Hardware and Eject Media’, and last select the ‘Eject’ option for this volume.
    • Windows 10 build 1803 and earlier:
      • Go to the System Tray (located in the lower right corner of your screen). Click on the “Eject” icon (a small green arrow over a hardware image).
      • A message will appear, detailing the devices that the “Eject” icon controls, i.e., “Safely remove...” Click on this prompt.
      • You will then see a message that says, “Safe to Remove Hardware.” It is now safe to disconnect the device from the computer.

    3.5 Usage Notes

    • Thunderbolt device chains can support up to six Thunderbolt devices.
    • By using the DisplayPort feature, the overall performance of the drive may decrease somewhat, as the DisplayPort shares bandwidth with the Thunderbolt 3 ports. The same is true if you connect a display to one of the available Thunderbolt 3 ports (this can be done with either a native Thunderbolt 3 display or with a Thunderbolt 3 display adapter).
    • Thunderbolt 2/Thunderbolt compatibility requires a certified Thunderbolt 3 (USB-C) to Thunderbolt 2 (mDP) adapter and a Thunderbolt 2 cable (available separately). This configuration provides data transfer at up to 20Gb/s but does not support notebook charging.
    • To ensure no data is lost during normal use, always eject or unmount the corresponding disk(s) from your operating system before powering off the device. Several options are provided below for Mac and PC.

    Support Resources

    4.1 Troubleshooting

    • Begin your troubleshooting by verifying that the power cable is connected to the ThunderBay 6 and to a power source. If the power cable is connected to a power strip, make sure that the power switch on the strip is turned on. Then, verify that both ends of your cables are properly plugged into the computer and the ThunderBay 6. If the OWC ThunderBay 6 is still not working properly, try connecting to another computer
    • If the ThunderBay 6 is still not working properly, try connecting to another computer or using another Thunderbolt cable. Remember that the ThunderBay 6 needs an active data signal in order for the power to remain on. If it is disconnected from the computer, or if the computer goes to sleep or turns off, the ThunderBay 6 will go to sleep.
    • If you are still experiencing problems, OWC support is here to help. Please have your serial number ready which can be located on the bottom of your OWC ThunderBay 6 and printed on the original packaging. Please see section 4.4 "Contacting Support" for contact information.

    4.2 About Data Backup

    To ensure that your files are protected and to prevent data loss, we strongly suggest that you keep two copies of your data: one copy on your ThunderBay 6 and a second copy on either your internal drive or another storage medium, such as an optical backup, or on another external storage unit. Any data loss or corruption while using the ThunderBay 6 is the sole responsibility of the user, and under no circumstances may OWC, its parents, partners, affiliates, officers, employees, or agents be held liable for loss of the use of data including compensation of any kind or recovery of the data.

    4.3 Online Resources

    4.4 Contacting Support

    4.5 About This Manual

    The images and descriptions may vary slightly between this manual and the unit shipped. Functions and features may change depending on the firmware version. The latest product details and warranty information can be found on the product web page. OWC’s Limited Warranty is not transferable and subject to limitations.

    General Use Precautions

    • Read this user guide carefully and follow all recommended usage steps and precautions.
    • To avoid damage, do not expose the device to temperatures outside the following ranges:
      • Environmental (Operating)
        • Temperature (ºF): 41º — 95º
        • Temperature (ºC): 5º — 35º
      • Environmental (Non-Operating)
        • Temperature (ºF): -4º — 140º
        • Temperature (ºC): -20º — 60º
    • Always unplug the device from the electrical outlet if there is a risk of lightning or if it will be unused for an extended period of time. Otherwise, there is an increased risk of electrical shock, short-circuiting or fire.
    • Do not use the device near other electrical appliances such as televisions, radios or speakers. Doing so may cause interference which will adversely affect the operation of the other products.
    • Protect your device from excessive exposure to dust during use or storage. Dust can build up inside the device, increasing the risk of damage or malfunction.
    • Do not block any ventilation openings on the device. These help to keep the device cool during operation. Blocking the ventilation openings may cause damage to the device and cause an increased risk of short circuiting or fire.

    Safety Precautions

    • Read this user guide carefully and follow the recommended steps for assembly.
    • Use proper anti-static precautions while installing drives into this enclosure. Failure to do so can cause damage to your drive mechanisms and/or the enclosure.
    • Do not attempt to disassemble or modify the device. To avoid any risk of electrical shock, fire, short-circuiting or dangerous emissions, never insert any metallic object into the device. If it appears to be malfunctioning, please contact technical support.
    • Never expose your device to rain, or use it near water or in damp or wet conditions. Never place objects containing liquids on the drive, as they may spill into its openings. Doing so increases the risk of electrical shock, short-circuiting, fire or personal injury.

    Terms & Conditions of Sale


    The ThunderBay 6 has a 3 Year OWC Limited Warranty or 5 Year OWC Limited Warranty if it was bundled with drives. ThunderBay 6 enclosures that do not ship with drives have a 1 Year OWC Limited Warranty.


    The material in this document is for information purposes only and subject to change without notice. While reasonable efforts have been made in the preparation of this document to assure its accuracy, OWC, its parent, partners, affiliates, officers, employees, and agents assume no liability resulting from errors or omissions in this document, or from the use of the information contained herein. OWC reserves the right to make changes or revisions in the product design or the product manual without reservation and without obligation to notify any person of such revisions and changes.
