AKiTiO Node Titan

The Plug & Play Performance Supercharger for Thunderbolt-equipped Computers

AKiTiO Node Titan

Up To

13x

Higher FPS1

Better gaming and overall video performance

Up To

26x

Faster Effects and Renders2

Do more and wait less by eliminating the factory GPU bottleneck

Up to

2.5x

Faster than the Factory's Best3

Even improves the enhanced capabilities of the 5K iMac with Radeon 580X

Smoother. Faster. Easier.

Graphics-intensive operating systems and applications rely heavily on the GPU to run at their best and thus let you perform at your best too. Unfortunately, integrated graphics (combo CPU/GPU chip) and just adequate GPUs are permanently installed (translation: can’t be upgraded) in notebook, small form factor, and all-in-one design computers.

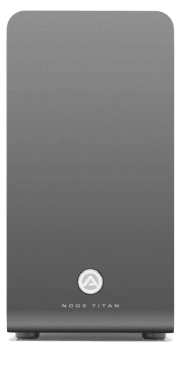

AKiTiO Node Titan
eGPU Chassis

DIY “add your own GPU” Thunderbolt chassis.

  • 650W for power hungry graphics cards
  • Toolless card installation
  • Fits double-width GPUs
  • Mac and PC

$279.00

AKiTiO Node Titan +
Radeon RX 6600 XT

Engineered for high frame rates and the ultimate 1080p gaming experience.

  • eGPU Enclosure + Graphics Card Bundle
  • AMD RDNA 2 architecture
  • 8GB 128-bit GDDR6
  • Boost Clock: Up to 2607 MHz
  • 8K HDR @ 60Hz / 4K HDR @ 144Hz
  • (3) DisplayPort
  • (1) HDMI

$699.00

AKiTiO Node Titan +
Radeon RX 6800 XT

Engineered for ultra-high frame rates and serious 4K gaming.

  • eGPU Enclosure + Graphics Card Bundle
  • AMD RDNA 2 architecture
  • 16GB 256-bit GDDR6
  • Boost Clock: Up to 2310 MHz
  • 8K HDR @ 60Hz / 4K HDR @ 144Hz
  • (3) DisplayPort
  • (1) HDMI

$949.99

AKiTio Node Titan for VR & Gaming

Explore a Different Reality

The Node Titan is a Plug and Play external graphics processing unit (eGPU) that will supercharge your Thunderbolt-equipped Mac or PC. You’ll marvel at how much smoother and responsive your computer operates. It feels like your favorite thrill park ride when you’re working easier and faster with Adobe Creative Suite, Apple Final Cut Pro, DaVinci Resolve, Blender, 3D/VR, and video/audio processing apps. Giving yourself editing, workflow, and gaming capabilities simply not possible with factory installed graphics processing is now just a single cable connection away with the Node Titan.

More Processing Power

Enjoy smoother, more responsive computer use and vastly faster app performance

More Display Support

Connect up to six 4K displays4

Cost-Effective

Breathes new computer performance into existing machine at fraction of new machine cost

Improves Work and Play

Provides faster, more efficient content creating and editing; more realistic and enjoyable gaming

Multipurpose

Toolless thumb screw design for easy card installation today and ready for tomorrow’s GPU technology advancements

Grab n’ Go

Retractable handle for portability

Power Up

Up to 85W for notebook charging and eliminates need for separate notebook power adapter

Spacious Design

Enables use of large double-width graphics cards

Plug and Play

Includes Thunderbolt cable for immediate use

AKiTiO Node Titan for Everyone

The Solution for All Content Creators (and Players too!)

Whether you’re a beginning YouTuber to feature film editor, photographer, or designer, the Node Titan is an ideal solution for a diverse range of content creators. Gone is the frustrating sluggishness when running multiple apps simultaneously. Say hello to having faster, reliable sustained performance for resource intensive graphics programs, large format video editing, and special effects creation. Get more done with faster render times for thumbnails, previews, and playback of full high-def video. And when it comes time for play, the Node Titan delivers breathtaking life-like high FPS gaming.

Videographers

Whether you have a handful of followers or a huge audience, you’ll get pro results without the cost of a big bucks dedicated production workstation.

Gamers

Ditch the heavy weight and bulkiness of gaming notebooks while expanding the number of displays on which you can hunt down the bad guys.

Classroom to Boardroom

Enhance your notebook with extreme graphics capabilities for blow-their-minds presentations.

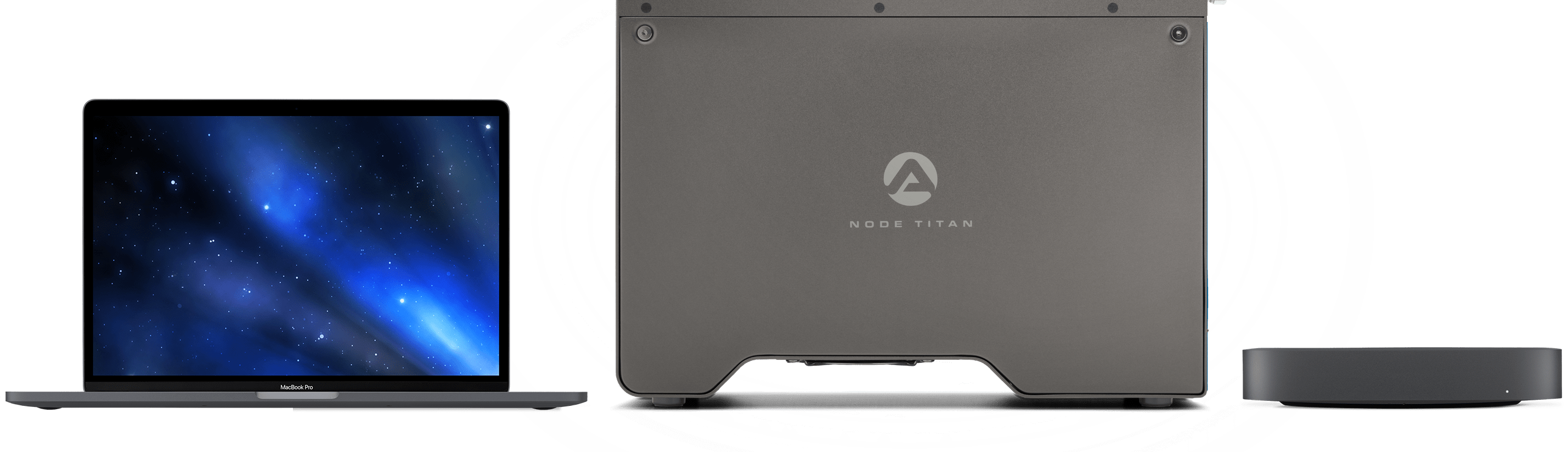

AKiTiO Node Titan with MacBook Pro and Mac mini

Extend the Life of Your Thunderbolt and USB4 Computer

GPU technology advancements are occurring at a much faster pace than CPU updates. With the Node Titan, you can extend the life of your Thunderbolt (USB-C) equipped Intel Macs (pretty much any model from 2016 onward), PCs, and AMD USB4 PCs by dramatically improving its graphics technology when it ages without having to buy costly new machine. With a toolless design for easy card access and installation, you have the power to choose what card you need today while being economically future-ready for GPU technology advancements.

Gaming Screenshot

See the Bigger (and Better) Picture

Depending upon the GPU card you install into the Node Titan, you can immerse yourself into a new world of visual delight with up to six external displays. Accelerate your graphics on multiple 4K displays or on your notebook’s built-in display. Daisy-chain multiple Node Titans together for graphics power only found in expensive dedicated video workstations. With the Node Titan, you’ll quickly see the visual flexibility you’ve been missing.

It Simply Works

All you need to do to seamlessly utilize the power of your choice of today’s most popular AMD and NVIDIA graphics cards, as well as a pro audio card like the Avid HDX, is connect the Node Titan to your existing Thunderbolt (USB-C) equipped computer. Many apps are designed to automatically engage with a GPU to achieve accelerated results without manual configuration. No new machine reconfiguration hassle and downtime...the Node Titan simply works into your workflow with immediate results.

Over 100% Improvement...

“It’s a difference-maker in some of the most painful ‘waiting around for my computer’ moments like color grading/correction, scaling, 3D, RAW formats, and video noise reduction. I saw a range of improvement from 20% to over 100% with Thunderbolt-equipped Intel Macs.”

Sam Smith
Post-production video editor, industry consultant, and featured NAB presenter

AKiTiO Node Titan and MacBook Pro

Powerfully Unlimited

You can play and create without limits when you add the Node Titan to your set-up. There’s an integrated 650W power supply that can handle the most insatiable cards. Speaking of handling, thanks to Node Titan’s spacious design, you can even use single or double-width full-length, full-height cards.

You can also charge your notebook battery fast and keep its charged level at maximum while pushing your creativity and machine to the limit. No more separate notebook power adapter needed... just connect the Node Titan’s 85W Thunderbolt upstream port to your notebook via the included Thunderbolt cable and you’re all set.

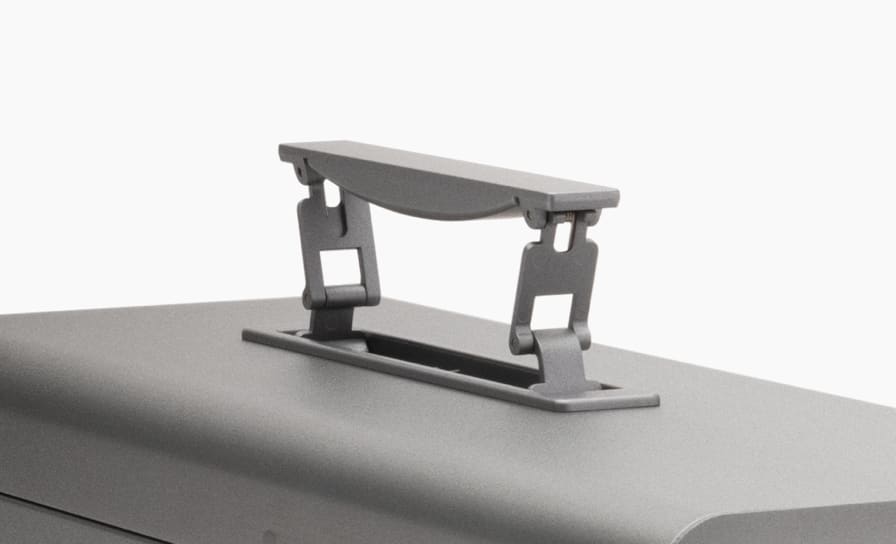

AKiTiO Node Titan Retractable Handle

Grab n' Go Graphics

Gaming or editing video on-the-go has never been easier. The Node Titan features a commercial quality electrogalvanized steel case with a retractable carrying handle to take powerful graphics capabilities along safely and easily with your notebook wherever you roam.

Expert Endorsed

While we could rave forever about how Node Titan will transform your computing experience, we’ll just drop the mic here and let the experts tell you what they think:

“The best all-around portable eGPU.” Windows Central“...a premium eGPU chassis that checks nearly every box for an eGPU.”

Mixing Light

“...offers excellent performance...for those looking for more portability and a bit more affordability...”

TechCrunch

”...easy to set up, quick to deploy, and massive gains in workflow performance...”

Wccftech

AKiTiO Node Titan Top View (Open)

What Cards Work with Node Titan?

We know you like having simple choices when it comes to your tech gear and workflow. We’ve done the legwork so whether you’re running macOS or Windows or have a graphics card brand preference, you can choose from over 1200 graphics cards that are confirmed ready to rock your world with the Node Titan.

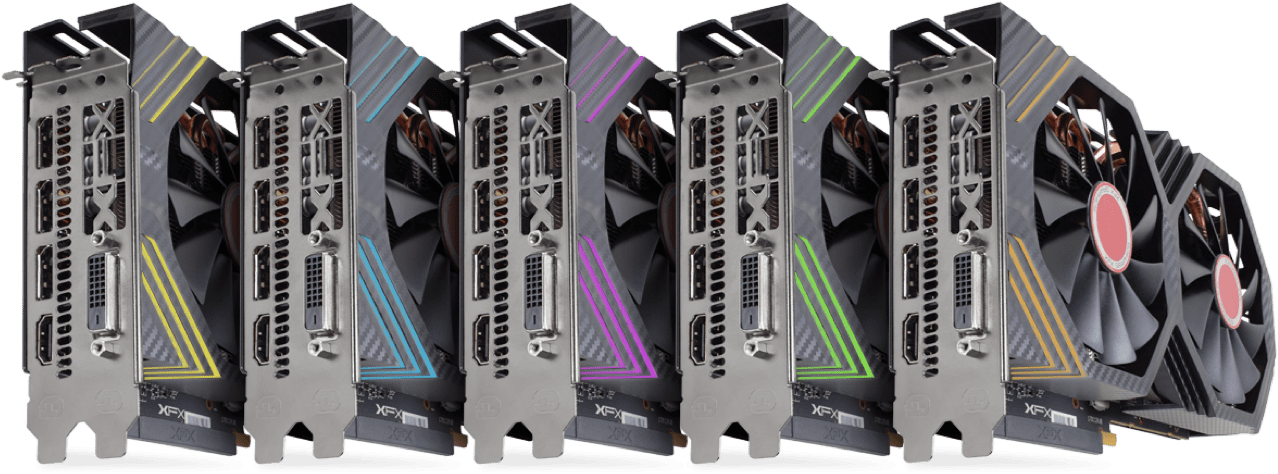

Lineup of Graphics Cards

MacOS GPU Compatibility Specs

AMD GPU Family

  • Radeon Pro WX 7100 macOS 10.3.4 or later
  • Radeon Pro WX 8200 macOS 10.14.1 or later
  • Radeon Pro WX 9100 macOS 10.13.4 or later
  • Radeon Pro W5500 macOS 10.15.7 or later
  • Radeon Pro W5700 macOS 10.15.7 or later
  • Radeon Pro W6800 macOS 10.15.7 or later
  • Radeon RX 560 macOS 10.13.4 or later
  • Radeon RX 570 macOS 10.13.4 or later
  • Radeon RX 580 macOS 10.13.4 or later
  • Radeon RX 590 macOS 10.14.6 or later
  • Radeon RX Vega 56 macOS 10.13.4 or later
  • Radeon RX Vega 64 macOS 10.13.4 or later
  • Radeon Vega Frontier Edition macOS 10.13.4 or later
  • Radeon RX 5500 macOS 10.15.7 or later
  • Radeon RX 5500 XT macOS 10.15.7 or later
  • Radeon RX 5600 macOS 10.15.7 or later
  • Radeon RX 5600 XT macOS 10.15.7 or later
  • Radeon RX 5700 macOS 10.15.7 or later
  • Radeon RX 5700 XT macOS 10.15.7 or later
  • Radeon RX 5700 XT 50th Anniversary macOS 10.15.7 or later
  • Radeon RX 6600 macOS 12.2 or later
  • Radeon RX 6600 XT macOS 12.2 or later
  • Radeon RX 6800 macOS 11.4 or later
  • Radeon RX 6800 XT macOS 11.4 or later

NVIDIA GPU Family

  • Not macOS compatible

Windows GPU Compatibility Specs

AMD GPU Family

  • Radeon Pro WX 5100 Windows 10 64-bit
  • Radeon Pro WX 7100 Windows 10 64-bit
  • Radeon Pro WX 8200 Windows 10 64-bit
  • Radeon Pro WX 9100 Windows 10 64-bit
  • Radeon Pro SSG Windows 10 64-bit
  • Radeon Pro W5500 Windows 10 64-bit
  • Radeon Pro W5700 Windows 10 64-bit
  • Radeon Pro W6600 Windows 10 64-bit
  • Radeon Pro W6800 Windows 10 64-bit
  • Radeon Pro VII Windows 10 64-bit
  • Radeon RX 560 Windows 10 64-bit
  • Radeon RX 570 Windows 10 64-bit
  • Radeon RX 580 Windows 10 64-bit
  • Radeon RX 590 Windows 10 64-bit
  • Radeon RX Vega 56 Windows 10 64-bit
  • Radeon RX Vega 64 Windows 10 64-bit
  • Radeon Vega Frontier Edition Windows 10 64-bit
  • Radeon VII Windows 10 64-bit
  • Radeon RX 5500 Windows 10 64-bit
  • Radeon RX 5500 XT Windows 10 64-bit
  • Radeon RX 5600 Windows 10 64-bit
  • Radeon RX 5600 XT Windows 10 64-bit
  • Radeon RX 5700 Windows 10 64-bit
  • Radeon RX 5700 XT Windows 10 64-bit
  • Radeon RX 5700 XT 50th Anniversary Windows 10 64-bit
  • Radeon RX 6600 Windows 10 64-bit
  • Radeon RX 6600 XT Windows 10 64-bit
  • Radeon RX 6650 XT Windows 10 64-bit
  • Radeon RX 6700 XT Windows 10 64-bit
  • Radeon RX 6750 XT Windows 10 64-bit
  • Radeon RX 6800 Windows 10 64-bit
  • Radeon RX 6800 XT Windows 10 64-bit

NVIDIA GPU Family

  • GeForce GTX 1050 Windows 10 64-bit
  • GeForce GTX 1050 Ti Windows 10 64-bit
  • GeForce GTX 1060 6G or 3G Founders Edition Windows 10 64-bit
  • GeForce GTX 1070 Founders Edition Windows 10 64-bit
  • GeForce GTX 1070 Ti Founders Edition Windows 10 64-bit
  • GeForce GTX 1080 Founders Edition Windows 10 64-bit
  • GeForce GTX 1080 Ti Founders Edition Windows 10 64-bit
  • GeForce GTX 1650 Windows 10 64-bit
  • GeForce GTX 1660 Windows 10 64-bit
  • GeForce GTX 1660 Ti Windows 10 64-bit
  • GeForce RTX 2060 Windows 10 64-bit
  • GeForce RTX 2060 Founders Edition Windows 10 64-bit
  • GeForce RTX 2070 Windows 10 64-bit
  • GeForce RTX 2070 Founders Edition Windows 10 64-bit
  • GeForce RTX 2080 Windows 10 64-bit
  • GeForce RTX 2080 Founders Edition Windows 10 64-bit
  • GeForce RTX 2080 Ti Windows 10 64-bit
  • GeForce RTX 2080 Ti Founders Edition Windows 10 64-bit
  • GeForce RTX 2060 SUPER Windows 10 64-bit
  • GeForce RTX 2070 SUPER Windows 10 64-bit
  • GeForce RTX 2080 SUPER Windows 10 64-bit
  • GeForce RTX 3060 Ti Windows 10 64-bit
  • TITAN X (Maxwell) Windows 10 64-bit
  • TITAN X (Pascal) Windows 10 64-bit
  • TITAN Xp (Pascal) Windows 10 64-bit
  • TITAN V Windows 10 64-bit
  • TITAN RTX Windows 10 64-bit
  • Quadro GP100 Windows 10 64-bit
  • Quadro P4000, P5000, P6000 Windows 10 64-bit
  • Quadro RTX 4000, 5000, A5000, 6000, 8000 Windows 10 64-bit

GPU Compatibility Notes

  • GPU specs list is current as of July 2022 (full PDP as of March 2020). Does not account for newer card types. Earlier models GPUs not listed are not supported.
  • XFX Cards not recommended on macOS.
  • Apple recommends AMD branded or Sapphire cards.
  • Windows 10 64-bit build 1809 should be considered the baseline for eGPU, but OWC recommends the latest Windows 10 build when possible, for the best compatibility and security.
  • Fits GPUs up to 32cm long, 6cm wide, 17cm tall (including shroud design).
  • Check manufacturer’s power requirements; maximum of 500W supplied to card.
  • Water-cooled cards not recommended or supported.

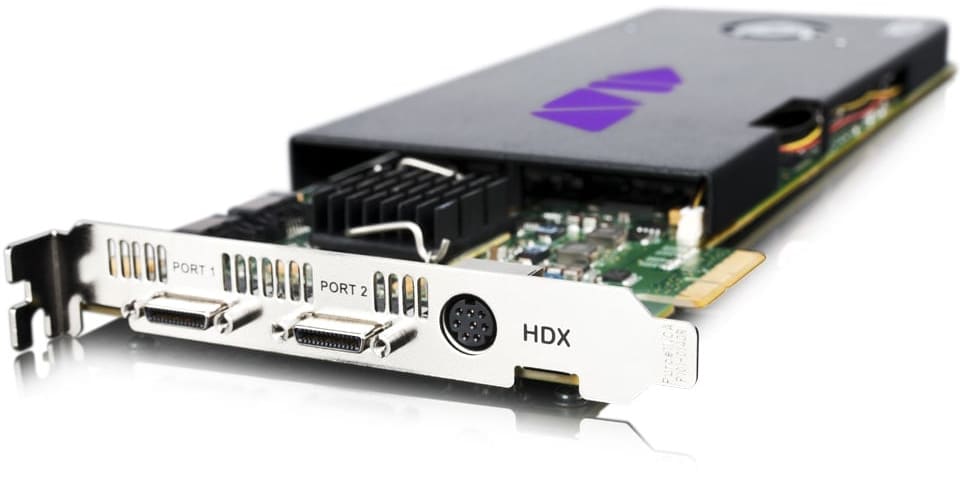

Avid HDX Audio PCIe Card

Add an AVID HDX Card to Almost Any New Mac

While the Node Titan is built for connecting GPU cards, we designed it to be more than just a one trick pony. With its full-length card slot and Thunderbolt connection, you can easily add an AVID HDX card to almost any new Mac and push your ProTools audio production skills to the next level.

Learn More – Rocket Yard Blog: How to Use Avid's HDX Card on Almost Any New Mac »

OWC, Trusted by Pros & Enthusiasts the World Over

OWC, Trusted by Pros & Enthusiasts the World Over

We build our hardware to the highest standards of reliability and performance. Because 100% reliability is always the goal, we rigorously quality test and back our hardware with a 3 Year OWC Limited Warranty and award-winning customer support.

Learn More
  1. Unigine Valley FPS of 6 with the built-in Intel UHD Graphics 630 iGPU of a 2018 Mac mini (Macmini8,1) with a Core i5 3.0GHz processor and 16GB memory on a 1920x1080 display. Unigine Valley FPS of 79 on same Mac mini connected via Thunderbolt to an AKiTiO Node Titan eGPU with an AMD Radeon RX 6600 XT 8GB graphics card and 1920x1080 display.
  2. GeekBench Metal score of 4576 with the built-in Intel UHD Graphics 630 iGPU of a of a 2018 Mac mini (Macmini8,1) with a Core i5 3.0GHz processor and 16GB memory. GeekBench Metal score of 120826 on same Mac mini connected via Thunderbolt to an AKiTiO Node Titan eGPU with an AMD Radeon RX 6800 XT 16GB graphics card.
  3. GeekBench Metal score of 43727 with the built-in Radeon 580X 8GB dGPU of a of a 2020 5K iMac (iMac19,1) with a Core i5 3.7GHz processor and 32GB memory. GeekBench Metal score of 112224 on same iMac connected via Thunderbolt to an AKiTiO Node Titan eGPU with an AMD Radeon RX 6800 XT 16GB graphics card.
  4. AMD Eyefinity technology supports up to six DisplayPort monitors on an enabled graphics card. Supported display quantity, type and resolution vary by model and board design.
  5. eGPUs are supported by any Mac with an Intel processor and Thunderbolt (USB-C) ports running macOS High Sierra 10.13.4 or later. Mac models with Apple silicon, including M1, M2, and later processors, do not support eGPUs. See the related Apple Support article for more on eGPU compatibility.
