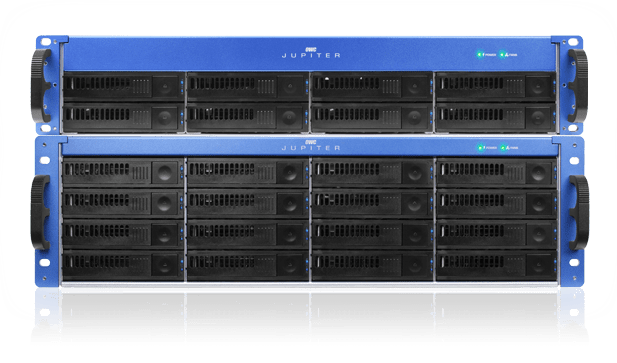

OWC Jupiter Kore Mini-SAS Connected JBOD Storage System

OVERVIEW
ACCESSORIES

Upgrade your workflow with the performance, capacity, reliability, and affordability of OWC Jupiter Kore enterprise-class storage. With two Mini-SAS interface ports, each with 24Gb/s of pure performance, you'll be able to push through some serious data.

Use its dual Mini-SAS ports in tandem for staggering performance speeds up to 48Gb/s, or utilize the second Mini-SAS port to add greater JBOD storage capacity. You can also use Kore to expand an existing RAID system such as an OWC Jupiter Callisto.

Up to 192TB

OWC Jupiter Kore provides a vast amount of direct-attached or expansion storage capacity with up to 48TB of storage in an 8-bay rack and up to 192TB of storage in a 16-bay rack. As your storage needs increase, attach additional Kore systems via Mini-SAS for even greater capacity.

Tremendous Mini-SAS speed

At the core of Kore is the blazing fast Mini-SAS interface architecture which provides single cable speeds up to 24Gb/s, or run dual direct Mini-SAS cables to achieve up to 48Gb/s. Use this performance to speed up practically any workflow, ingest more video, edit more simultaneous video streams, and move more data around – saving time and money by allowing creative professionals to actualize their artistic vision.

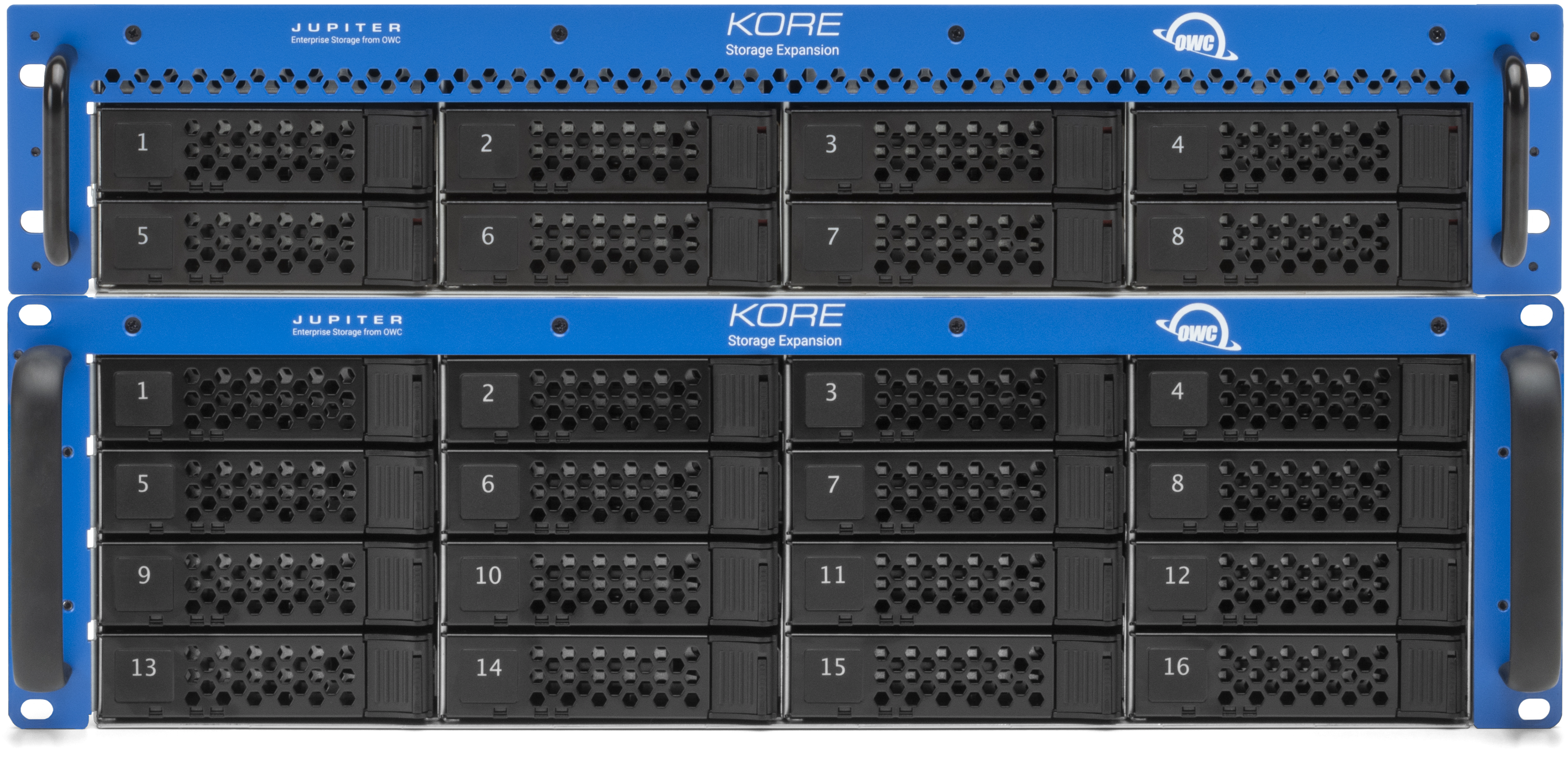

2u + 3u Racks

Whether building from the ground up, or integrating into an existing system, 8-bay 2U racks and 16-bay 3U racks provide installation flexibiilty so you can add the OWC Jupiter Kore system that best provides the capacity you need in the space you have.

Hot swap drives + fans

Downtime is unacceptable. When you need to update, upgrade, or replace a drive or fan, you can keep the rest of the system up and running.

redundant power

Kore has robust power supplies that feature redundancy, the ability to hot-swap, and load balancing to ensure that the system remains up and running 24/7.

RAID

When high-performance RAID storage is a requirement for your computer or server, Kore is the perfect storage for connecting to mini-SAS RAID controller cards and adapters. Since Kore provides high-speed JBOD storage, it can also extend the storage of networked storage servers such as OWC Jupiter Callisto.

Specs at-a-glance


8 drive bays	16 drive bays
2U rack space	3U rack space
3.5" x 19" x 23" (HWD) 8.89 cm x 48.26 cm x 58.42 cm (HWD)	5.2" x 19" x 23" (HWD) 13.2 cm x 48.26 cm x 58.42 cm (HWD)
29.9 pounds / 13.56 kg (empty)	40.5 pounds / 18.37 kg (empty)
Two x4 mini-SAS wide ports (SFF-8088), eight 6Gb/s SAS 2.1 compliant channels 48Gb/s total bandwidth (24Gb/s per port)	Two x4 mini-SAS wide ports (SFF-8088), eight 6Gb/s SAS 2.1 compliant channels 48Gb/s total bandwidth (24Gb/s per port)
380W high-efficiency 1+1 redundant 90~264 VAC full-range, auto-switching power supply	650W 2+1 redundant active PFC 90~264 VAC full-range auto-switching power supply
Operating Environment: 32°F to 104°F (0°C to 40°C) 20 to 95% non-condensing	Operating Environment: 32°F to 104°F (0°C to 40°C) 20 to 95% non-condensing
Storage Environment: -4°F to 176°F (-20°C to 80°C) 10 to 95% non-condensing	Storage Environment: -4°F to 158°F (-20°C to 70°C) 10 to 95% non-condensing
5 Year OWC Jupiter Storage Limited Warranty	5 Year OWC Jupiter Storage Limited Warranty
