OWC Envoy Pro mini

Support Manual

Jump to a Topic
Jump to a Topic

Introduction

1.1 System Requirements

Operating System & Hardware

  • Works with any USB4 or USB-C equipped:
    • Mac: macOS 10.6 or later
    • PC: Windows 7 or later
    • iPad: iPadOS 13 or later
    • iPhone: current version recommended
    • ChromeOS: current version recommended
    • Android: Android OS 10 or later

1.2 Package Contents

Getting Started

2.1 Device Setup

This section describes the process of setting up the OWC Envoy Pro mini.

Connecting with USB-C

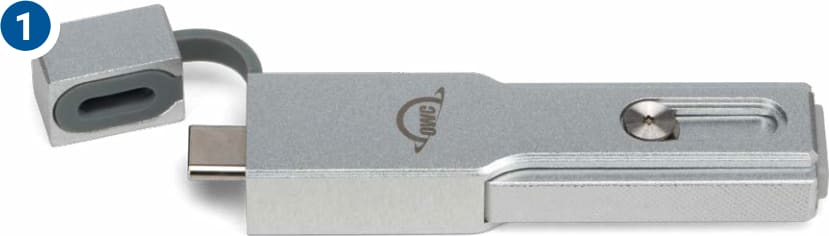

1. Remove the cover protecting the OWC Envoy Pro mini USB Type-C connector.

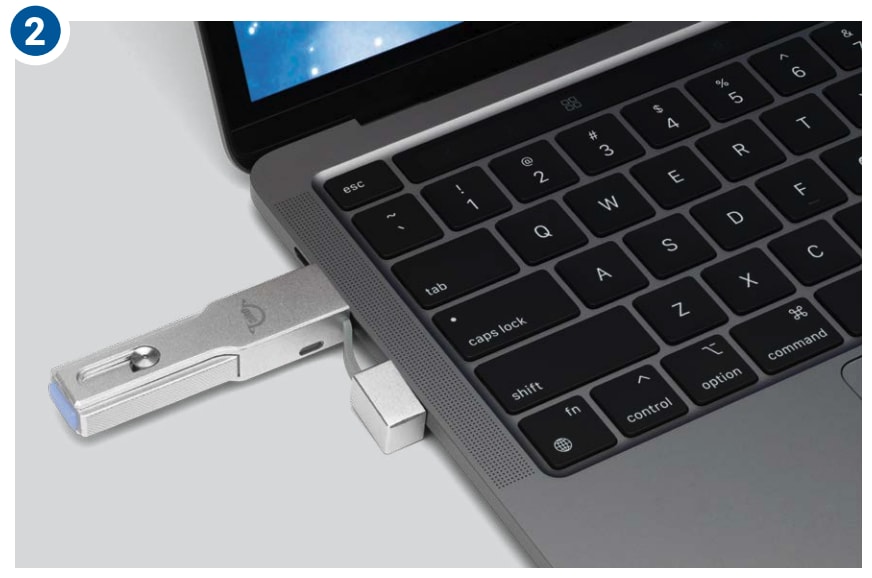

2. Connect the Envoy Pro mini to the USB-C port of your host.

3. The OWC Envoy Pro mini comes formatted as APFS for Mac systems. This allows for a seamless plug-and-play experience between Mac and iPad systems. Connect the OWC Envoy Pro mini to a Mac or iPad and immediately begin using the drive.

Connecting with USB-A

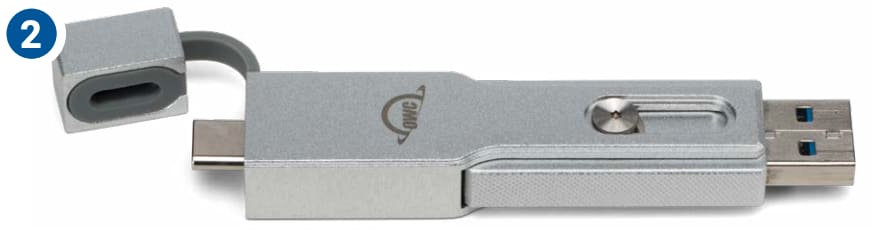

1. Pull away from the USB Type-C connector to disengage the integrated USB Type-A connector.

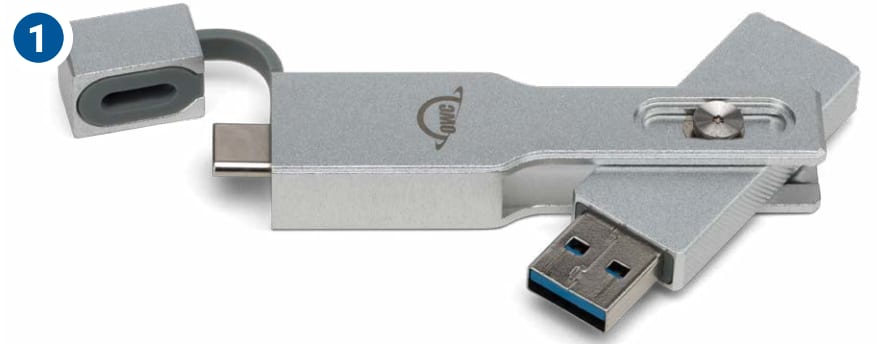

2. Pivot the integrated USB Type-A connector and reengage by pushing towards the USB Type-C connector.

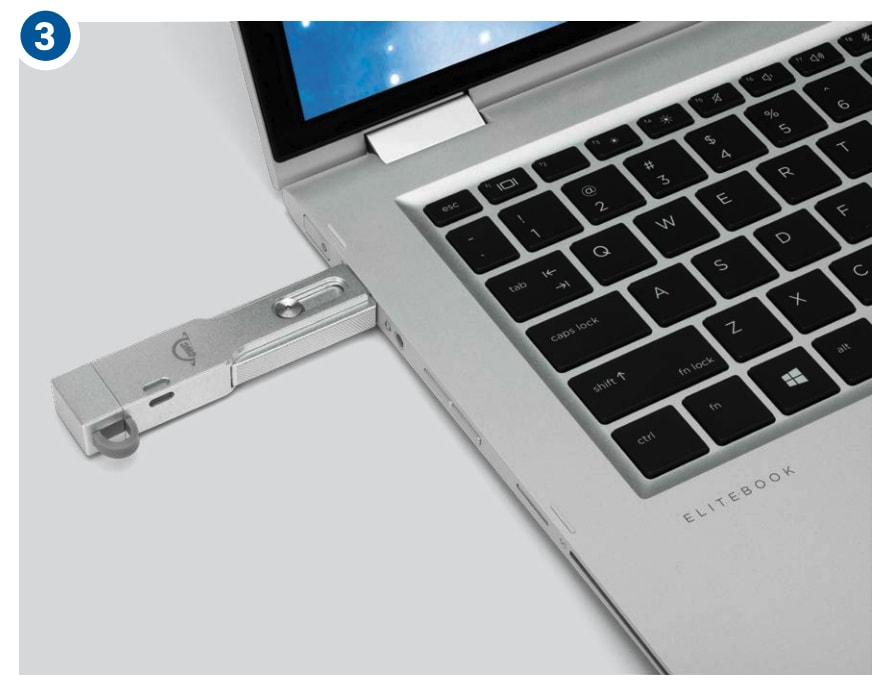

3. Connect the Envoy Pro mini to the USB Type-A port of your host.

4. The OWC Envoy Pro mini comes formatted as APFS for Mac systems. This allows for a seamless plug-and-play experience between Mac and iPad systems. Connect the OWC Envoy Pro mini to a Mac or iPad and immediately begin using the drive.

Device Management

3.1 OWC Disk Performance

  • As of Windows 10 v. 1809 the default Disk Removal Policy is ‘Quick removal’ instead of ‘Better performance’.
    • NOTE: OWC storage solutions that are experiencing slow read/write speeds should consider checking and changing the Windows disk removal policy. Changing from "Quick removal" to "Better performance" can increase disk performance. OWC offers the application OWC Disk Performance to help change the Disk Removal Policy. Changing from "Quick removal" to "Better performance" can also be changed manually.
  • Please review the support article Storage Solutions: OWC Disk Performance for more detail.

3.2 Manually Unmounting Volumes

To ensure no data is lost during normal use, always eject or unmount the corresponding volume(s) from the operating system before powering off and disconnecting the device. Unmounting options are provided below.

macOS

  1. Drag the icon for the device you wish to unmount to the trash can; OR
  2. Right-click the device icon on the desktop, then click “Eject”; OR
  3. Highlight the device on your Desktop and press Command-E.

Windows

  • Windows 10 build 1809 (October 2018) or later:
    • Eject the drive by clicking the ‘Show hidden items’ menu in the Taskbar, then clicking ‘Safely Remove Hardware and Eject Media’, and last select the ‘Eject’ option for this volume.
  • Windows 10 build 1803 and earlier:
    • Go to the System Tray (located in the lower right corner of your screen). Click on the “Eject” icon (a small green arrow over a hardware image).
    • A message will appear, detailing the devices that the “Eject” icon controls, i.e., “Safely remove...” Click on this prompt.
    • You will then see a message that says, “Safe to Remove Hardware.” It is now safe to disconnect the device from the computer.

3.3 Usage Notes

  • Performance will vary depending on host hardware, usage, and the connection type being used to mount
  • LED will show drive activity by blinking blue and remain off when inactive. The LED light also functions with USB Type-A but will not be as visible.
  • The included lanyard has (2) detachable points. One detachable point is the quick release for the drive. This allows you to remove the drive while keeping the lanyard around your neck. The other breakaway point is around the neck for safely breaking away in case the lanyard is pulled.
  • If the host is protected by a case or shield, the Envoy Pro mini might not fully seat when connecting with USB Type-C . Using a USB Type-C extender cable is recommended for connecting the device. i.e: A tablet in a case or the I/O shield of a PC.
  • The OWC Envoy Pro mini can be connected to devices with a Lightning port. Requires an Apple Lightning to USB3 Camera Adapter and USB Power Adapter or battery.

Support Resources

4.1 Troubleshooting

  • Verify the OWC Envoy Pro mini is securely connected to the host.
  • Connect the OWC Envoy Pro mini with a different USB port.
  • Connect the OWC Envoy Pro mini to a different host.
  • Users experiencing slow read/write speeds should consider checking and changing the Windows disk removal policy. Please review the support article Storage Solutions: OWC Disk Performance for more detail.
  • We are very sorry If issues continue to occur. Please know that OWC support is here to help. Contact information for our support can be found in section 4.4 "Contacting Support". Please have your serial number ready which is located on the back of the OWC Envoy Pro mini and printed on the original packaging.

4.2 Online Resources

4.3 About Data Backup

To ensure that your files are protected and to prevent data loss, we strongly suggest that you keep two copies of your data: one copy on your OWC Envoy Pro mini and a second copy on either your internal drive or another storage medium, such as an optical backup, or on another external storage unit. Any data loss or corruption while using the OWC Envoy Pro mini is the sole responsibility of the user, and under no circumstances may OWC, its parents, partners, affiliates, officers, employees, or agents be held liable for loss of the use of data including compensation of any kind or recovery of the data.

4.4 Contacting Support

4.5 About This Manual

The images and descriptions may vary slightly between this manual and the unit shipped. Functions and features may change depending on the firmware version. The latest product details and warranty information can be found on the product web page. OWC’s Limited Warranty is not transferable and

General Use Precautions

  • Read this user guide carefully and follow all recommended usage steps and precautions.
  • To avoid damage, do not expose the device to temperatures outside the following ranges:
    • Environmental (Operating)
      • Temperature (ºF): 41º — 95º
      • Temperature (ºC): 5º — 35º
    • Environmental (Non-Operating)
      • Temperature (ºF): -4º — 140º
      • Temperature (ºC): -20º — 60º
  • Always unplug the device from the electrical outlet if there is a risk of lightning or if it will be unused for an extended period of time. Otherwise, there is an increased risk of electrical shock, short-circuiting or fire.
  • Do not use the device near other electrical appliances such as televisions, radios or speakers. Doing so may cause interference which will adversely affect the operation of the other products.
  • Protect your device from excessive exposure to dust during use or storage. Dust can build up inside the device, increasing the risk of damage or malfunction.
  • Do not block any ventilation openings on the device. These help to keep the device cool during operation. Blocking the ventilation openings may cause damage to the device and cause an increased risk of short circuiting or fire.

Safety Precautions

  • Read this user guide carefully and follow the recommended steps for assembly.
  • Use proper anti-static precautions while installing drives into this enclosure. Failure to do so can cause damage to your drive mechanisms and/or the enclosure.
  • Do not attempt to disassemble or modify the device. To avoid any risk of electrical shock, fire, short-circuiting or dangerous emissions, never insert any metallic object into the device. If it appears to be malfunctioning, please contact technical support.
  • Never expose your device to rain, or use it near water or in damp or wet conditions. Never place objects containing liquids on the drive, as they may spill into its openings. Doing so increases the risk of electrical shock, short-circuiting, fire or personal injury.

Terms & Conditions of Sale

Warranty

OWC’s products are subject to OWC’s Terms & Conditions of Sale located at Terms of Sale or other applicable terms. The OWC Envoy Pro mini comes with a 3-Year Limited Warranty. Additional warranty information can be viewed by visiting Hardware Warranties.

Changes

The material in this document is for information purposes only and subject to change without notice. While reasonable efforts have been made in the preparation of this document to assure its accuracy, OWC, its parent, partners, affiliates, officers, employees, and agents assume no liability resulting from errors or omissions in this document, or from the use of the information contained herein. OWC reserves the right to make changes or revisions in the product design or the product manual without reservation and without obligation to notify any person of such revisions and changes.

FCC Statement

Warning! Modifications not authorized by the manufacturer may void the user’s authority to operate this device.
NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference with radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

  • Reorient or relocate the receiving antenna.
  • Increase the separation between the equipment and receiver.
  • Connect the equipment to an outlet on a circuit different from that to which the receiver is connected.

Copyrights and Trademarks

No part of this publication may be reproduced, stored in a retrieval system, or transmitted in any form or by any means, electronic, mechanical, photocopying, recording or otherwise, without the prior written consent of OWC.

© 2024 Other World Computing, Inc. All rights reserved. Express, OWC, and the OWC logo are trademarks of New Concepts Development Corporation, registered in the U.S. and/or other countries. Mac and macOS are trademarks of Apple Inc., registered in the U.S. and other countries. Thunderbolt and the Thunderbolt logo are trademarks of Intel Corporation in the U.S. and/or other countries. Other marks may be the trademark or registered trademark property of their owners.
