OWC Atlas FXR Card Reader
Support Manual
Introduction
1.1 System Requirements
Operating System & Hardware
- Works with Thunderbolt 3 and later | USB 3.2 and later equipped:
- Mac: macOS 10.14 or later
- Thunderbolt requires macOS 11.x or later
- PC: Windows 10 or later
- Linux: current version recommended
- iPad: iPadOS 13 and later (Thunderbolt connection required)
- iPhone: current version recommended
- ChromeOS: current version recommended
- Android: current version recommended
- Mac: macOS 10.14 or later
Supported Memory Cards
- CFexpress 4.0 Type B cards
- OWC Atlas FXR Type B memory card slot is CFexpress 2.0. A CFexpress 4.0 Type B card will operate at the CFexpress 2.0 standard.
- CFexpress 2.0 Type B cards
1.2 Package Contents
- (1) OWC Atlas FXR Card Reader
- (1) 0.3M (12") Thunderbolt Cable

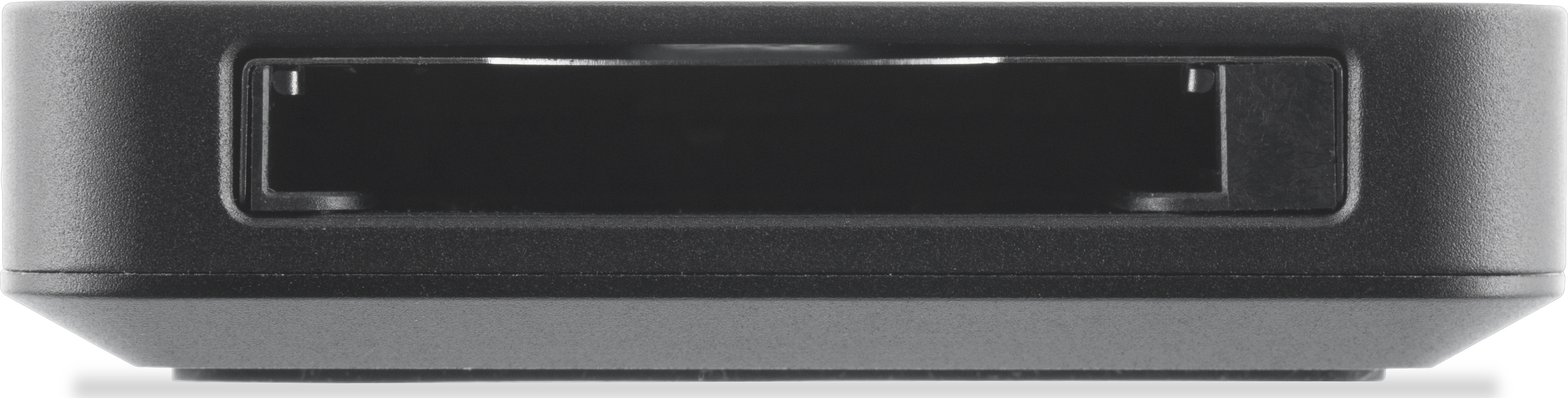

1.3 Front View
CFexpress 2.0 Type B Slot - supports CFexpress 4.0 Type B and CFexpress 2.0 Type B cards.
- OWC Atlas FXR Type B memory card slot is CFexpress 2.0. A CFexpress 4.0 Type B card will operate at the CFexpress 2.0 standard.
Card Reader LED Indicator
Operation | LED Function |
---|---|
Connected card reader without memory cards. | Off |
Connected card reader while the host is sleeping. | Off |
Unmounted cards from the operating system. | Off |
Connected card reader with cards but no read or write activity. | Solid Blue |
Waking the host from sleep with cards inserted. | Solid Blue |
Actively reading or writing to the memory cards. | Flashes Blue |

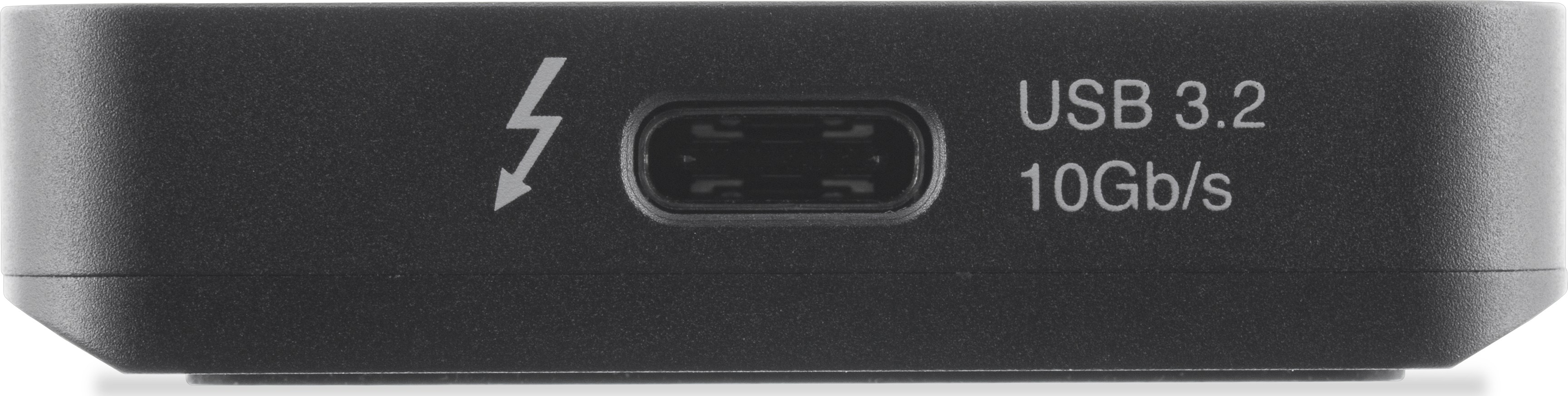

1.4 Back View
E. USB 3.2 Gen 2 host port - connect the included 0.3m thunderbolt cable to a compatible system.
Getting Started
2.1 Device Setup
- Connect the included 0.3m Thunderbolt cable to the USB 3.2 Gen 2 host port on the back of the OWC Atlas FXR Card Reader.
- Connect the included 0.3m Thunderbolt cable into a compatible system.
- Insert a CFexpress 4.0 Type B card or CFexpress 2.0 Type B card into the CFexpress 2.0 Type B Slot by aligning the memory card notches with the internal card reader connections. Do not force the memory card into the card slot if resistance is felt. The gold contacts should be facing down when the memory card is inserted.
- The card may take up to 30 seconds for the card to be recognized when using over iPadOS, Android, or ChromeOS.
- macOS 13.x users will have to approve the pop-up window that appears when connecting the memory card.
Device Management
3.1 OWC Innergize Software
A software application included with OWC Atlas media cards that currently provides three basic functionalities to the user: Health, Sanitize and Field Firmware Upgradability.
- The Health function allows the user to know how much life is left on their OWC Atlas media card
- Sanitize removes ghost data on OWC Atlas media cards which will allow the media cards to perform at their peak and out of factory condition performance in matter of seconds
- Field Firmware upgradability allows OWC to deliver live updates to our memory cards without the hassle of sending them in for an update.
NOTE: macOS 15.3.x, macOS 14.7.3, and macOS 13.7.3 released on January 27th, 2025 makes OWC Innergize unable to be used with the OWC Atlas FXR Card Reader.
- OWC Innergize currently supports these Mac operating systems:
- macOS 12.x
- macOS 13.7.2 and earlier
- macOS 14.7.2 and earlier
- macOS 15.2.1 and earlier.
- Enabling macOS 15.3.x, macOS 14.7.3, and macOS 13.7.3 compatibility is a major priority for OWC. Apple has been informed, and a resolution is actively being pursued.
Installing OWC Innergize
- Download OWC Innergize application based on the system:
- Open the downloaded file to begin and complete the installation process.
- For additional information regarding OWC Innergize please consult the support manual "OWC Innergize User Guide"
Required Firmware Update
OWC Innergize requires a firmware update to work properly with select OWC Memory Card Readers, Docks, and Storage Solutions.
- Ensure the OWC Atlas FXR Card Reader is connected to a compatible system with the included data cable.
Windows Users
- Download the OWC Innergize Firmware Update for the OWC Atlas FXR Card Reader.
- Access the system Downloads folder and open the downloaded Compressed Folder. The compressed folder will open showing a firmware updater folder, and PDF/Word instructions for completing the firmware update process. Before accessing the firmware updater folder, open the instructions and proceed through the provided steps.
Mac Users
- Additional steps are required to complete the installation of the firmware. The firmware update is completed through the Windows operating system, therefore a Windows operating system emulator “Parallels” will need to be downloaded.
- For additional information regarding the OWC Innergize for Mac firmware update please consult the support article based on the system: "Innergize for Mac: Firmware Update".
3.2 Unmounting Options
For the safe removal of the memory card, and to ensure that no data is lost, always eject or unmount the memory card from the system's operating system before removing the memory card from the card reader. Unmounting options are provided below.
macOS
- Drag the icon for the memory card or disk you wish to unmount to the trash can; OR
- Right-click the memory card or disk icon on the desktop, then click “Eject”; OR
- Highlight the memory card or disk on your Desktop and press Command-E.
Windows
- Go to the System Tray (located in the lower right corner of your screen). Click on the “Eject” icon (a small green arrow over a hardware image).
- A message will appear, detailing the devices that the “Eject” icon controls, i.e., “Safely remove...” Click on this prompt.
- You will then see a message that says, “Safe to Remove Hardware.” It is now safe to disconnect the Mercury Elite Pro Dock from the computer.
- The steps above are applicable to Windows 10 build 1803 and earlier. If you are using Windows 10 build 1809 (October 2018) or later, you can eject the drive by clicking the ‘Show hidden items’ menu in the Taskbar, then clicking ‘Safely Remove Hardware and Eject Media’, and last select the ‘Eject’ option for this volume.
3.3 Usage Notes
- Connecting a CFexpress 4.0 Type B card or CFexpress 2.0 Type B card may take up to 30 seconds to be recognized when using with iPadOS, Android, or ChromeOS systems.
- Performance results will vary depending on the CFexpress card used. CFexpress specification supports speeds up to 900 MB/s.
- For the safe removal of your memory card, and to ensure that no data is lost, always eject or unmount from your operating system before removing the card.
- Users who acquire an OWC ClingOn should carefully install the connector securing device by avoiding over tightening the mounting screw.
Support Resources
4.1 Troubleshooting
- If your system does not recognize the OWC Atlas FXR Card Reader when it is connected:
- Verify the Thunderbolt cable is securely connected between the OWC Atlas FXR Card Reader and system.
- Connect the OWC Atlas FXR Card Reader and system with a different Thunderbolt cable.
- Connect the OWC Atlas FXR Card Reader to a different system.
- If your system does not recognize the memory card when it is connected:
- Verify the memory card is installed properly. The memory card notches should align with the internal card reader connections. Do not force the memory card into the card slot if resistance is felt. The gold contacts should be facing down when the memory card is inserted.
- Windows users experiencing slow read/write speeds should consider checking and changing the Windows disk removal policy. Please review the support article Storage Solutions: OWC Disk Performance for additional details.
- We are very sorry If issues continue to occur. Please know that OWC support is here to help. Contact information for our support can be found in Section 4.4 "Contacting Support". Please have your serial number ready which is located on the bottom of the OWC Atlas FXR Card Reader and printed on the original packaging.
4.2 Online Resources
Support Articles:
- OWC Innergize for Mac Support Article
- OWC Innergize for PC Support Article
- OWC Disk Performance Support Article
Support Guide Pages:
- OWC Innergize Support Page
- OWC Atlas FXR Card Reader Support Guide Page
- Windows Formatting Support Page
Support Manuals:
Downloads:
Product Pages:
4.3 About Data Backup
To ensure that your files are protected and to prevent data loss, we strongly suggest that you keep two copies of your data: one copy on a memory card | disk drive | or other storage medium, and a second copy on a memory card | disk drive | or other storage medium. Any data loss or corruption while using the OWC Atlas FXR Card Reader is the sole responsibility of the user, and under no circumstances may OWC, its parents, partners, affiliates, officers, employees, or agents be held liable for loss of the use of data including compensation of any kind or recovery of the data.
4.4 Contacting Support
4.5 About This Manual
The images and descriptions may vary slightly between this manual and the unit shipped. Functions and features may change depending on the firmware version. The latest product details and warranty information can be found on the product web page. OWC’s Limited Warranty is not transferable and
