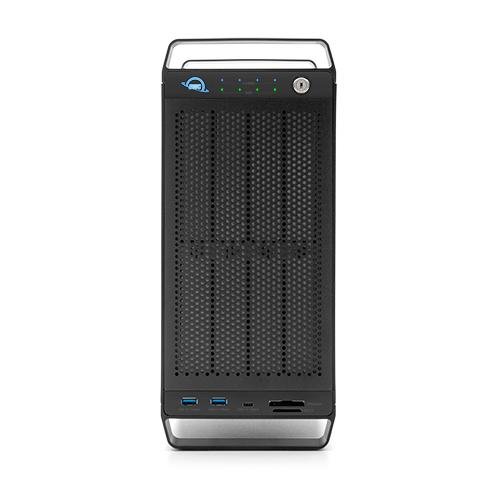

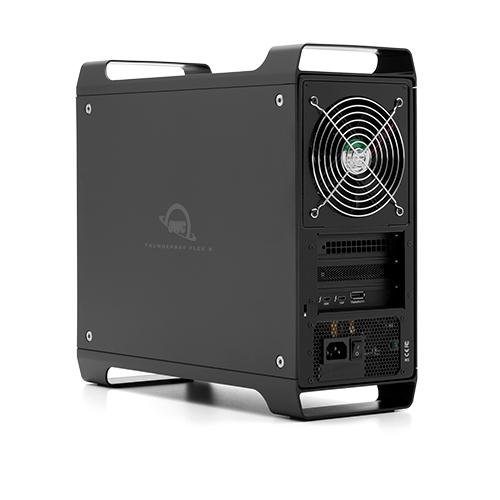

112TB OWC ThunderBay Flex 8
Eight-Drive Thunderbolt Storage, Docking, and Expansion Solution with SoftRAID
Mfr P/N: TB3F84N112X OWC SKU: OWCTB3F84N112X
Bundle Savings!
Bundle Savings!
$8.99 off - Thunderbolt 2 Compatibility Bundle - Add an Apple Thunderbolt 3 to Thunderbolt 2 Adapter (APLMMEL2AMA) and save! (Limit 3)
Must purchase with: Apple Genuine Thunderbolt 3 (USB-C) to Thunderbolt 2 Adapter
-
-
-
-
-
-
-
-
video
-
The Industry's First Thunderbolt 3 All-In-Wonder
- Eight drive bays: Pre-configured with four SSDs in the top bays and four enterprise class SATA hard drives in the bottom bays
- Reconfigurable: Use a mix of SATA/SAS and U.2/M.2 NVMe drives for virtually limitless capacity and real-world speeds up to 2750MB/s
- Future ready: top four bays can use U.2 SSDs…the emerging M&E industry storage standard
- Includes SoftRAID: robust software for creating, monitoring, and managing advanced RAID sets
- Do more: second Thunderbolt 3 port for daisy chaining devices or additional display(s)
- See more: DisplayPort 1.4 for connecting up to an 8K display
- Fast media ingest: front-side SD 4.0 and CFexpress card readers with up to 985MB/s speed
- Play your card: (1) PCIe slot for audio/video capture, networking, SSD storage, hardware RAID card, or I/O card
- Innergize™ Enabled: custom OWC software for complete health, performance, and field upgrade management when using OWC Atlas Memory Cards with OWC Atlas Card Readers and card reader-equipped products
- 5 Year OWC Limited Warranty
4 SSD + 4 HDD Maximum Flexibility Configuration
Get the best of both worlds: a blazing-fast, high-capacity SSD RAID 0 project drive for large format, multi-stream workflows along with the added long-term storage capacity of an HDD RAID 5. Plus, enjoy docking convenience and expand your capabilities by selecting a recommended PCIe card or add your own.
Flex Your Way Through Every Workflow
Whether you call it a workflow workhorse, a productivity platform, or a configurable command center, one description of the ThunderBay Flex 8 says it best. It is a groundbreaking workflow solution for digital imaging, VFX, video production, and video editing professionals from the world’s leading Thunderbolt accessory manufacturer.
ThunderBay Flex 8 offers eight drive bays that support a mix of SATA/SAS1 and U.2/M.22 NVMe drives for virtually limitless storage capacity. Next, there’s a plethora of ports including two Thunderbolt 33, one USB-C, and two USB-A for device docking and charging.
See your work in greater detail by adding up to an 8K display4 via a built-in DisplayPort 1.4 connection. Ingest hi-res images and video via front-side SD 4.0 and CFexpress card readers. And when you want to expand your desktop capabilities, there’s a PCIe slot waiting for your specific project needs.
ThunderBay Flex 8 is the one Thunderbolt 3 desktop device that rules them all. With an irresistible economy of scale, this consolidated solution is ideal for anyone waiting for the right moment to invest in Thunderbolt technology.
NVMe. PCIe. What’s It Mean to Me?
At the heart of the ThunderBay Flex 8 capabilities are two cutting-edge technology standards: NVMe and PCIe. Non-Volatile Memory Express (NVMe) optimizes the performance of modern flash technology over the Peripheral Component Interconnect Express (PCIe) standard. It enables significantly faster SSD performance with a more direct and optimized path to a computer’s processor.
Tying both of these technologies together is the Thunderbolt 3 interface which uses the PCIe bus. This interface offers the fastest data transfers possible on a single cable between computers and peripherals like storage solutions, docks, and expansion devices while also supplying 85W of power to keep your laptop ready to go at a moment’s notice.
Muscle-FLEXing Data Performance
Right out of the packaging, the top four bays are configured with four SSDs while the bottom four bays are configured with high-performance enterprise-class 3.5-inch HDDs. On solutions with four SATA 6Gb/s SSDs, you enjoy broad drive-swappable compatibility with other OWC ThunderBay units. On solutions with four U.2 NVMe SSDs, you are ready for the future storage standard used in content creation and video production. With real-world read/write speeds of 2750MB/s that saturates the Thunderbolt 3 speed threshold, you’re ready to handle 4K/8K and even Phantom high-speed files.
Done with the drives but need the docking connectivity?
Eject the ThunderBay Flex 8 drives and any external drives in a single click with the free OWC Dock Ejector app. It ensures all data has been written before any drive is unmounted to protect against data loss. It will even warn you from accidentally ejecting an in-use drive.
Docking FLEXibility
A virtual buffet of productivity-enhancing possibilities awaits you with the docking connections built into ThunderBay Flex 8. Power your notebook with up to 85W power delivery while capturing multi-stream hi-res footage at full frame rate. Connect audio and video mixers, digital camera, keyboards, and other peripherals and charge mobile devices via one USB-C and two USB-A 10Gb/s ports. Ingest and work with 4/8K RAW video and RAW photo files immediately at speeds up to 985MB/s with frontside SD 4.0 and CFexpress card readers. Add more viewing space with up to an 8K monitor via the DisplayPort 1.4 interface. And if all that’s not enough to satisfy your project needs, daisy-chain up to five additional Thunderbolt 3 devices!
FLEXpandable for Unique Needs
By removing the enclosure’s side panel, you can expand your capabilities by installing a half-length, full-height, single-width expansion card in the PCIe x16 connector/x4 lanes slot. Add a 4K video capture card for direct ingest of multi-stream high-res footage. Record high-quality tracks with an audio card and then edit and archive tracks.
Create a powerful file server with a high-speed networking card. By replacing the built-in SATA drive controller with a SATA or SAS RAID card, you can turn ThunderBay Flex 8 into a hardware RAID storage solution while keeping a PCIe slot open for other cards.
The Most Powerful RAID Tool on the Planet.
SoftRAID is the world’s fastest and most flexible application to configure, maintain, and protect your RAID volumes on Mac and PC. OWC enclosures include 3 Years of SoftRAID Premium.
- High-Performance RAID 0/1/4/5/1+0 (10) volumes
- Predictive Health Monitoring proactively notifies of Volume and Disk issues well before failure — provided on your computer and remotely
- 35+ Years of Experience of Pro Support to provide peace-of-mind with setup help, ongoing questions, or urgent disk issues
- And many more unique features.
- Learn more about SoftRAID
SoftRAID works with macOS 10.14+, Windows 10+, and Windows Server 2019/2022. M1 Macs require macOS 11.3 or later. SoftRAID is licensed per computer.
A Protective, Economical Post-Production Solution
Sending a drive from set to post-production typically entails tedious and time-consuming drive enclosure disassembly to access the storage drive or costly shipping of the entire enclosure to the post lab. But ThunderBay Flex 8 offers yet another option.
By installing an OWC U.2 NVMe Interchange System carrier tray (sold separately) with a built-in U.2 connector into a ThunderBay Flex 8 drive tray, you can protect the U.2 SSD drive’s connector from repeated install/removal wear for improved drive longevity and investment. When done with your shoot, just ship the lightweight protective carrier and drive to the lab where the carrier can be installed into an OWC Helios 3S equipped with the OWC Interchange System. It’s a complete solution to safeguard your data while lowering shipping costs.
End-To-End Workflow Possibilities
FLEX On-Set
+ OWC Interchange System Carrier Tray with SSD
+ OWC ThunderBay Flex 8
Protects U.2 SSD drive connectors from install/ removal wear to improve drive longevity and extend your drive ROI.
Transit to Post
+ OWC Interchange System Carrier Tray with SSD
+ Small and economical. Ship only what you need.
Lightweight protective carrier safeguards data while lowering shipping costs vs shipping the entire enclosure.
Post-Production Lab
+ OWC Interchange System Carrier Tray with SSD
+ OWC Helios 3S (sold separately)
+ OWC Interchange System (sold separately)
Desktop U.2 NVMe SSD swappable storage for fast processing of footage.
OWC Thunderbolt cable Included
OWC ThunderBay Flex 8 comes with a certified 0.7 meter OWC Thunderbolt cable, with other lengths from 0.5 meter to 2.0 meters available separately.
Innergize Your Workflow with Highest Performance and Reliability
OWC Innergize™ is the first stage of the Capture to Completion™ ecosystem of OWC products designed to seamlessly propel professional photographers, videographers, and content creators to the highest level of workflow performance and reliability. This OWC custom-designed app is a complete health, performance, and field upgrade management tool when using OWC Atlas memory cards with OWC Atlas readers and reader-equipped products.
- Health: Over time and use cycles, flash memory does wear out. Innergize verifies and reports the percentage of use life remaining. Now you can work with full confidence your OWC Atlas memory card will deliver the reliability you can trust.
- Sanitize: Writes, deletes, and formatting all take their toll on memory cards. Innergize cleans and restores the flash memory performance of your OWC Atlas memory card so you can get the best results on every use.
- Field Upgrade: When new cameras or firmware updates to existing cameras are introduced, they may not work properly with flash memory cards. Innergize gives OWC Atlas memory card users the ability to quickly upgrade their firmware in the field for full compatibility, additional performance enhancements, and bug fixes for optimal reliability.
Innergize is free to use with OWC Atlas memory cards, card readers, and card reader-equipped products. Download for OWC Innergize for Mac or OWC Innergize for Windows.
- SAS drives are supported with SAS drive controller card (available separately).
- Up to four U.2 drives are supported. M.2 drives are also supported with M.2 to U.2 adapter (available separately).
- Thunderbolt 2/Thunderbolt compatibility requires a certified Thunderbolt 3 (USB-C) to Thunderbolt 2 (mDP) adapter and a Thunderbolt 2 cable (not included). This configuration provides data transfer at up to 20Gb/s but does not support notebook charging.
- Full DisplayPort 1.4 capabilities depends on host computer support of DisplayPort 1.4 specification through its Thunderbolt 3 connection, host computer GPU capabilities, and connecting cable capabilities.
- SoftRAID works with macOS 10.14+, Windows 10+, and Windows Server 2019/2022. M1 Macs require macOS 11.3 or later.
- SoftRAID is licensed per computer.
Includes
Back to top
- (1) OWC ThunderBay Flex 8 External Storage Solution
- (1) 0.7M (28") Thunderbolt Cable
- (1) US Power Cable
- (2) Security Keys for Front Panel Lock
- (1) Hex Key
- (1) Quick Start Guide for OWC ThunderBay Flex 8
- (1) Quick Start Guide for OWC ThunderBay Flex 8
- (1) Assembly Manual & User Guide for OWC ThunderBay Flex 8
- (1) 3 Years of SoftRAID Premium Access (License located on device)
- (1) Quick Start Guide for OWC SoftRAID (Digital)
- 5 Year OWC Limited Warranty
Specs
Back to top
Drive Bays
- 4 bays supporting: 2.5-inch SATA drives, 3.5-inch SATA drives, 2.5-inch U.2 drives, M.2 drives (with M.2 to U.2 adapter), 2.5-inch SAS drives (with SAS drive controller card), 3.5-inch SAS drives (with SAS drive controller card)
- 4 bays supporting: 2.5-inch SATA drives, 3.5-inch SATA drives, 2.5-inch SAS drives (with SAS drive controller card), 3.5-inch SAS drives (with SAS drive controller card)
Total Capacity
- 112000GB Useable Capacity
- Total Capacity: 112384GB
- 384GB Allocated to real-time data redundancy and error correction
Total Solution Cache Size
- 4096 MB
Drive Mechanism
- (4) 24.0TB Toshiba MG11 Series 7,200RPM Enterprise Capacity Hard Disk Drive with 1024 MB cache
- (4) 4.0TB OWC U2 ShuttleOne 2.5-inch NVMe U.2 Solid-State Drive
- *OWC reserves the right to replace or upgrade to equivalent or better components.
Hot Swap Support
- Yes
Hot Plug Support
- Yes
Boot Support
- Dependent upon configuration. Independent Mac volumes should boot in most scenarios.. Boot Camp is not supported.
RAID Capable
- Yes
RAID Levels Supported
- RAID 0
- RAID 1
- RAID 0+1
- RAID 4
- RAID 5
- JBOD
RAID Features
- Software RAID
Expansion Slots
- (1) PCIe 3.0 x16 physical, x4 electrical, full-height, half-length, single-width
Device Ports
- (1) Host Port - Thunderbolt 3 (USB-C) up to 40Gb/s (5000MB/s)
- (1) Thunderbolt 3 (USB-C) Port
- (1) USB 3.2 Gen 2 Type-C Port up to 10Gb/s (1250MB/s) - USB 2.0/3.0 backwards compatible
- (2) USB 3.2 Gen 2 Type-A Ports up to 10Gb/s (1250MB/s) - USB 2.0/3.0 backwards compatible
- (1) DisplayPort Port
Memory Card Slots
- (1) CFexpress 2.0 Type B
- (1) SD
Power Delivery
- Thunderbolt 3 host port provides up to 85W of power to the host computer.1
- Thunderbolt 3 device port (for external drives and other devices) provides 15W of power.
Display Support
- Up to one 8K display @ 60Hz,
- or one 4K display @ 120Hz,
- or one 5K display @ 60Hz,
- or one 4K display @ 60Hz and one 4K display @ 30Hz,
- or one 4K display @ 60Hz,
- or one 4K display @ 30Hz,
- or two 4K displays @ 60Hz
Display Support by Port
- DisplayPort 1.4: Up to 8K @ 60Hz or 4K @ 120Hz
- Thunderbolt 3: Up to 5K @ 60Hz via a native Thunderbolt 3 display or 4K @ 60Hz via a Thunderbolt display or a USB-C display adapter
Data Rate
- Thunderbolt 3: 40Gb/s (or 5000MB/s)
Data Transfer Rate (Maximum)
- Thunderbolt 3 : Up to 40Gb/s (or 5000MB/s)
Chipset / Controller
- Thunderbolt: Intel JHL7440
- PCIe Switch: ASMedia ASM-2824
- USB Controller: Genesys Logic GL-3590
Contact Start Stops
- Varies depending on drive mechanism installed
Host Interface Requirements
- Thunderbolt (USB-C) port (backward compatible with Thunderbolt 2/Thunderbolt1)
Mac OS Compatibility
- macOS 10.15 Catalina
- macOS 11.x Big Sur
- macOS 12.x Monterey
- macOS 13.x Ventura
- macOS 14.x Sonoma
- macOS 15.x Sequoia
- OWC Innergize is currently supported on macOS version 12.x, macOS 13.7.2 and earlier, macOS 14.7.2 and earlier, and macOS 15.2.1 and earlier. We are aware of an issue in macOS 13.7.3, macOS 14.7.3, macOS 15.3.x, released 01/27/25 that makes OWC Innergize unable to be used with OWC Atlas USB4 and USB-C readers. The Thunderbolt interface equipped OWC Atlas FXR reader remains supported in macOS 15.3.x over USB. Apple has been informed of this issue and we are diligently pursuing a resolution.
PC OS Compatibility
- Not compatible with Windows PCs
Driver Required
- SoftRAID Only
- The SoftRAID driver is installed within the SoftRAID application.
- For PCIe cards that require a driver, please check the manufacturer web site. Drivers for PCIe cards must be Thunderbolt-aware to function.
Supported PCIe Cards
- Supports one full-height, half-length, single-width card (driverless or with Thunderbolt-aware driver). GPUs not supported.
Other Requirements
- macOS 10.15.1 or later required.
External Power Adapter
- No
Power Supply
- Internal UL-listed universal auto-switching power supply
AC Input
- 100-240V, 50-60Hz, 3.5A-7.0A
DC Output
- +12V, 37A
Wattage
- 450W
Cooling
- (1) 120mm 1,600RPM cooling fan
Security Slot
- Yes
Power Button
- Yes
Power/Activity LED
- Yes
Housing Color
- Black
Housing Material
- Aluminum
Dimensions
- Height: 34.9 cm (13.7 in)
- Length: 39.0 cm (15.4 in)
- Width: 14.9 cm (5.9 in)
Weight
- 12.1 kg (26.70 lbs)
Certifications
- BSMI
- CE
- FCC
- RCM
- VCCI
Ambient Temperature
- Operating: 50°F to 95°F (10°C to 35°C)
- Non-Operating: -40°F to 149°F (-40°C to 65°C)
Altitude
- Operating: -304.8 m to 3,048.0 m (-1,000 ft to 10,000 ft)
- Non-Operating: -304.8 m to 12,192.0 m (-1,000 ft to 40,000 ft)
Humidity
- Operating: 8% to 90% non-condensing
- Non-Operating: 5% to 95% non-condensing
Shock
- Operating: Varies depending on drive mechanism installed
- Non-Operating: Varies depending on drive mechanism installed
Noise
- Varies depending on drive mechanism installed
- Thunderbolt 2/Thunderbolt compatibility requires a certified Thunderbolt 3 (USB-C) to Thunderbolt 2 (mDP) adapter and a Thunderbolt 2 cable (not included). This configuration provides data transfer at up to 20Gb/s but does not support notebook charging.
- SoftRAID works with macOS 10.14+, Windows 10+, and Windows Server 2019/2022. M1 Macs require macOS 11.3 or later.
- SoftRAID is licensed per computer.
- GPUs are not supported.
- While we do not bundle or recommend specific RAID/SAS card setups at this time, we do provide an unofficial guide as a courtesy, to customers who wish to attempt this workflow.
- Dual display support, including available resolution and refresh rates, is dependent on host hardware and drivers.
- Apple silicon M1/M2/M3 Pro, M1/M2/M3 Max, and M1/M2 Ultra Mac models, Apple Intel-based Mac models, and Thunderbolt 4 PCs can support up to two displays at up to 4K @ 60Hz via Thunderbolt.
- Apple silicon M1/M2/M3 Mac models can support one external display up to 4K @ 60Hz via Thunderbolt. - The following Apple silicon M1/M2/M3 Mac models support a single display over a Thunderbolt port:
- MacBook Pro (14-inch, M3, 2023)
- MacBook Pro (13-inch, M1, 2020) - MacBookPro17,1
- MacBook Pro (13-inch, M2, 2022) - Mac14,7
- MacBook Air (M1, 2020) - MacBookAir10,1
- MacBook Air (M2, 2022) - Mac14,2
- Mac mini (M1, 2020) - Macmini9,1 - The following Mac models provide only partial support for DisplayPort 1.4, including limiting resolution to 5K or 6K at 60Hz. Please review Apple's display specifications for your specific Mac to determine the maximum supported resolution and color depth:
- MacBook Pro (15-inch, 2018) - MacBookPro15,1
- MacBook Pro (13-inch, 2018, Four Thunderbolt 3 ports) - MacBookPro15,2
- MacBook Pro (13-inch, 2019, Four Thunderbolt 3 ports) - MacBookPro15,2
- MacBook Pro (15-inch, 2019) - MacBookPro15,1 and MacBookPro15,3
- MacBook Pro (13-inch, 2019, Two Thunderbolt 3 ports) - MacBookPro15,4
- MacBook Pro (16-inch, 2019) - MacBookPro16,1 and MacBookPro16,4
- MacBook Pro (13-inch, 2020, Four Thunderbolt 3 ports) - MacBookPro16,2
- MacBook Pro (13-inch, 2020, Two Thunderbolt 3 ports) - MacBookPro16,3
- MacBook Air (Retina, 13-inch, 2018) - MacBookAir8,1
- MacBook Air (Retina, 13-inch, 2019) - MacBookAir8,2
- MacBook Air (Retina, 13-inch, 2020) - MacBookAir9,1
- iMac (Retina 5K, 27-inch, 2019) - iMac19,1
- iMac (Retina 4K, 21.5-inch, 2019) - iMac19,2
- iMac (Retina 5K, 27-inch, 2020) - iMac20,1 and iMac20,2
- Mac mini (2018) - Macmini8,1
- Mac Pro (2019) - MacPro7,1
- Mac Pro (Rack, 2019) - MacPro7,1 - A firmware update is required to use OWC ThunderBay Flex 8 with OWC Innergize software. This firmware update is available on the OWC ThunderBay Flex 8 Support Guide.
Compatibility & Installation Videos
Back to top
Notes:
- Limited support on compatible Windows systems. This device is not Thunderbolt certified for Windows. A Thunderbolt device may not function properly or at all if used with an operating system for which the device has not been certified.
- GPUs are not supported.
- While we do not bundle or recommend specific RAID/SAS card setups at this time, we do provide an unofficial guide as a courtesy, to customers who wish to attempt this workflow.
MacBook Pro
MacBook Pro (16-inch, Late 2024)
Late 2024
Model ID: Mac16.5
Apple M4 Max
MacBook Pro (14-inch, Late 2024)
Late 2024
Model ID: Mac16,8
Apple M4 Pro
MacBook Pro (16-inch, Late 2024)
Late 2024
Model ID: Mac16,7
Apple M4 Pro
MacBook Pro (14-inch, Late 2024)
Late 2024
Model ID: Mac16,6 & Mac16,1
Apple M4 Max & Apple M4
MacBook Pro (16-inch, Late 2023)
Late 2023
Model ID: Mac15,9
Apple M3 Max
MacBook Pro (14-inch, Late 2023)
Late 2023
Model ID: Mac15,8
Apple M3 Max
MacBook Pro (16-inch, Late 2023)
Late 2023
Model ID: Mac15,7
Apple M3 Pro
MacBook Pro (14-inch, Late 2023)
Late 2023
Model ID: Mac15,6 & Mac15,3
Apple M3 Pro & Apple M3
MacBook Pro (16-inch, Late 2023)
Late 2023
Model ID: Mac15,11
Apple M3 Max
MacBook Pro (14-inch, Late 2023)
Late 2023
Model ID: Mac15,10
Apple M3 Max
MacBook Pro (14-inch, Early 2023)
Early 2023
Model ID: Mac14,9
Apple M2 Pro
MacBook Pro (16-inch, Early 2023)
Early 2023
Model ID: Mac14,6
Apple M2 Max
MacBook Pro (14-inch, Early 2023)
Early 2023
Model ID: Mac14,5
Apple M2 Max
MacBook Pro (16-inch, Early 2023)
Early 2023
Model ID: Mac14,10
Apple M2 Pro
MacBook Pro (13-inch, Mid 2022)
Mid 2022
Model ID: Mac14,7
Apple M2
MacBook Pro (14-inch, Late 2021)
Late 2021
Model ID: MacBookPro18,4 & MacBookPro18,3
Apple M1 Max & Apple M1 Pro
MacBook Pro (16-inch, Late 2021)
Late 2021
Model ID: MacBookPro18,2 & MacBookPro18,1
Apple M1 Max & Apple M1 Pro
MacBook Pro (Touch, 13-inch, Late 2020)
Late 2020
Model ID: MacBookPro17,1
Apple M1
MacBook Pro (Touch, 13-inch, Mid 2020)
Mid 2020
Model ID: MacBookPro16,3 & MacBookPro16,2
1.4GHz & 1.7GHz & 2.0GHz Core i5 & 2.3GHz Core i7
MacBook Pro (Touch, 16-inch, Mid 2019)
Late 2019
Model ID: MacBookPro16,1
2.6GHz Core i7 & 2.3GHz & 2.4GHz Core i9
MacBook Pro (Touch, 13-inch, Mid 2019)
Mid 2019
Model ID: MacBookPro15,4
1.4GHz Core i5 & 1.7GHz Core i7
MacBook Pro (Touch, 15-inch, Mid 2019)
Mid 2019
Model ID: MacBookPro15,3
2.3GHz & 2.4GHz Core i9
MacBook Pro (Touch, 13-inch, Mid 2019)
Mid 2019
Model ID: MacBookPro15,2
2.4GHz Core i5 & 2.8GHz Core i7
MacBook Pro (Touch, 15-inch, Mid 2019)
Mid 2019
Model ID: MacBookPro15,1
2.6GHz Core i7 & 2.3GHz & 2.4GHz Core i9
MacBook Pro (Touch, 15-inch, Late 2018)
Late 2018
Model ID: MacBookPro15,3
2.6GHz Core i7 & 2.9GHz Core i9
MacBook Pro (Touch, 13-inch, Mid 2018)
Mid 2018
Model ID: MacBookPro15,2
2.3GHz Core i5 & 2.7GHz Core i7
MacBook Pro (Touch, 15-inch, Mid 2018)
Mid 2018
Model ID: MacBookPro15,1
2.2GHz & 2.6GHz Core i7 & 2.9GHz Core i9
MacBook Pro (Touch, 15-inch, Mid 2017)
Mid 2017
Model ID: MacBookPro14,3
2.8GHz & 2.9GHz & 3.1GHz Core i7
MacBook Pro (Touch, 13-inch, Mid 2017)
Mid 2017
Model ID: MacBookPro14,2
3.1GHz & 3.3GHz Core i5 & 3.5GHz Core i7
MacBook Pro (Retina, 13-inch, Mid 2017)
Mid 2017
Model ID: MacBookPro14,1
2.3GHz Core i5 & 2.5GHz Core i7
MacBook Pro (Retina, Touch Bar, 15-inch, Late 2016)
Late 2016
Model ID: MacBookPro13,3
2.6GHz & 2.7GHz & 2.9GHz Core i7
MacBook Pro (Retina, Touch Bar, 13-inch, Late 2016)
Late 2016
Model ID: MacBookPro13,2
2.9GHz & 3.1GHz Core i5 & 3.3GHz Core i7
MacBook Pro (Retina, 13-inch, Late 2016)
Late 2016
Model ID: MacBookPro13,1
2.0GHz Core i5 & 2.4GHz Core i7
MacBook Pro (Retina, 15-inch, Mid 2015)
Mid 2015
Requires Thunderbolt 3 (USB-C) to Thunderbolt 2 (mDP) Adapter and Thunderbolt 2 cable.
Requires Thunderbolt 3 (USB-C) to Thunderbolt 2 (mDP) Adapter and Thunderbolt 2 cable.
Model ID: MacBookPro11,5
2.5GHz & 2.8GHz Core i7
MacBook Pro (Retina, 15-inch, Mid 2015)
Mid 2015
Model ID: MacBookPro11,4
2.2GHz Core i7
MacBook Pro (Retina, 15-inch, Mid 2015)
Mid 2015
Requires Thunderbolt 3 (USB-C) to Thunderbolt 2 (mDP) Adapter and Thunderbolt 2 cable.
Requires Thunderbolt 3 (USB-C) to Thunderbolt 2 (mDP) Adapter and Thunderbolt 2 cable.
Model ID: MacBookPro11,4
2.5GHz & 2.8GHz Core i7
MacBook Pro (Retina, 13-inch, Early 2015)
Early 2015
Requires Thunderbolt 3 (USB-C) to Thunderbolt 2 (mDP) Adapter and Thunderbolt 2 cable.
Requires Thunderbolt 3 (USB-C) to Thunderbolt 2 (mDP) Adapter and Thunderbolt 2 cable.
Model ID: MacBookPro12,1
2.7GHz & 2.9GHz Core i5 & 3.1GHz Core i7
MacBook Pro (Retina, 15-inch, Mid 2014)
Mid 2014
Requires Thunderbolt 3 (USB-C) to Thunderbolt 2 (mDP) Adapter and Thunderbolt 2 cable.
Requires Thunderbolt 3 (USB-C) to Thunderbolt 2 (mDP) Adapter and Thunderbolt 2 cable.
Model ID: MacBookPro11,3
2.5GHz & 2.8GHz Core i7
MacBook Pro (Retina, 15-inch, Mid 2014)
Mid 2014
Model ID: MacBookPro11,2
2.2GHz Core i7
MacBook Pro (Retina, 15-inch, Mid 2014)
Mid 2014
Requires Thunderbolt 3 (USB-C) to Thunderbolt 2 (mDP) Adapter and Thunderbolt 2 cable.
Requires Thunderbolt 3 (USB-C) to Thunderbolt 2 (mDP) Adapter and Thunderbolt 2 cable.
Model ID: MacBookPro11,2
2.5GHz & 2.8GHz Core i7
MacBook Pro (Retina, 13-inch, Mid 2014)
Mid 2014
Requires Thunderbolt 3 (USB-C) to Thunderbolt 2 (mDP) Adapter and Thunderbolt 2 cable.
Requires Thunderbolt 3 (USB-C) to Thunderbolt 2 (mDP) Adapter and Thunderbolt 2 cable.
Model ID: MacBookPro11,1
2.6GHz & 2.8GHz Core i5 & 3.0GHz Core i7
MacBook Pro (Retina, 15-inch, Late 2013)
Late 2013
Model ID: MacBookPro11,3
2.3GHz Core i7
MacBook Pro (Retina, 15-inch, Late 2013)
Late 2013
Requires Thunderbolt 3 (USB-C) to Thunderbolt 2 (mDP) Adapter and Thunderbolt 2 cable.
Requires Thunderbolt 3 (USB-C) to Thunderbolt 2 (mDP) Adapter and Thunderbolt 2 cable.
Model ID: MacBookPro11,3
2.6GHz Core i7
MacBook Pro (Retina, 15-inch, Late 2013)
Late 2013
Model ID: MacBookPro11,2
2.0GHz & 2.3GHz Core i7
MacBook Pro (Retina, 15-inch, Late 2013)
Late 2013
Requires Thunderbolt 3 (USB-C) to Thunderbolt 2 (mDP) Adapter and Thunderbolt 2 cable.
Requires Thunderbolt 3 (USB-C) to Thunderbolt 2 (mDP) Adapter and Thunderbolt 2 cable.
Model ID: MacBookPro11,2
2.6GHz Core i7
MacBook Pro (Retina, 13-inch, Late 2013)
Late 2013
Model ID: MacBookPro11,1
2.4GHz Core i5
MacBook Pro (Retina, 13-inch, Late 2013)
Late 2013
Requires Thunderbolt 3 (USB-C) to Thunderbolt 2 (mDP) Adapter and Thunderbolt 2 cable.
Requires Thunderbolt 3 (USB-C) to Thunderbolt 2 (mDP) Adapter and Thunderbolt 2 cable.
Model ID: MacBookPro11,1
2.6GHz Core i5 & 2.8GHz Core i7
MacBook Pro (Retina, 15-inch, Early 2013)
Early 2013
Model ID: MacBookPro10,1
2.4GHz Core i7
MacBook Pro (15-inch, Mid 2012)
Mid 2012
Model ID: MacBookPro9,1
2.3GHz Core i7
MacBook Pro (Retina, 15-inch, Mid 2012)
Mid 2012
Model ID: MacBookPro10,1
2.3GHz Core i7
MacBook Pro (17-inch, Late 2011)
Late 2011
Model ID: MacBookPro8,3
2.4GHz Core i7
MacBook Pro (15-inch, Late 2011)
Late 2011
Model ID: MacBookPro8,2
2.2GHz & 2.4GHz Core i7
MacBook Pro (13-inch, Late 2011)
Late 2011
Model ID: MacBookPro8,1
2.4GHz Core i5
MacBook Pro (17-inch, Early 2011)
Early 2011
Model ID: MacBookPro8,3
2.2GHz & 2.3GHz Core i7
MacBook Pro (15-inch, Early 2011)
Early 2011
Model ID: MacBookPro8,2
2.0GHz & 2.2GHz & 2.3GHz Core i7
MacBook Pro (13-inch, Early 2011)
Early 2011
Model ID: MacBookPro8,1
2.3GHz Core i5
MacBook Air
MacBook Air (15-inch, Early 2025)
Early 2025
Model ID: Mac16,13
Apple M4
MacBook Air (13-inch, Early 2025)
Early 2025
Model ID: Mac16,12
Apple M4
MacBook Air (15-inch, Early 2024)
Early 2024
Model ID: Mac15,13
Apple M3
MacBook Air (13-inch, Early 2024)
Early 2024
Model ID: Mac15,12
Apple M3
MacBook Air (15-inch, Mid 2023)
Mid 2023
Model ID: Mac14,15
Apple M2
MacBook Air (13-inch, Mid 2022)
Mid 2022
Model ID: Mac14,2
Apple M2
MacBook Air (13-inch, Early 2020)
Early 2020
Model ID: MacBookAir9,1
1.1GHz Core i3 & 1.1GHz Core i5 & 1.2GHz Core i7
MacBook Air (13-inch, Mid 2019)
Mid 2019
Model ID: MacBookAir8,2
1.6GHz Core i5
MacBook Air (13-inch, Late 2018)
Late 2018
Model ID: MacBookAir8,1
1.6GHz Core i5
MacBook Air (13-inch, Mid 2017)
Mid 2017
Model ID: MacBookAir7,2
1.8GHz Core i5 & 2.2GHz Core i7
MacBook Air (13-inch, Early 2015)
Early 2015
Model ID: MacBookAir7,2
1.6GHz Core i5 & 2.2GHz Core i7
MacBook Air (11-inch, Early 2015)
Early 2015
Model ID: MacBookAir7,1
1.6GHz Core i5 & 2.2GHz Core i7
MacBook Air (13-inch, Early 2014)
Early 2014
Model ID: MacBookAir6,2
1.4GHz Core i5 & 1.7GHz Core i7
MacBook Air (11-inch, Early 2014)
Early 2014
Model ID: MacBookAir6,1
1.4GHz Core i5 & 1.7GHz Core i7
MacBook Air (13-inch, Mid 2013)
Mid 2013
Model ID: MacBookAir6,2
1.3GHz Core i5 & 1.7GHz Core i7
MacBook Air (11-inch, Mid 2013)
Mid 2013
Model ID: MacBookAir6,1
1.3GHz Core i5 & 1.7GHz Core i7
MacBook Air (11-inch, Mid 2012)
Mid 2012
Model ID: MacBookAir5,2
1.7GHz Core i5
MacBook Air (13-inch, Mid 2012)
Mid 2012
Model ID: MacBookAir5,2
1.8GHz Core i5 & 2.0GHz Core i7
MacBook Air (11-inch, Mid 2012)
Mid 2012
Model ID: MacBookAir5,1
1.7GHz Core i5 & 2.0GHz Core i7
MacBook Air (13-inch, Mid 2011)
Mid 2011
Model ID: MacBookAir4,2
1.6GHz & 1.7GHz Core i5 & 1.8GHz Core i7
MacBook Air (11-inch, Mid 2011)
Mid 2011
Model ID: MacBookAir4,1
1.6GHz Core i5 & 1.8GHz Core i7
iMac (Retina 4.5K, 24-inch, Late 2024)
Late 2024
Model ID: Mac16,3 & Mac16,2
Apple M4
iMac (Retina 4.5K, 24-inch, Late 2023)
Late 2023
Model ID: Mac15,5 & Mac15,4
Apple M3
iMac (Retina 4.5K, 24-inch, Mid 2021)
Mid 2021
Model ID: iMac21,2 & iMac21,1
Apple M1
iMac (Retina 5K, 27-inch, Mid 2020)
Mid 2020
Model ID: iMac20,2 & iMac20,1
3.8GHz Core i7 & 3.6GHz Core i9 & 3.3GHz & 3.1GHz Core i5
iMac (Retina 4K, 21.5-inch, Early 2019)
Early 2019
Model ID: iMac19,2
3.6GHz Core i3 & 3.0GHz Core i5 & 3.2GHz Core i7
iMac (Retina 5K, 27-inch, Early 2019)
Early 2019
Model ID: iMac19,1
3.7GHz & 3.1GHz & 3.0GHz Core i5 & 3.6GHz Core i9
iMac Pro (27-inch, Late 2017)
Late 2017
Model ID: iMacPro1,1
2.5GHz Xeon W & 2.3GHz Xeon W & 3.0GHz Xeon W & 3.2GHz Xeon W
iMac (Retina 5K, 27-inch, Mid 2017)
Mid 2017
Model ID: iMac18,3
3.8GHz & 3.5GHz & 3.4GHz Core i5 & 4.2GHz Core i7
iMac (Retina 4K, 21.5-inch, Mid 2017)
Mid 2017
Model ID: iMac18,2
3.4GHz & 3.0GHz Core i5 & 3.6GHz Core i7
iMac (Retina 5K, 27-inch, Late 2015)
Late 2015
Model ID: iMac17,1
3.2GHz & 3.3GHz Core i5 & 4.0GHz Core i7
iMac (21.5-inch, Late 2015)
Late 2015
Requires Thunderbolt 3 (USB-C) to Thunderbolt 2 (mDP) Adapter and Thunderbolt 2 cable.
Requires Thunderbolt 3 (USB-C) to Thunderbolt 2 (mDP) Adapter and Thunderbolt 2 cable.
Model ID: iMac16,2
2.8GHz Core i5
iMac (Retina 4K, 21.5-inch, Late 2015)
Late 2015
Model ID: iMac16,2
3.1GHz Core i5 & 3.3GHz Core i7
iMac (21.5-inch, Late 2015)
Late 2015
Requires Thunderbolt 3 (USB-C) to Thunderbolt 2 (mDP) Adapter and Thunderbolt 2 cable.
Requires Thunderbolt 3 (USB-C) to Thunderbolt 2 (mDP) Adapter and Thunderbolt 2 cable.
Model ID: iMac16,1
1.6GHz Core i5
iMac (Retina 5K, 27-inch, Mid 2015)
Mid 2015
Model ID: iMac15,1
3.3GHz Core i5
iMac (Retina 5K, 27-inch, Late 2014)
Late 2014
Model ID: iMac15,1
3.5GHz Core i5 & 4.0GHz Core i7
iMac (21.5-inch, Late 2013)
Late 2013
Model ID: iMac14,3
2.9GHz Core i5 & 3.1GHz Core i7
iMac (27-inch, Late 2013)
Late 2013
Model ID: iMac14,2
3.4GHz & 3.2GHz Core i5 & 3.5GHz Core i7
iMac (27-inch, Late 2012)
Late 2012
Model ID: iMac13,2
2.9GHz & 3.2GHz Core i5 & 3.4GHz Core i7
iMac (21.5-inch, Late 2012)
Late 2012
Model ID: iMac13,1
2.9GHz Core i5 & 3.1GHz Core i7
iMac (27-inch, Mid 2011)
Mid 2011
Model ID: iMac12,2
3.1GHz Core i5 & 3.4GHz Core i7
Mac Pro
Mac Pro (Mid 2023)
Mid 2023
Model ID: Mac14,8
Apple M2 Ultra
Mac Pro Rack (Mid 2023)
Mid 2023
Model ID: Mac14,8
Apple M2 Ultra
Mac Pro Rack (Late 2019)
Late 2019
Model ID: MacPro7,1
3.5GHz 8-Core Xeon
Mac Pro Rack (Late 2019)
Late 2019
Model ID: MacPro7,1
3.3GHz 12-Core Xeon
Mac Pro Rack (Late 2019)
Late 2019
Model ID: MacPro7,1
3.2GHz 16-Core Xeon
Mac Pro Rack (Late 2019)
Late 2019
Model ID: MacPro7,1
2.7GHz 24-Core Xeon
Mac Pro Rack (Late 2019)
Late 2019
Model ID: MacPro7,1
2.5GHz 28-Core Xeon
Mac Pro (Late 2013)
Late 2013
Model ID: MacPro6,1
3.7GHz 4-Core Xeon & 3.5GHz & 3.7GHz 6-Core Xeon & 3.0GHz 8-Core Xeon & 3.0GHz 10-Core Xeon & 2.7GHz 12-Core Xeon
Mac Studio
Mac Studio (Early 2025)
Early 2025
Model ID: Mac16,9 & Mac15,14
Apple M4 Max & Apple M3 Ultra
Mac Studio (Mid 2023)
Mid 2023
Model ID: Mac14,14 & Mac14,13
Apple M2 Ultra & Apple M2 Max
Mac Studio (Early 2022)
Early 2022
Model ID: Mac13,2 & Mac13,1
Apple M1 Ultra & Apple M1 Max
Mac mini
Mac mini (Late 2024)
Late 2024
Model ID: Mac16,11 & Mac16,10
Apple M4 Pro & Apple M4
Mac mini (Early 2023)
Early 2023
Model ID: Mac14,3 & Mac14,12
Apple M2 & Apple M2 Pro
Mac mini (Late 2020)
Late 2020
Model ID: Macmini9,1
Apple M1
Mac mini (Late 2018)
Late 2018
Model ID: Macmini8,1
3.6GHz Core i3 & 3.0GHz Core i5 & 3.2GHz Core i7
Mac mini (Late 2014)
Late 2014
Model ID: Macmini7,1
1.4GHz & 2.6GHz & 2.8GHz Core i5 & 3.0GHz Core i7
Mac mini (Late 2012)
Late 2012
Model ID: Macmini6,2
2.3GHz & 2.6GHz Core i7
Mac mini Server (Late 2012)
Late 2012
Model ID: Macmini6,2
2.3GHz & 2.6GHz Core i7
Mac mini Server (Mid 2011)
Mid 2011
Model ID: Macmini5,3
2.0GHz Core i7
Mac mini (Mid 2011)
Mid 2011
Model ID: Macmini5,2 & Macmini5,1
2.5GHz & 2.7GHz Core i7 & 2.3GHz Core i5
PC Compatible
PC Compatible
PC must have a compatible Thunderbolt port
Products
OWC Spare Drive Tray
Spare Drive Trays & Assemblies for OWC ThunderBay 4/6/8/Flex 8, Mercury Elite Pro Quad/QX2
Videos
Back to top
Related Items
Back to top
