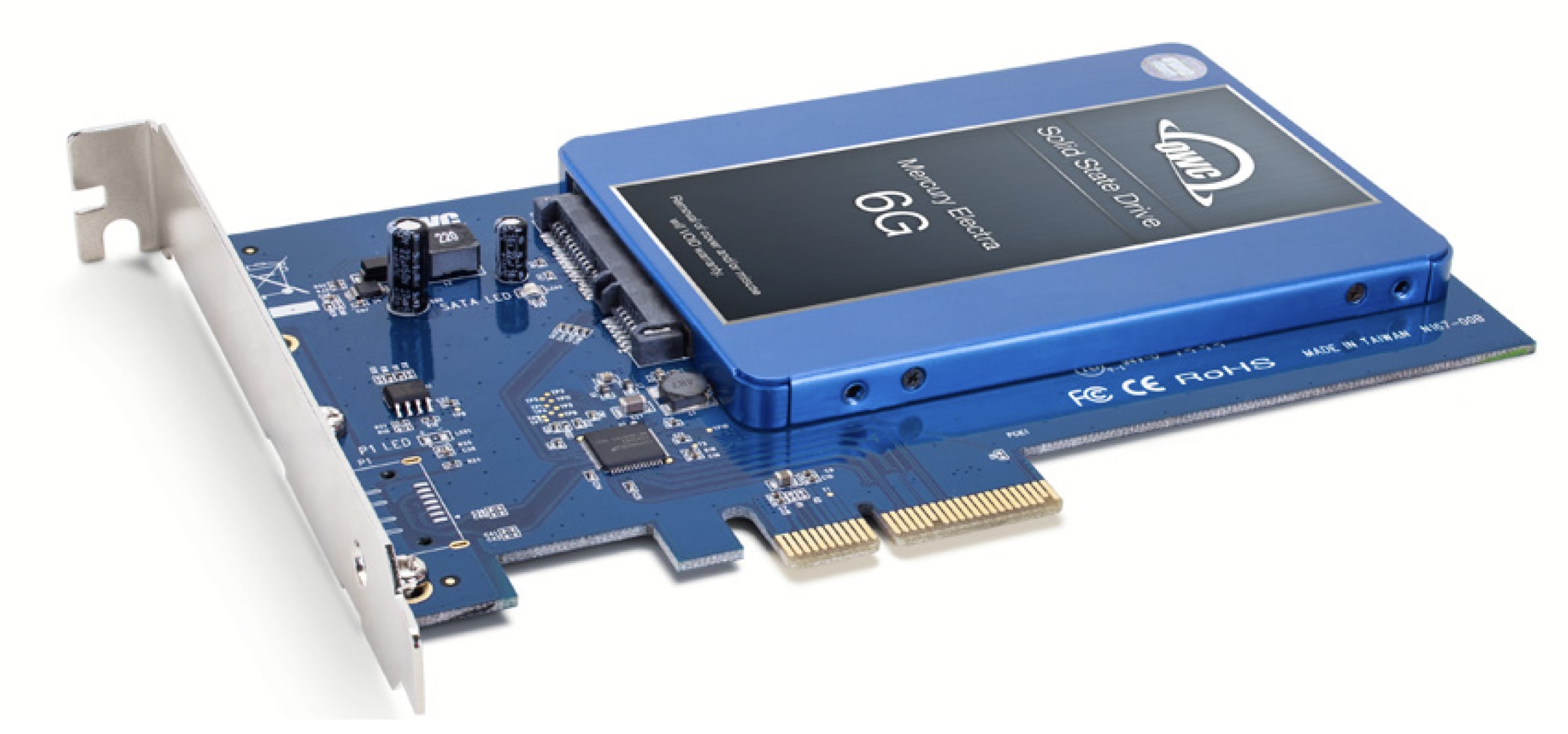

Accelsior S
Quick Start Guide
Package Contents
- OWC Asselsior S PCIe card (SSD not included)
- Phillips screws (4)
System Requirements
Mac Requirements
- OS X 10.6.8-10.11.6
- macOS 10.12 and later
- Intel-based Mac with available PCIe slot capable of supporting an x2 PCIe card. For optimal performance, use a PCIe 2.0 slot running at x4 speeds or greater.
PC Requirements
- Windows ® Vista and later
- Any PC with available PCIe 2.0 or 1.0 slot capable of supporting an x2 PCIe card. For optimal performance, use a PCIe 2.0 slot running at x4 speeds or greater.
Supported Drives
- Any 2.5" SATA hard drive (HDD) or solid state drive (SSD)
Hardware Installation
Before you proceed
- Power off the computer and disconnect its power source.
- Disconnect all peripheral devices from the computer.
- Take proper electrostatic discharge precautions (see below).
Attention: Observe Precautions For Handling Electrostatic Sensitive Devices
Your computer is a static-sensitive device. It is susceptible to invisible damage if not protected during installation. We recommend proper grounding by using a grounding strap. Make sure to work in a clean, static-free area, and avoid wearing clothing that retains static charges.
Step 1: Remove the Accelsior S from its packaging and set it down on a flat surface with the black SATA connector facing up.
Step 2: Install the 2.5 inch SATA drive of your choice. Detailed instructions with photos are available (please see below).
Step 3: Install the Accelsior S in a compatible PCIe slot and secure it to the computer chassis according to its specifications.

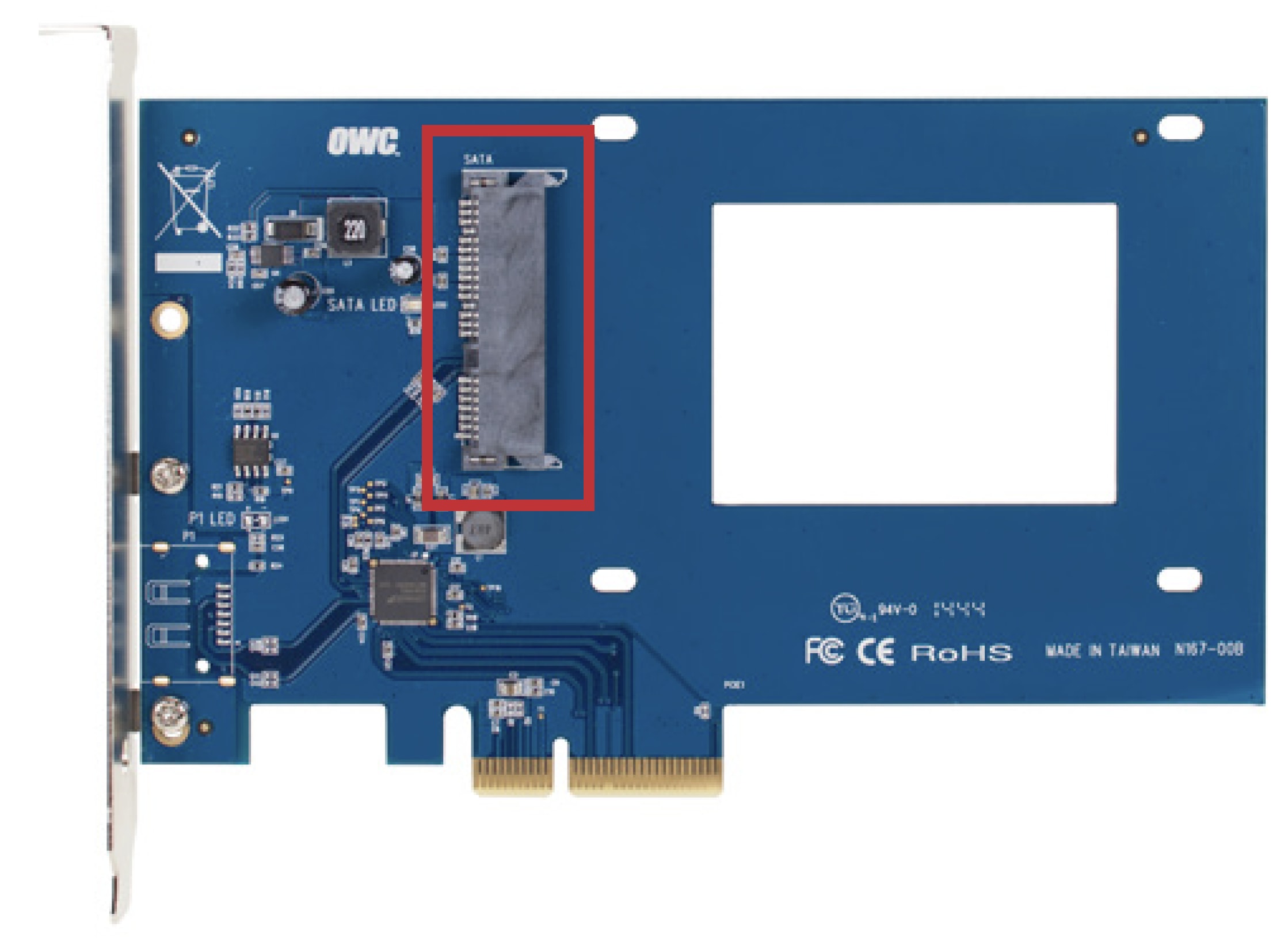

1. Set the OWC Accelsior S down on a flat surface. Make sure the black SATA connector is facing up, as shown above.

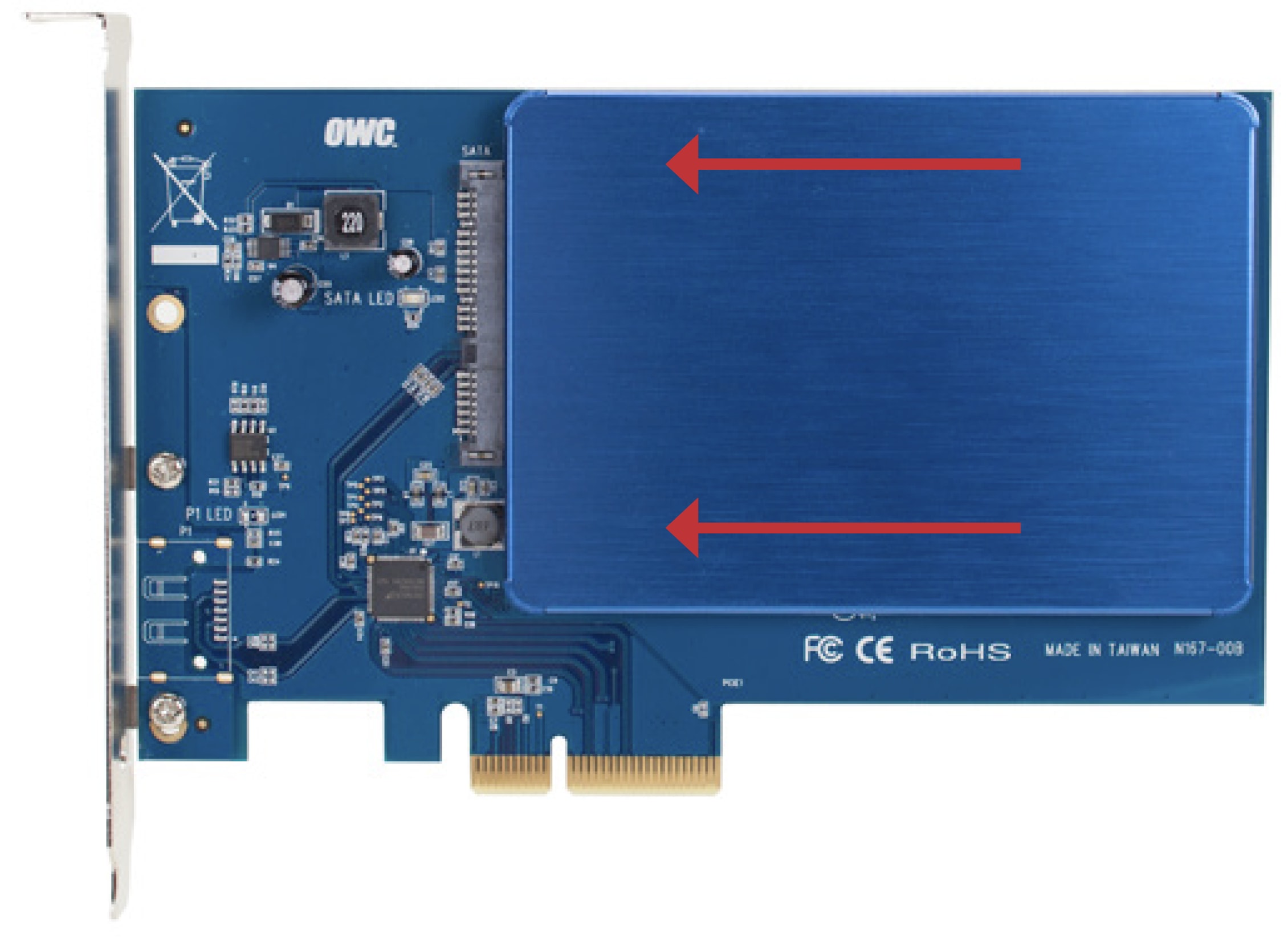

2. Slide the SATA connector on the drive into the SATA connector on the Accelsior S. Ensure the drive is fully seated, as shown.

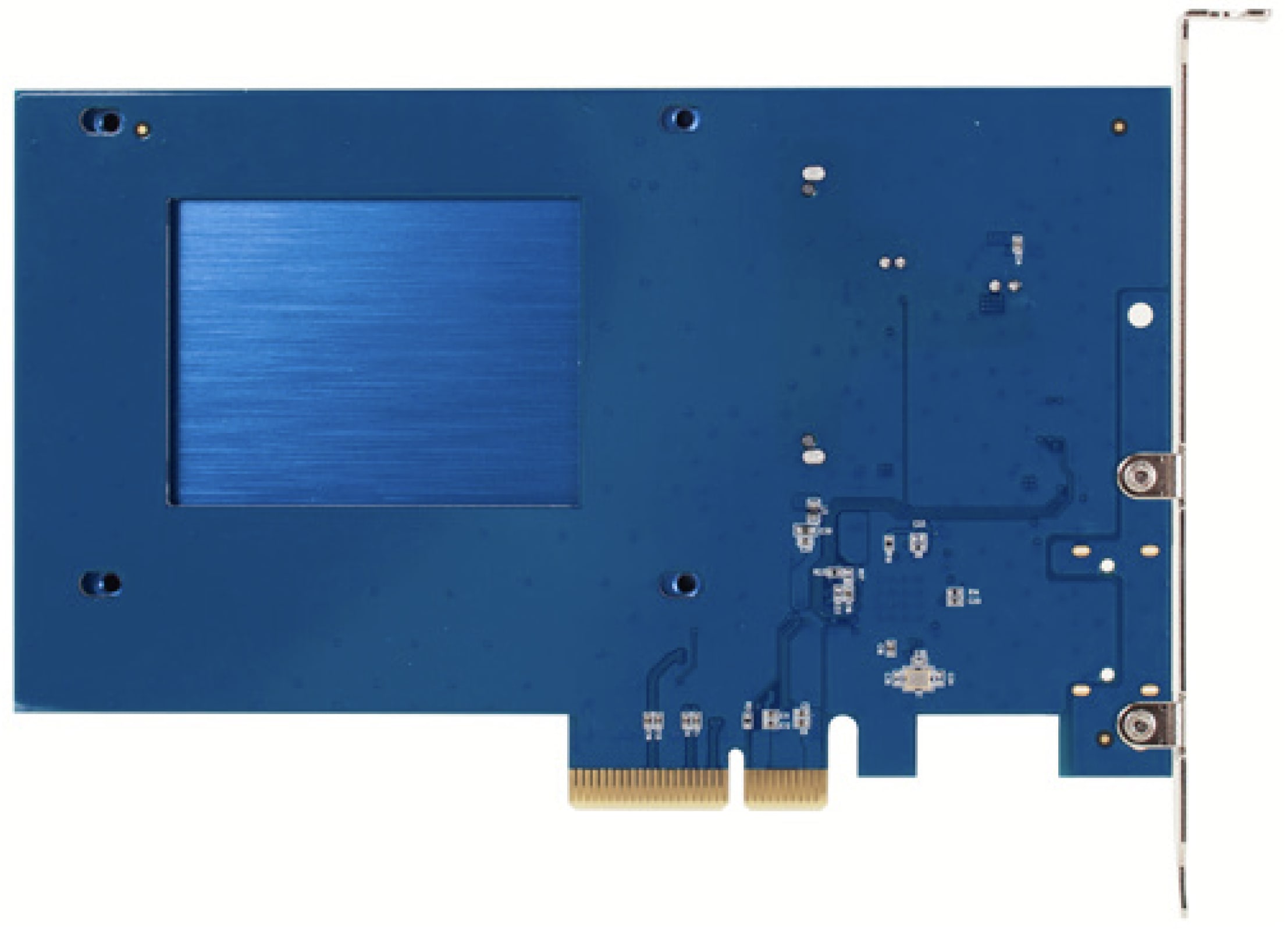

3. Holding the driver as securely to the Accelsior S, turn over the Accelsior S.

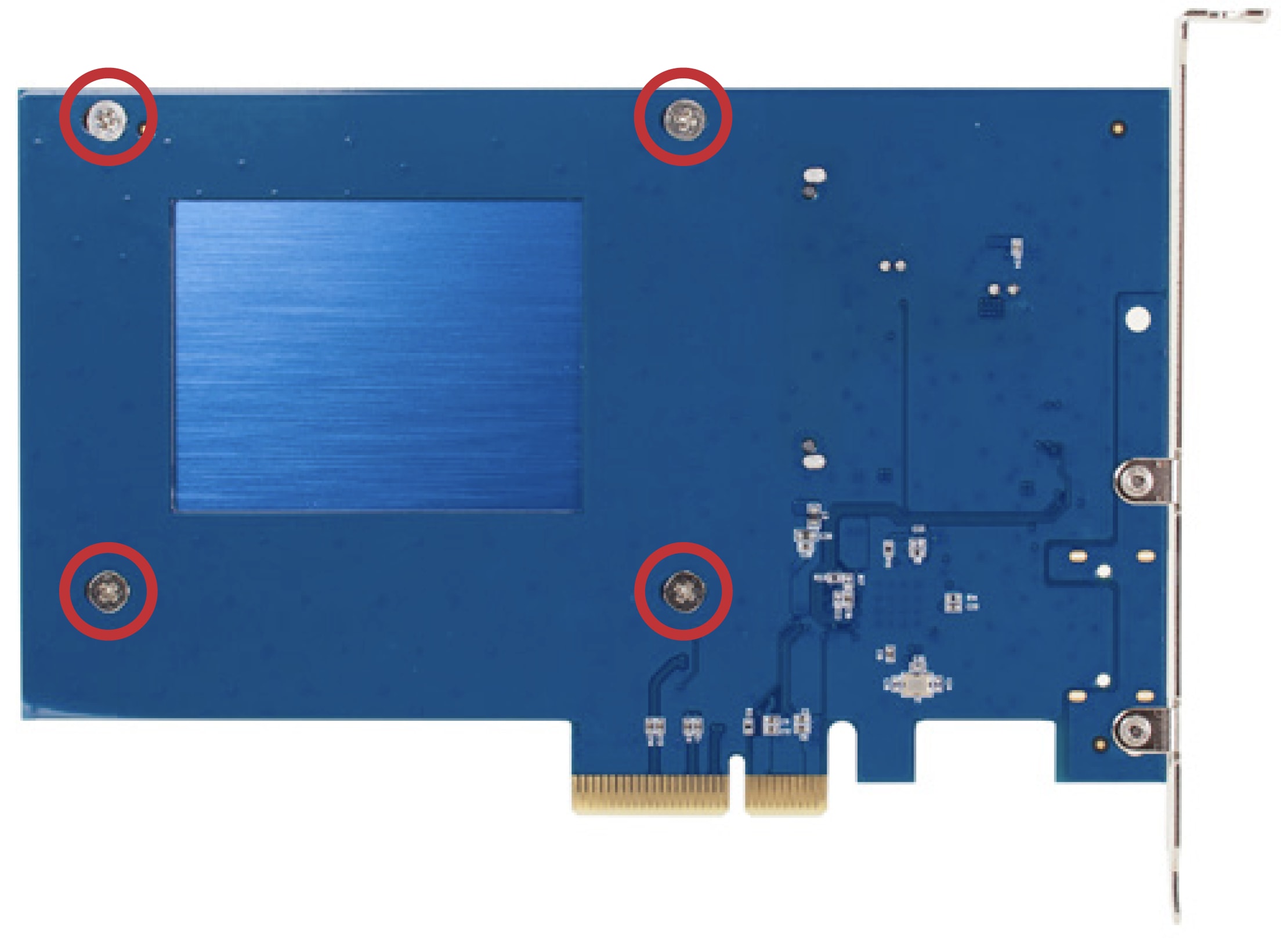

4. Install the four Phillips screws into the four screw holes to secure the drive to the Accelsior S, as shown.
Copyrights and Trademarks
No part of this publication may be reproduced, stored in a retrieval system, or transmitted in any form or by any means, electronic, mechanical, photocopying, recording or otherwise, without the prior written consent of OWC.
© 2018 Other World Computing, Inc. All rights reserved.
OWC, and the OWC logo are trademarks of New Concepts Development Corporation, registered in the U.S. and/or other countries. Apple, Mac, macOS, and OS X are trademarks of Apple Inc., registered in the United States and other countries. Microsoft and Windows are either registered trademarks or trademarks of Microsoft Corporation in the United States and/or other countries. Other marks may be the trademark or registered trademark property of their owners.
For up-to-date warranty information, please check the product web page.
